Bridging Metal Additive Manufacturing and RF Accelerator Design: Development of a 704.4 MHz Crossbar H-Mode Linac for Efficient Beam Acceleration

Chuan Zhang , Eduard Boos , Roland Boehm , Ramy Cherif , Alexander Japs , Stefan Wunderlich This is my paper

Pith reviewed 2026-05-10 03:38 UTC · model grok-4.3

classification ⚛️ physics.acc-ph
keywords metal additive manufacturingcrossbar H-mode cavity704.4 MHz linacUHF acceleratorRF cavityCuCr1Zr alloycooling networkbeam acceleration
0
0 comments X

The pith

Metal additive manufacturing enables a 704.4 MHz Crossbar H-mode cavity to achieve energy gain rates of 1.4-1.5 MeV/m in continuous wave and 4.6-4.8 MeV/m in pulsed operation while keeping peak surface temperature near 60°C.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops the first Crossbar H-mode linac cavity at 704.4 MHz fabricated entirely through metal additive manufacturing, marking the highest-frequency CH structure built to date. It integrates a complex lotus-root-like cooling network that conventional machining cannot produce, paired with a high-strength high-conductivity CuCr1Zr alloy, to handle thermal loads at ultra-high frequencies. This design allows the cavity to support efficient beam acceleration for continuous-wave uses such as accelerator-driven systems and pulsed uses such as spallation neutron sources. By operating in the UHF regime, the structure gains sparking resistance that shifts the main constraint to thermal management, which the additive process then controls within compact dimensions.

Core claim

The MAM-fabricated 704.4 MHz CH cavity with its integrated lotus-root-like cooling network and CuCr1Zr alloy reaches energy gain rates of 1.4-1.5 MeV/m under continuous-wave conditions and 4.6-4.8 MeV/m under pulsed conditions while limiting peak surface temperature to approximately 60 degrees Celsius, thereby providing a manufacturing route for UHF linac structures that exceed present accelerating-gradient limits.

What carries the argument

The lotus-root-like cooling network, a geometry enabled solely by metal additive manufacturing, integrated into the Crossbar H-mode structure to dissipate thermal loads at 704.4 MHz.

If this is right

  • The approach supports efficient frequency jumps and smaller overall accelerator footprints.
  • Higher accelerating gradients become accessible because UHF operation improves sparking resistance.
  • The same manufacturing method suits both continuous-wave and pulsed accelerator applications.
  • It supplies a concrete framework for building next-generation UHF linacs that move past conventional gradient ceilings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same cooling-channel freedom could be applied to other cavity geometries or frequencies where heat removal currently limits performance.
  • Successful real-world testing would open routes to lower-cost or faster production of custom RF components for research facilities.
  • The design might permit electromagnetic optimizations that subtractive methods cannot achieve, potentially improving shunt impedance or field flatness.
  • Scaling the process to larger structures would require verifying that build-volume and post-processing steps preserve the needed tolerances.

Load-bearing premise

The additive manufacturing process must produce surface finishes, dimensional tolerances, and material conductivity that allow the simulated RF and thermal performance to appear in the finished physical cavity.

What would settle it

Fabricate the physical cavity prototype and measure its actual energy gain rates and surface temperatures under both CW and pulsed RF power to check whether they reach the simulated 1.4-1.5 MeV/m and 4.6-4.8 MeV/m targets at around 60°C.

read the original abstract

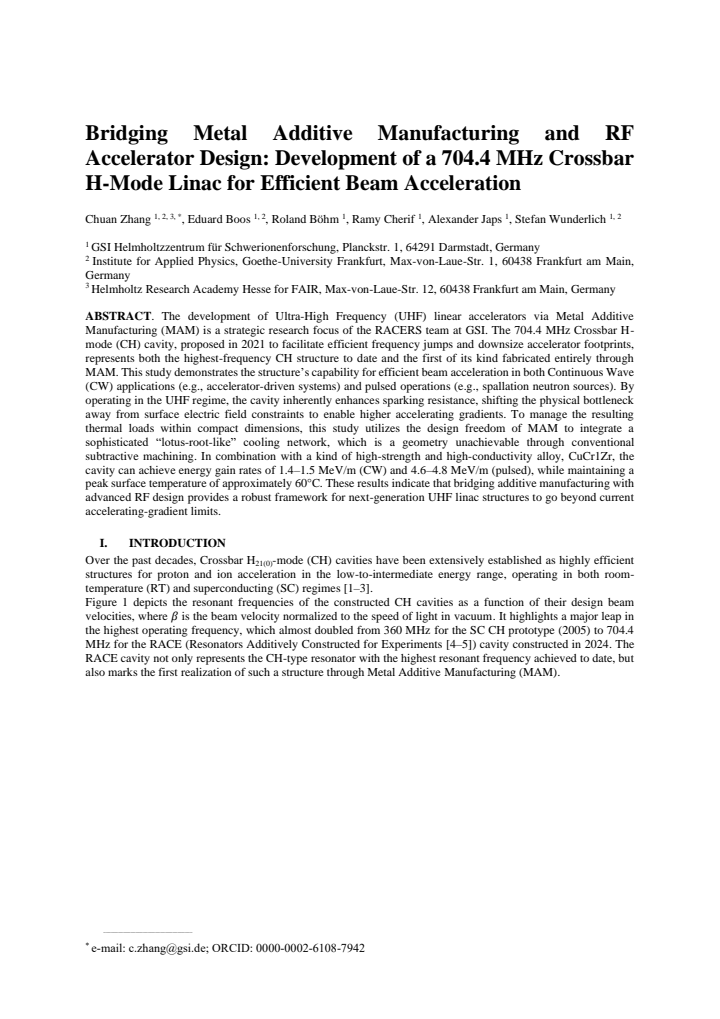

The development of Ultra-High Frequency (UHF) linear accelerators via Metal Additive Manufacturing (MAM) is a strategic research focus of the RACERS team at GSI. The 704.4 MHz Crossbar H-mode (CH) cavity, proposed in 2021 to facilitate efficient frequency jumps and downsize accelerator footprints, represents both the highest-frequency CH structure to date and the first of its kind fabricated entirely through MAM. This study demonstrates the structure's capability for efficient beam acceleration in both Continuous Wave (CW) applications (e.g., accelerator-driven systems) and pulsed operations (e.g., spallation neutron sources). By operating in the UHF regime, the cavity inherently enhances sparking resistance, shifting the physical bottleneck away from surface electric field constraints to enable higher accelerating gradients. To manage the resulting thermal loads within compact dimensions, this study utilizes the design freedom of MAM to integrate a sophisticated "lotus-root-like" cooling network, which is a geometry unachievable through conventional subtractive machining. In combination with a kind of high-strength and high-conductivity alloy, CuCr1Zr, the cavity can achieve energy gain rates of 1.4-1.5 MeV/m (CW) and 4.6-4.8 MeV/m (pulsed), while maintaining a peak surface temperature of approximately 60 degrees Celsius. These results indicate that bridging additive manufacturing with advanced RF design provides a robust framework for next-generation UHF linac structures to go beyond current accelerating-gradient limits.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the design and electromagnetic/thermal simulation of a 704.4 MHz Crossbar H-mode (CH) linac cavity fabricated entirely by metal additive manufacturing (MAM) in CuCr1Zr alloy. It incorporates an integrated lotus-root-like cooling channel network and reports simulated CW energy-gain rates of 1.4–1.5 MeV/m and pulsed rates of 4.6–4.8 MeV/m while keeping peak surface temperature near 60 °C, positioning the structure as a route to higher-gradient UHF accelerators.

Significance. If the simulated performance is realized, the work would demonstrate a practical path to compact, high-gradient UHF linacs by exploiting MAM design freedom for cooling geometries that are impossible with conventional machining. The absence of any post-build metrology or cold-test data on the fabricated cavity, however, means the central performance claims remain unverified projections rather than demonstrated results.

major comments (2)
  1. [Abstract, §4] Abstract and §4 (RF/thermal simulation results): the quoted energy-gain rates (1.4–1.5 MeV/m CW, 4.6–4.8 MeV/m pulsed) and 60 °C peak temperature are outputs of simulations that presuppose ideal bulk conductivity, surface roughness, and dimensional tolerances for the MAM CuCr1Zr part. No post-fabrication measurements (roughness maps, conductivity, leak tests, or cold RF tests yielding Q0 or frequency shift) are reported to confirm these inputs match the physical cavity.
  2. [§3] §3 (MAM fabrication description): the manuscript states that the lotus-root cooling network is “unachievable through conventional subtractive machining” and enables the quoted thermal performance, yet provides no quantitative metrology (e.g., channel diameter tolerances, surface finish inside channels, or leak-tightness data) on the as-built part to support the assumption that the simulated heat-transfer coefficients are achieved.
minor comments (2)
  1. [Figures 8–10] Figure captions and axis labels in the simulation result plots should explicitly state that all curves are simulation outputs under ideal-material assumptions rather than measured data.
  2. [§4] The manuscript would benefit from a short table comparing the simulated Q0, shunt impedance, and peak fields against a conventionally machined reference CH cavity at the same frequency.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed review. The manuscript presents a design and simulation study of a MAM-fabricated 704.4 MHz CH cavity, with the reported performance figures obtained from electromagnetic and thermal simulations. We have revised the text to more clearly state the underlying assumptions and to note that experimental validation remains future work.

read point-by-point responses

  1. Referee: [Abstract, §4] Abstract and §4 (RF/thermal simulation results): the quoted energy-gain rates (1.4–1.5 MeV/m CW, 4.6–4.8 MeV/m pulsed) and 60 °C peak temperature are outputs of simulations that presuppose ideal bulk conductivity, surface roughness, and dimensional tolerances for the MAM CuCr1Zr part. No post-fabrication measurements (roughness maps, conductivity, leak tests, or cold RF tests yielding Q0 or frequency shift) are reported to confirm these inputs match the physical cavity.

    Authors: We agree that the quoted energy-gain rates and peak temperature are simulation outputs that assume ideal bulk conductivity, surface finish, and dimensional accuracy for the CuCr1Zr alloy. The manuscript is a design and simulation study that demonstrates the feasibility of realizing complex internal cooling geometries via MAM; the cavity has been fabricated but post-build metrology and cold RF tests have not yet been completed. In the revised version we will add an explicit paragraph in §4 (and a corresponding sentence in the abstract) stating the simulation assumptions and clarifying that the reported figures are projections pending experimental confirmation. This addresses the concern without overstating the current results. revision: partial

  2. Referee: [§3] §3 (MAM fabrication description): the manuscript states that the lotus-root cooling network is “unachievable through conventional subtractive machining” and enables the quoted thermal performance, yet provides no quantitative metrology (e.g., channel diameter tolerances, surface finish inside channels, or leak-tightness data) on the as-built part to support the assumption that the simulated heat-transfer coefficients are achieved.

    Authors: The assertion that the lotus-root-like network is unachievable by conventional subtractive machining is based on the monolithic, highly branched internal geometry that would require multiple joints and inaccessible features if produced by milling or drilling. We acknowledge that the present manuscript does not supply quantitative as-built metrology (channel tolerances, internal surface roughness, or leak-test results). In the revision we will expand §3 with all available fabrication parameters, add a sentence noting the current absence of detailed channel metrology, and state that the thermal simulations employ conservative heat-transfer coefficients. Full metrology and leak-tightness data will be reported in a follow-on publication once characterization is complete. revision: partial

Circularity Check

0 steps flagged

No circularity: performance claims are direct simulation outputs

full rationale

The paper derives the quoted energy-gain rates (1.4-1.5 MeV/m CW, 4.6-4.8 MeV/m pulsed) and ~60 °C peak temperature from RF and thermal finite-element simulations applied to the MAM geometry and CuCr1Zr properties. These are first-principles numerical solutions of Maxwell's equations and heat-transfer equations; no parameter is fitted to a data subset and then re-labeled as a prediction, no equation reduces the claimed gains to the design inputs by algebraic identity, and the 2021 proposal reference is purely contextual rather than a load-bearing self-citation that supplies the uniqueness or ansatz for the present results. The derivation chain is therefore self-contained and independent of the target quantities.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central performance claims rest on standard RF cavity design principles, assumed material properties of CuCr1Zr, and the ability of MAM to realize the intended geometry; no explicit free parameters or invented entities are stated in the abstract.
