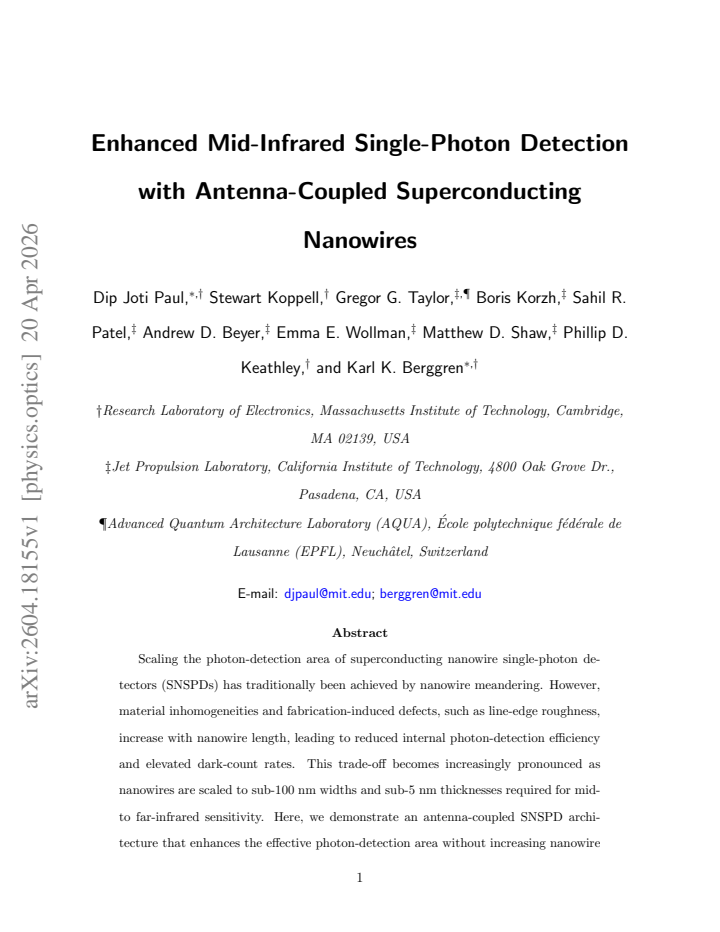

Enhanced Mid-Infrared Single-Photon Detection with Antenna-Coupled Superconducting Nanowires

Dip Joti Paul , Stewart Koppell , Gregor G. Taylor , Boris Korzh , Sahil R. Patel , Andrew D. Beyer , Emma E. Wollman , Matthew D. Shaw
show 2 more authors
Phillip D. Keathley Karl K. Berggren
This is my paper

Pith reviewed 2026-05-10 04:10 UTC · model grok-4.3

classification ⚛️ physics.optics physics.app-ph
keywords superconducting nanowire single-photon detectormid-infraredantenna couplingbowtie antennatungsten silicideeffective detection areasingle-photon detectionnoise-equivalent power
0
0 comments X

The pith

A crossed bowtie antenna enlarges the effective detection area of a mid-infrared nanowire detector by 15.7 times while keeping the nanowire short.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Scaling superconducting nanowire single-photon detectors to mid-infrared wavelengths requires very narrow and thin wires, but lengthening them through meandering introduces defects that lower efficiency and raise dark counts. The paper replaces length scaling with an antenna that concentrates light onto a compact nanowire. A crossed bowtie antenna paired with an 80-nanometer-wide, 3-nanometer-thick tungsten silicide wire produces a 15.7-fold increase in effective area at 7.4 micrometers compared with a bare wire of identical size. Internal detection efficiency and dark-count rate stay the same as the bare device. The approach improves noise-equivalent power and avoids the fabrication problems that grow with longer wires.

Core claim

The antenna-coupled device achieves a 15.7 times larger effective photon-detection area at 7.4 micrometers than a bare nanowire of the same geometric footprint. The internal detection efficiency and dark-count rate remain unchanged from the bare nanowire. Antenna coupling therefore supplies a scalable route to larger detection area without the material inhomogeneities that accompany meander geometries.

What carries the argument

The crossed bowtie antenna that concentrates mid-infrared light onto the small geometric area of the nanowire.

Load-bearing premise

The measured area increase is caused only by the antenna concentrating light, and the nanowire's internal efficiency and dark-count rate are truly identical to those of the bare device under the same conditions.

What would settle it

A side-by-side measurement of photon detection rates for the antenna-coupled nanowire and an identical bare nanowire under the same 7.4-micrometer illumination, confirming the exact 15.7-fold factor without any change in efficiency or noise.

Figures

Figures reproduced from arXiv: 2604.18155 by Andrew D. Beyer, Boris Korzh, Dip Joti Paul, Emma E. Wollman, Gregor G. Taylor, Karl K. Berggren, Matthew D. Shaw, Phillip D. Keathley, Sahil R. Patel, Stewart Koppell.

Figure 1
Figure 1. Figure 1: (a) A schematic of an antenna-coupled SNSPD is shown, featuring a narrow supercon￾ducting constriction in series with inductors (Lind) to enable self-reset operation of the device. A geometric view of the superconducting constriction is shown, depicting a crossed-bowtie antenna patterned on top of a superconducting nanowire that serves as the photon-sensitive region, while the antenna acts as the photon co… view at source ↗
Figure 2

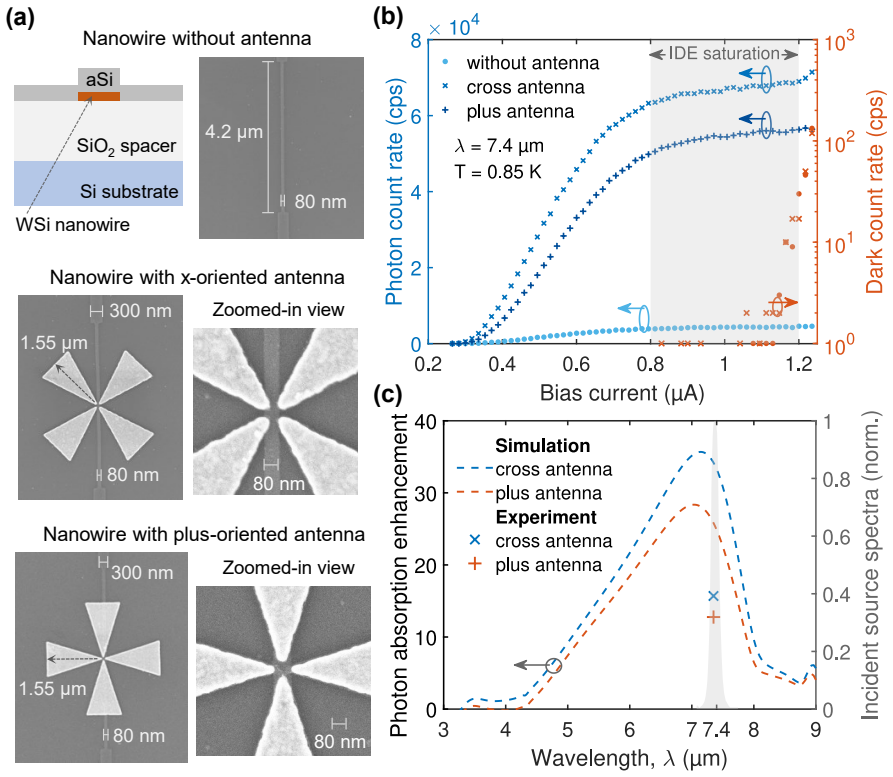

Figure 2. Figure 2: Measurements of the photon-count rate (PCR) and dark-count rate (DCR) for two configurations of antenna-coupled nanowires, compared with a nanowire of identical dimensions without an antenna on the same chip, under the same illumination and measurement conditions. (a) Vertical cross-section of the material stack and a scanning electron microscopy (SEM) image of an 80 nm-wide, 4.2 µm-long bare nanowire are … view at source ↗
Figure 3

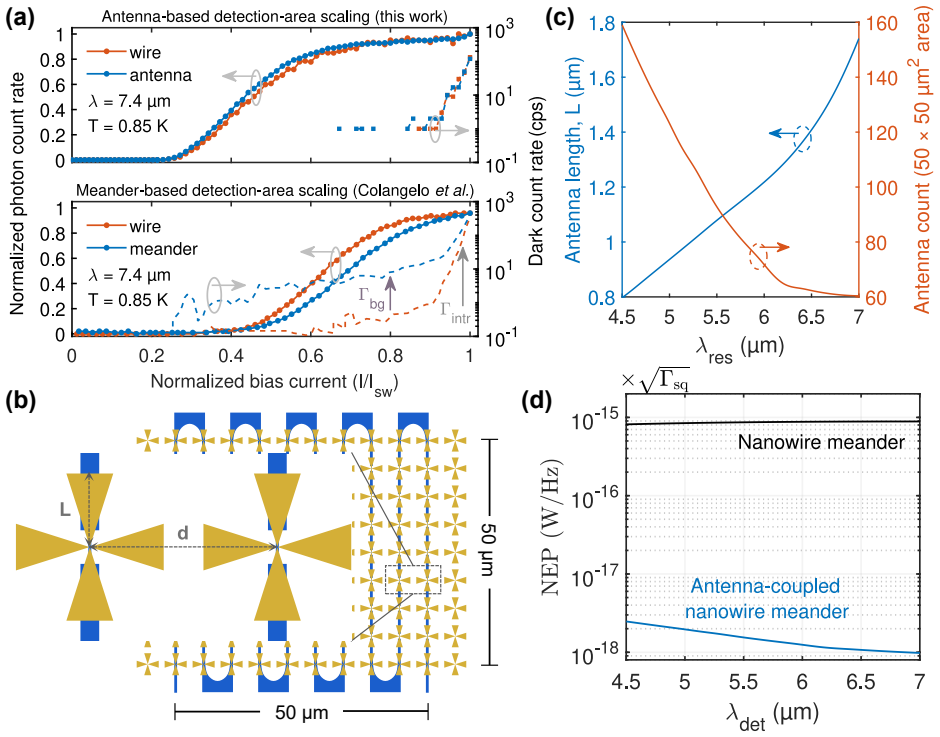

Figure 3. Figure 3: Role of antenna coupling in scaling the effective photon-detection area of mid-IR SNSPDs. (a) The PCR and DCR of the 80 nm-wide, 4.2 µm-long WSi nanowires reported in this work, one antenna-coupled and one bare (without an antenna), are shown. For comparison, PCR and DCR data of WSi-based SNSPDs reported by Colangelo et al., 15 featuring a 60 nm-wide, 20 µm￾long nanowire and a 60 nm-wide, 560 µm-long meand… view at source ↗
read the original abstract

Scaling the photon-detection area of superconducting nanowire single-photon detectors (SNSPDs) has traditionally been achieved by nanowire meandering. However, material inhomogeneities and fabrication-induced defects, such as line-edge roughness, increase with nanowire length, leading to reduced internal photon-detection efficiency and elevated dark-count rates. This trade-off becomes increasingly pronounced as nanowires are scaled to sub-100 nm widths and sub-5 nm thicknesses required for mid- to far-infrared sensitivity. Here, we demonstrate an antenna-coupled SNSPD architecture that enhances the effective photon-detection area without increasing nanowire length. A crossed bowtie antenna integrated with an 80 nm-wide, 3 nm-thick WSi nanowire yields 15.7$\times$ increase in effective detection area at 7.4 $\mu$m compared to a bare nanowire of identical geometric footprint, while maintaining the same internal detection efficiency and dark-count rate. Antenna coupling improves noise-equivalent power and provides a more scalable route to increasing photon-detection area than conventional meander geometries, offering performance benefits for applications in astronomy, biological imaging, and molecular spectroscopy.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript reports an antenna-coupled SNSPD architecture in which a crossed bowtie antenna is integrated with an 80 nm-wide, 3 nm-thick WSi nanowire. At 7.4 μm the device is claimed to deliver a 15.7× increase in effective detection area relative to a bare nanowire of identical geometric footprint while preserving the same internal detection efficiency and dark-count rate. The approach is positioned as a scalable alternative to meandering for mid- to far-infrared SNSPDs.

Significance. If the central experimental claim is robust, the work supplies a concrete route to enlarging the active area of mid-IR SNSPDs without lengthening the nanowire, thereby avoiding the usual penalties in IDE and DCR that accompany meander scaling. The reported noise-equivalent-power improvement and the explicit comparison to a same-footprint control are strengths that would be of interest to the mid-IR single-photon-detection community.

major comments (1)
  1. The 15.7× effective-area enhancement rests on the assertion that internal detection efficiency and dark-count rate are unchanged after antenna integration. Because the antenna-coupled and bare-nanowire devices are fabricated separately, any variation in film thickness, edge roughness, or local current distribution could alter IDE. The manuscript must supply an independent verification—e.g., bias-dependent count-rate curves normalized to the simulated optical-absorption factor obtained from the antenna design—rather than relying solely on raw count-rate ratios.
minor comments (2)
  1. The abstract states the 15.7× factor without accompanying uncertainty or statistical details; the main text should report the number of devices measured, the fitting procedure used to extract effective area, and any error bars on the enhancement factor.
  2. Figure captions and methods should explicitly state the illumination conditions (polarization, spot size, power calibration) used for both the antenna-coupled and bare-nanowire devices so that the comparison is fully reproducible.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful review and for identifying a key point that strengthens the interpretation of our results. We address the major comment below and have revised the manuscript to incorporate additional verification data.

read point-by-point responses

  1. Referee: The 15.7× effective-area enhancement rests on the assertion that internal detection efficiency and dark-count rate are unchanged after antenna integration. Because the antenna-coupled and bare-nanowire devices are fabricated separately, any variation in film thickness, edge roughness, or local current distribution could alter IDE. The manuscript must supply an independent verification—e.g., bias-dependent count-rate curves normalized to the simulated optical-absorption factor obtained from the antenna design—rather than relying solely on raw count-rate ratios.

    Authors: We agree that separate fabrication runs introduce the possibility of device-to-device variation and that raw count-rate ratios alone are insufficient to fully isolate the antenna contribution. In the original manuscript we selected devices with closely matched critical currents (within ~5%) and film thicknesses measured by AFM to minimize such effects, and we reported identical dark-count rates at the operating bias. To address the referee’s request for independent verification, we have added bias-dependent photon-count-rate curves for both the antenna-coupled and bare-nanowire devices, each normalized by the wavelength-dependent absorption efficiency obtained from full-wave FDTD simulations of the crossed-bowtie geometry. These normalized curves reach the same saturation plateau (~95% internal efficiency) at high bias, confirming that the observed 15.7× enhancement arises from increased optical absorption rather than any change in intrinsic detection efficiency. The corresponding dark-count-rate versus bias curves are also shown to be statistically indistinguishable. The revised manuscript now includes these normalized data in Figure 3 and the associated text, together with a brief description of the simulation normalization procedure in the Methods section. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental comparison with no derivations or fitted predictions

full rationale

The paper reports a direct experimental measurement of count-rate enhancement between an antenna-integrated WSi nanowire and a bare control nanowire of identical geometric footprint. The 15.7× effective-area claim is obtained by dividing measured detection rates (after normalizing for the same bias conditions) and does not invoke any equations, parameter fits, or predictions that reduce to the input data by construction. No self-citation chains, ansatzes, or uniqueness theorems are used to justify the central result. The assumption that internal detection efficiency remains unchanged is an experimental claim subject to fabrication variance, but this is a potential systematic error rather than a circular reduction in the derivation. The work is self-contained as a measurement comparison and receives the default non-circularity score.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim is an experimental demonstration rather than a derivation; no free parameters, new entities, or non-standard axioms are invoked in the provided abstract.

axioms (1)
  • domain assumption Standard SNSPD physics assumptions on photon absorption leading to hotspot formation and subsequent detection.
    Implicit background knowledge required to interpret internal detection efficiency.
