Spectral theory of plasmonic resonances in the nonlocal regime

Hyundae Lee , Matias Ruiz , Sanghyeon Yu This is my paper

Pith reviewed 2026-05-10 03:42 UTC · model grok-4.3

classification 🧮 math.AP
keywords plasmonic resonancesnonlocal effectshydrodynamic Drude modelFredholm operator pencilsurface plasmon modesspectral analysisLipschitz domainsquasi-static approximation
0
0 comments X

The pith

Nonlocal plasmonic models support only finitely many surface plasmon resonances, with a single positive accumulation point.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a spectral theory for plasmonic resonances in the nonlocal regime by adopting the quasi-static approximation of the hydrodynamic Drude model. It reformulates the governing equations into a boundary integral system that yields an analytic Fredholm operator pencil. The central finding is that this pencil produces a discrete real spectrum accumulating at one strictly positive value. In contrast to the local theory, only finitely many modes appear and field singularities at corners are regularized. This provides a transparent mathematical account for regularization effects previously noted in simulations.

Core claim

By reformulating the quasi-static hydrodynamic Drude model as a boundary integral system, the authors obtain an analytic Fredholm operator pencil whose spectrum is discrete and real with a single accumulation point at a strictly positive value. Consequently only finitely many surface plasmon modes exist in any bounded Lipschitz domain, and the singular field behavior associated with corners in the local theory is regularized.

What carries the argument

Analytic Fredholm operator pencil obtained from the boundary integral formulation of the nonlocal hydrodynamic equations, which encodes the resonant frequencies.

If this is right

  • Only finitely many surface plasmon modes exist for any bounded Lipschitz domain.
  • The scattered field remains bounded and regular even when the geometry has corners.
  • Resonances accumulate exclusively at one strictly positive value rather than spreading to zero.
  • Nonlocality reshapes the spectral landscape rather than merely shifting individual resonance positions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Nanostructure design with sharp corners may avoid spurious resonances by exploiting material nonlocality.
  • Similar regularization could appear in extensions beyond the quasi-static limit.
  • Spectroscopic measurements on cornered nanoparticles could test the predicted finite mode count.

Load-bearing premise

The quasi-static approximation of the hydrodynamic Drude model remains valid and captures the essential nonlocal physics for the resonant behavior under study.

What would settle it

Numerical computation of the eigenvalues of the boundary integral operator on a polygonal domain that finds either infinitely many resonances or accumulation at or below zero would falsify the spectral claim.

Figures

Figures reproduced from arXiv: 2604.18461 by Hyundae Lee, Matias Ruiz, Sanghyeon Yu.

Figure 1

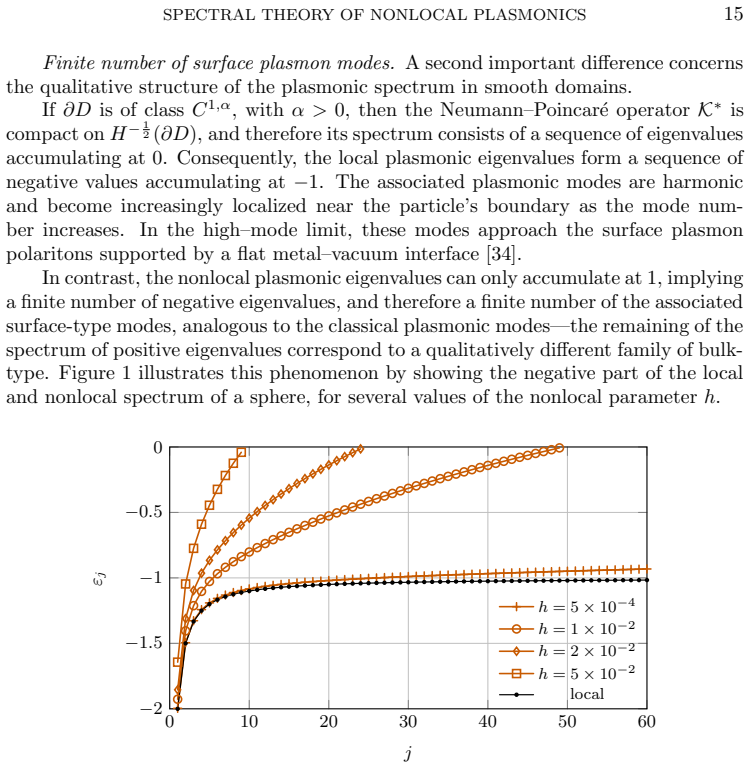

Figure 1. Figure 1: Nonlocal plasmonic eigenvalues for a spherical particle compared with the local quasi [PITH_FULL_IMAGE:figures/full_fig_p015_1.png] view at source ↗
Figure 2

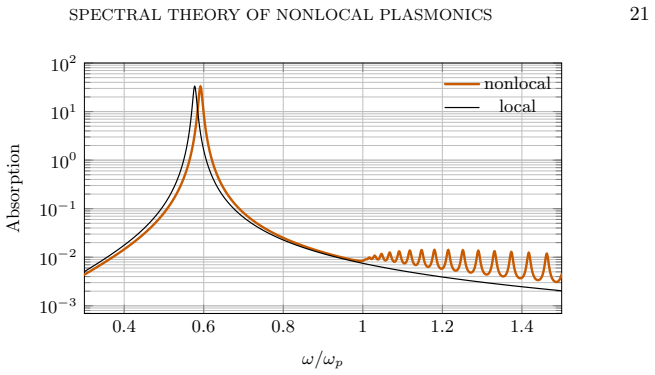

Figure 2. Figure 2: Absorption spectrum for a spherical nanoparticle under far-field excitation. We [PITH_FULL_IMAGE:figures/full_fig_p021_2.png] view at source ↗
Figure 3

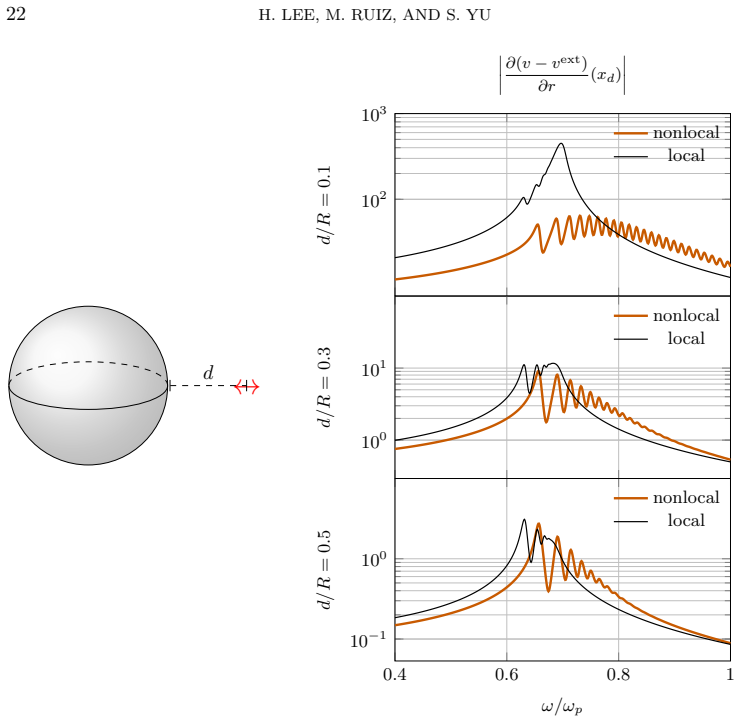

Figure 3. Figure 3: Near–field excitation of a spherical nanoparticle by a point dipole located at distance [PITH_FULL_IMAGE:figures/full_fig_p022_3.png] view at source ↗
Figure 4

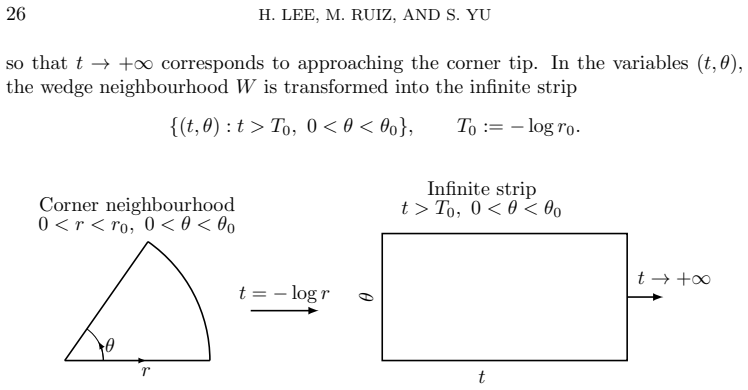

Figure 4. Figure 4: The change of variables t = − log r maps the wedge neighbourhood 0 < r < r0, 0 < θ < θ0 to the infinite strip t > T0, 0 < θ < θ0, where T0 = − log r0. For w ∈ {ρ, u, v}, define wˆ(t, θ) := w(e −t , θ). In polar coordinates (r, θ), the Laplacian is ∆ = ∂ 2 r + 1 r ∂r + 1 r 2 ∂ 2 θ , and a direct computation gives ∆w(r, θ) = 1 r 2 [PITH_FULL_IMAGE:figures/full_fig_p026_4.png] view at source ↗
read the original abstract

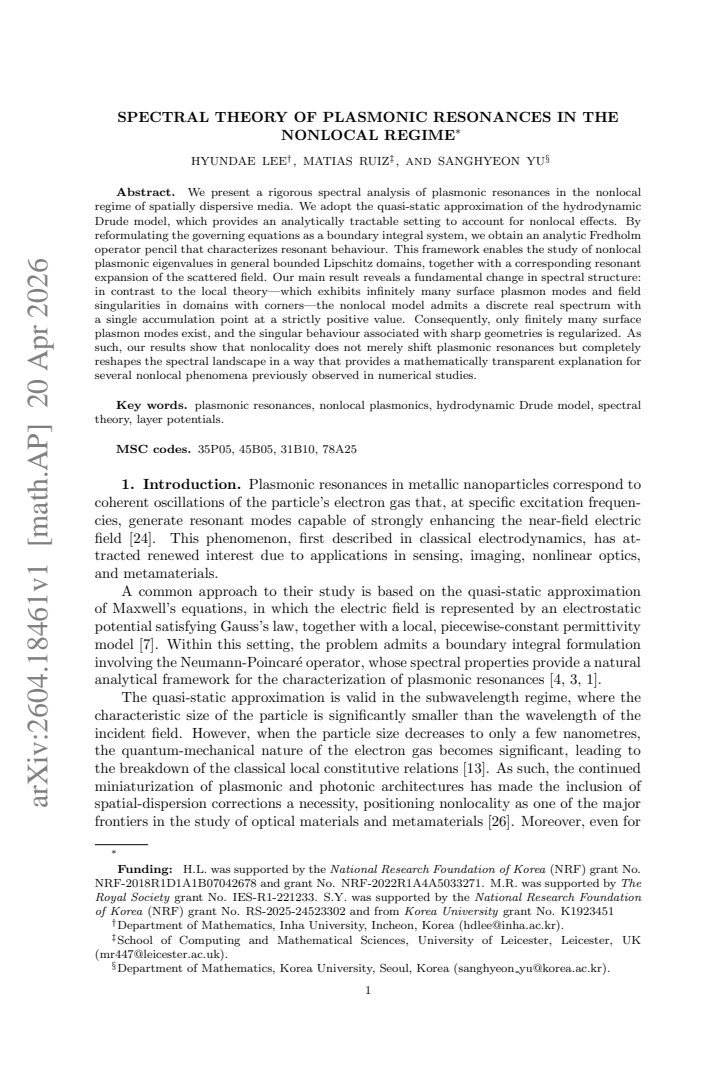

We present a rigorous spectral analysis of plasmonic resonances in the nonlocal regime of spatially dispersive media. We adopt the quasi-static approximation of the hydrodynamic Drude model, which provides an analytically tractable setting to account for nonlocal effects. By reformulating the governing equations as a boundary integral system, we obtain an analytic Fredholm operator pencil that characterizes resonant behaviour. This framework enables the study of nonlocal plasmonic eigenvalues in general bounded Lipschitz domains, together with a corresponding resonant expansion of the scattered field. Our main result reveals a fundamental change in spectral structure: in contrast to the local theory -- which exhibits infinitely many surface plasmon modes and field singularities in domains with corners -- the nonlocal model admits a discrete real spectrum with a single accumulation point at a strictly positive value. Consequently, only finitely many surface plasmon modes exist, and the singular behaviour associated with sharp geometries is regularized. As such, our results show that nonlocality does not merely shift plasmonic resonances but completely reshapes the spectral landscape in a way that provides a mathematically transparent explanation for several nonlocal phenomena previously observed in numerical studies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The paper claims to deliver a rigorous spectral analysis of plasmonic resonances in the nonlocal regime via the quasi-static hydrodynamic Drude model. The governing PDE system is recast as a boundary-integral equation whose associated analytic Fredholm operator pencil is shown to possess a discrete real spectrum that accumulates at only one strictly positive point. This implies the existence of only finitely many surface-plasmon eigenvalues and the regularization of corner singularities, in sharp contrast to the local theory, which admits infinitely many modes and singular fields.

Significance. If the central Fredholm-analytic argument holds, the result supplies a mathematically transparent explanation for the regularization of plasmonic resonances by nonlocality that has been observed numerically but previously lacked rigorous justification. The self-contained use of standard Fredholm theory on a reformulated boundary-integral system, together with the explicit contrast to the local case, constitutes a clear advance in the spectral theory of nonlocal plasmonics for general Lipschitz domains.

minor comments (2)
  1. The abstract states that the accumulation point is 'strictly positive' but does not give its explicit dependence on the nonlocal length-scale parameter; stating this dependence (even if only in the introduction) would make the spectral picture more immediately quantitative.
  2. The resonant expansion of the scattered field is mentioned as a consequence of the spectral theory; a brief outline of the expansion formula in §3 or §4 would help readers connect the eigenvalue result to practical field computations.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive summary, significance assessment, and recommendation to accept the manuscript. We are pleased that the central Fredholm-analytic argument and the contrast with the local theory are viewed as providing a transparent explanation for the regularization effects of nonlocality.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper derives its main spectral result by reformulating the quasi-static hydrodynamic Drude model into a boundary-integral operator pencil and then invoking standard analytic Fredholm theory on Lipschitz domains. This yields the discrete real spectrum accumulating at a single positive point as a direct consequence of the operator properties, without any fitted parameters, self-definitional loops, or load-bearing self-citations that presuppose the target conclusion. The regularization of corner singularities follows immediately once only finitely many eigenvalues lie below the accumulation point. The argument is self-contained against external mathematical benchmarks and does not reduce any claim to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the validity of the quasi-static hydrodynamic Drude model and standard functional-analytic assumptions for Lipschitz domains; no free parameters are fitted and no new entities are postulated.

axioms (2)
  • domain assumption Quasi-static approximation of the hydrodynamic Drude model captures the essential nonlocal physics.
    Invoked to obtain the governing equations that are then reformulated as a boundary integral system.
  • domain assumption The domain is bounded and Lipschitz.
    Required for the well-posedness of the boundary integral operator pencil.
