Linear-wave bound on electromagnetic energy equipartition at sub-electron scales in non-relativistic plasmas

Vivek Shrivastav , Mani K Chettri , Britan Singh , Hemam D. Singh , Rupak Mukherjee This is my paper

Pith reviewed 2026-05-10 03:10 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords plasma turbulencekinetic Alfvén waveswhistler wavesenergy equipartitionsub-electron scalesmagnetotail turbulenceMMS observations
0
0 comments X

The pith

Linear wave theory bounds the electric-to-magnetic energy ratio far below equipartition in non-relativistic plasmas at sub-electron scales.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper calculates the electric-to-magnetic energy ratio using the linear polarization relations of kinetic Alfvén waves and whistler waves in a two-fluid model. Deep in the sub-electron regime this ratio approaches a fixed small value set by the Alfvén speed, ion-to-electron mass ratio, and electron beta. For typical magnetotail conditions the value is roughly 500 times smaller than the near-equipartition reported by MMS observations, so the data cannot be explained by linear waves relaxing toward thermodynamic equilibrium.

Core claim

In the two-fluid framework the electric-to-magnetic energy ratio for kinetic Alfvén and whistler waves saturates at R_∞ = (V_A/c)^2 (m_i/m_e)(β_e/2) for wave numbers much larger than the electron inertial length. For magnetotail parameters this gives R_∞ ≈ 2 × 10^{-3}, about 500 times below the observed value of order unity. The threshold for R_∞ = 1 requires relativistic Alfvén speeds that no non-relativistic space plasma meets.

What carries the argument

The saturation value R_∞ of the electric-to-magnetic energy spectral density ratio, obtained from the linear dispersion and polarization relations of kinetic Alfvén waves and whistler waves in the two-fluid approximation.

Load-bearing premise

The linear polarization relations for kinetic Alfvén and whistler waves derived in the two-fluid framework remain valid for bounding the energy ratio of the observed turbulent fluctuations at sub-electron scales.

What would settle it

Direct comparison of measured electric and magnetic spectral densities in a non-relativistic plasma whose Alfvén speed is artificially raised close to the derived threshold value, checking whether the ratio reaches order unity or stays low.

Figures

Figures reproduced from arXiv: 2604.18472 by Britan Singh, Hemam D. Singh, Mani K Chettri, Rupak Mukherjee, Vivek Shrivastav.

Figure 1

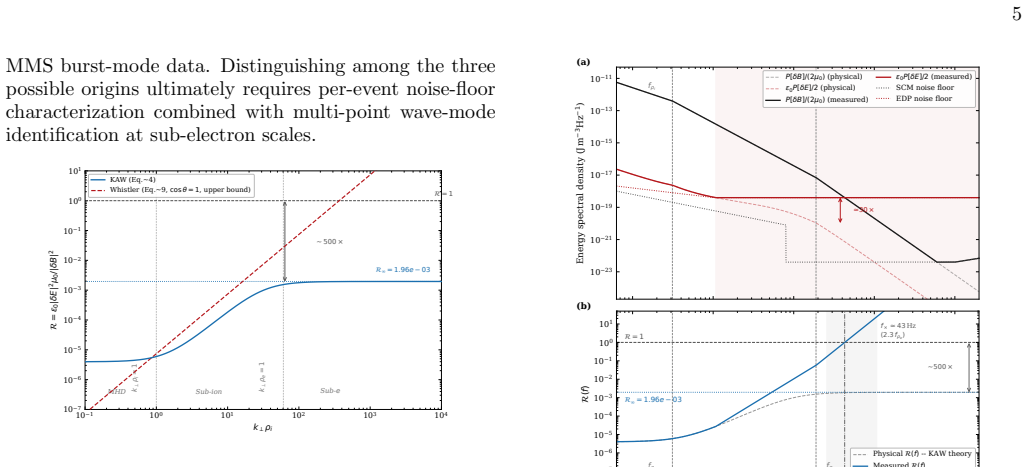

Figure 1. Figure 1: FIG. 1. Electromagnetic energy ratio [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 2

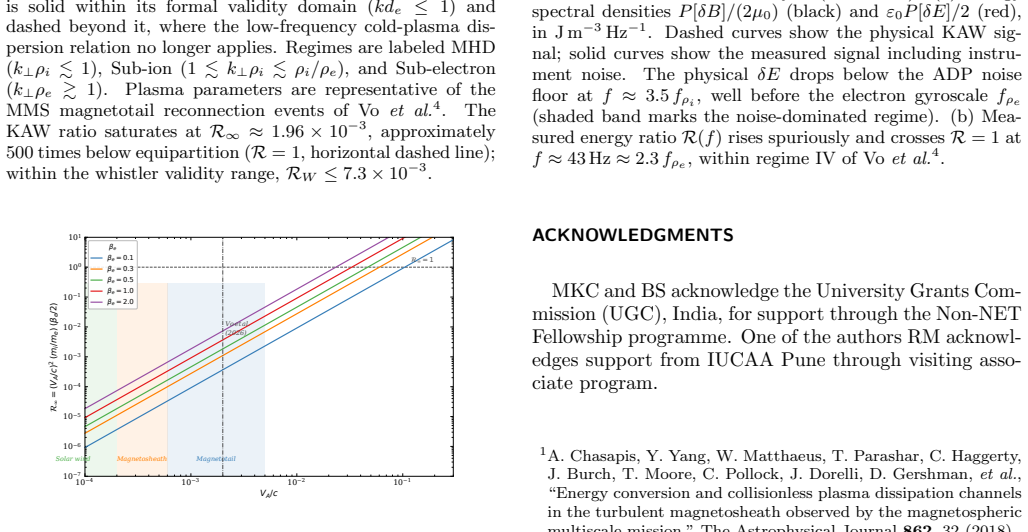

Figure 2. Figure 2: FIG. 2. Asymptotic KAW energy ratio [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

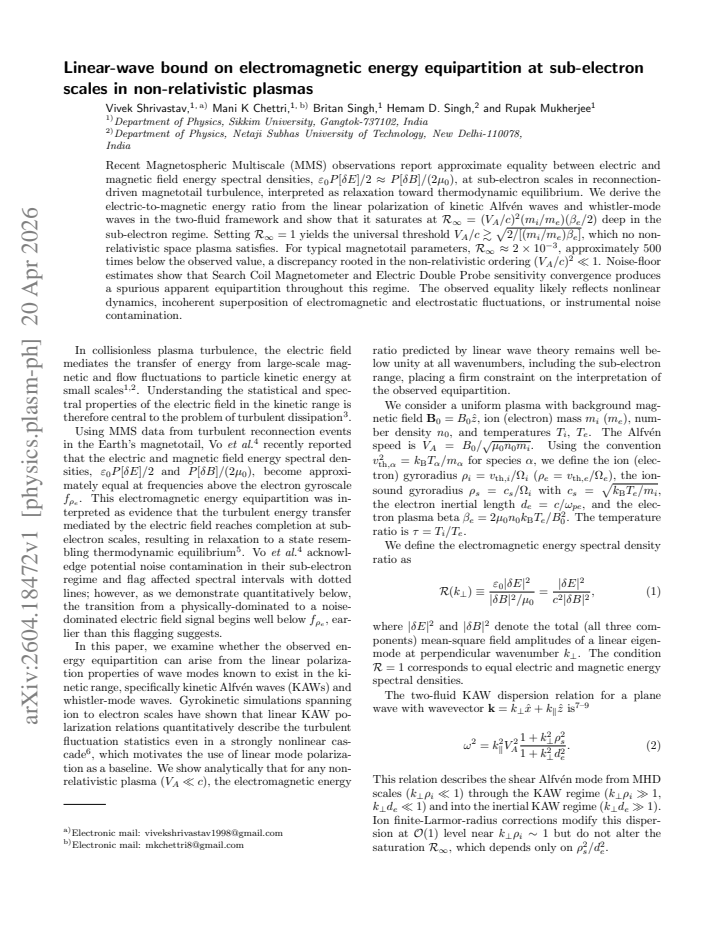

read the original abstract

Recent Magnetospheric Multiscale (MMS) observations report approximate equality between electric and magnetic field energy spectral densities, $\varepsilon_{0} P[\delta E]/2 \approx P[\delta B]/(2\mu_{0})$, at sub-electron scales in reconnection-driven magnetotail turbulence, interpreted as relaxation toward thermodynamic equilibrium. We derive the electric-to-magnetic energy ratio from the linear polarization of kinetic Alfv\'en waves and whistler-mode waves in the two-fluid framework and show that it saturates at $\mathcal{R}_{\infty}=(V_{A}/c)^{2}(m_{i}/m_{e})(\beta_{e}/2)$ deep in the sub-electron regime. Setting $\mathcal{R}_{\infty}=1$ yields the universal threshold $V_{A}/c \gtrsim \sqrt{2/[(m_{i}/m_{e})\beta_{e}]}$, which no non-relativistic space plasma satisfies. For typical magnetotail parameters, $\mathcal{R}_{\infty}\approx 2\times 10^{-3}$, approximately 500 times below the observed value, a discrepancy rooted in the non-relativistic ordering $(V_{A}/c)^{2}\ll 1$. Noise-floor estimates show that Search Coil Magnetometer and Electric Double Probe sensitivity convergence produces a spurious apparent equipartition throughout this regime. The observed equality likely reflects nonlinear dynamics, incoherent superposition of electromagnetic and electrostatic fluctuations, or instrumental noise contamination.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper derives the asymptotic electric-to-magnetic energy ratio R_∞ = (V_A/c)^2 (m_i/m_e) (β_e/2) from the linear polarization relations of kinetic Alfvén and whistler waves in the two-fluid framework. It shows that R_∞ ≪ 1 for all non-relativistic space plasmas, yielding a universal threshold V_A/c ≳ sqrt(2/[(m_i/m_e) β_e]) that is never satisfied; for typical magnetotail parameters R_∞ ≈ 2×10^{-3}, far below the MMS-observed equipartition. The manuscript concludes that the observed equality must arise from nonlinear dynamics, incoherent EM/ES superposition, or instrumental noise rather than linear waves.

Significance. If the linear bound is applicable, the result supplies a clean, parameter-free theoretical constraint demonstrating that electromagnetic equipartition cannot be realized by linear KAW/whistler polarization in non-relativistic plasmas. This would sharpen the interpretation of sub-electron-scale turbulence observations and underscore the roles of nonlinearity or measurement artifacts. The derivation itself is notable for relying solely on standard dispersion and polarization relations without data fitting.

major comments (2)
  1. [derivation of R_∞ and application to MMS observations] The central claim that the observed R ≈ 1 cannot arise from linear waves rests on the unverified premise that the two-fluid linear polarization relations continue to bound the energy ratio inside fully developed turbulence at k d_e ≫ 1. The manuscript does not address how nonlinearly generated electrostatic fluctuations, non-propagating structures, or kinetic electron effects (Landau/cyclotron damping omitted by the two-fluid closure) would alter the effective E/B partition; this assumption is load-bearing for the conclusion that the MMS equality reflects noise or nonlinearity.
  2. [noise-floor discussion] Noise-floor estimates are invoked to explain spurious equipartition, yet the manuscript provides no quantitative details on the Search Coil Magnetometer and Electric Double Probe sensitivity curves, their convergence scale, or the precise spectral range over which the apparent R = 1 is produced. Without these calculations or supporting figures, the instrumental-contamination argument remains qualitative and cannot be assessed against the reported 500-fold discrepancy.
minor comments (1)
  1. [abstract and main derivation] Notation for the saturated ratio is introduced as R_∞ in the abstract but the explicit two-fluid polarization algebra leading to the factor β_e/2 is not reproduced in the provided text; a short appendix or inline derivation would improve traceability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their thoughtful and constructive review. We address each major comment below, indicating revisions made to strengthen the manuscript.

read point-by-point responses

  1. Referee: [derivation of R_∞ and application to MMS observations] The central claim that the observed R ≈ 1 cannot arise from linear waves rests on the unverified premise that the two-fluid linear polarization relations continue to bound the energy ratio inside fully developed turbulence at k d_e ≫ 1. The manuscript does not address how nonlinearly generated electrostatic fluctuations, non-propagating structures, or kinetic electron effects (Landau/cyclotron damping omitted by the two-fluid closure) would alter the effective E/B partition; this assumption is load-bearing for the conclusion that the MMS equality reflects noise or nonlinearity.

    Authors: We agree that the analysis is confined to linear waves in the two-fluid framework and does not model fully developed turbulence. The central result is that linear KAW and whistler polarization cannot yield R ≈ 1 in non-relativistic plasmas, which directly supports the conclusion that the MMS observations require nonlinear dynamics, incoherent EM/ES superposition, or noise. We have added a dedicated paragraph in the revised discussion section that explicitly acknowledges the limitations of the two-fluid closure, including the absence of Landau/cyclotron damping and the possible role of nonlinearly generated electrostatic fluctuations or non-propagating structures. This addition clarifies that the linear bound serves as a reference point rather than a complete description of turbulence, while preserving the manuscript's core finding. revision: partial

  2. Referee: [noise-floor discussion] Noise-floor estimates are invoked to explain spurious equipartition, yet the manuscript provides no quantitative details on the Search Coil Magnetometer and Electric Double Probe sensitivity curves, their convergence scale, or the precise spectral range over which the apparent R = 1 is produced. Without these calculations or supporting figures, the instrumental-contamination argument remains qualitative and cannot be assessed against the reported 500-fold discrepancy.

    Authors: We acknowledge that the noise-floor discussion was insufficiently detailed in the original submission. The revised manuscript now includes quantitative estimates derived from the published sensitivity curves of the MMS Search Coil Magnetometer and Electric Double Probe. We specify the relevant frequency (or wavenumber) ranges at sub-electron scales where the instrument noise floors converge to produce an apparent R ≈ 1, and we have added a new figure that overlays these noise levels on representative turbulence spectra to illustrate the 500-fold discrepancy. These additions make the instrumental argument quantitative and directly comparable to the observations. revision: yes

Circularity Check

0 steps flagged

No circularity; R_∞ follows directly from standard two-fluid linear polarization relations without fitting or self-referential reduction.

full rationale

The derivation begins from the two-fluid equations and extracts the electric-to-magnetic energy ratio R_∞ = (V_A/c)^2 (m_i/m_e) (β_e/2) at high k d_e by inserting the linear polarization relations for KAW and whistler modes. This expression is obtained algebraically from the dispersion relation and the definitions of V_A, β_e, and the wave fields; it contains no fitted parameters, no data from the MMS observations, and no load-bearing self-citation. The subsequent comparison to the observed equipartition value is an application of the derived bound, not a redefinition of the bound itself. No step in the chain reduces to its own input by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on the two-fluid model and the assumption that linear wave polarization governs the energy ratio even in turbulent regimes; no new free parameters or postulated entities are introduced.

axioms (2)
  • domain assumption Two-fluid framework accurately describes polarization of kinetic Alfvén and whistler waves at sub-electron scales
    Invoked to derive the electric-to-magnetic energy ratio from linear wave properties.
  • domain assumption Linear wave polarization relations bound the energy ratio of turbulent fluctuations
    Used to extrapolate from wave theory to the observed turbulent spectra.
