Multiscale phase dynamics and $2\pi$ phase kinks in injection-locked optoelectronic oscillators with large delay

Abhijit Banerjee; Trevor J. Hall

arxiv: 2604.18499 · v1 · submitted 2026-04-20 · ⚛️ physics.optics

Multiscale phase dynamics and 2π phase kinks in injection-locked optoelectronic oscillators with large delay

Abhijit Banerjee , Trevor J. Hall This is my paper

Pith reviewed 2026-05-10 04:00 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords injection lockingoptoelectronic oscillatorsphase kinksdelay differential equationsAdler equationsmultiscale analysisphase dynamicsfrequency locking

0 comments

The pith

Large-delay injection-locked optoelectronic oscillators spontaneously form persistent 2π phase kinks that enable frequency locking without phase locking.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a multiscale theoretical framework to explain the origin and stability of spontaneous 2π phase kinks in injection-locked optoelectronic oscillators with large delays. Starting from a complex-envelope delay differential equation that includes gain saturation and bandpass filter dynamics, the authors derive a phase-only model and apply a two-timescale reduction to obtain a continuum of Adler equations for the phase difference as a function of round-trip time. Analytical solutions for weak injection show how initially smooth phase profiles sharpen into localized kinks, with p kinks appearing per round trip near the pth adjacent mode. Full-model simulations confirm the sharpening mechanism but demonstrate that resonator-induced amplitude excursions can erase kinks when the trajectory does not encircle the origin. This matters because it extends classical single-mode locking theory to large-delay regimes and identifies a distinct operating state of frequency locking without phase locking.

Core claim

A two-timescale reduction applied to the phase dynamics of large-delay IL-OEOs yields a continuum of Adler equations that govern the slow evolution of the phase difference between the injected signal and the oscillator. For weak injection and small detuning, the equations predict that smooth phase profiles evolve into p localized 2π phase kinks per round trip when tuned near the pth adjacent mode. Time-domain simulations of the full complex-envelope model validate the kink formation process while revealing that RF resonator dynamics control persistence: amplitude excursions associated with steep phase gradients can erase the kinks and restore conventional phase locking.

What carries the argument

A continuum of Adler equations obtained via two-timescale reduction of the phase difference between injected signal and oscillator as a function of round-trip time, which drives the sharpening of phase profiles into localized 2π kinks.

If this is right

Initially smooth phase profiles sharpen into localized 2π phase kinks under weak injection and small detuning.
p kinks appear per round trip when the injection is tuned near the pth adjacent mode.
The reduced phase-only model correctly predicts kink formation but is limited by amplitude variations.
Resonator-induced amplitude excursions can erase kinks when the trajectory fails to encircle the origin.
Frequency locking without phase locking occurs in the regime where kinks persist.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same multiscale reduction may apply to other classes of large-delay oscillators in optics or electronics.
Varying the RF bandpass filter bandwidth offers a direct test of the boundary between phase-locked and frequency-locked states.
Persistent kinks could be exploited to store or manipulate phase information across multiple round trips.
Adding weak noise to the reduced model would clarify whether kinks remain stable against small perturbations.

Load-bearing premise

The oscillation amplitude remains nearly constant so that a phase-only description accurately captures the dynamics.

What would settle it

A simulation or experiment in which a steep phase gradient causes the complex-envelope trajectory to fail to encircle the origin, after which the predicted kinks disappear and conventional locking is restored.

read the original abstract

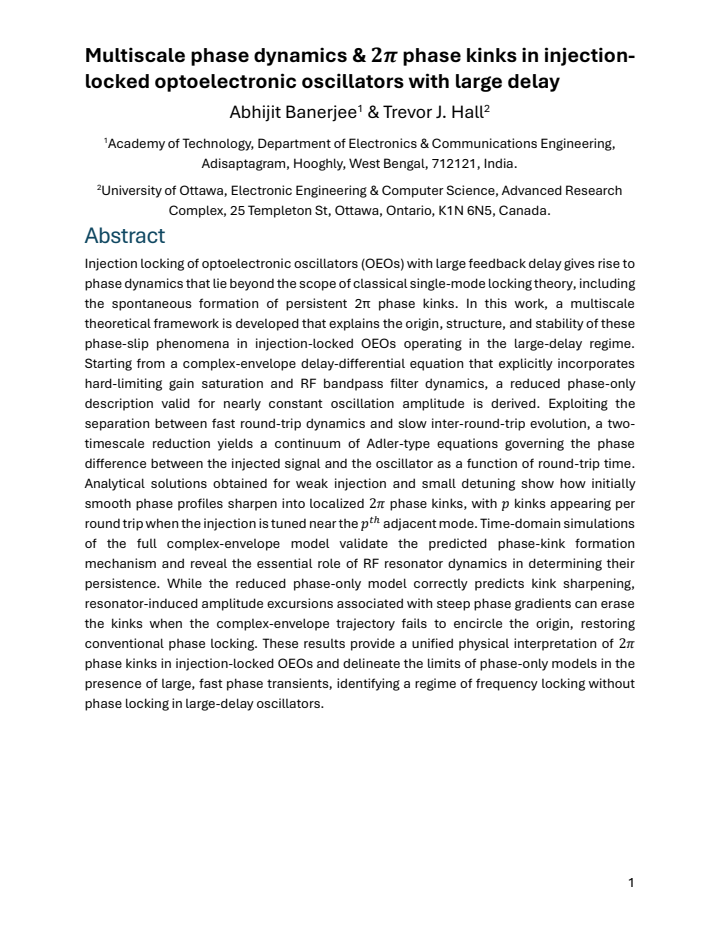

Injection locking of optoelectronic oscillators (OEOs) with large delay gives rise to phase dynamics that lie beyond the scope of classical single mode locking theory, including the spontaneous formation of persistent $2\pi$ phase kinks. In this work, a multiscale theoretical framework is developed that explains the origin, structure, and stability of these phase slip phenomena in injection locked (IL) OEOs operating in large-delay regime. Starting from a complex envelope delay differential equation that explicitly incorporates hard-limiting gain saturation and RF BPF dynamics, a reduced phase-only description valid for nearly constant oscillation amplitude is derived. Exploiting the separation between fast round-trip dynamics and slow inter-round-trip evolution, a two-timescale reduction yields a continuum of Adler equations governing phase difference between injected signal and oscillator as a function of round-trip time. Analytical solutions obtained for weak injection and small detuning show how initially smooth phase profiles sharpen into localized $2\pi$ phase kinks, with p kinks appearing per round trip when the injection is tuned near the pth adjacent mode. Time-domain simulations of full complex-envelope model validate the predicted phase kink formation mechanism and reveal essential role of RF resonator dynamics in determining their persistence. While the reduced phase-only model correctly predicts kink sharpening, resonator-induced amplitude excursions associated with steep phase gradients can erase the kinks when the complex-envelope trajectory fails to encircle the origin, restoring conventional phase locking. These results provide a unified physical interpretation of $2\pi$phase kinks in IL-OEOs and delineate the limits of phase-only models in the presence of large, fast phase transients, identifying a regime of frequency locking without phase locking in large delay oscillators.
