Inertia Matching Principle: Improving Transient Synchronization Stability in Hybrid Power Systems With VSGs and SGs

Changjun He , Li Zhang , Qi Liu , Rui Zou This is my paper

Pith reviewed 2026-05-10 02:36 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords virtual synchronous generatorsynchronous generatortransient stabilityinertia matchinghybrid power systemssynchronization dynamicsvirtual impedance
0
0 comments X

The pith

Matching virtual synchronous generator inertia to synchronous generators at an optimal constant maximizes transient synchronization stability in hybrid power systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper shows that in power systems mixing virtual synchronous generators with traditional synchronous generators, simply raising the virtual inertia does not steadily improve how the machines stay locked in step after a disturbance. A relative swing equation model reveals an optimal inertia matching value between the two generator types that delivers the highest stability margin. Beyond that point, further inertia increases can trigger a new form of instability. The work also demonstrates that the proportion of virtual generators in the mix affects stability only when their inertia level is properly coordinated with output impedance.

Core claim

Using a relative swing equation that describes the angle and frequency difference between a VSG and an SG, the analysis produces a quantitative stability level index. Static and dynamic examination of this index identifies a non-monotonic dependence on VSG inertia: an optimal matching constant exists that maximizes the index, while both too-low and too-high values degrade performance. A second principle shows that VSG penetration level influences synchronization only through its interaction with virtual impedance; proper coordination of inertia and impedance is required for robust stability and reduced fault current.

What carries the argument

The relative swing equation model between VSG and SG, together with the derived quantitative stability level index that quantifies the margin against loss of synchronization.

If this is right

  • Improper inertia matching between VSG and SG creates a previously unrecognized instability route that can be avoided by selecting the optimal matching constant.
  • VSG share in the system affects transient stability only when inertia is matched to virtual impedance; mismatched designs lose stability as penetration rises.
  • A coordinated adjustment of inertia and virtual impedance simultaneously raises stability margins and limits fault currents.
  • The strategy remains effective on both small test systems and the IEEE 39-bus network.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Control tuning for grids with rising renewable shares should treat inertia and impedance as coupled parameters rather than independent knobs.
  • Failure to observe the matching principle may explain some observed synchronization issues in real hybrid systems after faults.
  • Extending the matching analysis to clusters containing several VSGs and SGs would test whether the optimal constant generalizes.
  • Impedance adjustment may trade off against voltage regulation quality, requiring joint optimization in future designs.

Load-bearing premise

The relative swing equation model accurately captures the transient synchronization dynamics between the VSG and the SG without significant unmodeled effects.

What would settle it

Simulate a two-machine VSG-SG system while sweeping VSG inertia across a range of matching constants and check whether the measured critical clearing time or stability index reaches a clear maximum at one specific value rather than rising monotonically.

Figures

Figures reproduced from arXiv: 2604.18987 by Changjun He, Li Zhang, Qi Liu, Rui Zou.

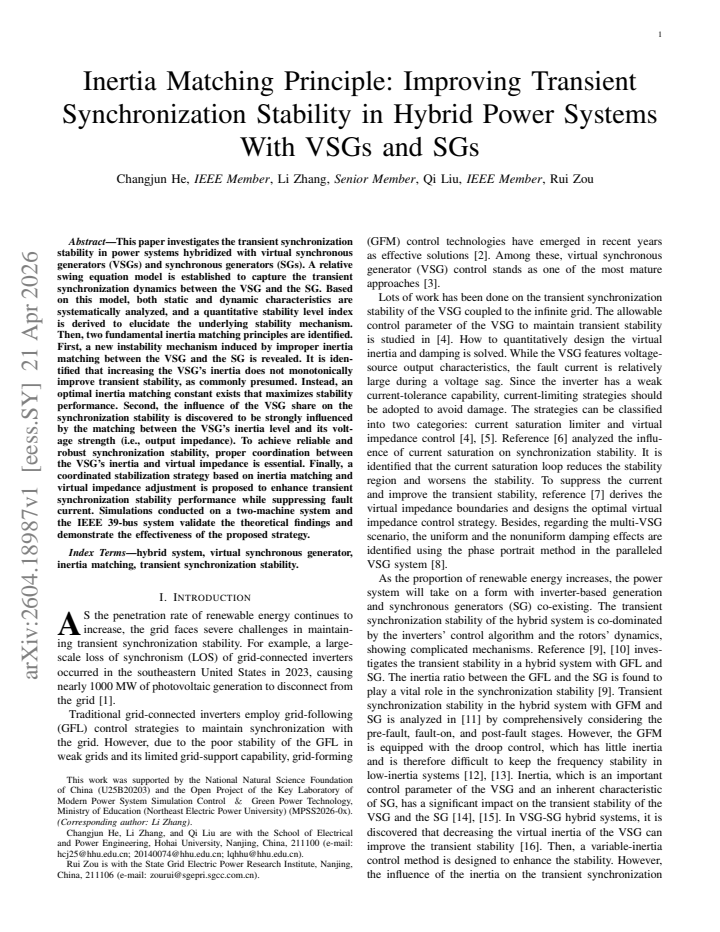

Figure 2

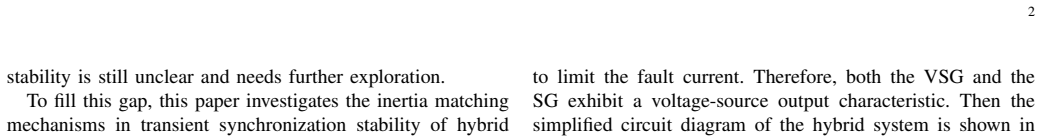

Figure 2. Figure 2: Simplified circuit diagram of the hybrid VSG-SG system [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 1
Figure 1. Figure 1: Topology of the hybrid system under grid faults. [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

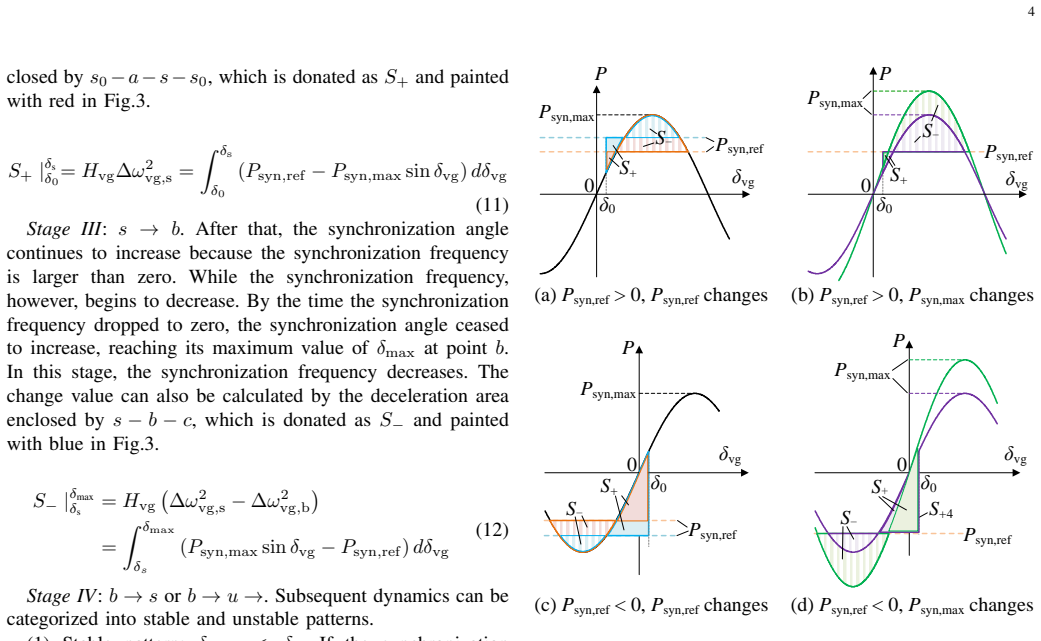

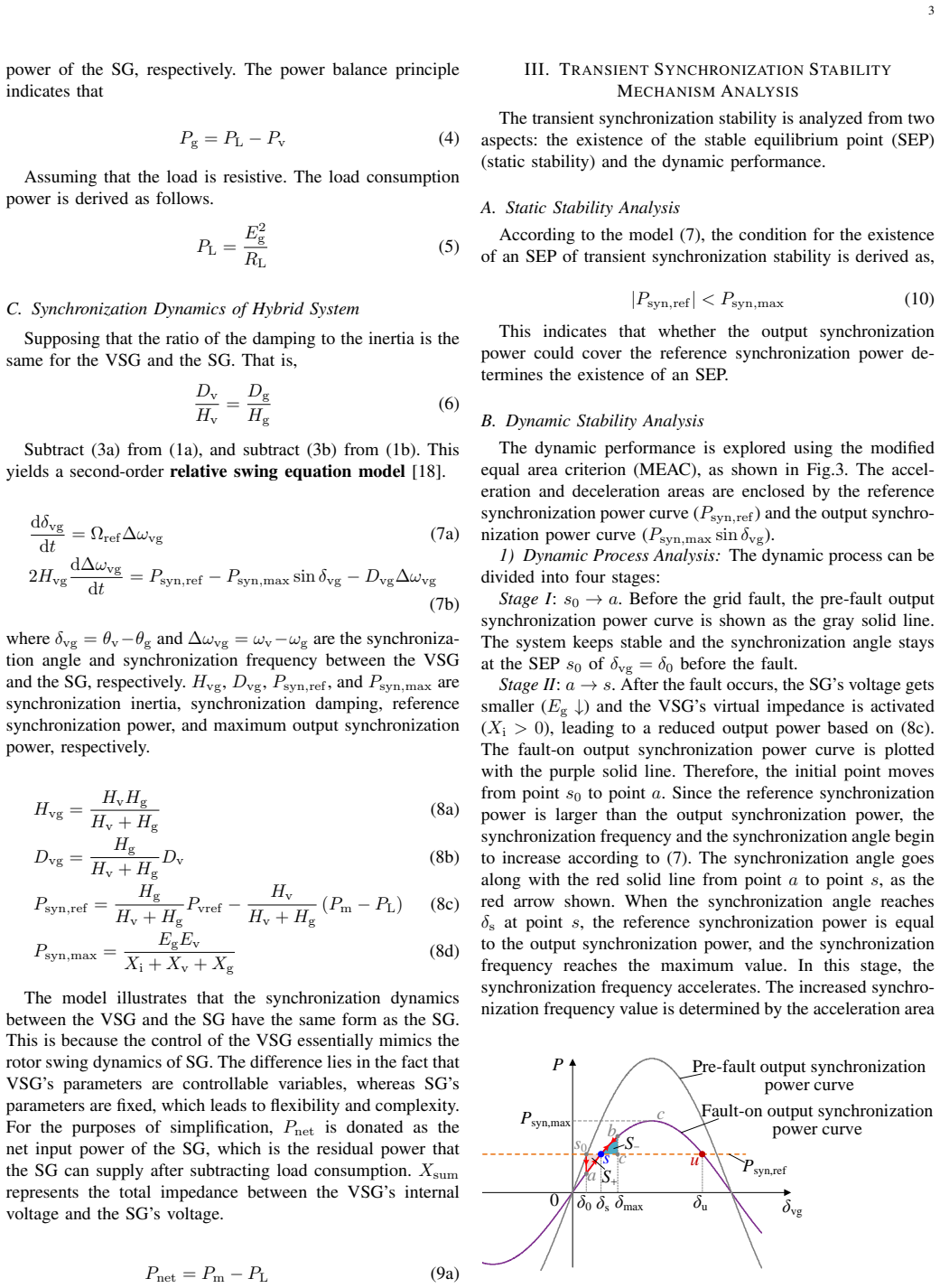

Figure 3. Figure 3: Modified equal area criterion [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

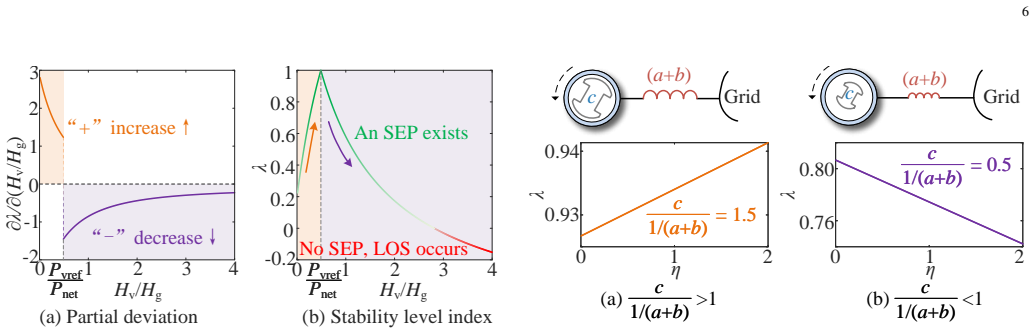

Figure 4. Figure 4: Synchronization power influence analysis. [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5

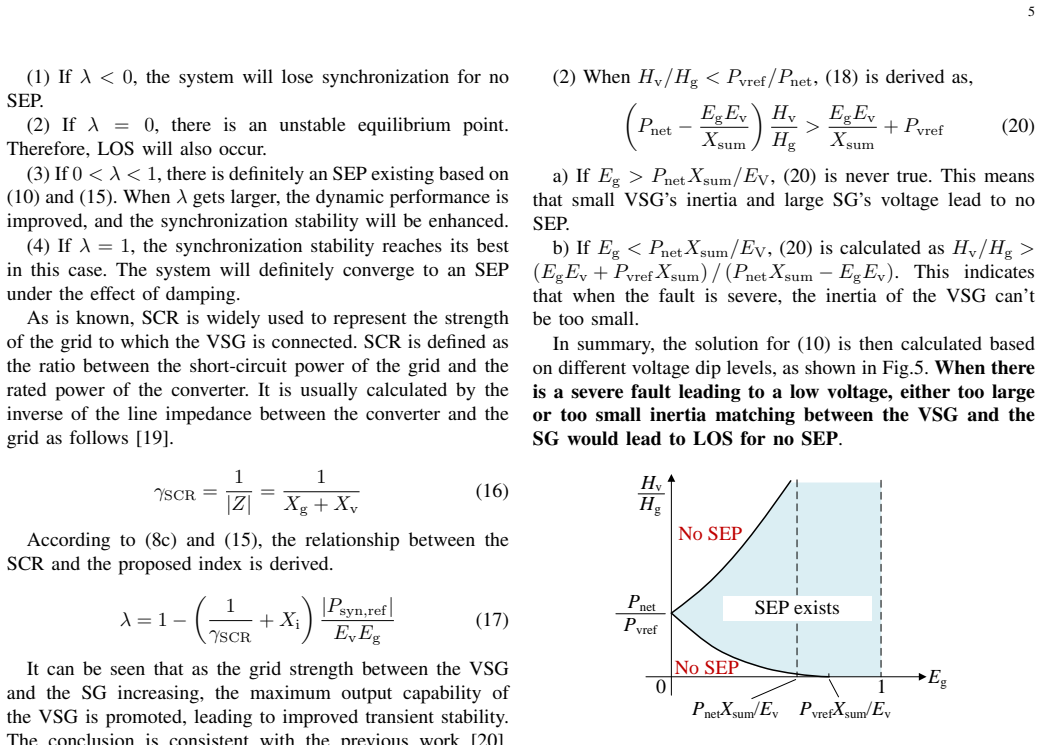

Figure 5. Figure 5: Range of the inertia matching constant to guarantee the SEP. [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 7
Figure 7. Figure 7: Influence of the matching between inertia and strength of the VSG [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9

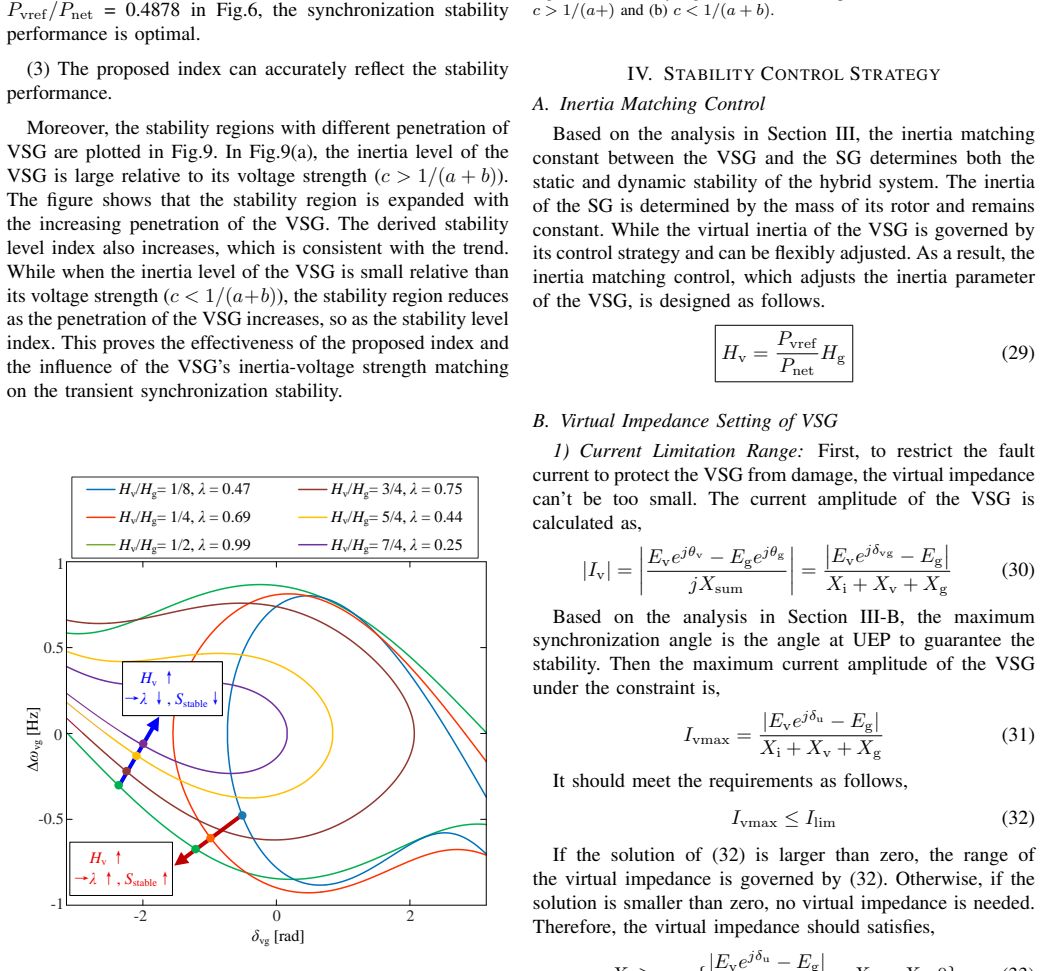

Figure 9. Figure 9: The stability regions under different penetration of VSG when (a) [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 8

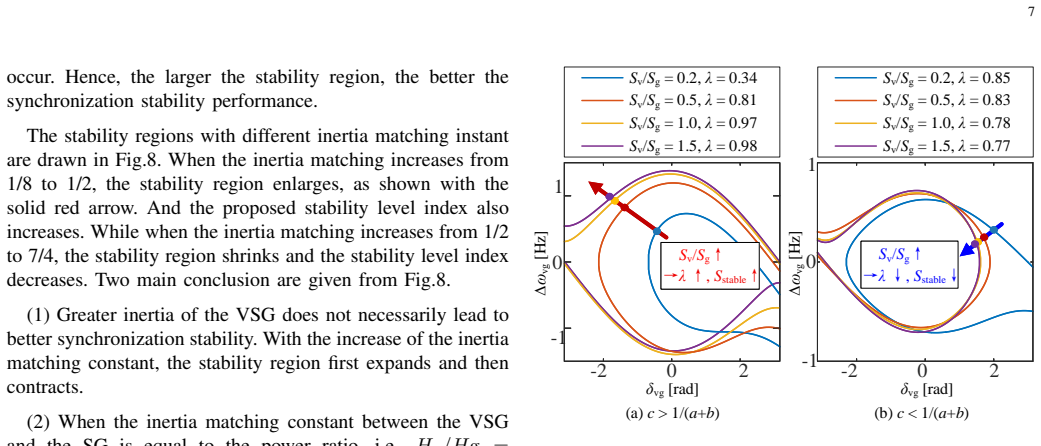

Figure 8. Figure 8: The stability regions under different inertia matching constants. [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: Range of the virtual impedance to limit the fault current. [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 14

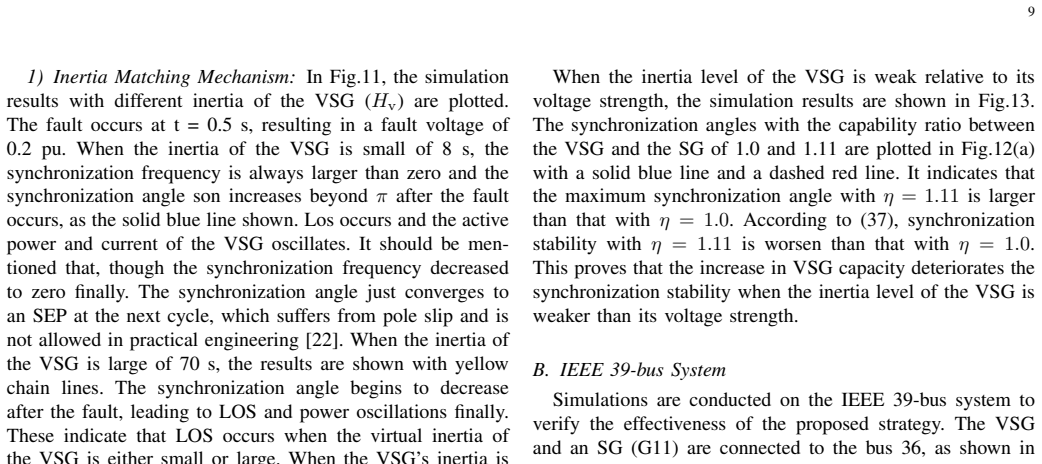

Figure 14. Figure 14: Fig.14. The fault occurs at 0.5 s at the line between bus 36 [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
Figure 12

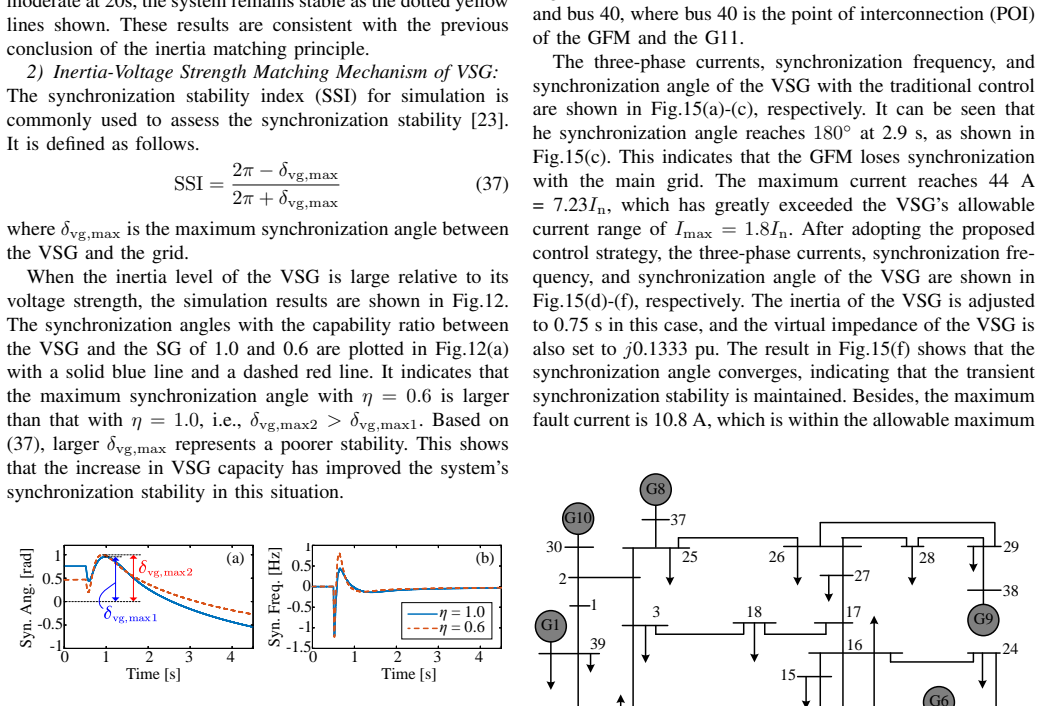

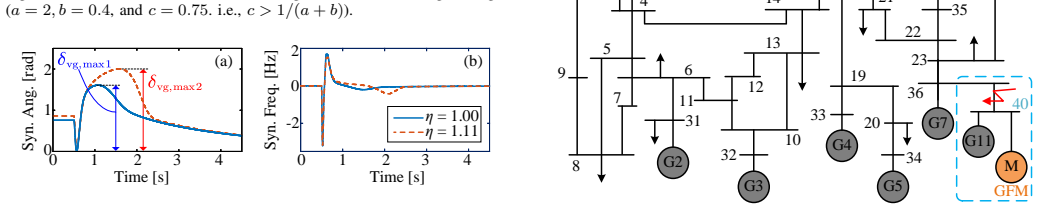

Figure 12. Figure 12: The inertia level of the VSG is large relative to its voltage strength [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: The inertia level of the VSG is weak relative to its voltage strength [PITH_FULL_IMAGE:figures/full_fig_p009_13.png] view at source ↗
Figure 15
Figure 15. Figure 15: Simulation results of the modified IEEE 39-bus system. [PITH_FULL_IMAGE:figures/full_fig_p010_15.png] view at source ↗
