Re-examination of electronic structure of dilute Kondo transition-metal ions substituted into a Heavy Fermion compound

Kou Takubo , Shintaro Suzuki , Kohei Yamamoto , Kohei Yamagami , Masafumi Horio , Toshiaki Ina , Kiyohumi Nitta , Masaichiro Mizumaki
show 4 more authors
Eiji Ikenaga Yosuke Matsumoto Hiroki Wadati Satoru Nakatsuji
This is my paper

Pith reviewed 2026-05-10 01:56 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords Kondo effectheavy fermionX-ray absorptionphotoemission spectroscopyMn substitutionligand fieldelectronic structurescreening
0
0 comments X

The pith

X-ray absorption reveals high-spin Mn2+ configuration in nonmagnetic dilute Kondo sites of a heavy fermion compound.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines manganese ions substituted at low concentration into the heavy fermion compound alpha-(Yb,Lu)(Al1-xMnx)B4 using core-level X-ray absorption and photoemission. Absorption spectra display clear multiplet structures that match a correlated high-spin divalent Mn state, while bulk magnetic measurements detect no local moments on the Mn sites. This combination indicates an effective ligand field splitting between the localized Mn 3d orbitals and neighboring boron 2p states that arises from Kondo-like correlations with the conductive bands. Photoemission instead shows the occupied Mn 3d electrons to be itinerant and screened nonlocally by the same correlations plus heavier Yb-derived bands. The resulting particle-hole asymmetry prompts a fresh look at how screening and correlation appear in core-level spectra of metallic systems.

Core claim

The unoccupied electronic structure of the Mn site is described as the correlated high-spin 2+, even though magnetic measurements show the Mn sites to be nonmagnetic. This apparently paradoxical result demonstrates that a ligand field can effectively appear between localized Mn 3d and surrounding B 2p orbitals, which has been anticipated as a manifestation of a Kondo effect but not been clearly confirmed for most itinerant metals in spectroscopy. By contrast, the Mn 2p photoemission indicates that the occupied Mn2+ 3d electrons still exhibit itinerant and nonlocally screened nature also owing to the Kondo-like correlation with the conductive B 2p, and heavier Yb 4f and 5d bands below the 3d.

What carries the argument

The multiplet fine structure in Mn 2p-to-3d X-ray absorption, which encodes the high-spin divalent configuration and the effective ligand-field splitting produced by Kondo screening.

If this is right

  • Kondo correlations produce spectroscopically detectable ligand fields in the core levels of dilute transition-metal ions even when the host is metallic.
  • Occupied and unoccupied Mn states display particle-hole asymmetry because screening channels differ for electrons below and above the Fermi level.
  • Core-level spectroscopies of heavy-fermion systems must be reinterpreted to include nonlocal screening from both light and heavy bands.
  • The absence of bulk magnetism at the Mn sites results from dynamic Kondo screening rather than the complete absence of local moments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Analogous ligand-field signatures may appear in other dilute magnetic substitutions into Kondo lattices, offering a general spectroscopic probe of screening.
  • Temperature-dependent measurements of the multiplet intensity could distinguish Kondo-generated splitting from static crystal fields.
  • Theoretical models of core spectra in these compounds should incorporate explicit ligand-field terms arising from the Kondo interaction.

Load-bearing premise

The observed multiplet structures arise specifically from a Kondo-induced ligand field between Mn 3d and B 2p orbitals rather than from ordinary crystal-field splitting, impurities, or extrinsic effects, and the nonmagnetic bulk response is produced by screening of local moments.

What would settle it

A crystal-field calculation or impurity-free reference spectrum that reproduces the same multiplet splitting without Kondo terms, or a low-temperature magnetic measurement that shows the Mn moments are statically quenched rather than dynamically screened.

Figures

Figures reproduced from arXiv: 2604.19078 by Eiji Ikenaga, Hiroki Wadati, Kiyohumi Nitta, Kohei Yamagami, Kohei Yamamoto, Kou Takubo, Masafumi Horio, Masaichiro Mizumaki, Satoru Nakatsuji, Shintaro Suzuki, Toshiaki Ina, Yosuke Matsumoto.

Figure 1
Figure 1. Figure 1: FIG. 1: Relationship between the phase diagram and valence of the Yb sites for [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: XAS at the Mn [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Mn 2 [PITH_FULL_IMAGE:figures/full_fig_p010_3.png] view at source ↗
Figure 4

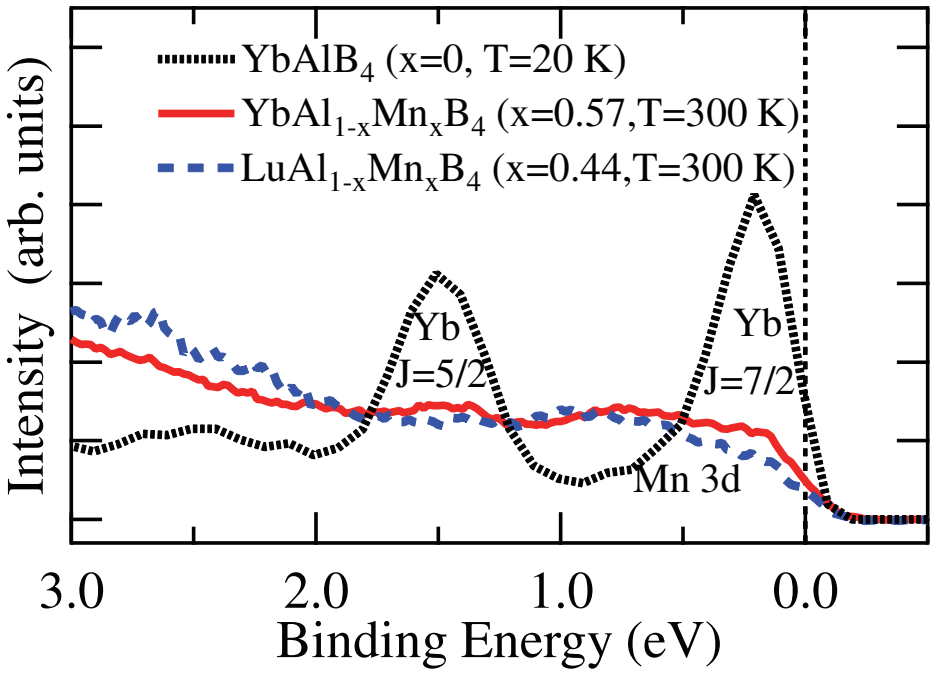

Figure 4. Figure 4: FIG. 4: Valence band HAXPES of [PITH_FULL_IMAGE:figures/full_fig_p012_4.png] view at source ↗
read the original abstract

Correlations between the localized and conductive spins/charges have been the central issue of various fascinating quantum phenomena found on itinerant electron systems. Here, the obvious multiplet structures are presented on the Mn 2$p$ to 3$d$ x-ray absorption for a heavy fermion $\alpha$-(Yb,Lu)(Al$_{1-x}$Mn$_x$)B$_4$, indicating that the unoccupied electronic structure of the Mn site is described as the correlated high-spin 2+, even though magnetic measurements show the Mn sites to be nonmagnetic. This apparently paradoxical result demonstrates that a ligand field can effectively appear between localized Mn 3$d$ and surrounding B 2$p$ orbitals, which has been anticipated as a manifestation of a Kondo effect but not been clearly confirmed for most itinerant metals in spectroscopy. By contrast, the Mn 2$p$ photoemission indicates that the occupied Mn$^{2+}$ 3$d$ electrons still exhibit itinerant and nonlocally screened nature also owing to the Kondo-like correlation with the conductive B 2$p$, and heavier Yb 4$f$ and 5$d$ bands below the Fermi energy. The asymmetry on the particle-hole stimulates a reconsideration of the correlation and screening effects in the core-level spectroscopies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript reports Mn 2p XAS and photoemission spectra for dilute Mn-substituted heavy-fermion boride α-(Yb,Lu)(Al_{1-x}Mn_x)B_4. It claims that the XAS multiplet structures indicate a correlated high-spin Mn^{2+} unoccupied electronic structure, despite bulk magnetic measurements showing nonmagnetic Mn sites; this is interpreted as spectroscopic evidence for a Kondo-induced effective ligand field between localized Mn 3d and B 2p orbitals. The PES data are presented as showing itinerant, nonlocally screened occupied Mn^{2+} 3d states arising from Kondo-like correlations with B 2p, Yb 4f, and 5d bands, with the particle-hole asymmetry prompting reconsideration of screening in core-level spectroscopies.

Significance. If the central interpretation is confirmed by quantitative analysis, the work would provide rare direct spectroscopic support for Kondo-hybridization effects appearing as a ligand field in the unoccupied states of dilute transition-metal ions embedded in an itinerant heavy-fermion host. This would strengthen the link between magnetic screening and spectroscopic signatures beyond what bulk measurements alone can establish, with potential implications for understanding correlation and screening in metallic systems.

major comments (3)
  1. [Abstract and XAS results] The abstract and results description assert that the Mn 2p XAS multiplet structures uniquely indicate a correlated high-spin Mn^{2+} configuration with a Kondo-induced ligand field, yet no quantitative multiplet modeling, atomic calculations, fitting parameters, or error analysis are supplied to support this assignment over conventional crystal-field splitting in the (Yb,Lu)AlB4 lattice.
  2. [XAS results and discussion] No reference Mn 2p XAS spectra from non-Kondo Mn^{2+} borides or impurity phases are presented, leaving the distinction between the proposed Kondo ligand field and extrinsic or static crystal-field contributions untested.
  3. [Discussion] The reconciliation of the high-spin XAS signature with nonmagnetic bulk behavior is attributed to Kondo screening, but the manuscript provides neither temperature-dependent XAS data nor quantitative estimates of screening strength to differentiate dynamic Kondo screening from quenched moments or minority phases.
minor comments (2)
  1. The compound notation α-(Yb,Lu)(Al_{1-x}Mn_x)B_4 should be clarified with respect to the actual Yb/Lu ratio and Mn concentration range studied.
  2. Figure captions and text should explicitly state whether raw spectra, background-subtracted data, or normalized intensities are shown, together with any resolution or temperature information.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive and detailed comments, which highlight areas where the manuscript can be strengthened. We address each major comment point by point below, indicating the revisions we intend to make in the next version of the manuscript.

read point-by-point responses

  1. Referee: [Abstract and XAS results] The abstract and results description assert that the Mn 2p XAS multiplet structures uniquely indicate a correlated high-spin Mn^{2+} configuration with a Kondo-induced ligand field, yet no quantitative multiplet modeling, atomic calculations, fitting parameters, or error analysis are supplied to support this assignment over conventional crystal-field splitting in the (Yb,Lu)AlB4 lattice.

    Authors: We agree that the assignment would benefit from more quantitative support. The observed multiplet structures are interpreted using established atomic multiplet theory for high-spin Mn^{2+} (d^5 configuration), with peak positions and relative intensities matching standard expectations for this valence state. We will revise the results section to include a discussion of literature-derived crystal-field parameters for Mn in boride environments, explain why an additional effective ligand field is invoked, and add a note on the uncertainties in the assignment without new calculations. This clarification will be incorporated in the revised manuscript. revision: yes

  2. Referee: [XAS results and discussion] No reference Mn 2p XAS spectra from non-Kondo Mn^{2+} borides or impurity phases are presented, leaving the distinction between the proposed Kondo ligand field and extrinsic or static crystal-field contributions untested.

    Authors: We acknowledge that direct experimental reference spectra would help test the interpretation. While we lack access to additional non-Kondo Mn boride samples for new measurements, we will add comparisons to published Mn 2p XAS data from MnO and other Mn^{2+} compounds in the literature, highlighting similarities in multiplet features and differences attributable to the host environment. We will also expand the discussion of sample characterization to address possible impurity phases. These additions will be made in the revised version. revision: partial

  3. Referee: [Discussion] The reconciliation of the high-spin XAS signature with nonmagnetic bulk behavior is attributed to Kondo screening, but the manuscript provides neither temperature-dependent XAS data nor quantitative estimates of screening strength to differentiate dynamic Kondo screening from quenched moments or minority phases.

    Authors: The interpretation draws on the established nonmagnetic behavior from prior bulk measurements on the same dilute system. We do not have temperature-dependent XAS data in this study, which limits direct differentiation of dynamic versus static effects, and quantitative screening estimates would require theoretical modeling outside the experimental scope. We will revise the discussion to explicitly note these limitations, while emphasizing that the particle-hole asymmetry observed in the PES data provides supporting evidence for Kondo-like correlations. This will clarify the current evidential basis without overclaiming. revision: partial

standing simulated objections not resolved
  • The request for temperature-dependent XAS data and quantitative estimates of screening strength cannot be fully addressed, as these require new experiments and theoretical calculations not performed in the present work.

Circularity Check

0 steps flagged

No circularity: experimental spectra and standard multiplet interpretation

full rationale

The paper reports new Mn 2p XAS and photoemission data on dilute Mn-substituted (Yb,Lu)AlB4, interpreting observed multiplet structures as indicating a correlated high-spin Mn2+ unoccupied state with an effective ligand field between Mn 3d and B 2p. This interpretation is presented as a direct reading of the spectra against known atomic multiplet patterns and contrasted with bulk magnetic data showing nonmagnetic Mn sites. No equations, fitted parameters, or derivations are introduced that reduce any claimed result to its own inputs by construction. Any self-citations to prior work on the same compound or Kondo effects are not load-bearing; the central claim rests on the new experimental spectra themselves rather than on a self-referential chain or uniqueness theorem imported from the authors' earlier papers.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard domain assumptions of core-level spectroscopy and Kondo physics without introducing new free parameters or postulated entities.

axioms (2)
  • domain assumption Multiplet structures observed in Mn 2p XAS correspond to a correlated high-spin Mn2+ configuration
    Invoked to assign the unoccupied electronic structure from the absorption spectra.
  • domain assumption Absence of magnetism in bulk measurements indicates Kondo screening rather than absence of local moments
    Used to frame the apparent paradox that the ligand field resolves.

pith-pipeline@v0.9.0 · 5587 in / 1373 out tokens · 57997 ms · 2026-05-10T01:56:28.465155+00:00 · methodology
