Triple-{bf Q} collinear state with compensated ferrimagnetic nature on frustrated kagome lattice

Kazushi Aoyama , Hikaru Kawamura This is my paper

Pith reviewed 2026-05-10 02:30 UTC · model grok-4.3

classification ❄️ cond-mat.str-el
keywords kagome antiferromagnettriple-Q ordercompensated ferrimagnetspin band splittingspin Seebeck effectfrustrated magnetismmagnon spectrumelectron bands
0
0 comments X

The pith

A triple-Q 12-sublattice collinear state on the kagome lattice produces spin-selective band splittings without net magnetization or crystal asymmetry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that in a kagome antiferromagnet where third-neighbor exchange dominates, a particular 12-sublattice magnetic order known as the triple-Q collinear state stabilizes a compensated ferrimagnetic pattern. In this pattern the local magnetizations cancel completely on each triangle plaquette yet still generate s-wave-type spin splittings in the magnon and electron energy bands. Because the splitting requires neither net magnetization nor spin-orbit coupling nor crystal asymmetry, the state opens routes to zero-field spin currents in insulators and to filling-controlled spin polarization in metals.

Core claim

In the J3-dominant regime the kagome antiferromagnet realizes a triple-Q 12-sublattice collinear state whose multi-sublattice arrangement forms a fully compensated ferrimagnetic pattern on every triangle plaquette. This pattern produces s-wave-type spin splittings in both magnon and electron bands without net magnetization or the assistance of crystal asymmetry.

What carries the argument

The triple-Q 12-sublattice collinear state, which arranges the spins into a 12-sublattice pattern that yields local compensation of magnetization within each triangle plaquette.

If this is right

  • An antiferromagnetic spin Seebeck effect becomes possible at zero external field in insulating systems.
  • Filling-controlled spin-polarized states appear in metallic realizations of the same order.
  • Spin-selective splittings arise in both magnon and electron bands solely from the multi-sublattice structure.
  • Frustrated magnets without crystal asymmetry can host novel spintronics functionalities.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same compensated-ferrimagnetic mechanism could appear in other geometrically frustrated lattices that support multi-Q collinear orders.
  • Neutron scattering or resonant X-ray diffraction on candidate kagome materials could directly test for the 12-sublattice pattern.
  • The approach suggests a route to spin-current devices that rely only on isotropic exchange interactions.

Load-bearing premise

The triple-Q 12-sublattice collinear state is the stable ground state in the J3-dominant kagome antiferromagnet and its band structure produces the reported spin splittings.

What would settle it

Neutron diffraction measurements that fail to detect the predicted 12-sublattice triple-Q magnetic order, or explicit band calculations on that order that show no spin-dependent splitting.

Figures

Figures reproduced from arXiv: 2604.19156 by Hikaru Kawamura, Kazushi Aoyama.

Figure 1
Figure 1. Figure 1: FIG. 1: The 12 sublattice antiferromagnetic state on the [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) shows the magnon dispersion; there are 12 branches some of which are partly degenerate. To characterize the magnon band ǫn,q, we introduce the quantity hn,q = PN µ=1(−mµ)(|Tq,µn| 2 + |Tq,µn+N | 2 ). Noting that the fluctuation of the net magnetization around zero is given by P q PN µ=1 mµ(S − haˆ µ† q aˆ µ q i) = P q PN n=1 fB(ǫn,q)hn,q +δM0 with the Bose distribution function fB(x) = 1 e x/T −1 and ze… view at source ↗
Figure 3

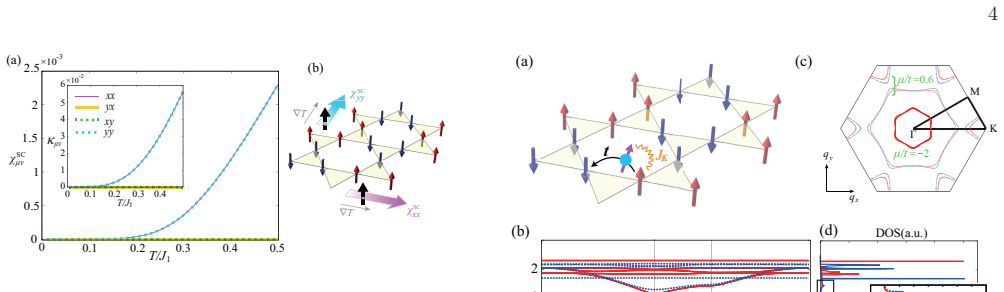

Figure 3. Figure 3: FIG. 3: (a) The temperature dependence of the spin current [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: The band structure of the electrons coupled to the 12 [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

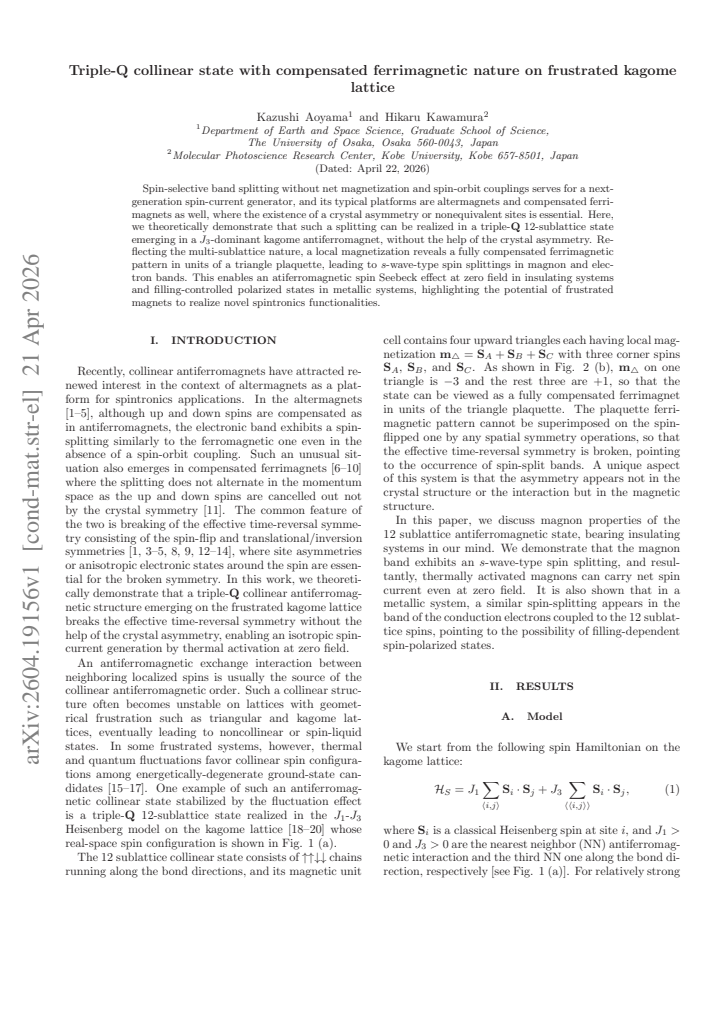

Spin-selective band splitting without net magnetization and spin-orbit couplings serves for a next-generation spin-current generator, and its typical platforms are altermagnets and compensated ferrimagnets as well, where the existence of a crystal asymmetry or nonequivalent sites is essential. Here, we theoretically demonstrate that such a splitting can be realized in a triple-{\bf Q} 12-sublattice state emerging in a $J_3$-dominant kagome antiferromagnet, without the help of the crystal asymmetry. Reflecting the multi-sublattice nature, a local magnetization reveals a fully compensated ferrimagnetic pattern in units of a triangle plaquette, leading to $s$-wave-type spin splittings in magnon and electron bands. This enables an atiferromagnetic spin Seebeck effect at zero field in insulating systems and filling-controlled polarized states in metallic systems, highlighting the potential of frustrated magnets to realize novel spintronics functionalities.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 0 minor

Summary. The paper claims to theoretically demonstrate a triple-Q 12-sublattice collinear state that emerges in the J3-dominant regime of the kagome antiferromagnet. This state exhibits a fully compensated ferrimagnetic pattern within each triangle plaquette, producing s-wave-type spin splittings in magnon and electron bands without crystal asymmetry, net magnetization, or spin-orbit coupling. The authors highlight resulting functionalities including zero-field antiferromagnetic spin Seebeck effect in insulators and filling-controlled spin-polarized states in metals.

Significance. If the stability of the proposed order and the accuracy of the band calculations hold, the result identifies frustrated kagome antiferromagnets as a platform for spin-selective phenomena that does not rely on conventional crystal asymmetry, thereby expanding possible routes to spin-current generation and polarized transport in both insulating and metallic systems.

major comments (1)
  1. Abstract: the assertion that the triple-Q 12-sublattice collinear state 'emerges' in the J3-dominant regime is not accompanied by any explicit energy comparison to competing orders (120° Néel, other multi-Q states, or degenerate manifolds). This comparison is load-bearing for the central claim that the spin splittings occur in a realized ground state rather than a constructed configuration.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of our manuscript and for the constructive comment. We address the point raised below and will revise the manuscript to incorporate the requested clarification.

read point-by-point responses

  1. Referee: Abstract: the assertion that the triple-Q 12-sublattice collinear state 'emerges' in the J3-dominant regime is not accompanied by any explicit energy comparison to competing orders (120° Néel, other multi-Q states, or degenerate manifolds). This comparison is load-bearing for the central claim that the spin splittings occur in a realized ground state rather than a constructed configuration.

    Authors: We agree that an explicit energy comparison is necessary to substantiate the claim that the triple-Q 12-sublattice collinear state is realized as the ground state rather than a metastable or constructed configuration. While the manuscript builds on established results for the J3-dominant kagome antiferromagnet (where the third-neighbor interaction is known to stabilize multi-Q orders over single-Q 120° Néel states), we did not include direct numerical energy comparisons in the original submission. In the revised manuscript we will add a dedicated subsection (or appendix) presenting classical energy minimization and/or Monte Carlo results that compare the energy of the proposed 12-sublattice triple-Q state against the 120° Néel order, other candidate multi-Q states, and the degenerate manifold, for a range of J3/J1 ratios. These calculations will be performed on finite clusters with periodic boundary conditions and will be accompanied by the corresponding spin configurations and energy differences, thereby confirming the stability of the state in the J3-dominant regime. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation self-contained

full rationale

The paper presents the triple-Q 12-sublattice collinear state as emerging from the J3-dominant Heisenberg model on the kagome lattice, with the compensated ferrimagnetic pattern and resulting s-wave spin splittings in magnon/electron bands following as consequences of that multi-sublattice order. No equations or steps reduce the claimed splitting to a fitted parameter, self-defined input, or load-bearing self-citation chain; the band-structure results are computed on the identified order rather than presupposing the splitting. The abstract and description treat the state as a derived outcome of the model, with no renaming of known results or ansatz smuggling visible. The separate question of whether the state is the true ground state (versus competitors) is an assumption-validity issue, not a circularity reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review prevents full enumeration; the claim implicitly assumes a classical or semiclassical spin model with dominant J3 interaction on the kagome lattice and that the 12-sublattice state is the ground state without further verification details.
