On the Relation Between Diffusion and Shear Viscosity in Two-Dimensional Magnetized Yukawa Liquids

N. Kh. Bastykova , T. S. Ramazanov , S. K. Kodanova This is my paper

Pith reviewed 2026-05-10 01:26 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords diffusionshear viscosityYukawa liquidmagnetic fieldtwo-dimensional plasmatransport coefficientsmolecular dynamicsdusty plasma
0
0 comments X

The pith

Diffusion and shear viscosity remain linked in two-dimensional Yukawa liquids even when an external magnetic field is applied.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the interplay between particle diffusion and shear viscosity in a two-dimensional Yukawa liquid placed in an external magnetic field. Yukawa liquids consist of particles interacting through a screened Coulomb potential, commonly used to model dusty plasmas. Simulations track how the magnetic field changes both transport coefficients and whether a simple relation between them continues to hold. A sympathetic reader would care because these coefficients control how mass, momentum, and energy move through magnetized plasmas, which appear in fusion devices and space environments.

Core claim

The authors report that in 2D magnetized Yukawa liquids the diffusion coefficient and shear viscosity are related through a field-dependent scaling obtained from molecular-dynamics trajectories, with the magnetic field suppressing both quantities while preserving a quantitative connection between them.

What carries the argument

Molecular-dynamics simulation of charged particles under the Yukawa pair potential plus Lorentz force from a uniform perpendicular magnetic field, used to extract the self-diffusion coefficient from mean-square displacement and the shear viscosity from the stress autocorrelation function.

If this is right

  • Transport models for magnetized 2D plasmas can use the diffusion coefficient to estimate viscosity without separate stress-tensor calculations.
  • Increasing the magnetic field strength offers a controllable way to reduce both diffusion and viscosity simultaneously in such systems.
  • The observed scaling supplies a benchmark for analytic theories of magnetized liquid transport in the strongly coupled regime.
  • Results apply directly to quasi-two-dimensional laboratory dusty plasmas and to thin-layer approximations of fusion-edge plasmas.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same simulation approach could be applied to three-dimensional magnetized Yukawa systems to test whether the relation survives the extra dimension.
  • If the relation proves robust, it may simplify predictions of particle mixing rates in astrophysical dusty plasmas such as those in protoplanetary disks.
  • Laboratory tests with rotating magnetic fields could check whether the reported scaling extends to time-varying fields.

Load-bearing premise

The chosen simulation parameters and integration scheme faithfully reproduce the physical dynamics of real magnetized Yukawa systems without introducing artifacts from finite size or time-step errors.

What would settle it

Direct experimental measurement of both diffusion and viscosity in a magnetized dusty-plasma monolayer that shows the two coefficients becoming uncorrelated as the field strength increases would disprove the reported relation.

Figures

Figures reproduced from arXiv: 2604.19375 by N. Kh. Bastykova, S. K. Kodanova, T. S. Ramazanov.

Figure 1
Figure 1. Figure 1: Stress autocorrelation function dependence on time at different values of Ω for a) Γ = 1, b) Γ = 10, and c) Γ = 100 [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

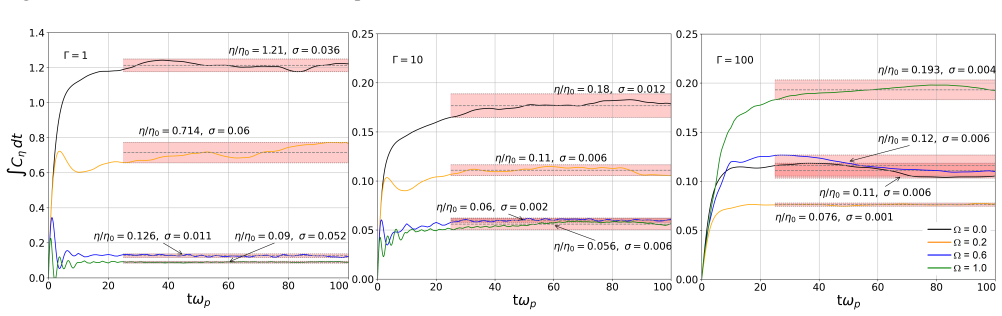

Figure 2. Figure 2: Dependence of the integral of the stress autocorrelation function on the upper bound of the integration range at different values of Ω for a) Γ = 1, b) Γ = 10, and c) Γ = 100. 1.3 Simulation Details The numerical study was carried out using equilibrium MD of a two-dimensional system of charged particles. The particles were confined to a planar simulation cell with periodic boundary conditions applied along… view at source ↗
Figure 3

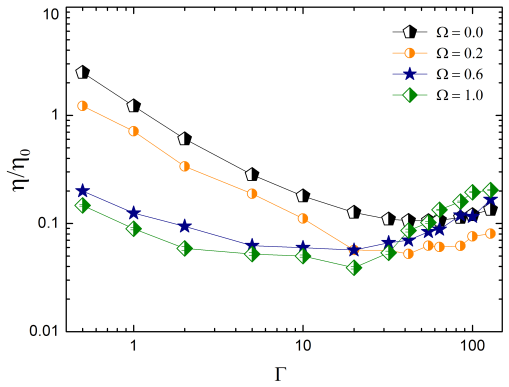

Figure 3. Figure 3: Dependence of the shear viscosity on the coupling parameter Γ for different values of the magnetic field strength Ω. presence of a magnetic field. For the strongly coupled system Γ = 100, the SACF decays most slowly and remains positive for longer times. Magnetization-induced oscillations are clearly visible in this case as well, although they are no longer around zero. We observe that the magnetic field i… view at source ↗
Figure 4

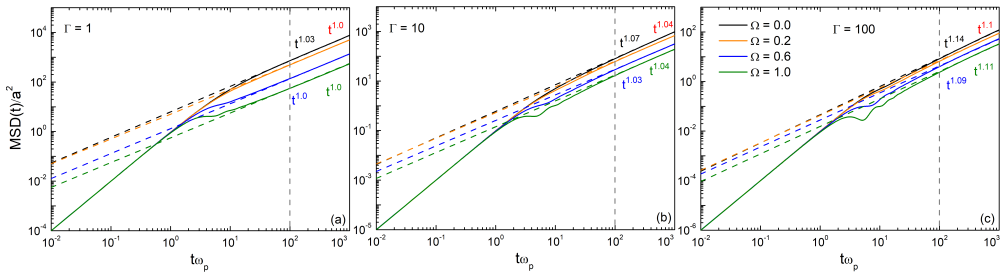

Figure 4. Figure 4: Mean-squared displacements at different values of the magnetization parameter Ω for a) Γ = 1, b) Γ = 10, and c) Γ = 100 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5

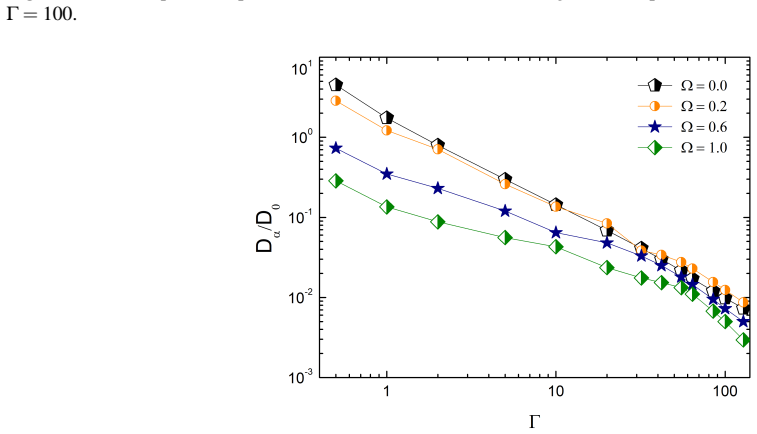

Figure 5. Figure 5: Dependence of the diffusion coefficient on the coupling parameter Γ for different values of the magnetization parameter Ω. In [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6

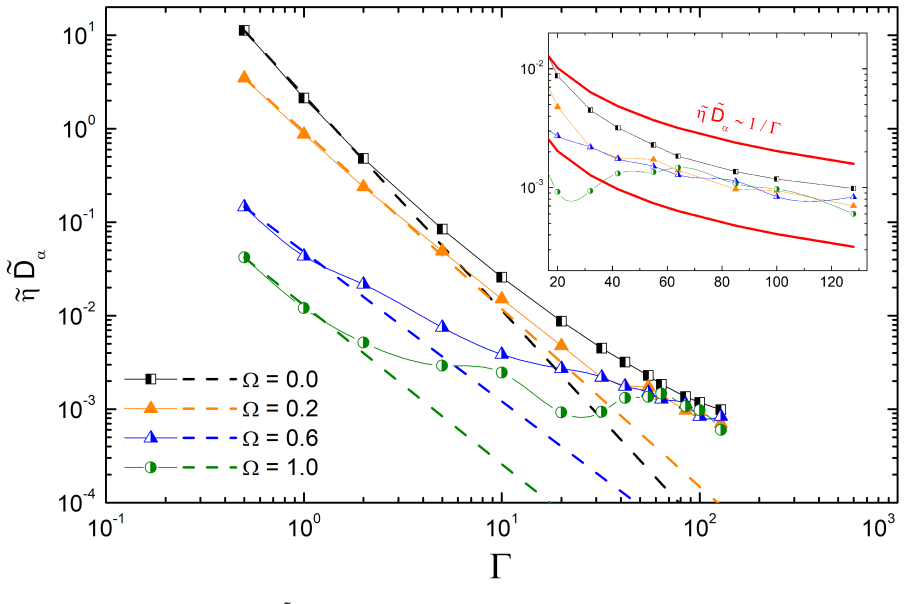

Figure 6. Figure 6: Dependence of the product η˜ D˜ α of the reduced shear viscosity η˜ = η/η0 and the reduced diffusion coefficient D˜ α = Dα/D0 on the coupling parameter Γ for different values of the magnetic field strength Ω. shifts the curves downward and alters their slopes, demonstrating a strong magnetic-field influence on the relationship between viscous and diffusive transport. From [PITH_FULL_IMAGE:figures/full_fig… view at source ↗
read the original abstract

We investigate the interplay between shear viscosity and diffusion in a 2D Yukawa liquid subjected to an external magnetic field.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript investigates the interplay between shear viscosity and diffusion in two-dimensional Yukawa liquids under an external magnetic field, using molecular dynamics simulations to compute transport coefficients via Green-Kubo relations and to examine their dependence on magnetic field strength, coupling parameter, and screening length.

Significance. If the reported relation between diffusion and shear viscosity holds under the simulated conditions and is shown to be robust, the work would add to the literature on magnetized complex plasmas by clarifying how magnetic fields decouple or correlate these transport properties in 2D. Standard MD methods for Yukawa systems are well-established, and any reproducible code or parameter tables would strengthen the contribution.

minor comments (3)
  1. The abstract is a single sentence and does not summarize the key quantitative finding or the functional form of the reported relation; this should be expanded to state the main result.
  2. Figure captions (e.g., those showing viscosity vs. diffusion plots) should explicitly list the fixed values of Γ, κ, and β used in each panel for reproducibility.
  3. Section 2 on the simulation setup should include a brief statement on the number of particles, time-step convergence, and how the magnetic field is implemented in the equations of motion.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their review of our manuscript on the interplay between diffusion and shear viscosity in two-dimensional magnetized Yukawa liquids. We appreciate the positive assessment, the recognition that the work adds to the literature on magnetized complex plasmas, and the recommendation for minor revision. No specific major comments were raised in the report.

Circularity Check

0 steps flagged

No significant circularity; simulation-based empirical investigation

full rationale

The paper reports a molecular-dynamics investigation of the relation between diffusion and shear viscosity in a 2D magnetized Yukawa liquid. Transport coefficients are obtained from standard, externally validated Green-Kubo or Einstein formulas applied to equilibrium trajectories; no functional relation is derived from first principles that would require the target quantities to be presupposed. No self-citation chain is invoked to establish uniqueness of a scaling law or ansatz, and the work does not rename a known empirical pattern as a new derivation. The central claim therefore remains an independent numerical observation rather than a tautological restatement of its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Only abstract available; no free parameters, axioms, or invented entities can be identified.
