Experimental observation of drift acoustic cnoidal waves in a magnetized plasma
Pith reviewed 2026-05-10 00:38 UTC · model grok-4.3
The pith
Cnoidal wave trains are observed for the first time in a collisional magnetized plasma with strong density gradients.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Highly nonlinear coherent structures in a linear magnetized plasma with strong background density gradient and significant ExB velocity shear under high ion-neutral collisionality are identified as drift acoustic waves exhibiting large normalized density fluctuations reaching amplitudes of up to ~10% and periodic sawtooth-like waveforms that are well described by cnoidal functions corresponding to stationary nonlinear wave trains.
What carries the argument
Cnoidal functions as exact solutions of the Korteweg-de Vries (KdV)-type equations for drift acoustic waves in inhomogeneous, sheared, and collisional plasmas.
Load-bearing premise
The observed sawtooth-like density fluctuation waveforms are accurately identified as cnoidal solutions to KdV-type equations rather than other nonlinear structures or artifacts, based on waveform matching and the plasma parameter regime.
What would settle it
A measurement or calculation showing that the observed waveforms do not match cnoidal function fits for the reported plasma parameters, or that the structures appear independently of the density gradient variations.
Figures

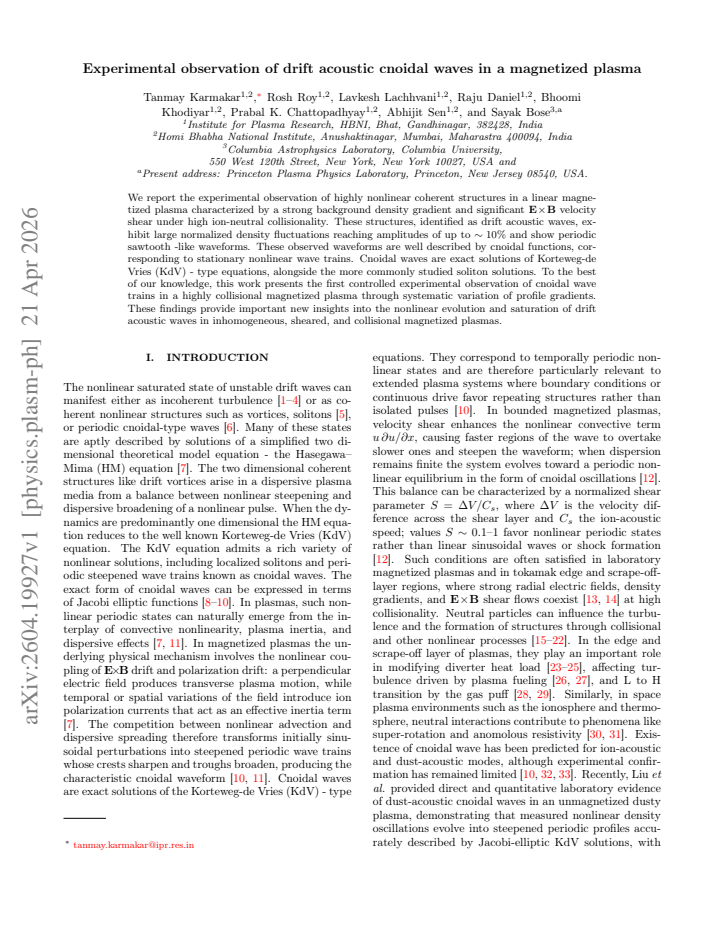

read the original abstract
We report the experimental observation of highly nonlinear coherent structures in a linear magnettized plasma characterized by a strong background density gradient and significant ExB velocity shear under high ion-neutral collisionality. These structures, identified as drift acoustic waves, exhibit large normalized density fluctuations reaching amplitudes of up to ~10% and show periodic sawtooth-like waveforms. These observed waveforms are well described by cnoidal functions, corresponding to stationary nonlinear wave trains. Cnoidal waves are exact solutions of the Korteweg-de Vries (KdV)-type equations, alongside the more commonly studied soliton solutions. To the best of our knowledge, this work presents the first controlled experimental observation of cnoidal wave trains in a highly collisional magnetized plasma through systematic variation of profile gradients. These findings provide important new insights into the nonlinear evolution and saturation of drift acoustic waves in inhomogeneous, sheared, and collisional magnetized plasmas.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper reports the experimental observation of highly nonlinear coherent structures identified as drift acoustic cnoidal waves in a linear magnetized plasma with strong density gradients and ExB shear under high collisionality. The waveforms are periodic sawtooth-like and fitted to cnoidal functions, claiming to be the first such controlled observation through systematic profile variation.
Significance. If the waveform identification is robustly supported by quantitative comparison to the KdV model derived from measured parameters, this would represent a significant advance in understanding nonlinear drift wave dynamics in collisional plasmas, offering insights into saturation mechanisms and potentially impacting models of plasma turbulence and transport. The systematic experimental approach with gradient variation is a positive aspect.
major comments (2)
- [Results and analysis] The central identification of the observed density fluctuations as cnoidal solutions to the KdV-type equation for drift-acoustic waves is not supported by explicit calculation of the equation's coefficients from the measured density gradients, velocity shear, and ion-neutral collisionality. The manuscript relies on shape similarity to cnoidal functions without demonstrating consistency between the observed amplitude, propagation speed, period, and the theoretical cnoidal relations (e.g., the modulus parameter matching the nonlinearity-dispersion balance). This is load-bearing for the claim as alternative nonlinear or dissipative structures can produce similar periodic waveforms.
- [Methods and data analysis] Details on the cnoidal function fitting procedure, including how parameters are extracted, error bars, goodness-of-fit metrics, and data selection criteria are missing. This undermines the ability to assess the statistical significance and uniqueness of the cnoidal identification, especially given the potential for artifacts in fluctuation measurements.
minor comments (2)
- [Abstract] Typo in 'magnettized' which should read 'magnetized'.
- [Introduction] The phrase 'to the best of our knowledge' for the first observation should be supported by a brief literature review in the introduction to strengthen the novelty claim.
Simulated Author's Rebuttal
We thank the referee for their constructive and detailed review of our manuscript. The comments highlight important aspects for strengthening the quantitative support of our claims. We address each major comment below and have revised the manuscript accordingly to improve clarity and rigor.
read point-by-point responses
-
Referee: [Results and analysis] The central identification of the observed density fluctuations as cnoidal solutions to the KdV-type equation for drift-acoustic waves is not supported by explicit calculation of the equation's coefficients from the measured density gradients, velocity shear, and ion-neutral collisionality. The manuscript relies on shape similarity to cnoidal functions without demonstrating consistency between the observed amplitude, propagation speed, period, and the theoretical cnoidal relations (e.g., the modulus parameter matching the nonlinearity-dispersion balance). This is load-bearing for the claim as alternative nonlinear or dissipative structures can produce similar periodic waveforms.
Authors: We agree that explicit calculation of the KdV coefficients from the measured parameters is essential for a robust identification. In the revised manuscript, we have added a dedicated subsection deriving the coefficients of the KdV-type equation using the experimentally determined density gradients, ExB velocity shear, and ion-neutral collisionality. We further demonstrate consistency by comparing the observed wave amplitude, propagation speed, and period to the theoretical cnoidal relations, including verification that the modulus parameter aligns with the nonlinearity-dispersion balance within experimental uncertainties. These quantitative comparisons help distinguish the structures from alternative nonlinear or dissipative waveforms. revision: yes
-
Referee: [Methods and data analysis] Details on the cnoidal function fitting procedure, including how parameters are extracted, error bars, goodness-of-fit metrics, and data selection criteria are missing. This undermines the ability to assess the statistical significance and uniqueness of the cnoidal identification, especially given the potential for artifacts in fluctuation measurements.
Authors: We acknowledge the need for greater transparency in the fitting methodology. The revised manuscript now includes an expanded Methods section detailing the cnoidal function fitting procedure. This covers the nonlinear least-squares extraction of parameters, propagation of uncertainties to provide error bars on fitted values, goodness-of-fit metrics (including reduced chi-squared and R-squared), and explicit data selection criteria such as minimum signal-to-noise ratio and requirements for waveform stationarity. These additions enable a clearer evaluation of the statistical significance and uniqueness of the cnoidal identification. revision: yes
Circularity Check
No significant circularity in experimental observation paper
full rationale
The paper reports an experimental observation of sawtooth-like density fluctuations identified as cnoidal drift-acoustic waves, based on waveform shape similarity and plasma regime plausibility. No derivation chain, equations, or fitted parameters are presented in the provided text that reduce any claimed result to inputs by construction. Standard background references to KdV solutions are invoked without self-citation load-bearing or ansatz smuggling. The central claim remains an empirical finding rather than a self-referential prediction or renaming.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Observed waveforms can be identified as drift acoustic waves based on plasma parameters and waveform shape.
- standard math Cnoidal functions provide an exact stationary solution description for the observed nonlinear wave trains.
Reference graph
Works this paper leans on
-
[1]
Drift waves and transport.Reviews of Modern Physics, 71(3):735, 1999
Wendell Horton. Drift waves and transport.Reviews of Modern Physics, 71(3):735, 1999
1999
-
[2]
Zonal flow dynamics, modulation of mean-flow- driven fluctuations, and particle flux control in a linear magnetized plasma.Nuclear Fusion, 2026
Tanmay Karmakar, Rosh Roy, Lavkesh Lachhvani, Raju Daniel, Bhoomi Khodiyar, PK Chattopadhyay, and Ab- hijit Sen. Zonal flow dynamics, modulation of mean-flow- driven fluctuations, and particle flux control in a linear magnetized plasma.Nuclear Fusion, 2026
2026
-
[3]
Rosh Roy, Tanmay Karmakar, Lavkesh Lachhvani, Pra- bal Chattopadhyay, Abhijit Sen, and Sayak Bose. An ex- perimental study of the existence regions and non-linear interactions of drift wave and kelvin–helmholtz instabil- ities in a linear magnetized plasma.Physics of Plasmas, 32(2), 2025
2025
-
[4]
On the transition to drift turbulence in a magnetized plasma column.Physics of Plasmas, 12(5), 2005
MJ Burin, GR Tynan, GY Antar, NA Crocker, and C Holland. On the transition to drift turbulence in a magnetized plasma column.Physics of Plasmas, 12(5), 2005
2005
-
[5]
Drift wave kdv equation creates dip solitons
H Saleem. Drift wave kdv equation creates dip solitons. Physics of Plasmas, 31(11), 2024. 11
2024
-
[6]
On nonlinear periodic drift waves.Plasma physics and controlled fusion, 33(11):1309–1335, 1991
U Kauschke and H Schulter. On nonlinear periodic drift waves.Plasma physics and controlled fusion, 33(11):1309–1335, 1991
1991
-
[7]
Pseudo-three- dimensional turbulence in magnetized nonuniform plasma.The physics of Fluids, 21(1):87–92, 1978
Akira Hasegawa and Kunioki Mima. Pseudo-three- dimensional turbulence in magnetized nonuniform plasma.The physics of Fluids, 21(1):87–92, 1978
1978
-
[8]
Washimi and T
H. Washimi and T. Taniuti. Propagation of ion-acoustic solitary waves of small amplitude.Physical Review Let- ters, 17:996–998, 1966
1966
-
[9]
R. Z. Sagdeev. Cooperative phenomena and shock waves incollisionlessplasmas.Reviews of Plasma Physics, 4:23– 91, 1966
1966
-
[10]
Infeld and G
E. Infeld and G. Rowlands.Nonlinear Waves, Solitons and Chaos. Cambridge University Press, 2000
2000
-
[11]
Weiland.Collective Modes in Inhomogeneous Plasmas
J. Weiland.Collective Modes in Inhomogeneous Plasmas. Institute of Physics Publishing, 2000
2000
-
[12]
W. Horton. Drift waves and transport.Reviews of Mod- ern Physics, 71:735–778, 1999
1999
-
[13]
J. W. Connor and H. R. Wilson. A review of theories of the l–h transition.Plasma Physics and Controlled Fu- sion, 42:R1–R74, 2004
2004
-
[14]
Zonal flows in plasma-a review.Plasma Physics and Controlled Fusion, 47:R35–R161, 2005
P.H.Diamond, S.-I.Itoh, K.Itoh, andT.S.Hahm. Zonal flows in plasma-a review.Plasma Physics and Controlled Fusion, 47:R35–R161, 2005
2005
-
[15]
Vranjes and S
J. Vranjes and S. Poedts. Features of ion acoustic waves in collisional plasmas.Physics of Plasmas, 17:022104, 2010
2010
-
[16]
Terasaka and S
K. Terasaka and S. Yoshimura. Plasma-neutral cou- pling allows electrostatic ion cyclotron waves to propa- gate below ion cyclotron frequency.Physics of Plasmas, 29:022103, 2022
2022
-
[17]
G. M. Sessler. Propagation of longitudinal waves in a weakly ionized gas.Physics of Fluids, 7:90–95, 1964
1964
-
[18]
K. H. et al. Burrell. Advances in understanding quiescent h-mode plasmas in diii-d.Physics of Plasmas, 12:056121, 2005
2005
-
[19]
Sasaki, T
M. Sasaki, T. Kobayashi, S. Inagaki, N. Kasuya, and Y. Kosuga. Neutral particle drag on parallel flow shear driven instability.Physics of Plasmas, 27:082105, 2020
2020
-
[20]
Kosuga and D
Y. Kosuga and D. Aoki. Minimum enstrophy flows in drift wave turbulence with neutral particles.Plasma Physics and Controlled Fusion, 62:105002, 2020
2020
-
[21]
Kobayashi, F
T. Kobayashi, F. Kin, Y. Kawachi, M. Sasaki, Y. Kosuga, K. Yamasaki, and S. Inagaki. Impact of helium neutral gas puff on plasma turbulence in linear magnetized argon plasmas.Physics of Plasmas, 27:062309, 2020
2020
-
[22]
Kasuya, M
N. Kasuya, M. Yagi, K. Itoh, and S.-I. Itoh. Selective for- mation of streamers in magnetized cylindrical plasmas. Nuclear Fusion, 50:054003, 2010
2010
-
[23]
J. R. Myra, D. A. D’Ippolito, and D. A. Russell. Turbu- lent transport regimes and the scrape-off layer heat flux width.Physics of Plasmas, 22:042516, 2015
2015
-
[24]
Physicsofultimate detachment of a tokamak divertor plasma.Journal of Plasma Physics, 83:155830501, 2017
S.KrasheninnikovandA.Kukushkin. Physicsofultimate detachment of a tokamak divertor plasma.Journal of Plasma Physics, 83:155830501, 2017
2017
-
[25]
Zholobenko, A
W. Zholobenko, A. Stegmeir, M. Griener, G. D. Con- way, T. Body, D. Coster, F. Jenko, and ASDEX Upgrade Team. The role of neutral gas in validated global edge turbulence simulations.Nuclear Fusion, 61:116015, 2021
2021
-
[26]
Itoh and S.-I
K. Itoh and S.-I. Itoh. On the source of turbulence by fuelling.Plasma and Fusion Research, 14:3403058, 2014
2014
-
[27]
S. et al. Ohshima. Three-dimensional dynamics of fluctu- ations appearing during pellet ablation process around a pellet in a fusion plasma experiment.Scientific Reports, 12:14204, 2022
2022
-
[28]
M. et al. Valovic. Inboard gas puffing and behaviour of h-mode edge parameters in compass-d.Plasma Physics and Controlled Fusion, 44:A175, 2002
2002
-
[29]
Singh, A
R. Singh, A. Rogister, and P. Kaw. The effect of asym- metric gas puffing on toroidal flow in the edge of tokamak plasma.Physics of Plasmas, 11:129–139, 2004
2004
-
[30]
Rishbeth
H. Rishbeth. Rotation of the variation of the upper at- mosphere.Nature, 229:333–334, 1971
1971
-
[31]
Papadopoulos
K. Papadopoulos. A review of anomalous resistivity for the ionosphere.Reviews of Geophysics, 15:113–127, 1977
1977
-
[32]
Washimi and T
H. Washimi and T. Taniuti. Propagation of ion-acoustic solitary waves of small amplitude.Physical Review Let- ters, 17(19):996–998, 1966
1966
-
[33]
Kourakis and P
I. Kourakis and P. K. Shukla. Nonlinear propagation of dust acoustic waves: Envelope solitons and cnoidal waves.Physics of Plasmas, 12(1):014502, 2005
2005
-
[34]
Experimental observation of cnoidal waveform of nonlinear dust acoustic waves.Physics of Plasmas, 25(11), 2018
Bin Liu, John Goree, TM Flanagan, Abhijit Sen, Sanat Kumar Tiwari, Gurudas Ganguli, and Chris Crab- tree. Experimental observation of cnoidal waveform of nonlinear dust acoustic waves.Physics of Plasmas, 25(11), 2018
2018
-
[35]
Inverse mirror plasma ex- perimental device (imped)–a magnetized linear plasma device for wave studies.Journal of Plasma Physics, 81(2):345810203, 2015
Sayak Bose, PK Chattopadhyay, J Ghosh, S Sengupta, YC Saxena, and R Pal. Inverse mirror plasma ex- perimental device (imped)–a magnetized linear plasma device for wave studies.Journal of Plasma Physics, 81(2):345810203, 2015
2015
-
[36]
Sayak Bose, Manjit Kaur, P. K. Chattopadhyay, J. Ghosh, and Y. C. Saxena. Inverse mirror plasma ex- perimental device-a new magnetized linear plasma device with wide operating range.Review of Scientific Instru- ments, 86(6):063501, 2015
2015
-
[37]
Rosh Roy, Tanmay Karmakar, Lavkesh Lachhvani, Bhoomi Khodiyar, Prabal Chattopadhyay, and Abhijit Sen. An experimental study of the rayleigh–taylor and kelvin–helmholtz instabilities, and their nonlinear inter- actions in a linear magnetized plasma column.Physics of Plasmas, 32(12), 2025
2025
-
[38]
Impact of the electron density and temperature gradient on drift-wave turbulence in the large plasma device.Journal of Plasma Physics, 88(4):905880405, 2022
Conor Perks, Saskia Mordijck, Troy Carter, Bart Van Compernolle, Stephen Vincena, Giovanni Rossi, and David Schaffner. Impact of the electron density and temperature gradient on drift-wave turbulence in the large plasma device.Journal of Plasma Physics, 88(4):905880405, 2022
2022
-
[39]
Dynamics of particle flux in a cylindrical magnetized plasma.Plasma Physics and Con- trolled Fusion, 54(5):055002, 2012
S Oldenbürger, S Inagaki, T Kobayashi, H Arakawa, N Ohyama, K Kawashima, Y Tobimatsu, A Fujisawa, K Itoh, and SI Itoh. Dynamics of particle flux in a cylindrical magnetized plasma.Plasma Physics and Con- trolled Fusion, 54(5):055002, 2012
2012
-
[40]
Fast-fourier- transform spectral-analysis techniques as a plasma fluc- tuation diagnostic tool.IEEE Transactions on Plasma Science, 2(4):261–272, 2007
DE Smith, EJ Powers, and GS Caldwell. Fast-fourier- transform spectral-analysis techniques as a plasma fluc- tuation diagnostic tool.IEEE Transactions on Plasma Science, 2(4):261–272, 2007
2007
-
[41]
Automated plasma probing sys- tem for laboratory experiments in high vacuum using closed loop control.Fusion Engineering and Design, 193:113849, 2023
Rosh Roy, Ritesh Sugandhi, Mritunjay Kumar, and Pra- bal K Chattopadhyay. Automated plasma probing sys- tem for laboratory experiments in high vacuum using closed loop control.Fusion Engineering and Design, 193:113849, 2023
2023
-
[42]
Digital bispectral analysis and its applications to nonlinear wave interac- tions.IEEE transactions on plasma science, 7(2):120– 131, 2007
Young C Kim and Edward J Powers. Digital bispectral analysis and its applications to nonlinear wave interac- tions.IEEE transactions on plasma science, 7(2):120– 131, 2007
2007
-
[43]
Drift solitons.Plasma physics and controlled fusion, 12 30(4):457–470, 1988
VP Lakhin, AB Mikhailovskii, and OG Onishchenko. Drift solitons.Plasma physics and controlled fusion, 12 30(4):457–470, 1988
1988
-
[44]
Drift waves in a high-density cylindrical helicon discharge.Physics of plasmas, 12(4), 2005
Christiane Schröder, Olaf Grulke, Thomas Klinger, and Volker Naulin. Drift waves in a high-density cylindrical helicon discharge.Physics of plasmas, 12(4), 2005
2005
-
[45]
Exploringnonlineardriftwaves: Limiting cases and dynamics.AIP Advances, 16(1), 2026
HamidSaleem. Exploringnonlineardriftwaves: Limiting cases and dynamics.AIP Advances, 16(1), 2026
2026
-
[46]
V. N. Oraevskii, H. Tasso, and H. Wobig. Nonlinear drift waves and formation of structures. InPlasma Physics and Controlled Nuclear Fusion Research, volume 2, page 671, Vienna, 1969. IAEA
1969
-
[47]
V. I. Petviashvili. Nonlinear drift waves and soliton for- mation in plasma.Fizika Plazmy, 3:270, 1977
1977
