arxiv: 2604.20025 · v1 · submitted 2026-04-21 · 🧮 math.NA · cs.NA

Error estimates for the patch bubble method for convection-dominated channel flow problem

Eberhard B\"ansch , Pedro Morin , Itat\'i Zocola This is my paper

Pith reviewed 2026-05-10 01:07 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords convection-diffusion equationresidual-free bubblespatch bubbleserror estimatesconvection-dominated regimeenergy normfinite element methodchannel flow
0
0 comments X

The pith

Error estimates for the BMZ bubble method remain uniform as diffusion approaches zero in parallel channel flow.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes error bounds in an energy norm for the BMZ residual-free bubble method on convection-diffusion equations in the convection-dominated limit. The bounds hold without deterioration as the diffusion coefficient tends to zero, provided the flow is parallel inside a square domain. This matters because most standard finite-element approximations develop large oscillations or lose accuracy once convection overwhelms diffusion. The authors prove the estimates analytically for this restricted setting and confirm them through numerical tests that also show the method competes well with other approaches.

Core claim

For the convection-diffusion problem with small diffusion, the BMZ method that augments the finite-element space by both single-element bubbles and residual-free bubbles defined on patches of two adjacent elements yields approximations whose error in the energy norm is bounded independently of the diffusion parameter, at least when the velocity is constant and parallel and the domain is a square.

What carries the argument

The residual-free bubble enrichment on patches of two adjacent elements, which supplies the missing fine-scale information needed to control the convective transport without introducing a mesh-dependent stabilization parameter.

If this is right

  • The method supplies a reliable approximation for convection-dominated parallel channel flows without requiring layer-adapted meshes.
  • The energy-norm error remains controlled for any positive diffusion value, including arbitrarily small ones, in the stated geometry.
  • Numerical experiments already demonstrate that the observed convergence rates match the theoretical predictions across a range of diffusion values.
  • The patch construction can be implemented with standard finite-element code once the local bubble problems are solved exactly on each pair of elements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same patch-bubble idea could be tested on non-parallel flows or non-rectangular domains if additional assumptions on the velocity are introduced.
  • Because the estimates are uniform, the method might serve as a stable building block inside adaptive algorithms that automatically refine near layers.
  • The analysis technique may carry over to related stabilized schemes such as SUPG or other residual-based methods once the parallel-flow restriction is removed.

Load-bearing premise

The velocity field must be parallel and constant inside a square domain so that the convection term simplifies and the boundary layers align with the coordinate axes.

What would settle it

Compute the energy-norm error of the BMZ solution on successively refined meshes while driving the diffusion coefficient to zero; if the error grows without bound, the uniform estimate fails.

Figures

Figures reproduced from arXiv: 2604.20025 by Eberhard B\"ansch, Itat\'i Zocola, Pedro Morin.

Figure 1

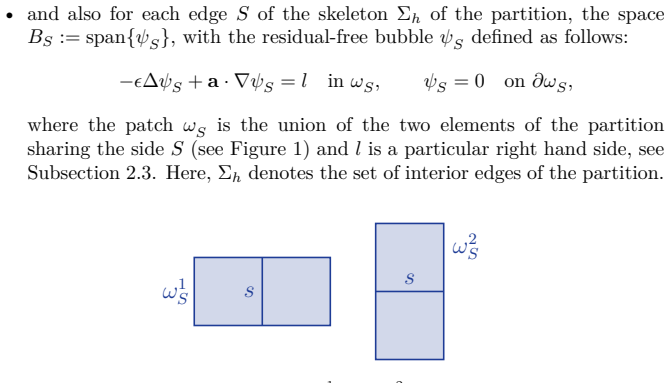

Figure 1. Figure 1: Example of patch domains ω 1 S and ω 2 S, corresponding to vertical and horizontal edges of a square partition. Finally, we set Vh := VL ⊕ VB, with VB := M T ∈Th BT ⊕ M S∈Σh BS. The discrete problem associated to (1) now reads: Find uh := uL + uB ∈ Vh : a(uh, vh) = F(vh) for all vh ∈ Vh. (4) We refer to this method as bubble mesh zoom (BMZ) in the sequel. Remark 2. The classical RFB method considers VB = L… view at source ↗
Figure 2

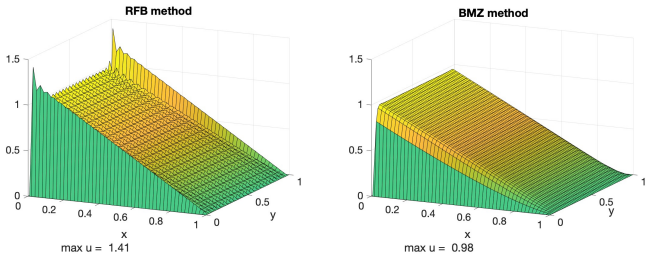

Figure 2. Figure 2: Solutions obtained with the residual-free bubbles method (left) and BMZ method (right), corresponding to f = 1, a = (−1, 0) and ϵ = 10−6 . The partition con￾sists of 50×50 square elements. The proposed BMZ method eliminates boundary layer oscillations and corner spikes observed in the RFB solution, resulting in a smoother global behavior, without any observable smearing effect. Additionally, it improves th… view at source ↗
Figure 3

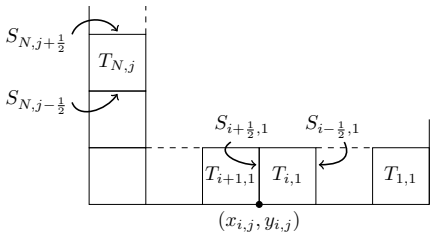

Figure 3. Figure 3: Labeling of elements on the bottom parabolic and left elliptic boundaries. 3.3 Accurate interpolant For i, j = 1, . . . N define the element Ti,j with left bottom vertex (xi , yj ), xi = 1 − ih and yj = (j − 1)h. The edge Si+1/2,j is the one shared by element Ti,j and Ti+1,j and Si,j+1/2 the one shared by Ti,j and Ti,j+1 (see [PITH_FULL_IMAGE:figures/full_fig_p012_3.png] view at source ↗
Figure 4

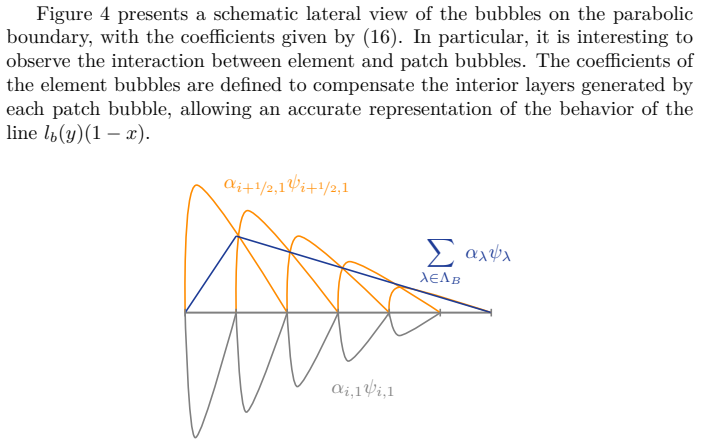

Figure 4. Figure 4: presents a schematic lateral view of the bubbles on the parabolic boundary, with the coefficients given by (16). In particular, it is interesting to observe the interaction between element and patch bubbles. The coefficients of the element bubbles are defined to compensate the interior layers generated by each patch bubble, allowing an accurate representation of the behavior of the line lb(y)(1 − x). αi+1/… view at source ↗
Figure 5

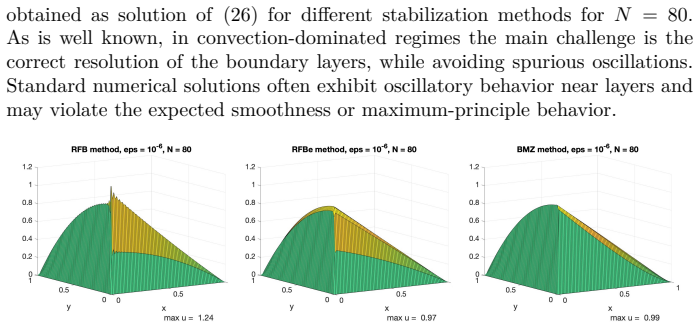

Figure 5. Figure 5: Example: Comparison of stabilization using RFB (left), RFBe (middle), and BMZ method (right). The solutions correspond to (26) with ϵ = 10−6 , and N = 80. Near the bottom boundary y = 0, the classical Residual-Free Bubble method (left) exhibits visible oscillations, reaching a peak value of approximately 1.2351. However, ∥u∥∞ = 1 − O(ϵ) ≈ 1, with its maximum attained near (0, 0). In con￾trast, both RFBe (m… view at source ↗
Figure 6

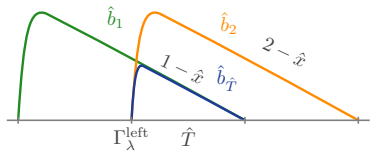

Figure 6. Figure 6: Lateral view of the bubbles whose supports contain the element T. In this appendix we establish a bound for ∥ ˆbh/yˆ∥Γleft λ in Lemma 28 and verify a strengthened Cauchy–Schwarz inequality involving ∥∇ˆ qˆh∥, ∥∇ˆ ˆbh∥, and ∥∇ˆ vˆh∥ in Lemma 34. We begin by sketching the argument underlying the estimates, and then proceed with the detailed proofs. To prove the main estimate, estab￾lished in Proposition 33, … view at source ↗
Figure 7

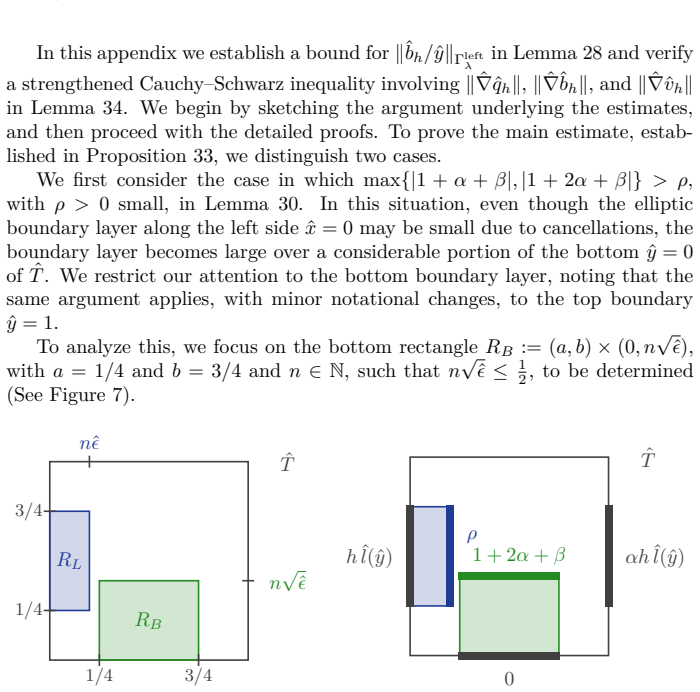

Figure 7. Figure 7: Regions RL and RB (left). Approximate values on the element boundary and on the relevant edges: the top edge of RB and the right edge of RL (right). We study the behavior of ∂yˆ ˆb as h in RB. On the right edge of T, ˆb as h is approximately α h ˆl(ˆy) (see Lemma 29), and then increases toward the left with speed 1 + α + β. Therefore, at height yˆ = n √ ϵˆ on the top of RB, the function varies approxi￾mate… view at source ↗
read the original abstract

We present error estimates for the BMZ (Bubble Mesh Zoom) residual-free bubble method applied to a convection-diffusion equation in the convection-dominated regime. The method incorporates both element bubbles and residual-free bubbles supported on patches of two adjacent elements. We focus on the case of a parallel flow in a square domain and derive error estimates in an energy norm that remain valid as diffusion becomes small. The theoretical findings are corroborated by numerical experiments, which also exhibit a competitive performance of the method.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript presents error estimates for the BMZ (Bubble Mesh Zoom) residual-free bubble method applied to a convection-diffusion equation in the convection-dominated regime. It restricts attention to parallel flow in a square domain and derives bounds in an energy norm that remain valid as the diffusion coefficient tends to zero. Numerical experiments are included to corroborate the theory and illustrate competitive performance of the method.

Significance. If the uniformity of the energy-norm estimates holds under the stated assumptions, the work supplies a concrete analysis of a stabilized finite-element approach for singularly perturbed problems in a canonical setting. This contributes to the literature on robust discretizations for convection-dominated flows by providing explicit, parameter-uniform bounds rather than asymptotic statements.

minor comments (3)
  1. [Abstract and title] The abstract and title use slightly different nomenclature (BMZ vs. patch bubble method); adopt a single consistent term throughout and define it at first use.
  2. [Numerical experiments] In the numerical section, report the precise values of the diffusion parameter ε used in the experiments and confirm that the observed convergence rates remain bounded independently of ε down to the smallest value tested.
  3. [Section 2 (preliminaries)] Clarify whether the energy norm is the standard H^1-type norm weighted by ε or a different variant; an explicit definition would aid readability of the error statements.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for the positive summary and recommendation of minor revision. The assessment that the uniform energy-norm estimates contribute to the literature on robust discretizations for convection-dominated problems is appreciated. Since no specific major comments were raised, we have no points to address point-by-point and will incorporate any minor editorial adjustments in the revised version.

Circularity Check

0 steps flagged

No significant circularity

full rationale

The paper derives error estimates for the BMZ residual-free bubble method applied to convection-diffusion in the convection-dominated regime, restricted to parallel flow in a square domain. The analysis proceeds from standard finite-element approximation theory, stability estimates in the energy norm, and the explicit construction of element and patch bubbles, without any reduction to fitted parameters renamed as predictions, self-definitional loops, or load-bearing self-citations. Numerical experiments serve only to corroborate the independently derived bounds. This is a self-contained a priori error analysis typical of the field.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Based solely on the abstract, the central claim rests on standard finite-element approximation theory, properties of residual-free bubbles, and the restriction to parallel flow; no free parameters or invented entities are mentioned.

axioms (2)
  • domain assumption The flow is parallel inside a square domain.
    Abstract explicitly states the analysis focuses on this case.
  • standard math Standard Sobolev-space setting and existence of weak solutions for the convection-diffusion equation.
    Implicit in any error analysis for this PDE.

pith-pipeline@v0.9.0 · 5376 in / 1198 out tokens · 76610 ms · 2026-05-10T01:07:17.623218+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

12 extracted references · 12 canonical work pages

  1. [1]

    Brezzi, L

    F. Brezzi, L. Franca, T. Hughes, and A. Russo.b= ∫ g.Computer Methods in Applied Mechanics and Engineering, 145:329–339, 6 1997

    work page 1997

  2. [2]

    Brezzi, T

    F. Brezzi, T. J. R. Hughes, L. D. Marini, A. Russo, and E. Süli. A pri- ori error analysis of residual-free bubbles for advection-diffusion problems. SIAM J. Numer. Anal, 36(6):1933–1948, 1999

    work page 1933

  3. [3]

    Brezzi and A

    F. Brezzi and A. Russo. Choosing bubbles for advection-diffusion problems. Math. Models Methods Appl., 04(04):571–587, 1994

    work page 1994

  4. [4]

    Bänsch, P

    E. Bänsch, P. Morin, and I. Zocola. Patch bubbles for advection-dominated steady and unsteady problems.arXiv:2504.21835, 2025

    work page arXiv 2025

  5. [5]

    Cangiani and E

    A. Cangiani and E. Süli. Enhaced RFB method.Numerische Mathematik, 101:273–308, 2005

    work page 2005

  6. [6]

    Cangiani and E

    A. Cangiani and E. Süli. Enhanced residual-free bubble method for con- vection–diffusion problems.International Journal for Numerical Methods in Fluids, 47:1307–1313, 2005

    work page 2005

  7. [7]

    Franca, A

    L. Franca, A. Nesliturk, and M. Stynes. On the stability of residual-free bubbles for convection-diffusion problems and their approximation by a two-level finite element method.Computer Methods in Applied Mechanics and Engineering, 166(1):35–49, 1998. Advances in Stabilized Methods in Computational Mechanics

    work page 1998

  8. [8]

    Franca and A

    L. Franca and A. Russo. Approximation of the Stokes Problem by Residual- Free Macro Bubbles.East-West Journal of Numerical Mathematics, 4, 11 1997. 39

    work page 1997

  9. [9]

    Gie, C.-Y

    G.-M. Gie, C.-Y. Jung, and R. Temam. Analysis of mixed elliptic and parabolic boundary layers with corners.Int. J. Differ. Equ., pages Art. ID 532987, 13, 2013

    work page 2013

  10. [10]

    R. B. Kellogg and M. Stynes. Corner singularities and boundary layers in a simple convection-diffusion problem.J. Differential Equations, 213(1):81– 120, 2005

    work page 2005

  11. [11]

    Schieweck.Eine asymptotisch angepaßte Finite-Element-Methode für singulär gestörte elliptische Randwertaufgaben

    F. Schieweck.Eine asymptotisch angepaßte Finite-Element-Methode für singulär gestörte elliptische Randwertaufgaben. PhD thesis, Wiss. Z. Techn. Universität Magdeburg, 1987

    work page 1987

  12. [12]

    Shih and R

    S.-D. Shih and R. B. Kellogg. Asymptotic analysis of a singular perturba- tion problem.SIAM J. Math. Anal., 18(5):1467–1511, 1987. 40

    work page 1987
