LMI Approach for Sliding Mode Control and Analysis of DC-DC Converters
Pith reviewed 2026-05-10 00:10 UTC · model grok-4.3
The pith
The Ćuk converter's steady-state behavior under sliding mode can be analyzed with linear matrix inequality stability conditions on a model that includes nonlinear sector-bounded perturbations.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Using the equivalent control modeling of the sliding mode regime, the dynamic system of the Ćuk converter is represented as a linear system subject to nonlinear sector-bounded perturbations. Stability conditions based on linear matrix inequalities are then applied to analyze the converter's behavior in the steady state regime. The maximization of the nonlinear sector bound establishes the limit for the applicability of the linear ripple approximation in the converter operation analysis, and this is validated through simulation results for two different switching surfaces.
What carries the argument
Equivalent control model of the sliding mode regime combined with linear matrix inequality stability conditions for linear dynamic systems that have nonlinear sector-bounded perturbations.
If this is right
- Steady-state analysis of the Ćuk converter becomes feasible through direct LMI checks without requiring full nonlinear time-domain simulation.
- A concrete numerical limit emerges on the range where the linear ripple approximation remains valid for converter operation.
- The same LMI framework applies to other switching surfaces within the same converter topology.
- The modeling and analysis steps extend in principle to other DC-DC converter topologies that admit equivalent control representations.
Where Pith is reading between the lines
- The sector-bound maximization step could be turned into a design parameter that selects switching surfaces to enlarge the region of valid linear approximation.
- Similar LMI conditions might quantify robustness margins when load or input voltage varies around the nominal steady state.
- The approach suggests a route for comparing multiple sliding mode surfaces by their associated maximum sector sizes rather than by ad-hoc simulation.
Load-bearing premise
The switching dynamics of the Ćuk converter can be accurately represented as a linear system with nonlinear sector-bounded perturbations under equivalent control modeling.
What would settle it
A simulation or hardware test in which the LMI-derived stability condition holds according to the sector-bound model but the actual converter exhibits steady-state instability, or in which the maximized sector bound does not match the observed point where the linear ripple approximation breaks down.
read the original abstract

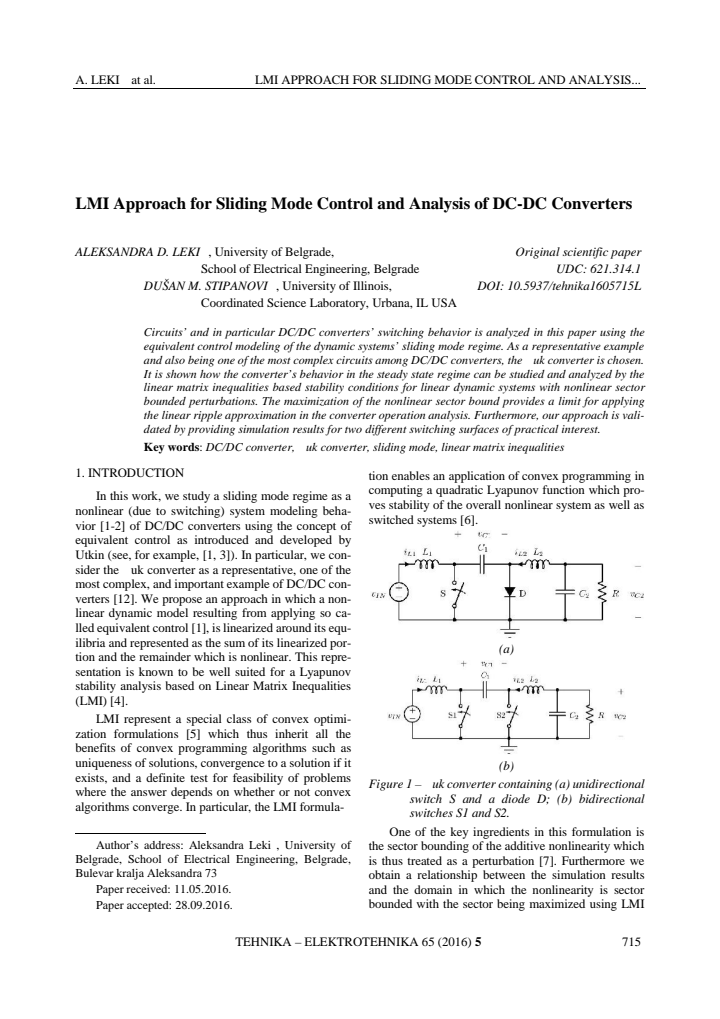

Circuits' and in particular DC/DC converters' switching behavior is analyzed in this paper using the equivalent control modeling of the dynamic systems' sliding mode regime. As a representative example and also being one of the most complex circuits among DC/DC converters, the \'Cuk converter is chosen. It is shown how the converter's behavior in the steady state regime can be studied and analyzed by the linear matrix inequalities based stability conditions for linear dynamic systems with nonlinear sector bounded perturbations. The maximization of the nonlinear sector bound provides a limit for applying the linear ripple approximation in the converter operation analysis. Furthermore, our approach is validated by providing simulation results for two different switching surfaces of practical interest.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript develops an LMI-based framework for analyzing sliding-mode operation of DC-DC converters, using the Ćuk converter as the running example. Equivalent-control modeling is used to recast the switched four-state dynamics as a linear system plus a nonlinear perturbation; the perturbation is asserted to lie in a sector whose bound can be maximized. The resulting LMI stability conditions are applied to the steady-state regime, and the maximal sector bound is interpreted as the limit beyond which the linear-ripple approximation ceases to be valid. The approach is illustrated by simulation for two switching surfaces of practical interest.
Significance. If the sector-bounded representation is shown to hold with a rigorously derived, non-circular bound, the work would supply a convex-optimization route to stability margins and approximation limits for switched power converters. This is a useful bridge between sliding-mode theory and LMI techniques, and the provision of simulation results for two surfaces is a concrete strength. The significance would be higher if the method were shown to produce tighter or more easily computable bounds than existing averaging or describing-function approaches.
major comments (2)
- [Section 3] Section 3 (Equivalent-control reduction): after substitution of u_eq the Ćuk vector field contains rational terms in the inductor currents and capacitor voltages. The manuscript must explicitly exhibit the residual nonlinearity ϕ(y) and prove that it satisfies the sector inequality ϕ(y)(ϕ(y)−k y)≤0 for a finite k that is independent of the particular operating point chosen for linearization. Without this derivation the subsequent LMI conditions rest on an unverified assumption.
- [Section 4] Section 4 (LMI stability conditions and sector maximization): the claim that maximization of the sector bound furnishes an independent limit on the linear-ripple approximation is load-bearing. The paper must clarify whether the maximization is performed subject to LMI feasibility constraints or is obtained by a separate (possibly fitted) procedure; if the latter, the stability condition risks becoming tautological with the ripple limits it is supposed to validate.
minor comments (2)
- [Abstract] The abstract states that the maximal sector bound “provides a limit” but does not indicate the numerical value obtained or the optimization procedure used to compute it.
- [Simulation results] Simulation figures should include quantitative metrics (peak-to-peak ripple, settling time, comparison with pure averaging) rather than qualitative waveforms alone.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments, which have helped identify areas where the manuscript can be strengthened for clarity and rigor. We address each major comment below and will incorporate the necessary revisions to the next version of the manuscript.
read point-by-point responses
-
Referee: [Section 3] Section 3 (Equivalent-control reduction): after substitution of u_eq the Ćuk vector field contains rational terms in the inductor currents and capacitor voltages. The manuscript must explicitly exhibit the residual nonlinearity ϕ(y) and prove that it satisfies the sector inequality ϕ(y)(ϕ(y)−k y)≤0 for a finite k that is independent of the particular operating point chosen for linearization. Without this derivation the subsequent LMI conditions rest on an unverified assumption.
Authors: We agree that the explicit form of the residual nonlinearity and the sector-bound proof must be provided to support the subsequent LMI analysis. In the revised manuscript we will insert the full substitution of the equivalent control u_eq into the four-state Ćuk dynamics, yielding the explicit expression for ϕ(y) as a vector of rational functions in the inductor currents and capacitor voltages. We will then prove that ϕ(y) lies in the sector [0, k] by deriving a finite k via algebraic bounding of each rational term over the compact set of states consistent with sliding-mode operation (i.e., within the ripple limits around the steady-state operating point). The bound k is obtained as the supremum of the required sector gain over all admissible deviations and is therefore independent of any single linearization point. This derivation will be placed in Section 3 immediately after the equivalent-control reduction, removing the unverified-assumption concern. revision: yes
-
Referee: [Section 4] Section 4 (LMI stability conditions and sector maximization): the claim that maximization of the sector bound furnishes an independent limit on the linear-ripple approximation is load-bearing. The paper must clarify whether the maximization is performed subject to LMI feasibility constraints or is obtained by a separate (possibly fitted) procedure; if the latter, the stability condition risks becoming tautological with the ripple limits it is supposed to validate.
Authors: We thank the referee for highlighting the need to eliminate any appearance of circularity. In the revised Section 4 we will reformulate the sector-bound computation explicitly as the convex optimization problem of maximizing k subject to the LMI feasibility constraints for the closed-loop system with the sector-bounded perturbation. The resulting maximal k is therefore the largest value for which the LMI stability certificate remains valid; it is not obtained by a separate fitting procedure. We will further relate this certified k to the linear-ripple approximation by showing that the state-deviation bounds used to establish the sector inequality coincide with the ripple limits, thereby providing a non-tautological interpretation: the LMI-certified k is the perturbation level beyond which the linear model plus sector perturbation can no longer guarantee stability. revision: yes
Circularity Check
No significant circularity; derivation applies standard LMI sector conditions to equivalent-control model without self-reduction.
full rationale
The paper models the Ćuk converter via equivalent control, rewrites the averaged dynamics as a linear system plus a nonlinearity claimed to satisfy a sector bound, then invokes standard LMI stability criteria (circle criterion / S-procedure) for such systems. The maximization of the sector bound is presented as an output that limits the linear-ripple approximation, not as an input fitted to force stability. No equation is shown to be identical to its own premise by construction, no parameter is fitted on a subset and then relabeled a prediction, and no load-bearing uniqueness or ansatz is imported solely via self-citation. The approach remains self-contained against external LMI theory and simulation validation.
