arxiv: 2604.21418 · v1 · submitted 2026-04-23 · ⚛️ physics.optics

Microwave noise downconversion in interband cascade laser frequency combs

Grzegorz Gom\'o{\l}ka , Florian Pilat , Benedikt Schwarz , Chul Soo Kim , Mijin Kim , Chadwick L. Canedy , Igor Vurgaftman , Jerry R. Meyer
show 1 more author
{\L}ukasz A. Sterczewski
This is my paper

Pith reviewed 2026-05-09 21:04 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords frequency combsinterband cascade lasersnoise downconversioncoherence assessmentbaseband noiselinewidth enhancement factorsemiconductor lasersmicrowave noise
0
0 comments X

The pith

Interband cascade laser frequency combs downconvert microwave noise to baseband frequencies.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that coherence in these laser combs can be assessed by measuring low-frequency baseband electrical noise instead of the multi-GHz intermode beat note. This works because the laser itself mixes the high-frequency signals down to near-DC frequencies through its electrical nonlinearities while the linewidth enhancement factor turns phase variations into measurable amplitude noise. The result is a reliable correlation between the two signals, confirmed in both frequency and time domains. This removes the need for scarce high-speed photodetectors and opens simpler characterization methods, especially useful in wavelength ranges where such detectors are limited.

Core claim

The paper demonstrates that microwave noise from the intermode beat note in interband cascade laser frequency combs is intrinsically downconverted to near-DC frequencies. The laser simultaneously functions as a frequency mixer due to electrical nonlinearities and as a phase-to-amplitude noise converter due to the linewidth enhancement factor. This produces a direct correlation between easily accessible MHz-frequency baseband noise and the multi-GHz coherence indicator, verified through measurements in frequency and time domains.

What carries the argument

The laser's intrinsic downconversion, where electrical nonlinearities mix frequencies and the linewidth enhancement factor converts phase noise to amplitude noise.

If this is right

  • Coherence assessment for these combs becomes possible with standard low-frequency electronics.
  • Characterization is enabled in spectral regions where multi-GHz photodetectors are unavailable.
  • The downconversion may apply to other semiconductor lasers beyond interband cascade types.
  • Time- and frequency-domain correlations confirm the noise relationship holds across operating conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Integrated sensors could monitor comb coherence continuously using only on-chip baseband circuitry.
  • The same mechanism might be used to reduce effective noise in comb-based sensing systems.
  • Testing in quantum cascade or other diode lasers would check how general the downconversion is.

Load-bearing premise

The observed correlation between baseband noise and the intermode beat note reliably indicates the degree of coherence needed for typical comb applications.

What would settle it

A measurement showing strong baseband noise when high-speed detection confirms good coherence, or low baseband noise when high-speed detection shows poor coherence, would disprove the method.

read the original abstract

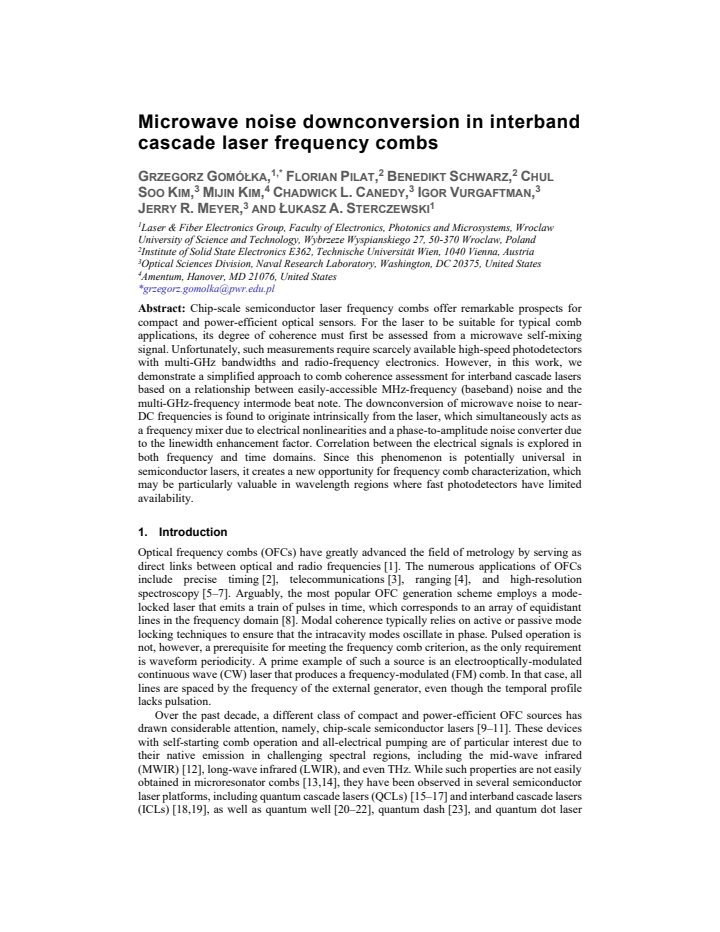

Chip-scale semiconductor laser frequency combs offer remarkable prospects for compact and power-efficient optical sensors. For the laser to be suitable for typical comb applications, its degree of coherence must first be assessed from a microwave self-mixing signal. Unfortunately, such measurements require scarcely available high-speed photodetectors with multi-GHz bandwidths and radio-frequency electronics. However, in this work, we demonstrate a simplified approach to comb coherence assessment for interband cascade lasers based on a relationship between easily-accessible MHz-frequency (baseband) noise and the multi-GHz-frequency intermode beat note. The downconversion of microwave noise to near-DC frequencies is found to originate intrinsically from the laser, which simultaneously acts as a frequency mixer due to electrical nonlinearities and a phase-to-amplitude noise converter due to the linewidth enhancement factor. Correlation between the electrical signals is explored in both frequency and time domains. Since this phenomenon is potentially universal in semiconductor lasers, it creates a new opportunity for frequency comb characterization, which may be particularly valuable in wavelength regions where fast photodetectors have limited availability.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript investigates microwave noise downconversion in interband cascade laser frequency combs. It reports a correlation between accessible MHz-frequency baseband noise and the multi-GHz intermode beat note, proposing this as a simplified method for coherence assessment. The effect is attributed to the laser's intrinsic electrical nonlinearities enabling frequency mixing and the linewidth enhancement factor enabling phase-to-amplitude conversion. Correlations are examined in both frequency and time domains, with the phenomenon suggested to be potentially universal in semiconductor lasers.

Significance. Should the reported correlations prove robust and the downconversion mechanism confirmed as reliable for proxy measurements, this work offers a practical advancement in characterizing semiconductor laser frequency combs. It could facilitate coherence assessment in spectral regions lacking high-speed photodetectors, thereby supporting broader adoption of chip-scale combs in optical sensing applications. The use of established laser properties without additional fitted parameters is a strength.

major comments (2)
  1. [§4] §4 (Results): The central claim that baseband noise provides a reliable proxy for intermode beat-note coherence rests on observed correlations in frequency and time domains. However, the manuscript does not report quantitative metrics (e.g., correlation coefficients with uncertainties, linearity tests, or residuals) or validation against direct beat-note measurements under varied bias currents and temperatures, leaving the sufficiency of the proxy for practical comb applications unestablished.
  2. [§5] §5 (Discussion): Attribution of the downconversion to electrical nonlinearities and the linewidth enhancement factor relies on known semiconductor laser properties, but no model, simulation, or derivation is provided to show how these mechanisms quantitatively map the multi-GHz beat note to the observed MHz noise while preserving the necessary coherence information.
minor comments (2)
  1. [Abstract] Abstract: The claim of potential universality would be strengthened by a brief reference to prior observations in other semiconductor laser types.
  2. [Figures] Figure captions: Several figures lack explicit labels for operating conditions (e.g., current, temperature) corresponding to the plotted traces.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their detailed and constructive feedback on our manuscript. We address each of the major comments below and have revised the manuscript accordingly to improve clarity and strengthen the claims.

read point-by-point responses

  1. Referee: [§4] §4 (Results): The central claim that baseband noise provides a reliable proxy for intermode beat-note coherence rests on observed correlations in frequency and time domains. However, the manuscript does not report quantitative metrics (e.g., correlation coefficients with uncertainties, linearity tests, or residuals) or validation against direct beat-note measurements under varied bias currents and temperatures, leaving the sufficiency of the proxy for practical comb applications unestablished.

    Authors: We agree that quantitative metrics would strengthen the presentation. In the revised manuscript we have added Pearson correlation coefficients with uncertainties for both the frequency-domain and time-domain data, along with linearity assessments and residual analysis. Our measurements were performed at representative stable operating points detailed in the methods; while an exhaustive sweep over all bias currents and temperatures was not included, the correlations remained consistent within the explored regime. We have added a brief discussion of this scope limitation and note that broader validation would further support practical use, but the existing data establish the proxy under the conditions where the comb operates coherently. revision: partial

  2. Referee: [§5] §5 (Discussion): Attribution of the downconversion to electrical nonlinearities and the linewidth enhancement factor relies on known semiconductor laser properties, but no model, simulation, or derivation is provided to show how these mechanisms quantitatively map the multi-GHz beat note to the observed MHz noise while preserving the necessary coherence information.

    Authors: The attribution rests on established semiconductor-laser physics, but we accept that a clearer link to the observed signals is helpful. We have expanded the discussion to include a step-by-step qualitative derivation showing how the laser’s electrical nonlinearity mixes the multi-GHz beat note down to baseband while the alpha-factor converts residual phase fluctuations into measurable amplitude noise, thereby transferring the coherence information. This explanation is grounded in prior literature on similar mixing and conversion processes. A full device-specific quantitative simulation lies outside the present experimental scope and would require additional parameters not measured here; we have therefore framed the derivation as qualitative yet sufficient to connect the mechanisms to the data. revision: yes

Circularity Check

0 steps flagged

No significant circularity; result is observational correlation explained by standard semiconductor laser physics

full rationale

The paper reports experimental correlations between baseband (MHz) noise and multi-GHz intermode beat notes in ICL combs, attributing the downconversion mechanism to the laser's intrinsic electrical nonlinearities (acting as a mixer) and linewidth enhancement factor (phase-to-amplitude conversion). These are established properties of semiconductor lasers, not derived or fitted within the paper. No equations reduce the claimed relationship to a self-defined quantity, no parameters are fitted to a subset and then called a prediction, and no load-bearing uniqueness theorem or ansatz is imported via self-citation. The central claim rests on direct measurements in frequency and time domains rather than tautological redefinition of inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard domain knowledge of semiconductor laser behavior rather than new postulates or fitted parameters introduced in this work.

axioms (2)
  • domain assumption Semiconductor lasers exhibit electrical nonlinearities that allow them to function as frequency mixers.
    Invoked in the abstract to explain the origin of microwave noise downconversion.
  • domain assumption The linewidth enhancement factor in semiconductor lasers converts phase noise to amplitude noise.
    Cited in the abstract as the mechanism enabling phase-to-amplitude conversion during downconversion.

pith-pipeline@v0.9.0 · 5526 in / 1446 out tokens · 50780 ms · 2026-05-09T21:04:18.375163+00:00 · methodology
