arxiv: 2604.21557 · v1 · submitted 2026-04-23 · 🌌 astro-ph.HE

Recognition: unknown

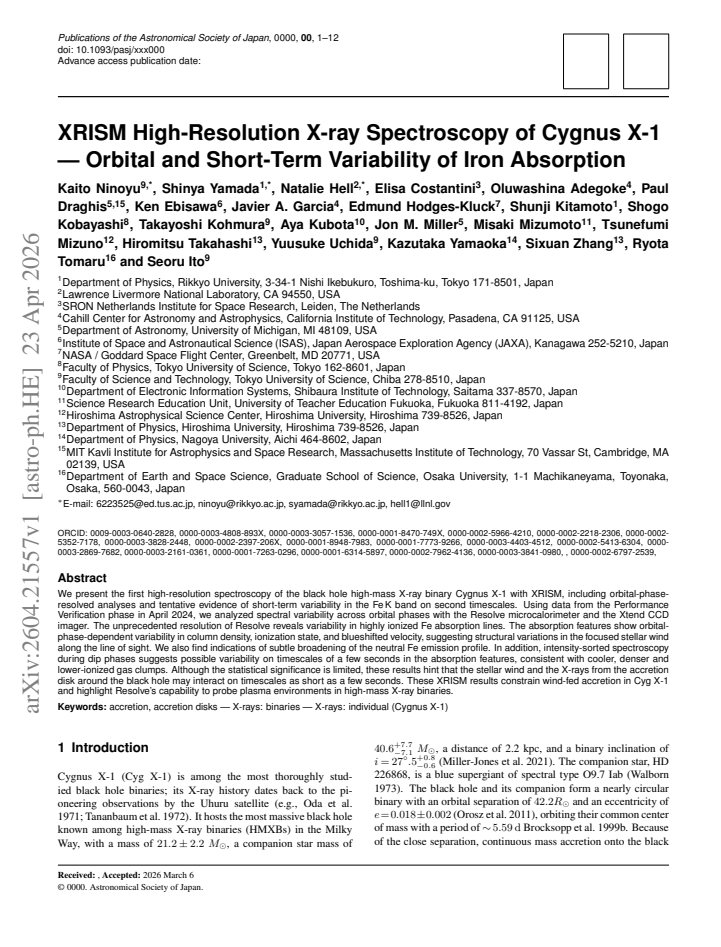

XRISM High-Resolution X-ray Spectroscopy of Cygnus X-1 -- Orbital and Short-Term Variability of Iron Absorption

Kaito Ninoyu , Shinya Yamada , Natalie Hell , Elisa Costantini , Oluwashina Adegoke , Paul Draghis , Ken Ebisawa , Javier A. Garcia

show 14 more authors

Edmund Hodges-Kluck Shunji Kitamoto Shogo Kobayashi Takayoshi Kohmura Aya Kubota Jon M. Miller Misaki Mizumoto Tsunefumi Mizuno Hiromitsu Takahashi Yuusuke Uchida Kazutaka Yamaoka Sixuan Zhang Ryota Tomaru Seoru Ito

Authors on Pith no claims yet

Pith reviewed 2026-05-09 21:12 UTC · model grok-4.3

classification 🌌 astro-ph.HE

keywords Cygnus X-1XRISMiron K absorptionstellar windhigh-mass X-ray binaryorbital variabilityshort-term variabilityResolve microcalorimeter

0 comments

The pith

XRISM spectra of Cygnus X-1 show iron absorption lines varying in column density, ionization, and velocity with orbital phase and on few-second timescales.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper reports the first high-resolution X-ray spectroscopy of the black hole binary Cygnus X-1 with XRISM during its performance verification phase. The Resolve microcalorimeter resolves highly ionized iron absorption features whose parameters change across orbital phases. These changes indicate that the focused stellar wind is not uniform along the line of sight. Intensity-sorted spectra taken during X-ray dips also show tentative absorption changes on timescales of a few seconds that match cooler, denser, lower-ionized gas. The observations therefore constrain how the stellar wind feeds the accretion flow around the black hole.

Core claim

The absorption features show orbital-phase-dependent variability in column density, ionization state, and blueshifted velocity, suggesting structural variations in the focused stellar wind along the line of sight. Intensity-sorted spectroscopy during dip phases suggests possible variability on timescales of a few seconds in the absorption features, consistent with cooler, denser and lower-ionized gas clumps.

What carries the argument

Orbital-phase-resolved and intensity-sorted spectroscopy of the Fe K absorption lines with the Resolve microcalorimeter, which measures changes in line column density, ionization parameter, and velocity shift.

Load-bearing premise

The short-term absorption variability on few-second timescales is produced by real changes in the gas rather than by instrumental effects or statistical noise.

What would settle it

A longer XRISM exposure that reaches higher counts per intensity bin and either confirms or rules out statistically significant shifts in absorption line parameters on timescales of a few seconds.

Figures

Figures reproduced from arXiv: 2604.21557 by Aya Kubota, Edmund Hodges-Kluck, Elisa Costantini, Hiromitsu Takahashi, Javier A. Garcia, Jon M. Miller, Kaito Ninoyu, Kazutaka Yamaoka, Ken Ebisawa, Misaki Mizumoto, Natalie Hell, Oluwashina Adegoke, Paul Draghis, Ryota Tomaru, Seoru Ito, Shinya Yamada, Shogo Kobayashi, Shunji Kitamoto, Sixuan Zhang, Takayoshi Kohmura, Tsunefumi Mizuno, Yuusuke Uchida.

**Figure 1.** Figure 1: (A) Xtend light curves (upper) in 0.5–1.5 (black), 1.5–3.0 (blue), and 3.0–10.0 keV (green), and the Resolve light curve (lower) in 2.0–10.0 keV. The bin size was set to 100 s. Times recorded by Xtend and Resolve are converted to MJD (first axis) and then to orbital phase (second axis). The 0.5–3.0 keV light curve shows a significant reduction in intensity corresponding to the X-ray absorption dip at super… view at source ↗

**Figure 2.** Figure 2: Comparison of four models for the Fe I Kα emission line: (A) single-Gaussian, (B) double-Gaussian, (C) double-Lorentzian. For each model, residuals from the four configurations with line width σ and redshift z are shown in the second and subsequent rows of panels in different colors ((i):blue, (iv):lime). In the top panel, the model for each configuration is displayed in each color. The dotted lines in mag… view at source ↗

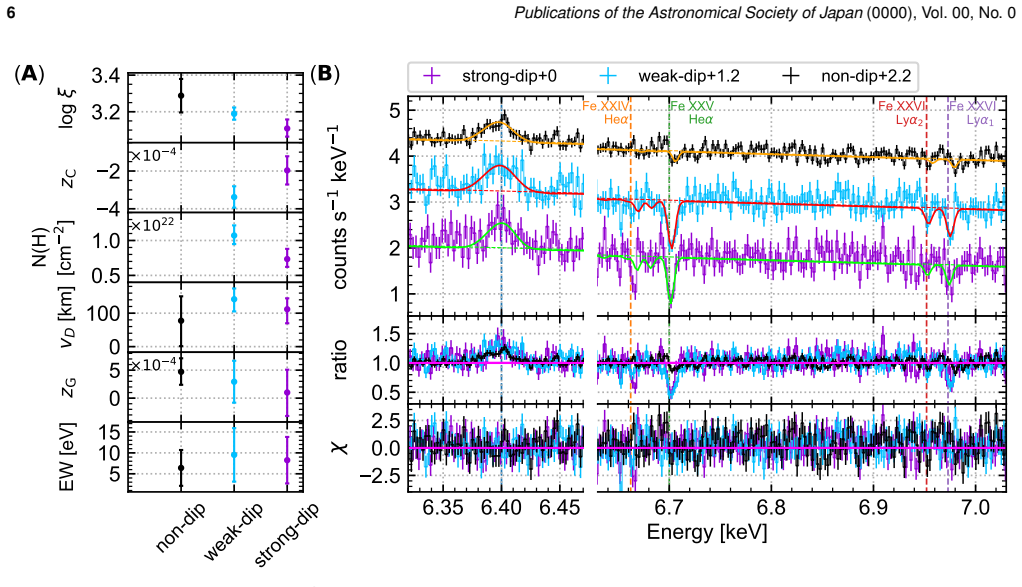

**Figure 3.** Figure 3: Results of the Cloudy_abs and double Gaussian model fits to the Resolve spectra at each dip level. (A) The parameter for each dip level. (B) The spectra and residuals for each dip level and models. The spectral fit was performed over the 6.0–10.0 keV, and this figure presents a zoomed-in view of the 6.3–6.48 keV and 6.63–7.02 keV. (Top)Resolve spectra at each dip level, plotted with arbitrary offsets (non-… view at source ↗

**Figure 4.** Figure 4: P Cygni-like profile of the Fe XXV Heα (6.7 keV) line in the non-dip spectrum. The bottom panel shows the fit with two Gaussian components (emission and absorption) with independent redshifts. Alt text: The figure consists of two stacked panels, showing the spectrum around 6.7 keV in the upper panel and the residuals in the lower panel [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

**Figure 5.** Figure 5: Orbital-phase-resolved spectra of Xtend and their ratios to the nondip spectrum. (Top) Detector-response-folded Xtend spectra. As indicated in the legend, each color corresponds to an orbital phase bin (∆ϕorb = 0.05). (Bottom) Ratios to the non-dip spectrum defined in Section 3.1, computed using the detector-response-folded spectra. The ratio shows a marked change below ∼3 keV; the spectrum at 0.00 ≤ ϕorb… view at source ↗

**Figure 6.** Figure 6: (A) Absorption parameters as a function of orbital phase. As indicated in the legend, colored points show results for ∆ϕorb = 0.10, while gray points show results for ∆ϕorb = 0.05 slid in steps of 0.05. The parameters log ξ, N(H), and z derived from the Fe XXV/Fe XXVI absorption show clear orbital modulation. (B) Orbital-phase-resolved Resolve spectra for each phase bin (legend). The magenta solid curve is… view at source ↗

**Figure 7.** Figure 7: (A) Results of the Cloudy_abs×powerlaw + double-Gaussian fits. The continuum is modeled with a power law absorbed by Cloudy_abs; the doubleGaussian consists of two components for Fe I Kα1 and Fe I Kα2 sharing the same redshift and Gaussian width parameter. In the photon-index and normalization panels, gray points show the results of fitting the 2.0–10.0 keV spectra with a simple power-law model. (B) Spect… view at source ↗

**Figure 8.** Figure 8: shows the radial profile of the pile-up fraction for the cleaned events used in this work. The fraction is ∼3% within the central r = 10 pixels and drops below ∼1% beyond r ≈ 22 pixels. Balancing residual pile-up against signal-to-noise and encircled energy, we adopted an annular extraction region with inner radius rin = 10 pixels and outer radius rout = 50 pixels for the Xtend spectra (Section 2). ARFs … view at source ↗

**Figure 9.** Figure 9: shows the resulting SED: the multi-temperature disk (red dashed), the Comptonized continuum (green dashed), and their sum (black). This SED was provided to Cloudy_abs (generated with CLOUDY; e.g., Chatzikos et al. 2023; Gunasekera et al. 0 20 40 60 80 100 120 Radial Distance (pixel) 0.00 0.01 0.02 0.03 0.04 0.05 0.06 pileup fraction plfrac=3.00 % at 10.32 pixel plfrac=1.00 % at 22.71 pixel data [PITH_FUL… view at source ↗

read the original abstract

We present the first high-resolution spectroscopy of the black hole high-mass X-ray binary Cygnus X-1 with XRISM, including orbital-phase-resolved analyses and tentative evidence of short-term variability in the Fe-K band on second timescales. Using data from the Performance Verification phase in April 2024, we analyzed spectral variability across orbital phases with the Resolve microcalorimeter and the Xtend CCD imager. The unprecedented resolution of Resolve reveals variability in highly ionized Fe absorption lines. The absorption features show orbital-phase-dependent variability in column density, ionization state, and blueshifted velocity, suggesting structural variations in the focused stellar wind along the line of sight. We also find indications of subtle broadening of the neutral Fe emission profile. In addition, intensity-sorted spectroscopy during dip phases suggests possible variability on timescales of a few seconds in the absorption features, consistent with cooler, denser and lower-ionized gas clumps. Although the statistical significance is limited, these results hint that the stellar wind and the X-rays from the accretion disk around the black hole may interact on timescales as short as a few seconds. These XRISM results constrain wind-fed accretion in Cyg X-1 and highlight Resolve's capability to probe plasma environments in high-mass X-ray binaries.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

XRISM Resolve gives the first solid phase-resolved Fe absorption data on Cyg X-1, but the few-second clump variability is still too tentative to lean on.

read the letter

The paper's real value is the first XRISM Resolve spectra of Cygnus X-1. The orbital-phase binning shows clear changes in the highly ionized Fe absorption column, ionization, and blueshift that track the focused stellar wind geometry. That part is straightforward spectral fitting on new high-resolution data and adds usable constraints for wind-accretion models in this source. The neutral Fe emission broadening is noted but not pushed hard, which is fine for a first look. The work stays close to the observations: phase binning, intensity sorting in dips, and standard atomic databases, with no circular derivations or invented parameters. The orbital results look reproducible from the Resolve data and prior lower-resolution baselines. The short-term variability on a few-second scale during dips is the soft spot. The abstract itself flags limited statistical significance, and intensity-sorted spectra in the low-count dip intervals are exactly where Poisson noise or small calibration residuals can shift fitted parameters. Without the full error budgets or explicit checks against instrumental artifacts, this stays suggestive rather than load-bearing. The paper is for people who follow HMXBs and X-ray wind diagnostics. A reader working on Cyg X-1 or similar systems will find the orbital-phase results worth citing for the new resolution. It deserves peer review because the dataset is genuinely new and the main analysis is direct, even if the tentative short-term claim will need tighter statistics or more data in revision.

Referee Report

1 major / 1 minor

Summary. The manuscript reports the first XRISM high-resolution X-ray spectroscopy of Cygnus X-1 from Performance Verification data. Using Resolve and Xtend, it analyzes orbital-phase-resolved spectra and finds variability in highly ionized Fe absorption lines, with changes in column density, ionization state, and blueshifted velocity interpreted as structural variations in the focused stellar wind. It additionally presents tentative evidence from intensity-sorted spectroscopy during dip phases for short-term variability in absorption features on timescales of a few seconds, consistent with cooler, denser, lower-ionized gas clumps, while noting limited statistical significance. Subtle broadening of the neutral Fe emission profile is also mentioned.

Significance. If the orbital-phase results hold, the work provides important new constraints on the geometry and dynamics of the stellar wind in this archetypal wind-fed black hole binary, leveraging the unprecedented spectral resolution of the Resolve microcalorimeter. The tentative short-term variability, if substantiated, would indicate rapid wind-X-ray interactions on second timescales relevant to clumpy accretion models. The analysis is grounded in direct spectral fitting against standard atomic databases with no circular derivations.

major comments (1)

[intensity-sorted spectroscopy during dip phases] Abstract and intensity-sorted spectroscopy during dip phases: The short-term variability claim asserts possible changes on few-second timescales consistent with cooler, denser, lower-ionized clumps, but immediately qualifies this with limited statistical significance. Given the low-count regime in dip intervals, the manuscript must demonstrate that the reported shifts in column density, ionization parameter, and velocity exceed expectations from Poisson fluctuations or cross-calibration residuals (e.g., via explicit Delta-chi-squared values or Monte Carlo tests between intensity bins) before the clump interpretation can be considered supported.

minor comments (1)

The abstract refers to 'subtle broadening of the neutral Fe emission profile' without a corresponding quantitative result or figure reference in the summary; ensure this is consistently presented and discussed in the main text with appropriate error bars.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive evaluation and constructive comment recommending minor revision. We address the point on intensity-sorted spectroscopy below and will incorporate the requested statistical tests in the revised manuscript.

read point-by-point responses

Referee: [intensity-sorted spectroscopy during dip phases] Abstract and intensity-sorted spectroscopy during dip phases: The short-term variability claim asserts possible changes on few-second timescales consistent with cooler, denser, lower-ionized clumps, but immediately qualifies this with limited statistical significance. Given the low-count regime in dip intervals, the manuscript must demonstrate that the reported shifts in column density, ionization parameter, and velocity exceed expectations from Poisson fluctuations or cross-calibration residuals (e.g., via explicit Delta-chi-squared values or Monte Carlo tests between intensity bins) before the clump interpretation can be considered supported.

Authors: We agree that additional quantitative validation is needed to substantiate even a tentative claim in the low-count dip-phase regime. The manuscript already describes the short-term variability as tentative with limited statistical significance and avoids strong claims about clump properties. In the revision we will add explicit Delta-chi-squared comparisons between nested models (fixed vs. free parameters across intensity bins) and Monte Carlo simulations that draw from the best-fit model to assess the probability that the observed shifts in column density, ionization parameter, and velocity arise from Poisson fluctuations alone. We will also check for possible cross-calibration residuals between Resolve and Xtend in these intervals. These results will be presented in the intensity-sorted spectroscopy subsection to allow readers to judge the evidence directly while preserving the cautious interpretation. revision: yes

Circularity Check

0 steps flagged

No circularity: purely observational spectral measurements with no derivation chain

full rationale

The manuscript consists of direct data reduction from XRISM Resolve and Xtend instruments: orbital phase binning of spectra, extraction of Fe absorption line parameters (column density, ionization, velocity), and intensity-sorted analysis during dips. No equations, ansatzes, uniqueness theorems, or model predictions are derived; all reported variability is measured against external calibration and atomic databases. The limited-significance caveat on short-term variability is an explicit qualification of evidence strength, not a circular reduction. No self-citation load-bearing steps or fitted inputs renamed as predictions appear.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

This is a pure observational study using established X-ray spectral analysis. No new free parameters, axioms beyond standard wind and line-formation physics, or invented entities are introduced.

axioms (2)

domain assumption Absorption lines in the Fe-K band trace highly ionized iron in the companion star's wind.
Standard assumption in high-mass X-ray binary spectroscopy.
domain assumption Orbital phase binning isolates line-of-sight variations through the focused wind.
Relies on known binary geometry and orbital parameters from prior work.

pith-pipeline@v0.9.0 · 5633 in / 1556 out tokens · 47752 ms · 2026-05-09T21:12:51.805893+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

45 extracted references

[1]

A., Parker, M., & Islam, N

Basak, R., Zdziarski, A. A., Parker, M., & Islam, N. 2017, MNRAS, 472, 4220,

2017
[2]

I., Abbott, D

Castor, J. I., Abbott, D. C., & Klein, R. I. 1975, Astrophys. J., 195, 157,

1975
[3]

2023, Rev

Chatzikos, M., Bianchi, S., Camilloni, F., et al. 2023, Rev. Mex. Astron. Astrofis., 59, 327,

2023
[4]

2007, A&AR, 15, 1,

Done, C., Gierli´nski, M., & Kubota, A. 2007, A&AR, 15, 1,

2007
[5]

A., Miller, J

Draghis, P. A., Miller, J. M., Costantini, E., et al. 2024, Astrophys. J., 969, 40,

2024
[6]

C., Wilkins, D

Fabian, A. C., Wilkins, D. R., Miller, J. M., et al. 2012, MNRAS, 424, 217,

2012
[7]

B., & Castor, J

Friend, D. B., & Castor, J. I. 1982, Astrophys. J., 261, 293,

1982
[8]

R., & Bolton, C

Gies, D. R., & Bolton, C. T. 1986, Astrophys. J., 304, 389,

1986
[9]

A., Hell, N., et al

Grinberg, V ., Leutenegger, M. A., Hell, N., et al. 2015, Astron. Astrophys., 576, A117,

2015
[10]

M., van Hoof, P

Gunasekera, C. M., van Hoof, P. A. M., Chatzikos, M., & Ferland, G. J. 2023, Research Notes of the American Astronomical Society, 7, 246,

2023
[11]

A., et al

Hanke, M., Wilms, J., Nowak, M. A., et al. 2009, Astrophys. J., 690, 330, Härer, L. K., Parker, M. L., El Mellah, I., et al. 2023, Astron. Astrophys., 680, A72,

2009
[12]

P., Gabler, R., Vilchez, J

Herrero, A., Kudritzki, R. P., Gabler, R., Vilchez, J. M., & Gabler, A. 1995, Astron. Astrophys., 297, 556

1995
[13]

2019, Astron

Hirsch, M., Hell, N., Grinberg, V ., et al. 2019, Astron. Astrophys., 626, A64, Hölzer, G., Fritsch, M., Deutsch, M., Härtwig, J., & Förster, E. 1997, Phys. Rev. A, 56, 4554,

2019
[14]

L., Awaki, H., et al

Ishisaki, Y ., Kelley, R. L., Awaki, H., et al. 2022, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol. 12181, Space Telescopes and Instrumentation 2022: Ultraviolet to Gamma Ray, ed. J.- W. A. den Herder, K. Nakazawa, & S. Nikzad (SPIE), 121811S,

2022
[15]

T., et al

Kitamoto, S., Miyamoto, S., Tanaka, Y . T., et al. 1984, PASJ, 36, 731

1984
[16]

2008, Publ

Makishima, K., Takahashi, H., Yamada, S., et al. 2008, Publ. Astron. Soc. Jpn. Nihon Tenmon Gakkai, 60, 585,

2008
[17]

2020, in Space Telescopes and Instrumentation 2020: Ultraviolet to Gamma Ray, ed

Midooka, T., Tsujimoto, M., Kitamoto, S., et al. 2020, in Space Telescopes and Instrumentation 2020: Ultraviolet to Gamma Ray, ed. J.-W. A. den

2020
[18]

M., Wojdowski, P., Schulz, N

Miller, J. M., Wojdowski, P., Schulz, N. S., et al. 2005, Astrophys. J., 620, 398,

2005
[19]

M., Fabian, A

Miller, J. M., Fabian, A. C., Wijnands, R., et al. 2002, ApJ, 578, 348,

2002
[20]

Miller-Jones, J. C. A., Bahramian, A., Orosz, J. A., et al. 2021, Science, 371, 1046, Miškoviˇcová, I., Hell, N., Hanke, M., et al. 2016, Astron. Astrophys., 590, A114,

2021
[21]

2025, PASJ, 77, S86,

Miura, D., Yamaguchi, H., Ballhausen, R., et al. 2025, PASJ, 77, S86,

2025
[22]

L., et al

Mochizuki, Y ., Tsujimoto, M., Kelley, R. L., et al. 2024, Astrophys. J. Lett., 977, L21,

2024
[23]

2022, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol

Mori, K., Tomida, H., Nakajima, H., et al. 2022, in Society of Photo-Optical Instrumentation Engineers (SPIE) Conference Series, V ol. 12181, Space Telescopes and Instrumentation 2022: Ultraviolet to Gamma Ray, ed. J.-W. A. den Herder, S. Nikzad, & K. Nakazawa (Proceedings of SPIE Astronomical Telescopes and Instrumentation 2022), 121811T,

2022
[24]

2025, PASJ, 77, S10,

Noda, H., Mori, K., Tomida, H., et al. 2025, PASJ, 77, S10,

2025
[25]

A., Hanke, M., Trowbridge, S

Nowak, M. A., Hanke, M., Trowbridge, S. N., et al. 2011, ApJ, 728, 13,

2011
[26]

1971, ApJL, 166, L1,

Oda, M., Gorenstein, P., Gursky, H., et al. 1971, ApJL, 166, L1,

1971
[27]

A., McClintock, J

Orosz, J. A., McClintock, J. E., Aufdenberg, J. P., et al. 2011, Astrophys. J., 742, 84,

2011
[28]

M., Feldmeier, A., & Kretschmar, P

Oskinova, L. M., Feldmeier, A., & Kretschmar, P. 2012, MNRAS, 421, 2820,

2012
[29]

P., Castor, J

Owocki, S. P., Castor, J. I., & Rybicki, G. B. 1988, ApJ, 335, 914,

1988
[30]

Ramachandran, V ., Sander, A. A. C., Oskinova, L. M., et al. 2025, Astron. Astrophys., 698, A37,

2025
[31]

A., & McClintock, J

Remillard, R. A., & McClintock, J. E. 2006, ARA&A, 44, 49,

2006
[32]

K., Bernitt, S., Epp, S

Rudolph, J. K., Bernitt, S., Epp, S. W., et al. 2013, Phys. Rev. Lett., 111, 103002,

2013
[33]

2023, in High-Resolution X-ray Spectroscopy (Singapore: Springer Nature Singapore), 93–123,

Sato, K., Uchida, Y ., & Ishikawa, K. 2023, in High-Resolution X-ray Spectroscopy (Singapore: Springer Nature Singapore), 93–123,

2023
[34]

O., Owocki, S

Sundqvist, J. O., Owocki, S. P., & Puls, J. 2018, A&A, 611, A17,

2018
[35]

1972, ApJL, 177, L5,

Tananbaum, H., Gursky, H., Kellogg, E., Giacconi, R., & Jones, C. 1972, ApJL, 177, L5,

1972
[36]

2025, PASJ, 77, S1,

Tashiro, M., Kelley, R., Watanabe, S., et al. 2025, PASJ, 77, S1,

2025
[37]

S., Maejima, H., Toda, K., et al

Tashiro, M. S., Maejima, H., Toda, K., et al. 2020, in Society of Photo- Optical Instrumentation Engineers (SPIE) Conference Series, V ol. 11444, Space Telescopes and Instrumentation 2020: Ultraviolet to Gamma Ray, ed. J.-W. A. den Herder, K. Nakazawa, & S. Nikzad (SPIE), 1144422,

2020
[38]

A., Parker, M

Tomsick, J. A., Parker, M. L., García, J. A., et al. 2018, Astrophys. J., 855, 3,

2018
[39]

2004, The Astrophysical Journal, 609, 325,

Ueda, Y ., Murakami, H., Yamaoka, K., Dotani, T., & Ebisawa, K. 2004, The Astrophysical Journal, 609, 325,

2004
[40]

Walborn, N. R. 1973, AJ, 78, 1067,

1973
[41]

C., Nowak, M

Xiang, J., Lee, J. C., Nowak, M. A., & Wilms, J. 2011, ApJ, 738, 78, XRISM Collaboration, Audard, M., Awaki, H., et al. 2024, Astrophys. J. Lett., 977, L34,

2011
[42]

2013, Publ

Yamada, S., Makishima, K., Done, C., et al. 2013, Publ. Astron. Soc. Jpn. Nihon Tenmon Gakkai, 65, 80,

2013
[43]

2012, Publ

Yamada, S., Uchiyama, H., Dotani, T., et al. 2012, Publ. Astron. Soc. Jpn. Nihon Tenmon Gakkai, 64, 53,

2012
[44]

2025, PASJ, 77, 1210,

Yamada, S., Hell, N., Costantini, E., et al. 2025, PASJ, 77, 1210,

2025
[45]

A., Banerjee, S., Chand, S., et al

Zdziarski, A. A., Banerjee, S., Chand, S., et al. 2024, Astrophys. J., 962, 101,

2024
