A Compact Peristaltic Pump Based on Magneto-Elastic Hysteresis with Single Pneumatic Control

Minjo Park , Metin Sitti This is my paper

Pith reviewed 2026-05-09 21:26 UTC · model grok-4.3

classification 💻 cs.RO
keywords peristaltic pumpsoft roboticsmagneto-elastic hysteresissingle pneumatic controlmembrane deformationfluid transportcompact pump
0
0 comments X

The pith

A soft membrane pump creates peristaltic motion using only one pneumatic input and an embedded passive magnet.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates a compact soft pump design in which a single air-pressure signal interacts with a passive magnet to produce wave-like membrane deformations that transport fluid without direct contact. Modeling simplifies the actuation dynamics, numerical simulations predict the resulting flow, and a prototype confirms the magneto-elastic hysteresis cycle that enables the peristaltic effect. This single-input approach reduces the need for multiple actuators or complex timing sequences common in earlier peristaltic pumps. If the mechanism holds across fluids and conditions, it offers a simpler route to safe, contact-free pumping in biomedical or soft-robotic settings.

Core claim

The central claim is that embedding a passive magnet in a soft membrane and driving it with a single pneumatic input generates repeatable magneto-elastic hysteresis, which in turn produces the sequential tube deformations required for peristaltic pumping, as shown by analysis, fluid-flow simulation, and experimental validation of a proof-of-concept device.

What carries the argument

Magneto-elastic hysteresis created by the interaction of a single pneumatic pressure cycle with an embedded passive magnet, which produces the traveling deformation wave along the membrane.

If this is right

  • Pump control hardware is reduced to a single pressure source.
  • Fluid flow inside the tube can be predicted from the modeled hysteresis loop without direct fluid contact.
  • The design supports compact prototypes suitable for repeated operation across different working fluids.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same hysteresis principle might extend to other soft actuators that need cyclic motion with minimal energy input.
  • Integration into closed-loop microfluidic systems could become feasible if the pump output remains stable under varying back-pressures.
  • Scaling the magnet strength or membrane thickness offers a direct way to tune flow rate without adding control channels.

Load-bearing premise

The magneto-elastic hysteresis can be reliably produced and controlled by a single pneumatic input without requiring additional actuators or complex timing.

What would settle it

An experiment in which the membrane fails to show sequential deformation waves when the same pneumatic pressure waveform is applied repeatedly, or when the embedded magnet is absent.

Figures

Figures reproduced from arXiv: 2604.21729 by Metin Sitti, Minjo Park.

Figure 1
Figure 1. Figure 1: Analytical model of the MEHPP. (a) 2D approximation and [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

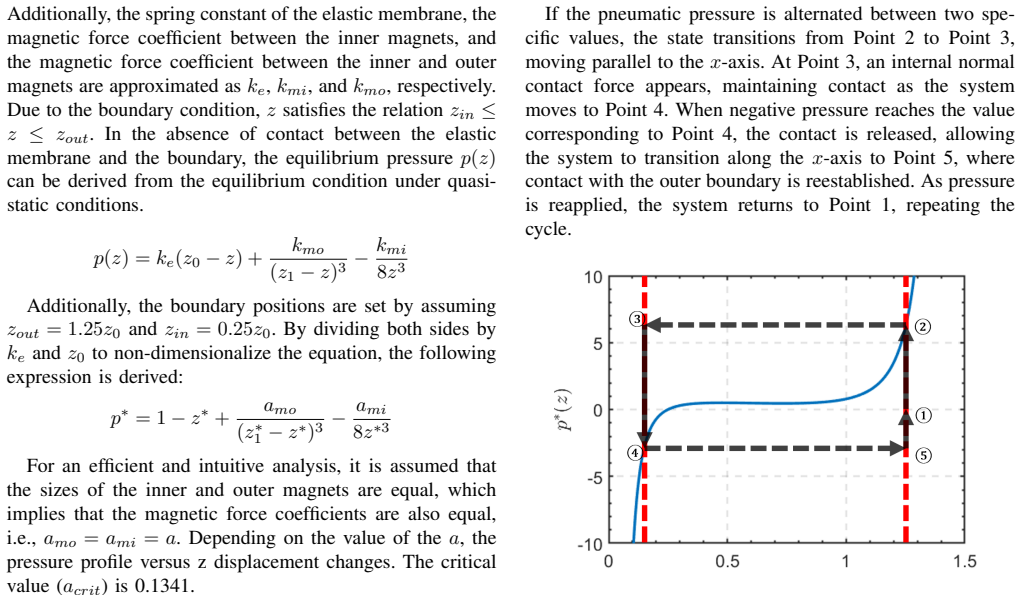

Figure 3
Figure 3. Figure 3: Hysteresis loop of the deformation path over a pneumatic actuation [PITH_FULL_IMAGE:figures/full_fig_p002_3.png] view at source ↗

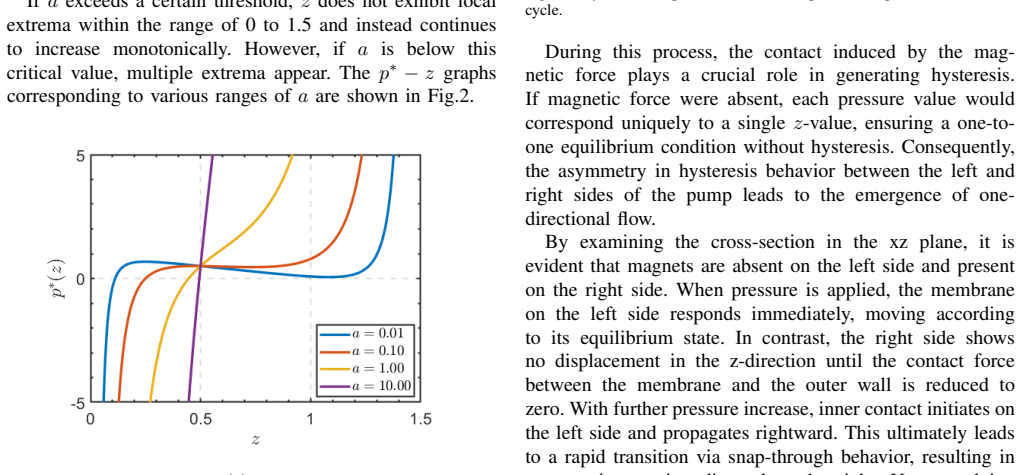

Figure 2
Figure 2. Figure 2: Profiles of p ∗(z) for differnent values of a. For cases where a = 0.1, the trajectory in the p ∗ − z plane over a single cycle was analyzed, as shown in Fig.3. Also, the schematic of the actuation sequence is shown in Fig.1d. Initially, when no pressure is applied, the system is at Position 1, which represents the open state of the conduit. In this state, a contact normal force is exerted from the externa… view at source ↗

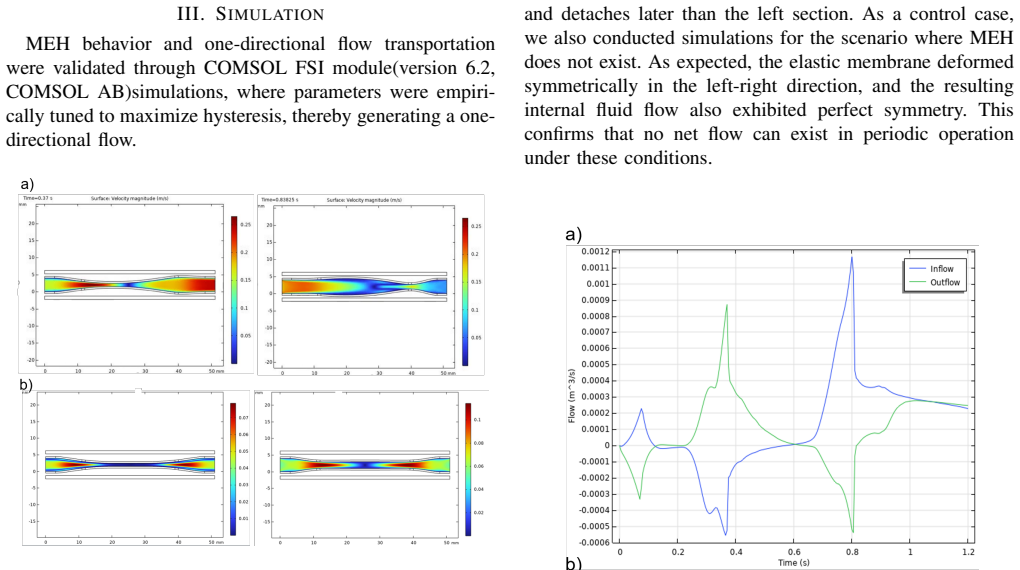

Figure 4
Figure 4. Figure 4: Simulation results of the pneumatically actuated membrane pump [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗

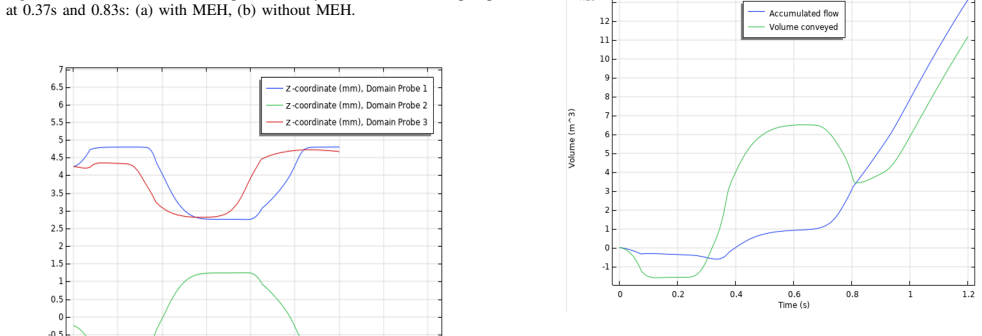

Figure 6
Figure 6. Figure 6: Calculated flow properties. (a) Flow rates at the inlet (blue) and [PITH_FULL_IMAGE:figures/full_fig_p003_6.png] view at source ↗

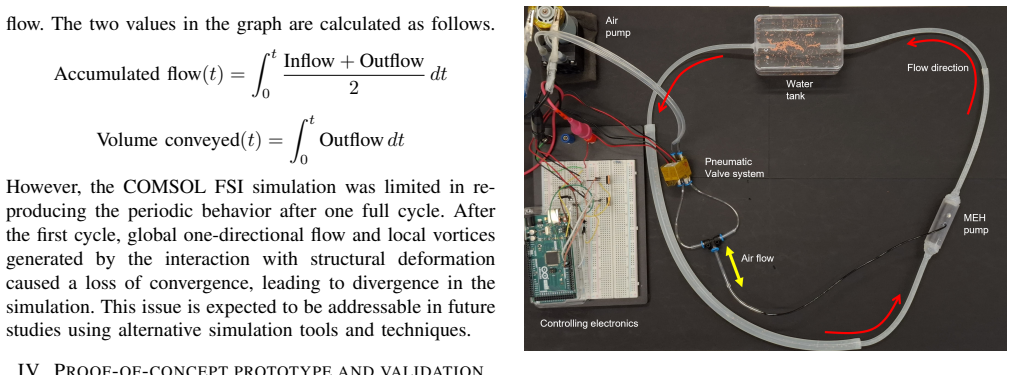

Figure 8
Figure 8. Figure 8: Experimental setup consisting of the air pump, controller, and [PITH_FULL_IMAGE:figures/full_fig_p004_8.png] view at source ↗

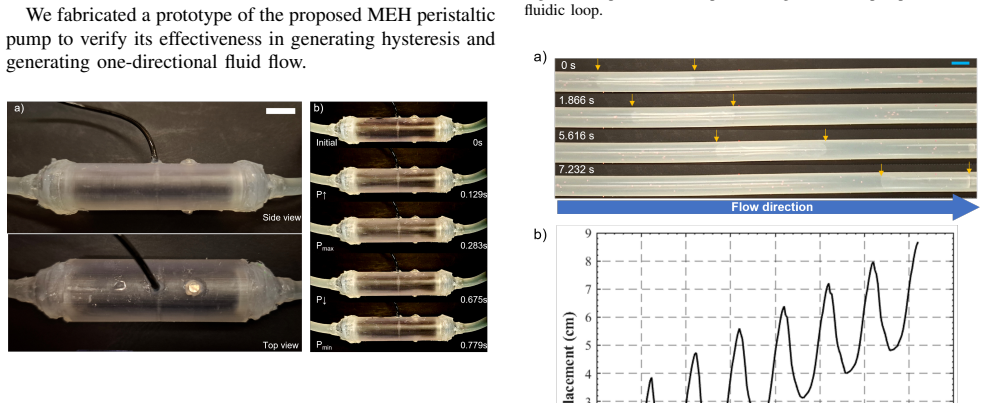

Figure 7
Figure 7. Figure 7: MEHPP prototype. (a) Side and top views. (b) Actuation sequence [PITH_FULL_IMAGE:figures/full_fig_p004_7.png] view at source ↗
read the original abstract

Pumping fluids is fundamental to a wide range of industrial, environmental, and biomedical applications. Among various pumping mechanisms, peristaltic pumps enable efficient and safe fluid transport by deforming an elastic tube without direct contact with the working fluid. Although previous studies have introduced mechanical, pneumatic, or magnetic actuations to drive membrane deformation, these approaches often lead to complex pump architectures and control schemes. In this study, we present a soft membrane pump that achieves peristaltic motion through a single pneumatic input combined with an embedded passive magnet. The actuation mechanism and system dynamics were analyzed and simplified through modeling. Numerical simulations were conducted to predict the internal fluid flow, and the magneto-elastic hysteresis behavior observed in the simulations was successfully validated by experiments with a proof-of-concept prototype.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper presents a compact soft membrane peristaltic pump that achieves peristaltic motion using a single pneumatic input combined with an embedded passive magnet, relying on magneto-elastic hysteresis. The actuation and dynamics are analyzed through modeling, numerical simulations predict internal fluid flow, and the hysteresis behavior from simulations is validated experimentally with a proof-of-concept prototype.

Significance. If the result holds, the approach could enable simpler, more compact peristaltic pumps for soft robotics and biomedical applications by eliminating the need for multiple actuators or complex timing. The combination of physical modeling, flow simulations, and prototype testing is a strength, but the significance is tempered by the partial nature of the experimental support.

major comments (2)
  1. [Abstract] Abstract: Simulations are stated to predict internal fluid flow and peristaltic transport, yet the only experimental validation reported is of the magneto-elastic hysteresis loop. This is load-bearing for the central claim, as deformation hysteresis alone does not guarantee net unidirectional flow (e.g., due to possible back-leakage or incomplete occlusion).
  2. [Proof-of-concept prototype] Proof-of-concept prototype section: No quantitative flow-rate, occlusion, or net-transport measurements are provided under single-input conditions, nor are there comparisons to simulation predictions, error bars, or tests across fluids/conditions. This leaves the performance half of the claim dependent on unverified simulation assumptions about fluid-structure coupling.
minor comments (2)
  1. The manuscript lacks details on how post-simulation adjustments were made to match experiments and provides no quantitative metrics (e.g., hysteresis loop area, peak displacement) for simulation-experiment agreement.
  2. Figure captions and text should clarify the exact single-pneumatic-input protocol used in both simulations and experiments to allow reproducibility.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below with clarifications on the scope of our claims and indicate revisions where appropriate to strengthen the presentation.

read point-by-point responses

  1. Referee: [Abstract] Abstract: Simulations are stated to predict internal fluid flow and peristaltic transport, yet the only experimental validation reported is of the magneto-elastic hysteresis loop. This is load-bearing for the central claim, as deformation hysteresis alone does not guarantee net unidirectional flow (e.g., due to possible back-leakage or incomplete occlusion).

    Authors: We agree that the abstract should more explicitly separate the experimentally validated actuation mechanism from the simulated flow predictions. The central contribution is the single-input peristaltic motion enabled by magneto-elastic hysteresis, with the prototype confirming the deformation behavior under cyclic pneumatic actuation. The numerical simulations then use this validated deformation to predict fluid transport, incorporating tube occlusion and fluid-structure interaction. The hysteresis is load-bearing for achieving net flow because it produces the asymmetric deformation cycle needed for peristalsis with one control input. In the revised manuscript, we will update the abstract to state that fluid flow and transport are predicted by simulations grounded in the experimentally validated hysteresis, and we will add discussion of model assumptions regarding occlusion completeness and potential back-leakage. revision: yes

  2. Referee: [Proof-of-concept prototype] Proof-of-concept prototype section: No quantitative flow-rate, occlusion, or net-transport measurements are provided under single-input conditions, nor are there comparisons to simulation predictions, error bars, or tests across fluids/conditions. This leaves the performance half of the claim dependent on unverified simulation assumptions about fluid-structure coupling.

    Authors: The prototype section is intentionally focused on experimental validation of the magneto-elastic hysteresis and single-input actuation, as this is the novel enabling mechanism. Quantitative flow-rate or net-transport data were not collected because the study prioritizes demonstrating the actuation principle and its modeling over full performance characterization. We acknowledge that this leaves the fluid transport claims reliant on simulation, and that direct comparisons would strengthen confidence in the fluid-structure coupling assumptions. The simulations employ standard Navier-Stokes solvers with the measured deformation as boundary condition. In revision, we will expand the prototype section with additional details on the hysteresis data (including error bars), explicit comparisons between simulated and measured deformations, and a limitations subsection addressing fluid model assumptions, potential leakage, and the absence of multi-fluid testing. We will also revise claims to avoid implying experimental flow validation. revision: partial

Circularity Check

0 steps flagged

No circularity: modeling and validation remain independent of fitted inputs

full rationale

The paper presents a physical model of magneto-elastic actuation under single pneumatic input, performs numerical simulations of resulting fluid flow, and reports experimental confirmation of the simulated hysteresis loop in a prototype. No derivation step reduces a claimed prediction to a fitted parameter by construction, no self-citation supplies a load-bearing uniqueness theorem, and no ansatz is smuggled in via prior work. The central claims rest on standard continuum mechanics plus direct measurement rather than tautological re-labeling of inputs as outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The work is primarily an engineering design and experimental demonstration; the abstract does not introduce or rely on explicit free parameters, unproven axioms, or newly postulated physical entities.
