arxiv: 2604.22297 · v2 · submitted 2026-04-24 · 💻 cs.AR

Recognition: unknown

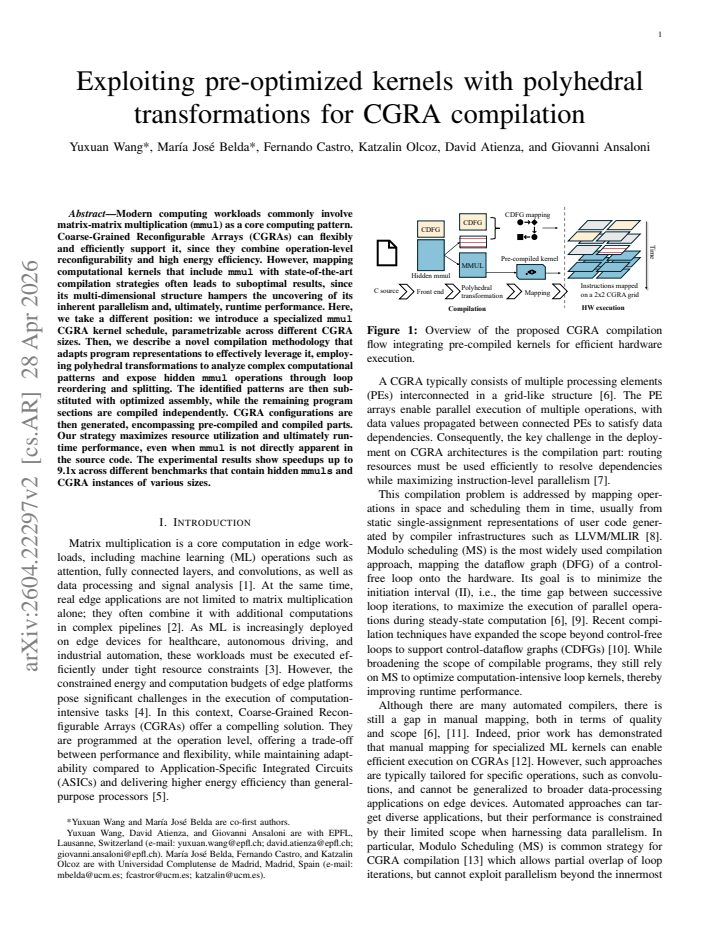

Exploiting pre-optimized kernels with polyhedral transformations for CGRA compilation

Yuxuan Wang , Mar\'ia Jos\'e Belda , Fernando Castro , Katzalin Olcoz , David Atienza , Giovanni Ansaloni

Authors on Pith no claims yet

Pith reviewed 2026-05-08 09:26 UTC · model grok-4.3

classification 💻 cs.AR

keywords CGRApolyhedral transformationsmatrix multiplicationcompiler optimizationkernel substitutionreconfigurable arraysperformance speeduploop transformations

0 comments

The pith

Polyhedral transformations detect hidden matrix multiplications in code and replace them with pre-optimized CGRA kernels for speedups up to 9.1x.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tries to establish that polyhedral transformations can systematically detect hidden matrix-matrix multiplication patterns in general source code through loop reordering and splitting. This matters because standard compilation for coarse-grained reconfigurable arrays struggles with the multi-dimensional structure of mmul, leading to poor parallelism extraction and lower runtime performance. If correct, the approach would allow substitution of these patterns with a specialized parametrizable mmul kernel schedule while compiling the remaining code independently. The result is mixed CGRA configurations that improve resource use and deliver concrete speedups across benchmarks and hardware sizes without requiring explicit mmul in the original program.

Core claim

The central claim is that a novel compilation methodology adapts program representations using polyhedral transformations to expose hidden mmul operations, substitutes them with optimized assembly from a pre-optimized and size-parametrizable CGRA kernel schedule, and generates configurations that combine the pre-compiled kernels with independently compiled program sections, thereby maximizing resource utilization and runtime performance even when mmul is not directly apparent in the source code.

What carries the argument

Polyhedral transformations that analyze complex patterns and perform loop reordering and splitting to expose hidden mmul operations, combined with a parametrizable specialized mmul CGRA kernel schedule for substitution.

Load-bearing premise

Polyhedral transformations will reliably and correctly identify hidden mmul patterns in arbitrary code without semantic errors or missed opportunities, and substituting pre-optimized kernels will always integrate cleanly with the independently compiled remaining sections.

What would settle it

A benchmark program containing a known hidden mmul where the polyhedral transformations fail to detect the pattern, produce an incorrect substitution, or yield no performance gain or erroneous results on a target CGRA.

Figures

Figures reproduced from arXiv: 2604.22297 by David Atienza, Fernando Castro, Giovanni Ansaloni, Katzalin Olcoz, Mar\'ia Jos\'e Belda, Yuxuan Wang.

**Figure 1.** Figure 1: Overview of the proposed CGRA compilation flow integrating pre-compiled kernels for efficient hardware execution. A CGRA typically consists of multiple processing elements (PEs) interconnected in a grid-like structure [6]. The PE arrays enable parallel execution of multiple operations, with data values propagated between connected PEs to satisfy data dependencies. Consequently, the key challenge in the dep… view at source ↗

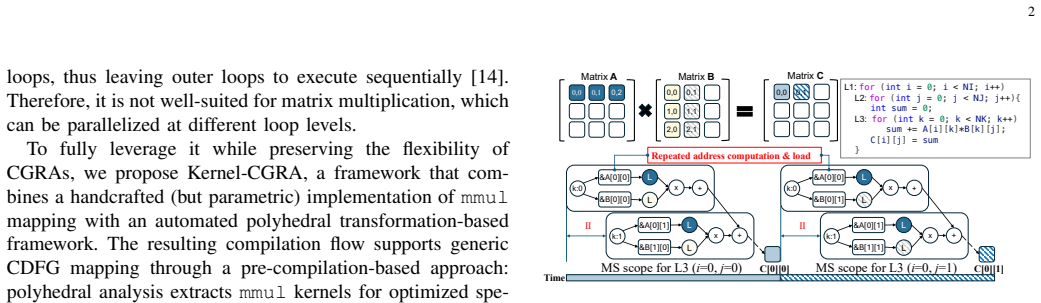

**Figure 2.** Figure 2: Execution flow of mmul based on CDFG compilation, highlighting the inefficiency resulting from only exploiting data parallelism in innermost loops. optimization approaches such as satisfiability formulations and Integer Linear Programming (ILP). Nevertheless, MS strategy approaches are ill-suited for the mmul kernel: although MS compilers can apply scheduling to the innermost loop, they fail to fully exp… view at source ↗

**Figure 3.** Figure 3: Motivating example for mapping a benchmark with hidden mmul onto CGRA. The baseline CDFG scheduling exploits operations parallelism only for instructions in the same basic block. In CDFG with MS loop-level parallelism is used to pipeline iterations of the innermost loop. Finally, in the proposed kernel scheduling strategy, a highly parallel schedule is achieved by substituting the entire mmul subspace with… view at source ↗

**Figure 4.** Figure 4: Overview of the integrated CGRA compilation framework: front-end (C parsing and MLIR/affine lowering), middleend (linearity-based fusion, statement reordering/loop splitting, and mmul kernel extraction with context generation), and back-end (assembly integration with kernel instantiation). target CGRA size) to generate optimized assembly. Nonmmul regions are reduced to control-flow IR on static single as… view at source ↗

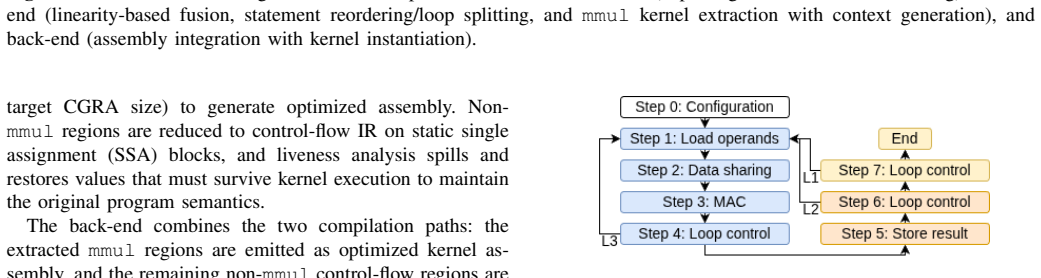

**Figure 5.** Figure 5: Abstract representation of the mmul kernel implementation structure, illustrating the sequence of steps and their organization within the execution flow. propagated through the array using the interconnections between PEs. The structure of the kernel implementation is illustrated in view at source ↗

**Figure 6.** Figure 6: Example mapping of mmul kernel on a 4 × 4 CGRA with torus interconnections between PEs. 4) Loop control (L3). Addresses of A and B are updated and execution returns to Step 1. The address computation is reduced to offset-only calculations due to the decomposition being handled at compile time, thereby reducing runtime overhead, as shown in Step 4 of view at source ↗

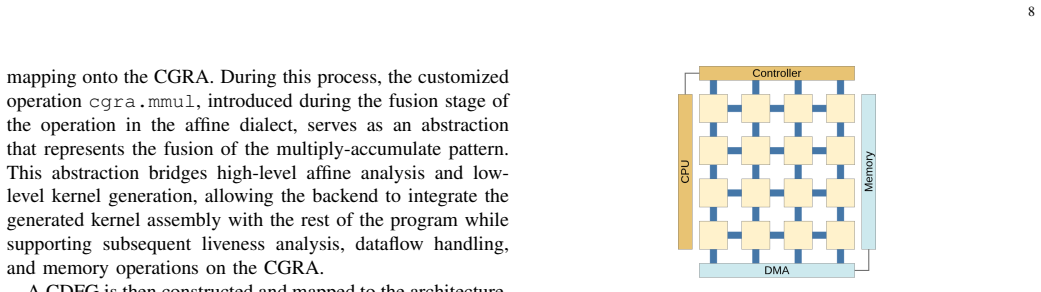

**Figure 7.** Figure 7: Target CGRA architecture. Table I: Benchmarks characteristics. Benchmark #ops-CDFG #ops-kerneltotal #ops-kernelmap loop attributes mmul 84 306 32 3-level nested mmul_relu 85 338 64 3-level nested mmul_batch 147 372 98 4-level nested 2mm 185 749 201 2x3-level nested 3mm 262 925 103 3x3-level nested gemm 100 432 158 3-level nested PCA 76 344 70 2-level nested +3-level nested Kalman_filter_1 85 348 74 2-lev… view at source ↗

**Figure 8.** Figure 8: Compilation time of benchmark applications on CGRAs with various sizes using the proposed kernel pre-compilation approach, compared with Compigra with MS optimization [23]. Under this configuration, two PEs form a group that enables simultaneous loads from both input matrices. Within each group, the computations of C[i][j + u] for u = 1, . . . , U are executed in parallel. For a broader evaluation of achie… view at source ↗

**Figure 9.** Figure 9: Execution cycle count (CC) comparison between Compigra and the proposed strategy with pre-compiled mmulkernels, across CGRA configurations and matrix sizes. The numbers annotated above the clipped bars indicate the speedup of the proposed approach w.r.t. MS and unroll compilation (top and bottom values, respectively), with a broken y-axis used to improve readability. emphasize the large absolute runtime ga… view at source ↗

**Figure 10.** Figure 10: Normalized runtimes on 4x4 OpenEdgeCGRA [29] compiled using kernel pre-compilation, e-GPU and systolic array, w.r.t CGRA using CDFG compilation with MS — lower is better. regions that expose more parallelism to the modulo scheduler. As a result, the kernel part benefits from highly efficient spatial execution and data reuse, whereas the residual computation can still be mapped onto the CGRA rather than be… view at source ↗

read the original abstract

Modern computing workloads commonly involve matrix-matrix multiplication (mmul) as a core computing pattern. Coarse-Grained Reconfigurable Arrays (CGRAs) can flexibly and efficiently support it, since they combine operation-level reconfigurability and high energy efficiency. However, mapping computational kernels that include mmul with state-of-the-art compilation strategies often leads to suboptimal results, since its multi-dimensional structure hampers the uncovering of its inherent parallelism and, ultimately, runtime performance. Here, we take a different position: we introduce a specialized mmul CGRA kernel schedule, parametrizable across different CGRA sizes. Then, we describe a novel compilation methodology that adapts program representations to effectively leverage it, employing polyhedral transformations to analyze complex computational patterns and expose hidden mmul operations through loop reordering and splitting. The identified patterns are then substituted with optimized assembly, while the remaining program sections are compiled independently. CGRA configurations are then generated, encompassing pre-compiled and compiled parts. Our strategy maximizes resource utilization and ultimately run-time performance, even when mmul is not directly apparent in the source code. The experimental results show speedups up to 9.1x across different benchmarks that contain hidden mmuls and CGRA instances of various sizes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper pairs a pre-optimized parametrizable mmul kernel for CGRAs with polyhedral transformations to detect hidden instances, showing potential speedups but needing stronger experimental validation.

read the letter

The paper's approach is to create a specialized, size-parametrizable matrix multiply kernel schedule for CGRAs and then use polyhedral transformations to rewrite code so that hidden mmul patterns can be identified through loop reordering and splitting. Those patterns get replaced by the pre-optimized assembly, and the rest of the program is compiled on its own before the full CGRA configuration is assembled. This is new in how it specifically targets the uncovering of non-obvious mmuls with polyhedral tools to leverage the kernel. It does a good job of focusing on a common bottleneck in CGRA mapping, where standard methods struggle with the structure of matrix operations even when they are present in the workload. The soft spots are in the results section. While speedups of up to 9.1x are reported for benchmarks containing hidden mmuls across different CGRA sizes, the abstract provides no specifics on the benchmarks themselves, the baselines compared against, or any verification steps for semantic equivalence after substitution. The central assumption that the polyhedral analysis will correctly and safely expose the patterns without errors or interface problems remains lightly supported. This work would interest people in the CGRA compilation community and those using polyhedral methods for accelerator mapping. A reader looking for practical improvements in handling linear algebra patterns on reconfigurable hardware could find useful ideas here, provided the full paper has more on the implementation and testing. It deserves peer review. The idea is coherent and addresses a genuine issue in the area, so referees could usefully comment on the experiments and any edge cases in the transformations.

Referee Report

3 major / 2 minor

Summary. The paper introduces a compilation methodology for Coarse-Grained Reconfigurable Arrays (CGRAs) that uses polyhedral transformations (loop reordering and splitting) to detect hidden matrix-matrix multiplication (mmul) patterns in source code even when not syntactically apparent. These patterns are substituted with pre-optimized, parametrizable mmul kernel schedules while the remaining code sections are compiled independently; the resulting mixed CGRA configurations are claimed to maximize resource utilization and deliver speedups up to 9.1x on benchmarks containing hidden mmuls across varying CGRA sizes.

Significance. If the semantic preservation of the polyhedral detection and substitution steps holds and the performance results are reproducible, the work could meaningfully advance CGRA compilation by enabling automatic exploitation of specialized kernels for common linear-algebra patterns. The parametrizable mmul schedule and the idea of mixing pre-compiled kernels with independently compiled code are concrete strengths that address a practical bottleneck in reconfigurable architectures.

major comments (3)

[Abstract and experimental results section] Abstract and experimental results section: the central claim of speedups up to 9.1x is presented without any description of the benchmarks used, the baseline CGRA compilers or mappings, error bars, statistical tests, CGRA instance sizes, or the method used to verify the presence and correct substitution of hidden mmuls, leaving the performance evaluation only partially supported.
[Polyhedral transformation methodology] Polyhedral transformation methodology: the claim that loop reordering and splitting reliably expose hidden mmuls requires demonstration that the detected sub-computations preserve exact dataflow, aliasing behavior, and iteration-space semantics for non-obvious cases; no such formal argument, proof, or counter-example analysis is provided, which is load-bearing for the correctness of kernel substitution.
[CGRA configuration generation] CGRA configuration generation: the integration of pre-compiled kernels with independently compiled sections does not address potential interface mismatches, data-transfer overheads, or boundary aliasing issues, which directly affects the asserted gains in resource utilization and run-time performance.

minor comments (2)

[Kernel schedule description] The parametrization of the specialized mmul kernel schedule across different CGRA sizes would be clearer if accompanied by an explicit equation or small pseudocode example showing how the schedule parameters are derived.
[Related work] A brief discussion of related polyhedral CGRA mapping techniques is missing, which would help readers assess the incremental contribution of the reordering-plus-substitution strategy.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below, agreeing where revisions are warranted and outlining the changes we will make to the manuscript.

read point-by-point responses

Referee: [Abstract and experimental results section] Abstract and experimental results section: the central claim of speedups up to 9.1x is presented without any description of the benchmarks used, the baseline CGRA compilers or mappings, error bars, statistical tests, CGRA instance sizes, or the method used to verify the presence and correct substitution of hidden mmuls, leaving the performance evaluation only partially supported.

Authors: We agree that the abstract is concise and that the experimental section would benefit from more explicit detail to fully support the performance claims. In the revised manuscript we will expand the experimental results section to describe the benchmarks (a collection of linear-algebra kernels containing non-obvious mmul patterns), the baseline (a state-of-the-art CGRA compiler without polyhedral transformations), the CGRA sizes evaluated, the inclusion of error bars and statistical tests on the reported speedups, and the verification procedure used to confirm the presence and correct substitution of hidden mmuls. We will also revise the abstract to briefly reference these experimental elements. revision: yes
Referee: [Polyhedral transformation methodology] Polyhedral transformation methodology: the claim that loop reordering and splitting reliably expose hidden mmuls requires demonstration that the detected sub-computations preserve exact dataflow, aliasing behavior, and iteration-space semantics for non-obvious cases; no such formal argument, proof, or counter-example analysis is provided, which is load-bearing for the correctness of kernel substitution.

Authors: We agree that an explicit formal argument is needed to substantiate the semantic preservation of the transformations. While the approach rests on the standard guarantees of the polyhedral model for affine loop nests, the current manuscript does not provide a dedicated proof or counter-example analysis. In the revision we will add a subsection containing a formal argument demonstrating preservation of dataflow, aliasing behavior, and iteration-space semantics, together with counter-example analysis for non-obvious cases. revision: yes
Referee: [CGRA configuration generation] CGRA configuration generation: the integration of pre-compiled kernels with independently compiled sections does not address potential interface mismatches, data-transfer overheads, or boundary aliasing issues, which directly affects the asserted gains in resource utilization and run-time performance.

Authors: We agree that the description of configuration generation is currently high-level and does not explicitly treat these integration concerns. In the revised manuscript we will expand the relevant methodology section to discuss how source-level substitution ensures interface compatibility, to quantify data-transfer overheads, and to explain how boundary aliasing is managed through the polyhedral analysis. We will also incorporate these factors into the experimental evaluation to show their impact on the reported resource-utilization and performance gains. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical methodology with independent experimental validation

full rationale

The paper presents a compilation flow that applies polyhedral loop transformations to detect hidden mmul patterns, substitutes pre-optimized kernels, and generates mixed CGRA configurations. Performance claims (up to 9.1x speedups) are supported by benchmark experiments rather than by construction from the input program or fitted parameters. No self-definitional equations, fitted-input predictions, load-bearing self-citations, or smuggled ansatzes appear in the derivation. The approach is self-contained against external benchmarks and does not reduce its central result to its own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The method rests on standard compiler assumptions about polyhedral analysis preserving program semantics and on the existence of beneficial pre-optimized kernels; no free parameters or new invented entities are introduced in the abstract.

axioms (1)

domain assumption Polyhedral transformations can be applied to loop nests to expose matrix multiplication patterns without changing program semantics.
Invoked when describing how loop reordering and splitting identify hidden mmul operations.

pith-pipeline@v0.9.0 · 5538 in / 1221 out tokens · 43545 ms · 2026-05-08T09:26:28.616646+00:00 · methodology
