A Weierstrass-Kenmotsu Type Representation for CMC 0le H<1 in \mathbb{H}³(-1)

Magdalena Toda , Erhan G\"uler , Madusha Dilhani Atampalage This is my paper

Pith reviewed 2026-05-10 05:14 UTC · model grok-4.3

classification 🧮 math.DG
keywords constant mean curvaturehyperbolic 3-spaceWeierstrass-Kenmotsu representationflat connectionsIwasawa splittingconformal immersionsSL(2,C) connections
0
0 comments X

The pith

Conformal CMC immersions with 0 ≤ H < 1 in hyperbolic 3-space arise locally from rank-one (1,0)-forms via flat SL(2,C) connections.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a representation for conformal immersions of constant mean curvature in hyperbolic three-space when the mean curvature lies between zero and one. Any such immersion is shown to arise locally from a rank-one holomorphic one-form together with a fixed complex number that sets the mean curvature through the curvature of a flat connection on SL(2,C). The immersion is recovered by integrating the connection and applying Iwasawa splitting. The converse direction asserts that every qualifying immersion can be obtained this way, establishing a complete local correspondence. This supplies an explicit holomorphic-data description of the surfaces that parallels the classical Weierstrass-Kenmotsu formula but operates inside a space of constant negative curvature.

Core claim

Such immersions arise locally from a rank-one (1,0)-form η and a constant complex parameter λ∈C∗ through a flat SL(2,C)-connection of the form S^{-1}dS=η−λ η^*, with mean curvature H=(1−|λ|²)/(1+|λ|²). Conversely, every conformal CMC immersion with 0≤H<1 is locally obtained from such flat rank-one data.

What carries the argument

The flat SL(2,C)-connection S^{-1}dS = η − λ η^* , where η is a rank-one (1,0)-form and λ ∈ C^* is constant, which determines the mean curvature H = (1 − |λ|^2)/(1 + |λ|^2) and generates the immersion by Iwasawa splitting in the Hermitian model of hyperbolic space.

If this is right

  • Every conformal CMC immersion with 0 ≤ H < 1 is locally recoverable from rank-one holomorphic data.
  • The value of H is controlled directly by the modulus of the single complex parameter λ.
  • A gauge transformation relates the construction to the Aiyama-Akutagawa representation.
  • The surfaces admit an interpretation via Kokubu's adjusted normal Gauss map.
  • Local and cylindrical model examples are obtained explicitly by choosing simple rank-one forms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The flat-connection description may allow direct analysis of monodromy to decide which local solutions extend to complete surfaces.
  • Numerical generation of examples could proceed by integrating the connection equation and performing the splitting step.
  • Similar rank-one flat connections might be identifiable for CMC surfaces in other three-dimensional space forms.

Load-bearing premise

The given connection form must be flat and its Iwasawa splitting must produce a conformal immersion whose mean curvature matches the formula in terms of λ.

What would settle it

A concrete conformal immersion with constant mean curvature H in the interval [0,1) inside hyperbolic 3-space that cannot be recovered locally from any rank-one (1,0)-form and constant λ through the stated flat connection would disprove the converse.

Figures

Figures reproduced from arXiv: 2604.22831 by Erhan G\"uler, Madusha Dilhani Atampalage, Magdalena Toda.

Figure 1

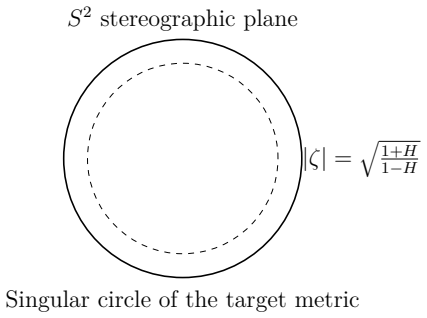

Figure 1. Figure 1: The singular circle of Kokubu’s target metric for [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
read the original abstract

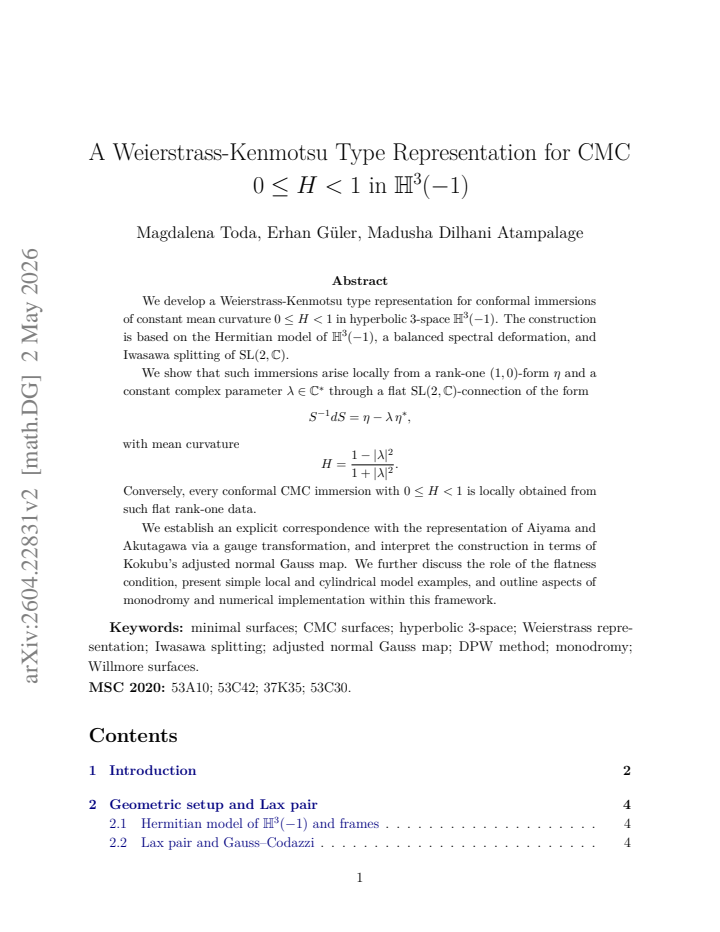

We develop a Weierstrass-Kenmotsu type representation for conformal immersions of constant mean curvature $0\le H<1$ in hyperbolic $3$-space $\HH$. The construction is based on the Hermitian model of $\HH$, a balanced spectral deformation, and Iwasawa splitting of $\SL$. We show that such immersions arise locally from a rank-one $(1,0)$-form $\eta$ and a constant complex parameter $\lambda\in\C^*$ through a flat $\SL$-connection of the form \[ S^{-1}dS=\eta-\lambda\,\eta^*, \] with mean curvature \[ H=\frac{1-|\lambda|^2}{1+|\lambda|^2}. \] Conversely, every conformal CMC immersion with $0\le H<1$ is locally obtained from such flat rank-one data. We establish an explicit correspondence with the representation of Aiyama and Akutagawa via a gauge transformation, and interpret the construction in terms of Kokubu's adjusted normal Gauss map. We further discuss the role of the flatness condition, present simple local and cylindrical model examples, and outline aspects of monodromy and numerical implementation within this framework.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript develops a Weierstrass-Kenmotsu type representation for conformal immersions of constant mean curvature 0 ≤ H < 1 in hyperbolic 3-space ℍ³(-1). It claims that such immersions arise locally from a rank-one (1,0)-form η and constant λ ∈ ℂ* via the flat SL(2,ℂ)-connection S^{-1}dS = η − λ η*, with explicit mean curvature H = (1 − |λ|²)/(1 + |λ|²). The converse asserts that every conformal CMC immersion with 0 ≤ H < 1 is locally obtained from such flat rank-one data. The paper also establishes a gauge equivalence with the Aiyama-Akutagawa representation, interprets the construction via Kokubu's adjusted normal Gauss map, discusses the flatness condition, and presents local/cylindrical examples along with remarks on monodromy and numerical implementation.

Significance. If the flatness condition and the if-and-only-if correspondence are rigorously verified, the result supplies a new explicit representation for CMC surfaces in ℍ³ that links spectral deformations, Iwasawa splitting, and existing formulas. The parameter-free expression for H in terms of λ and the converse direction would be useful for constructing examples and studying integrable aspects of CMC immersions. The outlined numerical implementation and monodromy discussion add practical value.

major comments (2)
  1. [flatness discussion after main theorem] The section discussing the role of the flatness condition (following the statement of the main representation theorem): the manuscript assumes or discusses flatness of the connection S^{-1}dS = η − λ η* but does not supply an explicit Maurer-Cartan curvature computation showing that d(η − λ η*) + (η − λ η*) ∧ (η − λ η*) vanishes identically for rank-one η or is equivalent to the CMC equation. Without this verification, the construction produces CMC immersions only on the subclass of η satisfying the resulting nonlinear PDE, weakening the claimed if-and-only-if correspondence.
  2. [converse statement and proof] The converse direction (in the proof that every conformal CMC immersion arises from such data): the argument must detail how the Iwasawa splitting is applied to the Maurer-Cartan form of a given immersion to recover a rank-one η and constant λ while preserving flatness, conformality, and the exact value of H given by the formula; the current outline leaves open whether the splitting step introduces additional constraints.
minor comments (2)
  1. [preliminaries] The notation for the Hermitian model of ℍ³(-1) and the involution * on forms should be defined explicitly in the preliminaries, including how η* is constructed from η.
  2. [examples] The local and cylindrical model examples would be strengthened by including explicit coordinate charts or component expressions for η and the resulting immersion to allow direct verification of the mean curvature formula.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and valuable comments on our manuscript. The suggestions regarding the explicit verification of flatness and the detailed exposition of the converse will strengthen the rigor of the presentation. We address each major comment below and will incorporate the necessary expansions in the revised version.

read point-by-point responses

  1. Referee: The section discussing the role of the flatness condition (following the statement of the main representation theorem): the manuscript assumes or discusses flatness of the connection S^{-1}dS = η − λ η* but does not supply an explicit Maurer-Cartan curvature computation showing that d(η − λ η*) + (η − λ η*) ∧ (η − λ η*) vanishes identically for rank-one η or is equivalent to the CMC equation. Without this verification, the construction produces CMC immersions only on the subclass of η satisfying the resulting nonlinear PDE, weakening the claimed if-and-only-if correspondence.

    Authors: We agree that an explicit Maurer-Cartan curvature computation is required to rigorously establish the flatness condition and to support the if-and-only-if correspondence. In the revised manuscript we will insert a detailed computation of d(η − λ η*) + (η − λ η*) ∧ (η − λ η*) for rank-one (1,0)-forms η. This calculation will show that the curvature vanishes precisely when the resulting immersion satisfies the CMC equation with the mean curvature given by the formula for H, thereby confirming that no extraneous nonlinear PDE is imposed beyond the CMC condition itself. revision: yes

  2. Referee: The converse direction (in the proof that every conformal CMC immersion arises from such data): the argument must detail how the Iwasawa splitting is applied to the Maurer-Cartan form of a given immersion to recover a rank-one η and constant λ while preserving flatness, conformality, and the exact value of H given by the formula; the current outline leaves open whether the splitting step introduces additional constraints.

    Authors: We acknowledge that the current sketch of the converse requires a more explicit description of the Iwasawa splitting step. In the revision we will expand the proof to provide a step-by-step account of how the Maurer-Cartan form of an arbitrary conformal CMC immersion with 0 ≤ H < 1 is decomposed via Iwasawa splitting. We will verify that the resulting rank-one (1,0)-form η and constant λ reproduce the original flat connection, preserve conformality, and yield exactly the prescribed value of H without introducing further constraints. revision: yes

Circularity Check

0 steps flagged

No significant circularity; representation uses standard flat-connection construction without self-referential reduction

full rationale

The derivation begins from a rank-one (1,0)-form η and constant λ, defines the connection form η − λ η^*, invokes Iwasawa splitting to produce the immersion, and states the mean curvature by the explicit algebraic map H = (1 − |λ|²)/(1 + |λ|²). This map is independent of the resulting surface geometry. The converse asserts that every conformal CMC immersion arises locally from such data; the paper indicates that flatness is imposed as a condition whose role is discussed, but supplies no equation that defines the output immersion in terms of itself or renames a fitted quantity as a prediction. No self-citation chain is load-bearing for the central claim, no ansatz is smuggled via prior work of the same authors, and the construction does not reduce the CMC equation to a tautology. The framework therefore remains self-contained against external differential-geometric benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 2 axioms · 0 invented entities

The representation rests on the existence of the Iwasawa splitting for SL(2,C) and the flatness of the prescribed connection; λ is the sole free parameter that directly sets H. No new entities are postulated.

free parameters (1)
  • λ ∈ C^*
    Constant complex parameter that determines the mean curvature via the algebraic formula H = (1 - |λ|^2)/(1 + |λ|^2); it is chosen freely to obtain any H in [0,1).
axioms (2)
  • standard math Iwasawa splitting exists for the loop group or SL(2,C) in the Hermitian model
    Invoked to recover the immersion from the flat connection S^{-1}dS = η - λ η^*.
  • domain assumption The connection defined by the rank-one form η and λ is flat
    Flatness is required for the construction to yield an immersion; the paper states it discusses the role of this condition.

pith-pipeline@v0.9.0 · 5534 in / 1684 out tokens · 30641 ms · 2026-05-10T05:14:10.935638+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

10 extracted references · 10 canonical work pages

  1. [1]

    Aiyama and K

    R. Aiyama and K. Akutagawa, Kenmotsu type representation formula for surfaces with prescribed mean curvature in the hyperbolic space,J. Math. Soc. Japan52 (2000), no. 4, 877–898

    work page 2000

  2. [2]

    Babich and A

    M. Babich and A. Bobenko, Willmore tori with umbilic lines and minimal surfaces in hyperbolic space,Duke Math. J.72 (1993), no. 1, 151–185

    work page 1993

  3. [3]

    R. L. Bryant, Surfaces of mean curvature one in hyperbolic space,Astérisque 154–155 (1987), 321–347

    work page 1987

  4. [4]

    Chen and Y

    Q. Chen and Y. Cheng, Spectral transformation of constant mean curvature surfaces in H3 and Weierstrass representation,Sci. China Ser. A45 (2002), no. 8, 1066–1075

    work page 2002

  5. [5]

    J. F. Dorfmeister, J. Inoguchi, and S. Kobayashi, Constant mean curvature surfaces in hyperbolic 3-space via loop groups,J. Reine Angew. Math.686 (2014), 1–36

    work page 2014

  6. [6]

    Dorfmeister, F

    J. Dorfmeister, F. Pedit, and H. Wu, Weierstrass type representation of harmonic maps into symmetric spaces,Comm. Anal. Geom.6 (1998), no. 4, 633–668

    work page 1998

  7. [7]

    Dorfmeister, F

    J. Dorfmeister, F. Pedit, and M. Toda, Minimal surfaces via loop groups,Balkan J. Geom. Appl.12 (2007), no. 1, 25–40

    work page 2007

  8. [8]

    Hélein,A Weierstrass representation for Willmore surfaces, Preprint, Institut de Mathématiques de Jussieu, 2004

    F. Hélein,A Weierstrass representation for Willmore surfaces, Preprint, Institut de Mathématiques de Jussieu, 2004

    work page 2004

  9. [9]

    Schmitt, M

    N. Schmitt, M. Kilian, S.-P. Kobayashi, and W. Rossman, Unitarization of monodromy representations and constant mean curvature trinoids in 3-dimensional space forms,J. London Math. Soc.2 75 (2007), 563–581. 18

    work page 2007

  10. [10]

    Toda, Immersions of constant mean curvature in hyperbolic space,Differ

    M. Toda, Immersions of constant mean curvature in hyperbolic space,Differ. Geom. Dyn. Syst.7 (2005), 111–126. Magdalena Toda Department of Mathematics and Statistics, Texas Tech University, Lubbock, TX 79409, USA Email: magda.toda@ttu.edu Erhan Güler Department of Mathematics and Statistics, Texas Tech University, Lubbock, TX 79409, USA Email: eguler@ttu....

    work page 2005
