arxiv: 2604.23252 · v1 · submitted 2026-04-25 · 📡 eess.SY · cs.SY

Robust Operation of Distribution Networks: Generalized Uncertainty Modelling in Confidence-Level-Based Information Gap Decision

Zhisheng Xiong , Dimitris Boskos , Bo Zeng , Peter Palensky , Pedro P. Vergara This is my paper

Pith reviewed 2026-05-08 07:27 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords information gap decision theoryrobust optimizationdistribution networksuncertainty modelingrenewable energycolumn and constraint generationFibonacci search
0
0 comments X p. Extension

The pith

IGDT model enables cheaper robust plans for distribution networks

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces a generalized uncertainty model for renewable generation and load demand in distribution network operation. The model lets uncertainty sets expand symmetrically or asymmetrically, either linearly or nonlinearly, all driven by one confidence level parameter. By proving equivalence to a family of two-stage robust optimization problems, the authors create a framework that can be solved with a Fibonacci search over that confidence level. A parametric column-and-constraint generation algorithm with cut recycling is introduced to handle the family of problems efficiently and with guaranteed convergence. A sympathetic reader would care because the method offers a concrete way to adjust the robustness level and improve the cost-robustness trade-off compared with earlier fixed uncertainty set approaches.

Core claim

The paper establishes that its generalized uncertainty modeling, which captures both symmetric and asymmetric features with linear or nonlinear expansions driven by confidence level, leads to a CL-IGDT framework equivalent to a family of two-stage robust optimization problems. This equivalence allows solving via a Fibonacci search over the confidence level, integrated with a Fibonacci-Parametric Column-and-Constraint Generation algorithm that has guaranteed asymptotic convergence, along with a cut-recycling strategy for efficiency.

What carries the argument

The generalized uncertainty set whose expansion is controlled by a single confidence level parameter, together with its equivalence to a family of two-stage robust optimization problems.

If this is right

  • The CL-IGDT framework supplies a single tunable parameter for adjusting the robustness level in network operation plans.
  • The Fibonacci search identifies the optimal confidence level efficiently without checking every possible value.
  • The parametric C&CG algorithm with cut-recycling solves the family of problems faster while guaranteeing asymptotic convergence.
  • Numerical case studies confirm that the approach achieves better economic performance for a given robustness target than prior IGDT or robust methods.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same generalized sets and search technique could be tested on transmission-level or multi-energy system problems with similar uncertainties.
  • If real data shows nonlinear uncertainty growth, the model can be calibrated to match observed patterns more closely than linear alternatives.
  • The convergence guarantee supports applying the method to larger networks with many more decision variables and constraints.

Load-bearing premise

That real-world renewable generation and load uncertainties can be faithfully represented by the proposed generalized sets whose expansion is controlled by a single confidence level parameter, and that the equivalence to the family of two-stage robust problems preserves optimality without hidden restrictions.

What would settle it

Tests on real distribution network data where the CL-IGDT solutions show higher operating costs or lower realized robustness than standard robust or stochastic methods, or where the proposed algorithm fails to converge as iterations increase, would disprove the central claims.

Figures

Figures reproduced from arXiv: 2604.23252 by Bo Zeng, Dimitris Boskos, Pedro P. Vergara, Peter Palensky, Zhisheng Xiong.

Figure 1
Figure 1. Figure 1: Illustration of a two-dimensional confidence-level-driven uncertainty view at source ↗
Figure 2
Figure 2. Figure 2: Specifically, the proposed uncertainty set can expand with view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of two-dimensional generalized uncertainty sets. The first view at source ↗
Figure 3
Figure 3. Figure 3: Flowchart of F-PC&CG algorithm. A. Customized Fibonacci Search To locate the optimal α ∗ , we propose a customized Fibonacci search tailored to CL-IGDT. The method is adapted from the clas￾sical Fibonacci search, which locates the minimizer of a unimodal function in unconstrained optimization and achieves efficient interval reduction through Fibonacci ratios [20]. Here, however, the goal is to identify the… view at source ↗

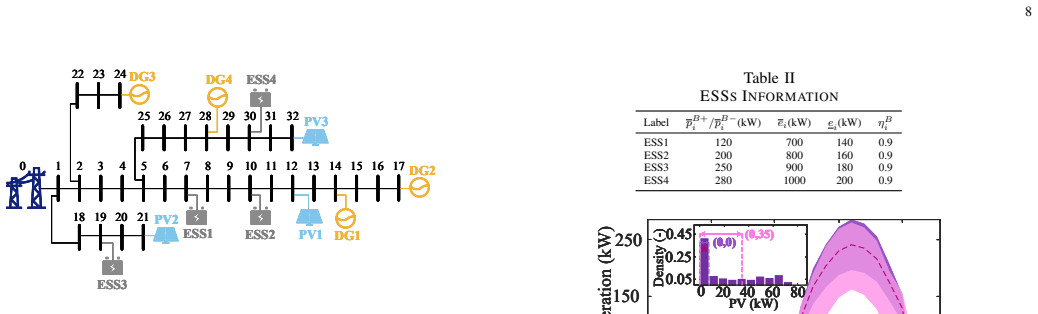

Figure 4
Figure 4. Figure 4: Modified IEEE 33-bus system. Table I DGS INFORMATION Label pG i (kW) pG i (kW) RUG i /RDG i (kW) qG i (kW) qG i (kW) cG i ($) cU i ($) DG1 400 50 100 320 -200 2.0 200 DG2 500 80 150 400 -350 2.5 400 DG3 800 100 200 700 -500 3.5 700 DG4 1200 120 250 1100 -800 4.0 1000 available in [23], while DG and ESS data are given in Table I and Table II. The line capacity is set to 3.5 kW, and the voltage magnitude is … view at source ↗

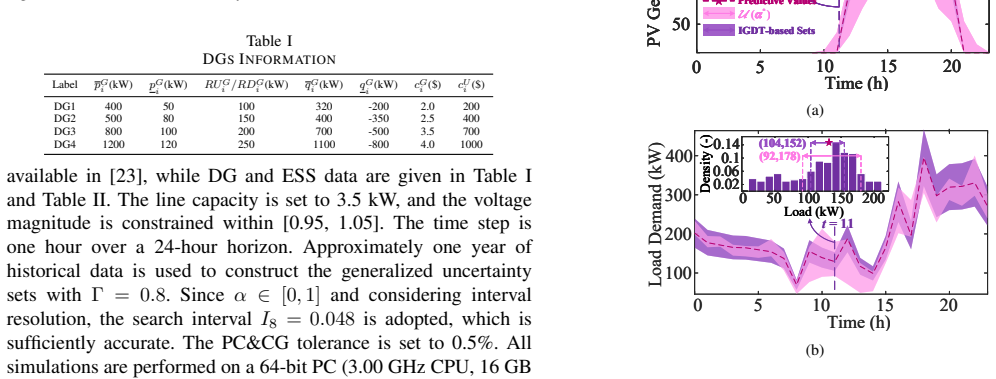

Figure 5
Figure 5. Figure 5: Optimal uncertainty sets: (a) PV generation at bus 12; (b) load demand view at source ↗

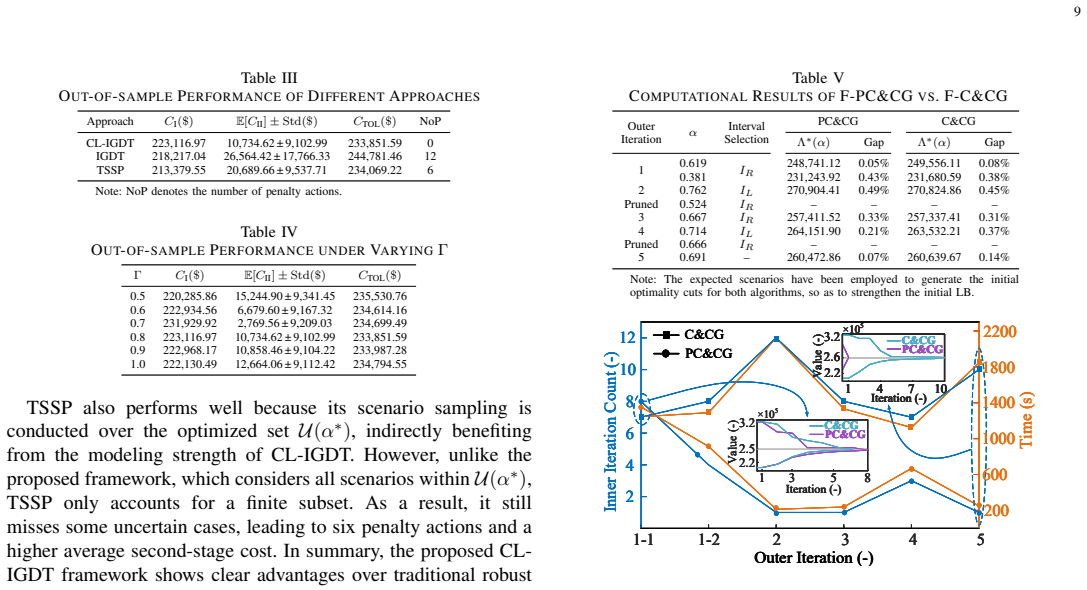

Figure 6
Figure 6. Figure 6: Convergence behaviors of PC&CG and C&CG. At the first Fibonacci view at source ↗
Figure 7
Figure 7. Figure 7: Three representative examples of search interval reduction. view at source ↗
read the original abstract

This paper studies the robust optimal operation of distribution networks (DNs) under renewable generation and load demand uncertainties, seeking an improved trade-off between robustness and economic performance. Building upon information gap decision theory (IGDT), a generalized uncertainty modelling is proposed to enhance the expressiveness of the uncertainty characterization. The proposed modelling captures both symmetric and asymmetric uncertainty features, and supports linear or nonlinear expansion of the uncertainty sets driven by confidence level. This advancement leads to the development of a confidence-level-based IGDT (CL-IGDT) framework for DN operation. To solve the resulting model, its equivalence to a family of two-stage robust optimization problems (TSROs) is established, enabling a Fibonacci search over the confidence level. To further improve computational efficiency, a cut-recycling strategy is proposed to exploit invariant information across TSROs. These techniques are integrated into a novel Fibonacci-Parametric Column-and-Constraint Generation algorithm with guaranteed asymptotic convergence. Case studies validate the effectiveness of the proposed framework and demonstrate the performance advantages of the proposed algorithm.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a generalized uncertainty modeling approach within information gap decision theory (IGDT) for the robust optimal operation of distribution networks under renewable generation and load demand uncertainties. The modeling captures symmetric and asymmetric uncertainty features and supports linear or nonlinear expansion of uncertainty sets driven by a single confidence-level parameter. This yields a confidence-level-based IGDT (CL-IGDT) framework shown to be equivalent to a family of two-stage robust optimization problems (TSROs). The equivalence enables a Fibonacci search over the confidence level, which is combined with a cut-recycling strategy inside a novel Fibonacci-Parametric Column-and-Constraint Generation algorithm that carries a guaranteed asymptotic convergence property. Case studies are used to illustrate effectiveness and computational advantages.

Significance. If the claimed equivalence and convergence hold, the work strengthens IGDT-based robust optimization by increasing the expressiveness of uncertainty sets while preserving reduction to standard TSROs. The algorithmic contributions—the Fibonacci search combined with cut-recycling C&CG—address efficiency in parametric robust problems common in power-system operation. The explicit asymptotic convergence guarantee is a concrete strength that supports reliable deployment of the method.

major comments (2)
  1. [Equivalence section (likely §4)] The equivalence reduction from CL-IGDT to the family of TSROs is load-bearing for both the solution method and the convergence claim. The manuscript must supply the full derivation (including how the generalized uncertainty sets are substituted into the worst-case subproblem) to confirm that the two-stage structure is preserved without additional restrictions or post-hoc choices on the expansion functions.
  2. [Algorithm section (likely §5)] The asymptotic convergence of the Fibonacci-Parametric C&CG algorithm relies on the parametric structure after equivalence. Please state the precise conditions on the uncertainty-set expansion (linear vs. nonlinear) under which the cut-recycling strategy remains valid and the convergence proof applies without modification.
minor comments (2)
  1. [Abstract] The abstract claims validation via case studies but does not indicate the test-system sizes or the number of scenarios; adding this information would help readers assess computational scaling.
  2. [Modeling section] Notation for the generalized uncertainty sets (symmetric/asymmetric parameters and expansion functions) should be introduced once and used consistently; cross-references to earlier IGDT literature would clarify the novelty.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive review and the recommendation for minor revision. The comments help clarify key aspects of the equivalence and algorithmic contributions. We address each point below and will incorporate the requested details in the revised manuscript.

read point-by-point responses

  1. Referee: [Equivalence section (likely §4)] The equivalence reduction from CL-IGDT to the family of TSROs is load-bearing for both the solution method and the convergence claim. The manuscript must supply the full derivation (including how the generalized uncertainty sets are substituted into the worst-case subproblem) to confirm that the two-stage structure is preserved without additional restrictions or post-hoc choices on the expansion functions.

    Authors: We agree that a complete, self-contained derivation strengthens the paper. Although the current manuscript sketches the equivalence, we will expand the relevant section to provide the full step-by-step derivation. This will explicitly show the substitution of the generalized symmetric and asymmetric uncertainty sets (for both linear and nonlinear expansion functions) into the worst-case subproblem, confirming that the two-stage structure is preserved without additional restrictions or post-hoc choices. revision: yes

  2. Referee: [Algorithm section (likely §5)] The asymptotic convergence of the Fibonacci-Parametric C&CG algorithm relies on the parametric structure after equivalence. Please state the precise conditions on the uncertainty-set expansion (linear vs. nonlinear) under which the cut-recycling strategy remains valid and the convergence proof applies without modification.

    Authors: We thank the referee for requesting this clarification. The cut-recycling strategy and the asymptotic convergence proof apply to both linear and nonlinear uncertainty-set expansions provided the expansion functions are continuous and strictly monotonic (increasing) with respect to the confidence-level parameter. These conditions are satisfied by the generalized modeling introduced in the paper. In the revised manuscript we will state these conditions explicitly in the algorithm section and briefly note why they guarantee validity of the cut-recycling and convergence results without modification. revision: yes

Circularity Check

0 steps flagged

Derivation chain is self-contained; no load-bearing reduction to inputs or self-citations

full rationale

The paper introduces a generalized uncertainty model as an extension of IGDT, then derives an explicit equivalence to a parametric family of TSROs. This equivalence is presented as a mathematical reformulation that preserves the two-stage structure, allowing standard Fibonacci search and cut-recycling C&CG without the target result being presupposed in the model definition. No equation reduces a claimed prediction to a fitted parameter by construction, and supporting results draw on established IGDT/TSRO literature rather than unverified self-citations. Case studies provide external validation rather than tautological confirmation.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on the domain assumption that renewable and load uncertainties admit a generalized IGDT representation whose shape is governed by a scalar confidence level, plus standard mathematical assumptions that the resulting problems remain convex or tractable for the C&CG method.

axioms (2)
  • domain assumption Uncertainties in renewable generation and load demand admit a generalized representation inside information gap decision theory whose sets expand with a scalar confidence level in linear or nonlinear fashion.
    Invoked to justify the CL-IGDT framework and its equivalence to TSROs.
  • standard math The family of two-stage robust optimization problems obtained by fixing the confidence level can be solved independently and the optimal value is monotonic in the confidence level.
    Required for the Fibonacci search to locate the desired robustness-cost trade-off.
invented entities (1)
  • Generalized uncertainty sets supporting symmetric/asymmetric and linear/nonlinear expansion driven by confidence level no independent evidence
    purpose: To increase the expressiveness of uncertainty characterization beyond classical IGDT sets
    New modeling construct introduced by the paper; no independent evidence supplied in the abstract.

pith-pipeline@v0.9.0 · 5495 in / 1547 out tokens · 39094 ms · 2026-05-08T07:27:26.634353+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

24 extracted references · 2 canonical work pages

  1. [1]

    Net zero by 2050: A roadmap for the global energy sector,

    International Energy Agency (IEA), “Net zero by 2050: A roadmap for the global energy sector,” https://www.iea.org/reports/net-zero-by-2050, 2021

    2050

  2. [2]

    Representation of uncertainty in market models for operational planning and forecasting in renewable power systems: a review,

    M. Haugen, H. Farahmand, S. Jaehnert, and S.-E. Fleten, “Representation of uncertainty in market models for operational planning and forecasting in renewable power systems: a review,”Energy Syst., pp. 1–36, 2023

    2023

  3. [3]

    Resilience enhancement of distribution network under typhoon disaster based on two-stage stochastic programming,

    H. Hou, J. Tang, Z. Zhang, Z. Wang, R. Wei, L. Wang, H. He, and X. Wu, “Resilience enhancement of distribution network under typhoon disaster based on two-stage stochastic programming,”Appl. Energy, vol. 338, p. 120892, 2023

    2023

  4. [4]

    A two-stage chance constrained volt/var control scheme for active distribution networks with nodal power uncertainties,

    F. U. Nazir, B. C. Pal, and R. A. Jabr, “A two-stage chance constrained volt/var control scheme for active distribution networks with nodal power uncertainties,”IEEE Trans. Power Syst., vol. 34, no. 1, pp. 314–325, 2019

    2019

  5. [5]

    A two-stage robust reactive power optimization considering uncertain wind power integration in active distribution networks,

    T. Ding, S. Liu, W. Yuan, Z. Bie, and B. Zeng, “A two-stage robust reactive power optimization considering uncertain wind power integration in active distribution networks,”IEEE Trans. Sustain. Energy, vol. 7, no. 1, pp. 301– 311, 2016

    2016

  6. [6]

    Three-stage robust inverter- based voltage/var control for distribution networks with high-level pv,

    C. Zhang, Y . Xu, Z. Dong, and J. Ravishankar, “Three-stage robust inverter- based voltage/var control for distribution networks with high-level pv,”IEEE Trans. Smart Grid, vol. 10, no. 1, pp. 782–793, 2019

    2019

  7. [7]

    Distributionally robust unit com- mitment with flexible generation resources considering renewable energy uncertainty,

    S. Wang, C. Zhao, L. Fan, and R. Bo, “Distributionally robust unit com- mitment with flexible generation resources considering renewable energy uncertainty,”IEEE Trans. Power Syst., vol. 37, no. 6, pp. 4179–4190, 2022

    2022

  8. [8]

    Distributionally robust chance constrained optimization for providing flexibility in an active distribution network,

    M. Rayati, M. Bozorg, R. Cherkaoui, and M. Carpita, “Distributionally robust chance constrained optimization for providing flexibility in an active distribution network,”IEEE Trans. Smart Grid, vol. 13, no. 4, pp. 2920– 2934, 2022

    2022

  9. [9]

    Stochastic-robust planning of networked hydrogen-electrical microgrids: A study on induced refueling demand,

    X. Sun, X. Cao, B. Zeng, Q. Zhai, T. Ba¸ sar, and X. Guan, “Stochastic-robust planning of networked hydrogen-electrical microgrids: A study on induced refueling demand,”IEEE Trans. Smart Grid, vol. 16, no. 1, pp. 115–130, 2025

    2025

  10. [10]

    Ben-Haim,Info-gap decision theory: decisions under severe uncertainty

    Y . Ben-Haim,Info-gap decision theory: decisions under severe uncertainty. Elsevier, 2006

    2006

  11. [11]

    Assessing the effectiveness of weighted information gap decision theory integrated with energy management systems for isolated microgrids,

    M.-A. Nasr, E. Nasr-Azadani, H. Nafisi, S. H. Hosseinian, and P. Siano, “Assessing the effectiveness of weighted information gap decision theory integrated with energy management systems for isolated microgrids,”IEEE Trans. Industr. Inform., vol. 16, no. 8, pp. 5286–5299, 2020

    2020

  12. [12]

    Optimal dispatch for flexible uncertainty sets in multi-energy systems: An igdt based two-stage decision framework,

    S. Lu, G. Lou, W. Gu, S. Zhang, X. Yuan, Q. Li, and H. Han, “Optimal dispatch for flexible uncertainty sets in multi-energy systems: An igdt based two-stage decision framework,”CSEE J. Power Energy Syst., vol. 9, no. 6, pp. 2374–2385, 2023

    2023

  13. [13]

    Robust coordinated planning of multi-region integrated energy systems with categorized demand response,

    Y . Dong, Z. Li, H. Zhang, C. Wang, and X. Zhou, “Robust coordinated planning of multi-region integrated energy systems with categorized demand response,”IEEE Trans. Smart Grid, vol. 15, no. 6, pp. 5678–5692, 2024

    2024

  14. [14]

    Two-stage robust optimal operation of distribution networks considering renewable energy and demand asymmetric uncertainties,

    Z. Xiong, B. Zeng, P. Palensky, and P. P. Vergara, “Two-stage robust optimal operation of distribution networks considering renewable energy and demand asymmetric uncertainties,”arXiv preprint arXiv:2411.10166, 2025

    work page arXiv 2025

  15. [15]

    A distributionally robust optimization model for real- time power dispatch in distribution networks,

    Y . Yang and W. Wu, “A distributionally robust optimization model for real- time power dispatch in distribution networks,”IEEE Trans. Smart Grid, vol. 10, no. 4, pp. 3743–3752, 2019

    2019

  16. [16]

    Optimal operation of unbalanced three-phase islanded droop-based microgrids,

    P. P. Vergara, J. C. López, M. J. Rider, and L. C. P. da Silva, “Optimal operation of unbalanced three-phase islanded droop-based microgrids,” IEEE Trans. Smart Grid, vol. 10, no. 1, pp. 928–940, 2019

    2019

  17. [17]

    Lossy distflow formulation for single and multiphase radial feeders,

    E. Schweitzer, S. Saha, A. Scaglione, N. G. Johnson, and D. Arnold, “Lossy distflow formulation for single and multiphase radial feeders,”IEEE Trans. Power Syst., vol. 35, no. 3, pp. 1758–1768, 2020

    2020

  18. [18]

    Confidence interval based distributionally robust real-time economic dispatch approach considering wind power ac- commodation risk,

    P. Li, M. Yang, and Q. Wu, “Confidence interval based distributionally robust real-time economic dispatch approach considering wind power ac- commodation risk,”IEEE Trans. Sustain. Energy, vol. 12, no. 1, pp. 58–69, 2021

    2021

  19. [19]

    Bertsimas and D

    D. Bertsimas and D. den Hertog,Robust and Adaptive Optimization. Dynamic Ideas LLC, 2022

    2022

  20. [20]

    Antoniou and W

    A. Antoniou and W. Lu,Practical Optimization: Algorithms and Engineer- ing Applications. Springer US, 2007

    2007

  21. [21]

    Solving two-stage robust optimization problems using a column-and-constraint generation method,

    B. Zeng and L. Zhao, “Solving two-stage robust optimization problems using a column-and-constraint generation method,”Oper. Res. Lett., vol. 41, no. 5, pp. 457–461, 2013

    2013

  22. [22]

    Two-stage robust optimization with decision dependent uncertainty,

    B. Zeng and W. Wang, “Two-stage robust optimization with decision dependent uncertainty,”arXiv preprint arXiv:2203.16484, 2022

    work page arXiv 2022

  23. [23]

    Network reconfiguration in distribution systems for loss reduction and load balancing,

    M. Baran and F. Wu, “Network reconfiguration in distribution systems for loss reduction and load balancing,”IEEE Trans. Power Deliv., vol. 4, no. 2, pp. 1401–1407, 1989

    1989

  24. [24]

    Shapiro, D

    A. Shapiro, D. Dentcheva, and A. Ruszczynski,Lectures on Stochastic Programming: Modeling and Theory, 3rd ed. Philadelphia, PA, USA: SIAM and MOS, 2021

    2021
