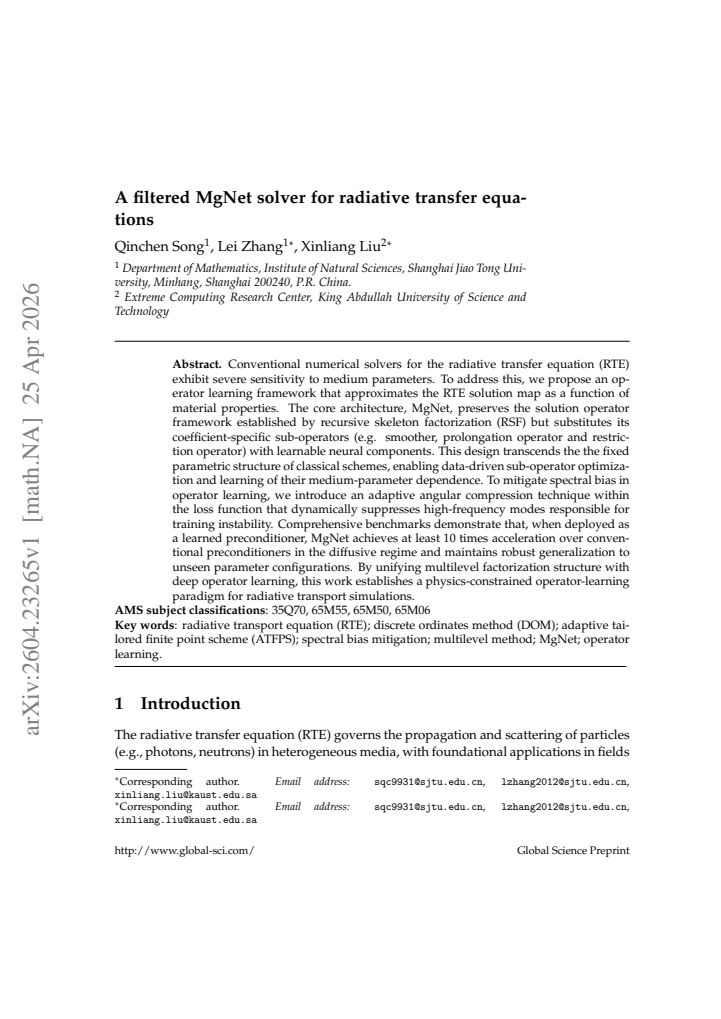

A Filtered MgNet Solver For Radiative Transfer Equations

Qinchen Song , Xinliang Liu , Lei Zhang This is my paper

Pith reviewed 2026-05-08 07:33 UTC · model grok-4.3

classification 🧮 math.NA cs.NA
keywords radiative transfer equationoperator learningmultilevel methodspreconditionerrecursive skeleton factorizationadaptive angular compressionnumerical solver
0
0 comments X

The pith

MgNet substitutes neural components for fixed sub-operators in recursive skeleton factorization to approximate the radiative transfer solution map as a function of medium parameters.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that embedding learnable neural networks into the multilevel structure of recursive skeleton factorization lets the solver adapt to varying material properties without rebuilding the entire scheme for each case. This hybrid keeps the recursive factorization skeleton while letting data drive the smoother, prolongation, and restriction steps. A sympathetic reader would care because conventional RTE solvers slow down or lose robustness when optical properties change, and the learned version is shown to cut iteration counts sharply in the diffusive regime. The approach also adds an adaptive angular compression term to the training loss to suppress the high-frequency modes that usually destabilize operator learning.

Core claim

MgNet preserves the recursive skeleton factorization framework for the radiative transfer equation but replaces its coefficient-specific sub-operators with neural networks whose parameters are optimized from data; an adaptive angular compression technique inside the loss function damps high-frequency angular modes that cause training instability. When used as a preconditioner, the resulting operator delivers at least a tenfold reduction in iteration count compared with standard preconditioners on diffusive test problems and continues to perform well on parameter values never seen during training.

What carries the argument

MgNet architecture, which keeps the multilevel recursive skeleton factorization skeleton but substitutes its smoother, prolongation, and restriction operators with trainable neural networks, combined with adaptive angular compression inside the training loss.

If this is right

  • The method unifies the multilevel factorization structure with deep operator learning to create a physics-constrained training paradigm for transport problems.
  • When deployed as a preconditioner, MgNet reduces iteration counts by at least a factor of ten over conventional choices in the diffusive regime.
  • The learned operator maintains performance on medium-parameter values that were never presented during training.
  • Adaptive angular compression in the loss suppresses the high-frequency modes that otherwise destabilize operator learning for the RTE.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same replacement strategy could be tried on other linear transport equations whose discretizations already possess a multilevel factorization.
  • If the neural sub-operators are kept small, the overall memory footprint might remain comparable to classical multilevel methods while still gaining speed.
  • One could test whether the same architecture continues to accelerate solves when the underlying spatial mesh is refined or coarsened after training.

Load-bearing premise

Replacing the original coefficient-specific sub-operators with neural networks will keep the stability and convergence behavior of the recursive skeleton factorization intact while still letting the network generalize across different medium parameters.

What would settle it

Run the learned MgNet preconditioner on a standard diffusive RTE benchmark with optical coefficients outside the training range and count the number of GMRES iterations needed to reach a fixed residual tolerance; if the iteration count does not drop by a factor of at least ten relative to a classical algebraic multigrid preconditioner, the acceleration claim fails.

Figures

Figures reproduced from arXiv: 2604.23265 by Lei Zhang, Qinchen Song, Xinliang Liu.

Figure 1
Figure 1. Figure 1: DOM in x-y geometry. Left figure: a quadrature point in three spatial dimensional case. Right figure: view at source ↗
Figure 2
Figure 2. Figure 2: Schematic diagram of CoeffNet and MgNet. The part above the dashed line is CoeffNet, and the view at source ↗
Figure 3
Figure 3. Figure 3: Training and validation loss curves versus epochs for the diffusion region under the full-order dis view at source ↗
Figure 4
Figure 4. Figure 4: Training and validation loss curves versus epochs for the diffusion region under the compressed view at source ↗
Figure 5
Figure 5. Figure 5: GMRES iteration counts for the test set of the diffusion region problem under different preconditioners. view at source ↗
Figure 6
Figure 6. Figure 6: Training and validation loss curves versus epochs for the transport region with different sample sizes. view at source ↗
Figure 7
Figure 7. Figure 7: Training and validation loss curves versus epochs for the sharp interface problem under the full-order view at source ↗
Figure 8
Figure 8. Figure 8: Training and validation loss curves versus epochs for the sharp interface problem under the compressed view at source ↗
read the original abstract

Conventional numerical solvers for the radiative transfer equation (RTE) exhibit severe sensitivity to medium parameters. To address this, we propose an operator learning framework that approximates the RTE solution map as a function of material properties. The core architecture, MgNet, preserves the solution operator framework established by recursive skeleton factorization (RSF) but substitutes its coefficient-specific sub-operators (e.g. smoother, prolongation operator and restriction operator) with learnable neural components. This design transcends the the fixed parametric structure of classical schemes, enabling data-driven sub-operator optimization and learning of their medium-parameter dependence. To mitigate spectral bias in operator learning, we introduce an adaptive angular compression technique within the loss function that dynamically suppresses high-frequency modes responsible for training instability. Comprehensive benchmarks demonstrate that, when deployed as a learned preconditioner, MgNet achieves at least 10 times acceleration over conventional preconditioners in the diffusive regime and maintains robust generalization to unseen parameter configurations. By unifying multilevel factorization structure with deep operator learning, this work establishes a physics-constrained operator-learning paradigm for radiative transport simulations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes MgNet, a hybrid operator-learning solver for the radiative transfer equation that retains the multilevel structure of recursive skeleton factorization (RSF) while replacing its coefficient-dependent sub-operators (smoother, prolongation, restriction) with trainable neural networks. An adaptive angular compression term is added to the loss to suppress high-frequency modes and improve training stability. The central claim is that the resulting learned preconditioner delivers at least 10× acceleration over conventional preconditioners in the diffusive regime while generalizing to unseen medium parameters.

Significance. If the empirical acceleration and generalization results can be rigorously validated, the work would constitute a useful contribution to hybrid numerical–ML methods for parameter-sensitive transport problems. The explicit retention of the RSF skeleton while allowing data-driven adaptation of the sub-operators is a coherent design choice, and the adaptive angular compression addresses a recognized difficulty in operator learning. Such frameworks could eventually reduce the cost of RTE simulations in applications where medium parameters vary.

major comments (3)
  1. [Abstract and §4] Abstract and §4 (numerical results): the headline claim of “at least 10 times acceleration” is presented without any description of the benchmark problems, error norms, iteration counts, data splits, or the specific conventional preconditioners (e.g., GMRES+ILU) used for comparison, rendering the quantitative performance statement unverifiable from the given material.
  2. [§3] §3 (MgNet architecture): the substitution of RSF sub-operators by neural networks is introduced without any spectral analysis, smoothing-property bounds, or approximation-error estimates showing that the learned operators inherit the properties that guarantee the convergence rate of the original recursive skeleton factorization; this absence directly affects the justification for the claimed preconditioner speedup.
  3. [§4] §4 (generalization experiments): the assertion of “robust generalization to unseen parameter configurations” is unsupported by any reported details on the ranges of scattering and absorption coefficients used in training versus testing, or by quantitative metrics (e.g., relative L2 errors or iteration counts) on out-of-distribution instances.
minor comments (2)
  1. [Abstract] Abstract contains the typographical repetition “transcends the the fixed parametric structure.”
  2. Notation distinguishing the learned neural operators from their classical RSF counterparts is introduced without a clear summary table or diagram.

Simulated Author's Rebuttal

3 responses · 1 unresolved

We thank the referee for the constructive and detailed comments, which help clarify the presentation of our results. We will revise the manuscript to address the concerns about verifiability of claims and provide additional details where appropriate. Below we respond point by point to each major comment.

read point-by-point responses

  1. Referee: [Abstract and §4] Abstract and §4 (numerical results): the headline claim of “at least 10 times acceleration” is presented without any description of the benchmark problems, error norms, iteration counts, data splits, or the specific conventional preconditioners (e.g., GMRES+ILU) used for comparison, rendering the quantitative performance statement unverifiable from the given material.

    Authors: We agree that the abstract and Section 4 would benefit from explicit details to make the performance claims verifiable. In the revised manuscript, we will expand the abstract to briefly describe the benchmark problems (RTE instances in the diffusive regime), the error norms employed (relative L2), representative iteration counts, the training/testing data splits, and the specific conventional preconditioners used for comparison (e.g., GMRES with ILU). Section 4 will be augmented with tables containing these metrics to substantiate the at least 10× acceleration claim. revision: yes

  2. Referee: [§3] §3 (MgNet architecture): the substitution of RSF sub-operators by neural networks is introduced without any spectral analysis, smoothing-property bounds, or approximation-error estimates showing that the learned operators inherit the properties that guarantee the convergence rate of the original recursive skeleton factorization; this absence directly affects the justification for the claimed preconditioner speedup.

    Authors: The referee correctly identifies that the manuscript provides no spectral analysis or theoretical bounds establishing that the neural replacements preserve the convergence properties of the original RSF. The MgNet design retains the multilevel RSF skeleton to heuristically inherit its structure while learning the parameter dependence of the sub-operators; the claimed speedup is justified empirically through the experiments in Section 4. We will revise Section 3 to articulate this design rationale more clearly, note the reliance on numerical evidence, and explicitly acknowledge the absence of rigorous smoothing or approximation bounds as a current limitation, with a suggestion for future theoretical analysis. revision: partial

  3. Referee: [§4] §4 (generalization experiments): the assertion of “robust generalization to unseen parameter configurations” is unsupported by any reported details on the ranges of scattering and absorption coefficients used in training versus testing, or by quantitative metrics (e.g., relative L2 errors or iteration counts) on out-of-distribution instances.

    Authors: We concur that additional specifics are required to support the generalization claim. In the revision, we will report the exact ranges of scattering and absorption coefficients for the training and testing sets, describe the data splits, and provide quantitative metrics including relative L2 errors and iteration counts on out-of-distribution instances. These additions will make the robust generalization statement concrete and verifiable. revision: yes

standing simulated objections not resolved
  • The absence of spectral analysis, smoothing-property bounds, or approximation-error estimates demonstrating that the learned neural sub-operators inherit the convergence guarantees of the original RSF.

Circularity Check

0 steps flagged

No circularity; empirical validation of learned operator framework

full rationale

The paper presents MgNet as a hybrid architecture that retains the multilevel RSF skeleton while replacing coefficient-specific sub-operators with trainable neural networks, then reports acceleration and generalization via benchmarks on unseen parameters. No load-bearing step reduces by construction to a self-definition, fitted input renamed as prediction, or self-citation chain; the RSF reference supplies the structural template but the performance claims rest on independent training and testing against conventional preconditioners. The work is therefore self-contained against external numerical benchmarks rather than internally forced.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 1 invented entities

The central claim rests on the assumption that neural networks can faithfully replace analytic sub-operators while retaining multilevel convergence, plus data-driven fitting for all performance numbers.

free parameters (1)
  • neural network weights and biases
    All sub-operators (smoother, prolongation, restriction) are replaced by trainable networks whose parameters are fitted to data.
axioms (1)
  • domain assumption The multilevel factorization structure from recursive skeleton factorization remains valid when its coefficient-specific operators are replaced by learned neural components.
    Invoked in the design of MgNet to preserve the solution operator framework.
invented entities (1)
  • MgNet architecture no independent evidence
    purpose: To approximate the RTE solution map as a function of material properties via learnable sub-operators.
    New named architecture introduced in the paper.
