arxiv: 2604.23343 · v1 · submitted 2026-04-25 · 🌌 astro-ph.SR

Deflection of a Filament Eruption with Three Parallel Flare Ribbons via Reconnection at an X-Point

Xiaomeng Zhang , Jinhan Guo , Yang Guo , Mingde Ding , Brigitte Schmieder This is my paper

Pith reviewed 2026-05-08 07:02 UTC · model grok-4.3

classification 🌌 astro-ph.SR
keywords solar flarefilament eruptionmagnetic reconnectionflare ribbonsmagnetohydrodynamic simulationX-pointquasi-separatrix layersflux rope
0
0 comments X

The pith

Localized reconnection at an X-point deflects an erupting filament and forms three parallel flare ribbons.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper simulates an X4.5-class solar flare and filament eruption using a data-constrained magnetohydrodynamic model in the zero-beta approximation. The simulation reproduces the observed filament rotation and deflection while connecting the complex flare ribbon patterns to quasi-separatrix layers in the reconstructed magnetic field. Lorentz force analysis shows that reconnection between two flux ropes of opposite helicity produces magnetic pressure gradients that deflect the flux rope, with tension forces simultaneously limiting arcade ascent. The authors identify a sandwich magnetic configuration with double parallel polarity inversion lines and strong shear as the setup that generates the parallel three-ribbon structure. This ties the eruption dynamics directly to the topology and reconnection at an X-point.

Core claim

The simulation establishes that filament deflection arises from localized reconnection at an X-point, confirmed by decomposing the Lorentz force into pressure and tension terms. Reconnection above two current channels of opposite helicity controls the overall eruption, with pressure gradients driving the observed deflection of the flux rope while tension restrains the rise of the surrounding arcade. The evolution of quasi-separatrix layers matches the observed flare ribbons and supplies evidence of reconnection between the two flux ropes in the sheared configuration.

What carries the argument

Localized reconnection at the X-point between two flux ropes of opposite helicity inside a sandwich magnetic configuration with double parallel polarity inversion lines.

If this is right

  • The identified sandwich configuration with double polarity inversion lines offers a formation path for observed parallel three-ribbon flares.
  • Reconnection between two flux ropes explains both the filament deflection and the ribbon morphology in this event.
  • Quasi-separatrix layers serve as the topological link between the magnetic field and the locations of energy release seen in the flare ribbons.
  • The Lorentz force decomposition isolates magnetic pressure as the dominant driver of the sideways deflection while tension limits vertical expansion.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same X-point reconnection process may operate in other active-region eruptions that display deflected filaments or multi-ribbon flares.
  • Higher-cadence observations of the low corona could directly image the X-point and test whether pressure-gradient forces indeed dominate the deflection.
  • Similar double-polarity-inversion-line setups might be searched for in historical flare catalogs to assess how commonly they produce three-ribbon events.

Load-bearing premise

The zero-beta approximation together with the data-constrained initial magnetic field from limited observations is enough to capture the essential reconnection dynamics and force balance.

What would settle it

High-resolution vector magnetograms or extreme-ultraviolet images that show no X-point reconnection signatures or no match between quasi-separatrix layer footprints and the three parallel ribbons during the deflection phase would falsify the proposed driver.

Figures

Figures reproduced from arXiv: 2604.23343 by Brigitte Schmieder, Jinhan Guo, Mingde Ding, Xiaomeng Zhang, Yang Guo.

Figure 1

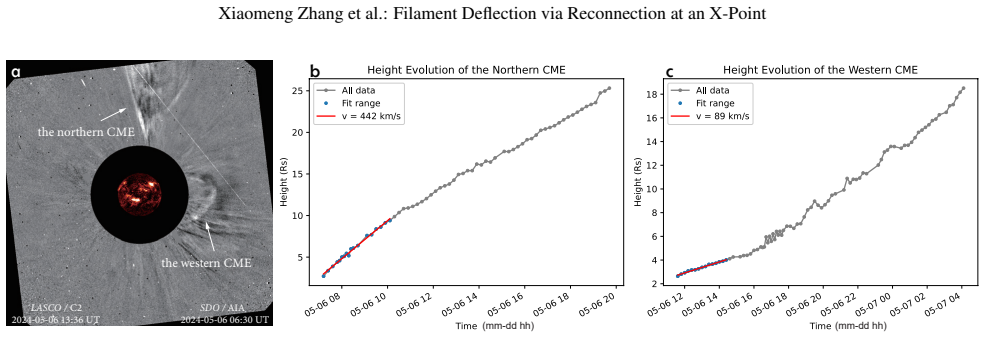

Figure 1. Figure 1: (a) Two CMEs are visible in the SOHO/LASCO C2 field of view at 13:36 UT on 2024 May 6: an nCME and a wCME. The inset shows the SDO/AIA 304 Å view at 06:30 UT on the same day. (b) Height evolution of the nCME. Blue dots indicate the data points used to derive the velocity, and the red line shows the linear fit with a velocity of 442 km s−1 . (c) Same as panel (b), but for the wCME, with a fitted velocity of… view at source ↗
Figure 2
Figure 2. Figure 2: (a) SDO/HMI vector magnetogram in the CEA coordinate system at 05:58 UT on 2024 May 6, where the red (green) arrows represent the directions of the horizontal field in positive (negative) polarities. The region enclosed by the red rectangle is selected and processed as the bottom boundary magnetic field for the extrapolation. (b) Top view of magnetic configuration in an NLFFF model. The western (eastern) f… view at source ↗
Figure 3
Figure 3. Figure 3: (a) SDO/AIA 304 Å image at 06:00 UT, which is covered by the white (cyan) contour of positive (negative) magnetic field in the line of sight observed by SDO/HMI. The white arrow indicates the position of the western filament. (b) Comparison between the filament eruption direction and the radial direction. The white dots mark the locations of the filament apex in the AIA plane of sky at different observatio… view at source ↗
Figure 4
Figure 4. Figure 4: Panels (a), (e), and (i) depict the evolution of the wFR from an observational perspective at simulation times 0, 7, and 15, respectively. Panels (b), (f), and (j) display SDO/AIA 304 Å images capturing the filament eruption at 06:18, 06:25, and 06:33 UT, respectively. The white and black lines delineate the trajectory of the filament at the respective times. Panels (c), (g), and (k) present the photospher… view at source ↗
Figure 5
Figure 5. Figure 5: (a) SDO/AIA 1600 Å image at 06:33 UT overlaid with QSLs in red contours at simulation time = 15. (b) Twist distribution at z = 7 Mm at simulation time = 0. Positions of eFR, wFR and small arcades are marked. The black dashed and solid lines represent the twist = -0.5 and twist = 0.2 contours, respectively. The orange dash line shows the slice location in Figure 6a and b. (c) log (Q) distribution at z = 0 a… view at source ↗
Figure 6
Figure 6. Figure 6: (a) Magnetic configuration of two current channels at simulation time = 0. The wFR is colored in green and the small arcade is colored in gray. The semi-transparent slice shows the QSL distribution. (b) Magnetic configuration is the same as panel (a), but the slice shows twist distribution. The slice locates at x = 31.4 Mm. (c) Same as panel (a), but at simulation time = 10. (d) Same as panel (b), but at s… view at source ↗
Figure 7
Figure 7. Figure 7: (a) The distribution of | j|/|B| on a slice at x = 30.7 Mm. The purple circle marks the position of current sheet at the X-point. (b) Magnetic energy density at simulation time = 0. The purple circle marks the region of lower magnetic energy density near the flux rope. (c) Lorentz force in the y direction. (d) Lorentz force in the z direction. (e) Magnetic pressure in the y direction. (f) Magnetic pressure… view at source ↗
Figure 8
Figure 8. Figure 8: Same as view at source ↗
read the original abstract

On 2024 May 6, Active Region 13663 produced an X4.5-class flare associated with a filament eruption that exhibited remarkable rotation and deflection dynamics. This study aims to investigate two key aspects of this event: the formation mechanisms of the complex flare ribbon structures and the physical drivers behind the observed filament deflection. We conduct a data-constrained magnetohydrodynamic simulation using the zero-beta approximation to reconstruct the filament's evolution. Through detailed analysis of quasi-separatrix layers (QSLs) and their comparison with observed flare ribbons, we establish crucial connections between magnetic topology and flare morphology. First, our simulation successfully reproduces key observational features of the eruption. Then, we connect the flare ribbon morphology with calculated QSLs. Finally, we find filament deflection resulting from localized reconnection at the X-point, as evidenced by Lorentz force decomposition. We demonstrate that reconnection above two current channels of opposite helicity governs the eruption dynamics, with magnetic pressure gradients driving flux rope deflection while magnetic tension force simultaneously restraining arcade ascent. The event features a "sandwich" magnetic configuration including double parallel polarity inversion lines with strong shear component. We suggest that this particular configuration could serve as a plausible formation mechanism for the observed parallel three-ribbon structure. In addition, the evolution of QSLs and flare ribbons provides clear evidence of reconnection between two flux ropes.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a data-constrained zero-beta MHD simulation of the 2024 May 6 X4.5 flare and filament eruption in AR 13663. It reproduces key observational features of the eruption, connects quasi-separatrix layers (QSLs) to the observed three parallel flare ribbons, and attributes the filament deflection to localized reconnection at an X-point between two flux ropes of opposite helicity. Magnetic pressure gradients are identified as driving the deflection while tension restrains arcade ascent; the double-PIL 'sandwich' configuration is proposed as a formation mechanism for parallel three-ribbon flares.

Significance. If the central claims hold, the work supplies a concrete numerical example of how X-point reconnection in a sheared double-PIL topology can produce both filament deflection and a three-ribbon morphology. The explicit QSL-to-ribbon mapping and Lorentz-force decomposition add mechanistic detail to existing topological models of eruptive flares.

major comments (2)
  1. [Simulation Setup] Simulation Setup section: the zero-beta approximation eliminates the gas-pressure gradient by construction. The Lorentz-force decomposition used to attribute deflection to the X-point reconnection therefore isolates only magnetic contributions; if plasma beta is not uniformly ≪1 near the filament or reconnection site, the reported force balance may omit dynamically important thermal or dynamic pressure terms.
  2. [Initial magnetic field] Initial magnetic field section: the pre-eruption field is extrapolated from limited magnetogram data with free parameters for scaling and shear. Because the precise location and connectivity of the X-point and QSLs are sensitive to these choices, the reported match between simulated deflection trajectory, ribbon timing, and the three-ribbon morphology risks being partly a fit rather than an independent prediction.
minor comments (1)
  1. [QSL analysis] The description of how QSLs are computed and thresholded for comparison with ribbons would benefit from an explicit equation or reference to the standard squashing-factor definition.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment point by point below, with revisions made where appropriate to clarify limitations and strengthen the presentation.

read point-by-point responses

  1. Referee: Simulation Setup section: the zero-beta approximation eliminates the gas-pressure gradient by construction. The Lorentz-force decomposition used to attribute deflection to the X-point reconnection therefore isolates only magnetic contributions; if plasma beta is not uniformly ≪1 near the filament or reconnection site, the reported force balance may omit dynamically important thermal or dynamic pressure terms.

    Authors: We agree that the zero-beta approximation is a limitation of the model, as it excludes gas-pressure contributions by design. This choice is standard for focusing on magnetically dominated coronal dynamics, where beta is typically low. However, we acknowledge that beta may approach order unity near the filament or in the reconnection region, potentially affecting the precise force balance. In the revised manuscript, we have added a dedicated paragraph in the Simulation Setup section discussing the applicability of zero-beta for this event, citing typical active-region coronal conditions from the literature, and explicitly noting that the reported Lorentz-force analysis is valid only within the zero-beta framework. We also state that quantitative assessment of omitted pressure terms would require a finite-beta simulation with additional temperature constraints not available from the observations. This is a partial revision consisting of added discussion rather than a change to the simulation. revision: partial

  2. Referee: Initial magnetic field section: the pre-eruption field is extrapolated from limited magnetogram data with free parameters for scaling and shear. Because the precise location and connectivity of the X-point and QSLs are sensitive to these choices, the reported match between simulated deflection trajectory, ribbon timing, and the three-ribbon morphology risks being partly a fit rather than an independent prediction.

    Authors: The referee is correct that the initial field construction involves choices for scaling and shear to align with the limited magnetogram and observed filament properties. These parameters were not arbitrarily adjusted to reproduce the deflection or three-ribbon structure; they were fixed by matching the pre-eruption magnetogram, filament location, and overall active-region topology before running the simulation. The key features (X-point reconnection, QSL evolution, and deflection) then emerged self-consistently. To address the sensitivity concern, we have revised the Initial magnetic field section to include an explicit discussion of parameter choices, their observational constraints, and a qualitative assessment of robustness based on the setup process. We have not performed new full simulations for the revision, as that would exceed the scope of a major revision, but the added text clarifies the distinction between constrained setup and post-hoc fitting. revision: partial

Circularity Check

0 steps flagged

Data-constrained MHD simulation yields independent dynamical results with no reduction to inputs by construction

full rationale

The paper initializes a zero-beta MHD simulation from observational magnetograms of the active region and evolves the system forward in time. The filament deflection is then attributed to localized reconnection at an X-point via post-processing Lorentz force decomposition on the simulated fields. No equation or step in the abstract reduces this attribution to a fitted parameter renamed as a prediction, nor does any load-bearing premise collapse to a self-citation or ansatz smuggled from prior author work. The reproduction of observed ribbon morphology and deflection trajectory functions as an external consistency check against the input magnetograms rather than a definitional tautology. The zero-beta approximation is stated explicitly as a modeling choice, not derived from the target result. The derivation chain therefore remains self-contained against the supplied observational constraints.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the zero-beta MHD equations applied to an observationally constrained initial field; no new particles or forces are postulated.

free parameters (1)
  • initial magnetic field scaling and shear parameters
    Data-constrained from magnetograms but necessarily adjusted to reproduce the observed eruption trajectory and ribbon locations.
axioms (1)
  • domain assumption zero-beta approximation
    Magnetic pressure dominates thermal pressure throughout the modeled coronal volume.
