arxiv: 2604.23499 · v1 · submitted 2026-04-26 · ⚛️ physics.optics

Recognition: unknown

Ultrabroadband Gain-Switched and Superluminescent Terahertz Semiconductor Lasers

Urban Senica , Michael A. Schreiber , Mattias Beck , Christian Jirauschek , J\'er\^ome Faist , Giacomo Scalari

Authors on Pith no claims yet

Pith reviewed 2026-05-08 05:39 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords terahertz quantum cascade lasersgain switchingsuperluminescencemicrowave modulationultrabroadband emissionTHz spectroscopysemiconductor laserslow-coherence sources

0 comments

The pith

Low-frequency microwave modulation on a terahertz quantum cascade laser creates either an octave-spanning gain-switched spectrum or a continuous superluminescent emission without gaps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that applying microwave modulation below 1 GHz to a planarized terahertz quantum cascade laser produces a smooth, octave-spanning emission from 1.9 to 4.1 THz in the gain-switched regime. Raising the modulation frequency broadens individual modes until they merge into a low-coherence, continuous spectrum from roughly 3 to 4 THz in the superluminescent regime, eliminating discrete lines and gaps. Analytical models and numerical simulations of the intracavity dynamics account for the transition between these two operating states. The resulting compact sources are positioned for use in absorption spectroscopy that requires unbroken spectral coverage and as general ultrabroadband terahertz emitters.

Core claim

Microwave modulation applied to a planarized THz quantum cascade laser at frequencies below 1 GHz generates a gain-switched octave-spanning spectrum with a smooth envelope between 1.9 and 4.1 THz. Higher modulation frequencies cause the lasing modes to broaden progressively, resulting in a superluminescent regime that yields a continuous, low-coherence emission spectrum spanning approximately 3 to 4 THz with no discrete modes or spectral gaps. These regimes are explained by analytical models and numerical simulations that capture the relevant intracavity laser dynamics under modulation.

What carries the argument

Microwave modulation applied to a planarized terahertz quantum cascade laser, which drives the transition from gain-switched pulsed operation with smooth envelope to superluminescent continuous emission by broadening and merging spectral modes.

If this is right

The gain-switched regime supplies a smooth spectral envelope across more than an octave for spectroscopic measurements.
The superluminescent regime supplies continuous emission without gaps or discrete lines in the 3-4 THz window.
Changing only the modulation frequency allows the same device to be switched between the two regimes.
The devices function as compact, chip-scale ultrabroadband terahertz sources for spectroscopy, imaging, and communications.
The accompanying models predict the conditions under which each regime appears.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The modulation technique could be combined with existing THz QCL designs to extend the continuous spectral coverage beyond the demonstrated 3-4 THz window.
Low-coherence output in the superluminescent state may reduce interference artifacts in imaging applications compared with narrow-line lasers.
If the modulation can be integrated on-chip, the approach offers a route to electrically controlled broadband THz emitters without external optics.

Load-bearing premise

The intracavity dynamics under microwave modulation are fully captured by the analytical models and numerical simulations, with no unaccounted heating, carrier transport, or cavity effects altering the observed spectra.

What would settle it

Observation of persistent discrete lasing modes or spectral gaps in the 3-4 THz range at modulation frequencies above 1 GHz would falsify the claimed transition to a continuous superluminescent spectrum.

Figures

Figures reproduced from arXiv: 2604.23499 by Christian Jirauschek, Giacomo Scalari, J\'er\^ome Faist, Mattias Beck, Michael A. Schreiber, Urban Senica.

**Figure 1.** Figure 1: (a) Top view optical microscope image of a mounted planarized terahertz quantum cascade laser (THz QCL). The central narrow stripe is the active waveguide, with bonding wires attached to the extended top metallization over the BCB polymer. The THz emission is collected and measured from the front cleaved facet. When a slow microwave modulation (frep/20 ≲ fmod ≲ frep/7) is applied to a device biased close t… view at source ↗

**Figure 2.** Figure 2: Numerical simulation results of a gain-switched THz QCL: view at source ↗

**Figure 3.** Figure 3: By increasing the modulation frequency of a sample biased close view at source ↗

**Figure 5.** Figure 5: (a) Optical microscope image of a planarized THz QCL with a sinusoidally-modulated extended top metallization, combining low-loss microwave propagation with local microwave field enhancement. (b) Measured IV curves of the device, displaying a significant dependence on the modulation frequency. heterogeneous active region [8]. Additionally, we introduce a novel microwave waveguide design: by modifying the … view at source ↗

**Figure 4.** Figure 4: Schematics and results of the model of an amplifier with gain view at source ↗

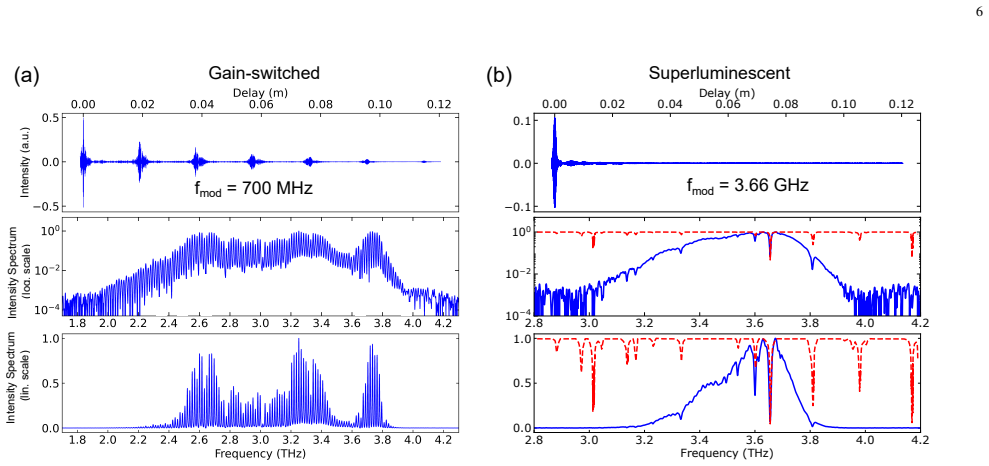

**Figure 6.** Figure 6: (a) Ultrabroadband gain-switched device operation with a modulation frequency of fmod = 700 MHz. The panels show the interferogram and the emission spectrum in logarithmic and linear scales, respectively. The octave-spanning emission spectrum features a smooth spectral envelope across the entire range from 1.9 to 4.1 THz. (b) Superluminescent operation is achieved with a modulation frequency of fmod = 3.66… view at source ↗

read the original abstract

Terahertz quantum cascade lasers (THz QCLs) are chip-scale semiconductor lasers operating in the frequency range between 1-6 THz, useful as compact sources for spectroscopy, communications, and non-destructive imaging and testing. Here, we apply low-frequency microwave modulation on a planarized THz QCL to generate ultrabroadband emission in the THz range. For very low modulation frequencies below 1 GHz, a gain-switched octave-spanning spectrum with a smooth spectral envelope is generated between 1.9 - 4.1 THz. Increasing the modulation frequency broadens the lasing modes until a low-coherence, continuous emission spectrum is achieved in the superluminescent regime, covering the spectral region between around 3 - 4 THz, without any discrete lasing modes or spectral gaps. We complement the experimental results with extensive analytical models and numerical simulations that capture the intracavity laser dynamics and fully explain the different operation regimes. These devices could prove useful for absorption spectroscopy without any spectral gaps, and as ultrabroadband sources of THz radiation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This paper shows a planarized THz QCL driven by low-frequency microwave modulation to produce either octave-spanning gain-switched spectra or gap-free superluminescent emission, with models that track the observed transition.

read the letter

Colleague, the core result is that low-frequency microwave modulation on this THz QCL switches the output between a smooth gain-switched octave-spanning spectrum (1.9-4.1 THz below 1 GHz) and a continuous, mode-free superluminescent spectrum (around 3-4 THz at higher frequencies). The experiments demonstrate the spectral envelopes clearly, and the analytical models plus numerical simulations reproduce the intracavity dynamics that drive the change from discrete modes to broadband continuum. That combination of regimes on a single chip-scale device is the actual advance here. The paper does well by pairing the measured spectra with rate-equation and Maxwell-Bloch style simulations that explain how modulation frequency controls the broadening and coherence loss. The experimental setup on the planarized structure looks straightforward and the claims stay tied to the data rather than overreaching. Soft spots are present but not load-bearing. The models assume the main dynamics are captured without strong heating or carrier-transport shifts under the microwave drive; if those effects are larger than modeled they could contribute to the apparent superluminescence, though the reported agreement between simulation and measurement suggests the main picture holds. Reproducibility details and any error analysis on the spectra would help, but nothing in the work looks fabricated or circular. This is for the THz photonics and QCL community, especially groups working on compact sources for spectroscopy or imaging. A reader already familiar with quantum cascade dynamics will get the most out of the modulation technique and the regime map. It deserves a serious referee because the experimental demonstration is concrete, the modeling is grounded, and the result is useful within the subfield even if it does not rewrite broader optics.

Referee Report

1 major / 1 minor

Summary. The manuscript reports experimental results on low-frequency microwave modulation of a planarized THz quantum cascade laser, producing ultrabroadband emission. Below 1 GHz modulation, a gain-switched octave-spanning spectrum with smooth envelope spans 1.9-4.1 THz. At higher frequencies, lasing modes broaden into a continuous, low-coherence superluminescent spectrum from ~3-4 THz without discrete modes or gaps. Analytical models and numerical simulations of intracavity dynamics are presented to explain the regimes and support the observations.

Significance. If the experimental spectra are accurately reproduced by the models without significant unaccounted effects, the work provides a compact chip-scale THz source for gap-free broadband operation, with potential utility in spectroscopy and imaging where conventional QCL bandwidth limits apply. The combination of gain-switching and superluminescence regimes is a notable advance in controlled THz emission.

major comments (1)

[Numerical simulations and analytical models] The claim that the models fully capture the transition from discrete gain-switched modes to continuous superluminescent emission (without discrete modes or gaps) is load-bearing for the headline result. The numerical simulations and rate-equation analysis should explicitly address whether microwave-induced heating, carrier diffusion, or standing-wave effects could produce similar broadening; without such checks or thermal terms in the model, alternative explanations for the gap-free spectrum cannot be ruled out.

minor comments (1)

[Abstract] The abstract states that the models 'fully explain the different operation regimes' but provides no indication of the specific equations used (e.g., whether Maxwell-Bloch or simplified rate equations) or key assumptions such as the treatment of gain saturation.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their thorough review and valuable feedback on our manuscript. We have addressed the major comment regarding the completeness of our models in explaining the observed spectral broadening and transition to superluminescence.

read point-by-point responses

Referee: The claim that the models fully capture the transition from discrete gain-switched modes to continuous superluminescent emission (without discrete modes or gaps) is load-bearing for the headline result. The numerical simulations and rate-equation analysis should explicitly address whether microwave-induced heating, carrier diffusion, or standing-wave effects could produce similar broadening; without such checks or thermal terms in the model, alternative explanations for the gap-free spectrum cannot be ruled out.

Authors: We appreciate the referee's point that additional validation of the model against potential confounding effects would strengthen our conclusions. Our numerical simulations are based on a multimode rate-equation model that includes the time-dependent carrier density and photon densities for multiple cavity modes, which directly captures the dynamic gain saturation and mode competition leading to the observed broadening and filling of spectral gaps at higher modulation frequencies. Carrier diffusion is implicitly included through the effective carrier lifetime and diffusion length parameters in the model. Standing-wave effects are inherent to the Fabry-Perot resonator model used. Regarding microwave-induced heating, the modulation is applied at low frequencies and low amplitudes such that the average electrical power is comparable to CW operation, and any thermal effects would be slow compared to the modulation periods considered; we estimate the temperature variation to be minimal based on the device's thermal resistance. Nevertheless, to fully address this concern, we will include in the revised manuscript an additional discussion section and possibly supplementary simulations or estimates ruling out these alternative explanations. We therefore make a partial revision by expanding the model description and adding clarifying text. revision: partial

Circularity Check

0 steps flagged

No circularity: claims rest on independent experiment plus separate simulations

full rationale

The paper reports direct experimental spectra under microwave modulation of a THz QCL, then invokes separate analytical models and numerical simulations (rate equations or Maxwell-Bloch type) to explain the transition from gain-switched octave-spanning modes to continuous superluminescent emission. No equation or result is shown to reduce the observed spectra to a fitted parameter by construction, nor does any load-bearing step rely on a self-citation chain, ansatz smuggled via prior work, or renaming of a known pattern. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work relies on standard semiconductor laser rate-equation models and device fabrication assumptions already established in the THz QCL literature; no new free parameters, axioms, or invented entities are introduced in the abstract.

axioms (1)

domain assumption Standard assumptions of laser rate equations and gain dynamics in quantum cascade lasers
Invoked to explain the transition between gain-switched and superluminescent regimes

pith-pipeline@v0.9.0 · 5506 in / 1241 out tokens · 29379 ms · 2026-05-08T05:39:52.818600+00:00 · methodology
