arxiv: 2604.23554 · v1 · submitted 2026-04-26 · 💻 cs.NI

Adaptive Swin Transformer Partitioning over AI-RAN Networks

Tam Thanh Nguyen , Yong Hao Pua , Tuan Van Ngo , Mao V. Ngo , Jihong Park , Binbin Chen , Tony Q. S. Quek This is my paper

Pith reviewed 2026-05-08 05:12 UTC · model grok-4.3

classification 💻 cs.NI
keywords split inferenceSwin TransformerAI-RAN5G networksvideo object detectionactivation compressionadaptive partitioningedge AI
0
0 comments X

The pith

Swin Transformers can be adaptively partitioned for real-time video object detection over dynamic 5G AI-RAN networks without any retraining.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that split inference, previously shown for CNNs, extends to a Swin Transformer backbone for video object detection tasks. It does so by combining throughput-aware adaptive split selection with a new activation compression pipeline that shrinks the large intermediate outputs transformers produce. The full pipeline runs end-to-end on an NVIDIA Aerial testbed that includes distributed user-plane functions, jointly tracking inference and communication energy while measuring latency and stability under realistic 5G conditions. A sympathetic reader cares because this removes the need to retrain or redesign large vision models when moving them onto wireless edge networks.

Core claim

The paper demonstrates that practical split execution is achievable for transformer-based vision models without retraining. By extending throughput-aware adaptive splitting from CNNs to a Swin Transformer backbone and introducing an efficient, accuracy-preserving activation compression pipeline that substantially reduces uplink payload, the complete system—including adaptive split selection, transformer inference, and compression—is implemented and validated end-to-end on a real-time detection workload. Distributed UPF integration further reduces user-plane latency and improves runtime stability, while extensive measurements on an NVIDIA Aerial-based AI-RAN testbed jointly account for both 5

What carries the argument

Throughput-aware adaptive splitting combined with an accuracy-preserving activation compression pipeline applied to the Swin Transformer backbone

If this is right

  • Real-time video object detection becomes executable as split inference across device and network without retraining the model.
  • Uplink payload size drops substantially while detection accuracy is maintained.
  • Distributed UPF integration lowers user-plane latency and increases runtime stability.
  • Joint inference-plus-communication energy use can be quantified to expose latency-energy-privacy trade-offs.
  • The approach works on a real 5G AI-RAN testbed under dynamic conditions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same adaptive splitting and compression pattern could be tested on other hierarchical vision transformers or multimodal models.
  • Reduced data transmission may lower eavesdropping exposure in privacy-sensitive video analytics deployments.
  • Quantified energy trade-offs could inform power-budget decisions for battery-powered edge cameras.
  • Field trials beyond the testbed would be needed to confirm behavior under production traffic loads.

Load-bearing premise

The activation compression pipeline preserves detection accuracy across varying network conditions and the testbed results generalize to production AI-RAN deployments without additional retraining or tuning.

What would settle it

An experiment that applies the compression pipeline under representative 5G channel fluctuations and records a drop in mean average precision below the uncompressed baseline would falsify the feasibility claim.

Figures

Figures reproduced from arXiv: 2604.23554 by Binbin Chen, Jihong Park, Mao V. Ngo, Tam Thanh Nguyen, Tony Q. S. Quek, Tuan Van Ngo, Yong Hao Pua.

Figure 1
Figure 1. Figure 1: System Architecture of Adaptive Transformer Model Partitioning over AI-RAN Networks. view at source ↗
Figure 2

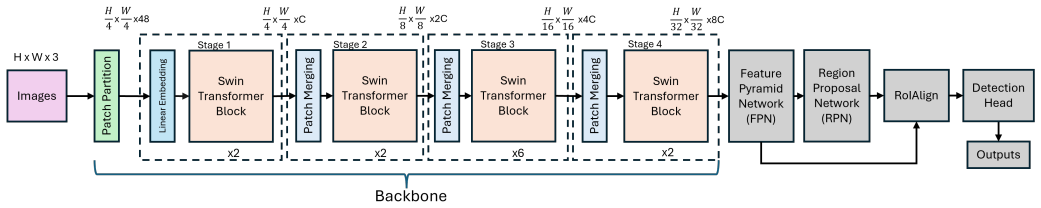

Figure 2. Figure 2: Object Detection Model with Swin Transformer Backbone. view at source ↗
Figure 3

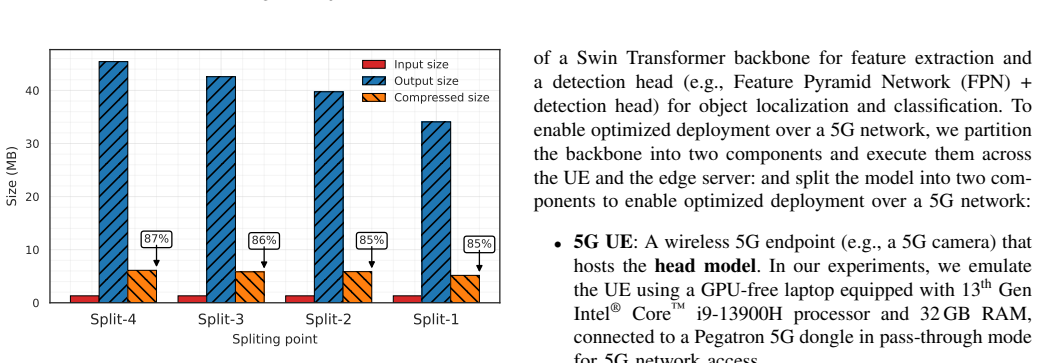

Figure 3. Figure 3: Intermediate data size (MB) vs compressed size (MB) view at source ↗
Figure 4

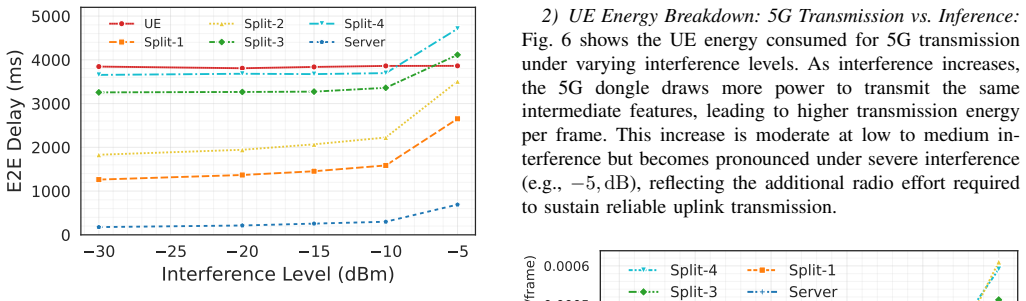

Figure 4. Figure 4: E2E Delay (ms) over different splitting points (i.e., view at source ↗
Figure 6

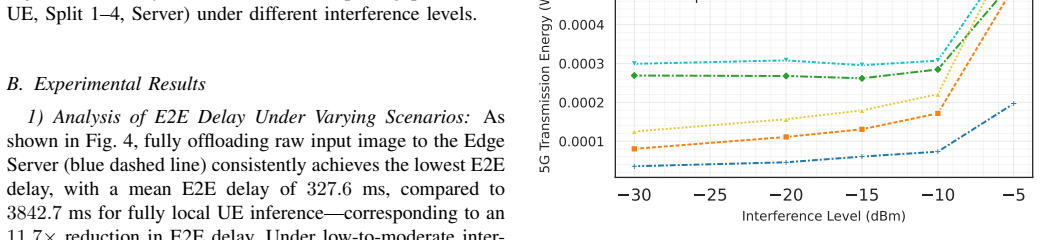

Figure 6. Figure 6: UE’s Energy for 5G Transmission over different view at source ↗
Figure 7

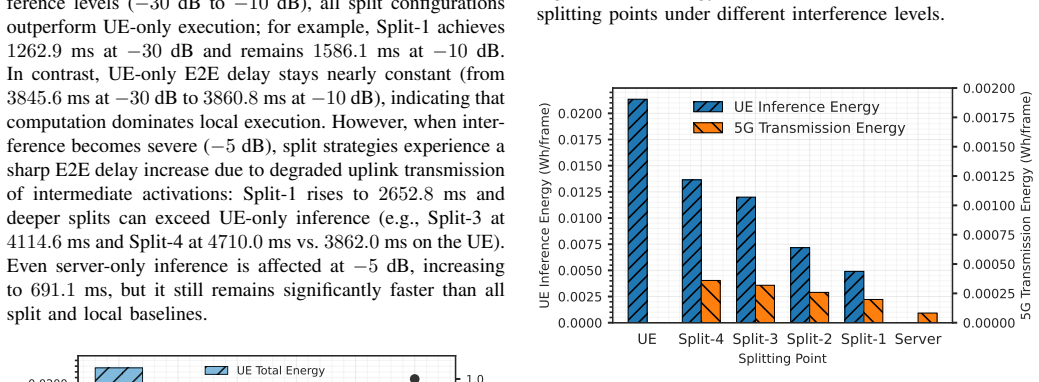

Figure 7. Figure 7: UE’s Energy consumed for Inference (left axis) and for view at source ↗
Figure 5

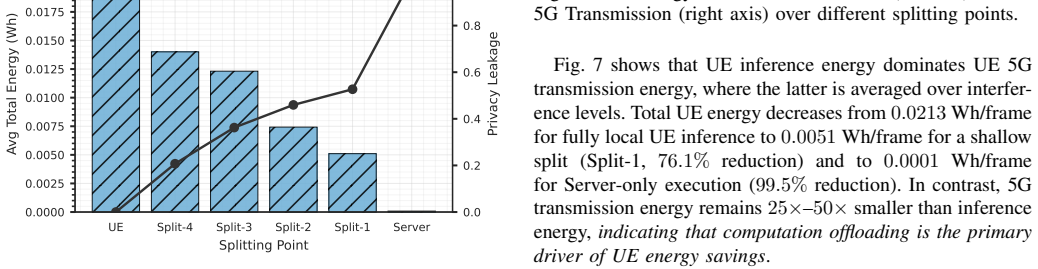

Figure 5. Figure 5: UE’s total energy consumption, including Communi view at source ↗
Figure 8

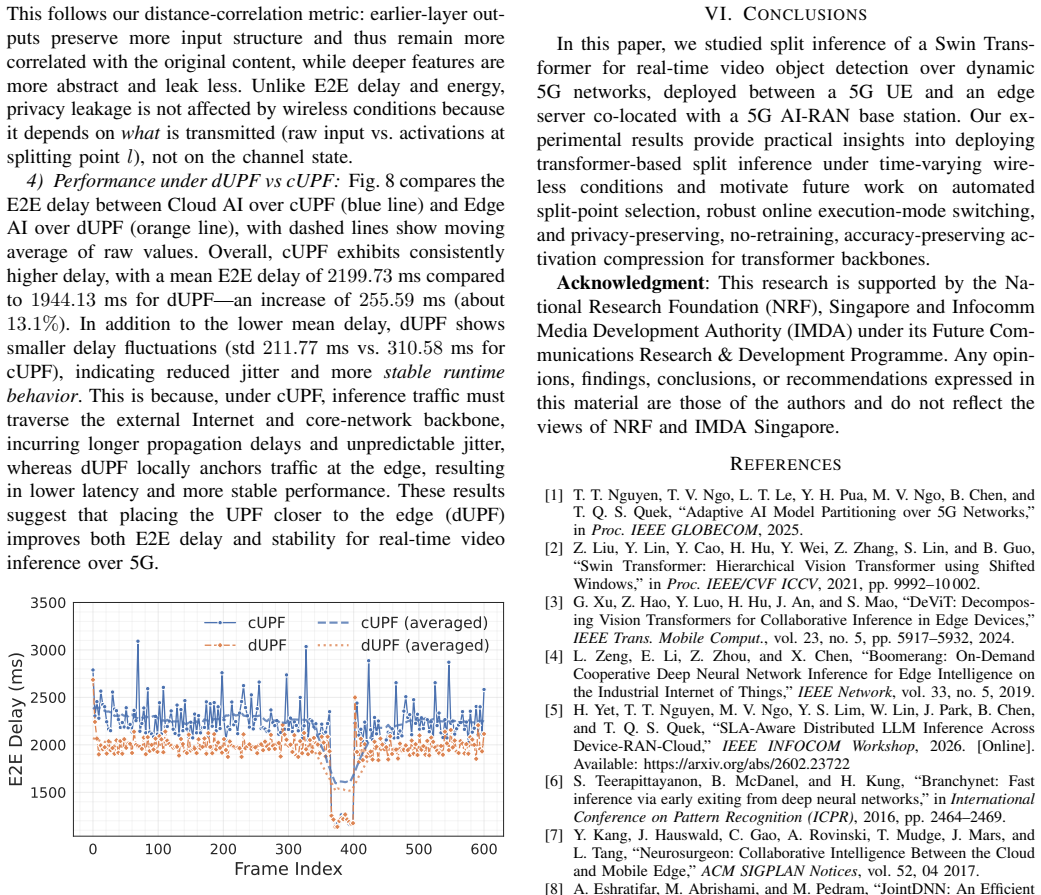

Figure 8. Figure 8: E2E delay comparison between Cloud AI over cUPF view at source ↗
read the original abstract

This paper demonstrates the feasibility of transformer-based split inference for real-time video object detection over dynamic 5G AI-RAN networks. We extend throughput-aware adaptive splitting from CNNs to a Swin Transformer backbone and show that practical split execution is achievable for transformer-based vision models without retraining. To address the large intermediate activations inherent to transformers, we introduce an efficient, accuracy-preserving activation compression pipeline that substantially reduces uplink payload. The complete system -- including adaptive split selection, transformer inference, and compression -- is implemented and validated end-to-end on a real-time detection workload, with distributed UPF (dUPF) integration further reducing user-plane latency and improving runtime stability. Extensive measurements on an NVIDIA Aerial-based AI-RAN testbed jointly account for inference and 5G communication energy, quantifying the latency-energy-privacy trade-offs in realistic deployments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims to demonstrate the feasibility of adaptive split inference for Swin Transformer-based real-time video object detection over dynamic 5G AI-RAN networks. It extends throughput-aware splitting from CNNs to Swin Transformers, introduces an efficient accuracy-preserving activation compression pipeline to reduce uplink payload without retraining, integrates distributed UPF (dUPF) to lower user-plane latency, and validates the full system end-to-end on an NVIDIA Aerial AI-RAN testbed while jointly measuring inference and communication energy along with latency-energy-privacy trade-offs.

Significance. If the empirical results hold, the work would be significant as one of the first end-to-end demonstrations of practical transformer split inference in a real 5G testbed without model retraining. The testbed implementation, dUPF integration, and joint energy accounting for both inference and radio provide concrete data on deployment trade-offs that are currently scarce for vision transformers in AI-RAN settings.

major comments (2)
  1. [Abstract] Abstract: The central claim of 'practical split execution' for transformer-based models rests on the 'efficient, accuracy-preserving activation compression pipeline' that 'substantially reduces uplink payload.' However, the abstract supplies no quantitative accuracy numbers (e.g., mAP or equivalent detection metric before/after compression), no per-split-point deltas, and no results under bandwidth throttling or varying 5G channel conditions. This information is load-bearing; without it the feasibility conclusion cannot be assessed.
  2. [Section describing the activation compression pipeline] Activation compression pipeline: The description does not specify the compression technique (lossy quantization, sparsity, learned, etc.) nor report ablations showing accuracy preservation across the tested split points and dynamic network conditions. If these data are absent from the full manuscript, the 'without retraining' and 'accuracy-preserving' assertions require explicit evidence to support the practical-deployment claim.
minor comments (1)
  1. [Abstract] The abstract would benefit from a single sentence summarizing the key quantitative outcomes (accuracy delta, latency reduction, energy savings) to allow readers to gauge the strength of the end-to-end validation immediately.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. The comments highlight important aspects of clarity and evidence presentation that we address point by point below. We have revised the manuscript to incorporate the requested details.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The central claim of 'practical split execution' for transformer-based models rests on the 'efficient, accuracy-preserving activation compression pipeline' that 'substantially reduces uplink payload.' However, the abstract supplies no quantitative accuracy numbers (e.g., mAP or equivalent detection metric before/after compression), no per-split-point deltas, and no results under bandwidth throttling or varying 5G channel conditions. This information is load-bearing; without it the feasibility conclusion cannot be assessed.

    Authors: We agree that the abstract would be strengthened by including key quantitative results. The body of the manuscript reports mAP preservation (within 0.8% of baseline), per-split-point latency and payload reductions, and testbed measurements under emulated 5G channel variations and bandwidth throttling. We have revised the abstract to explicitly state these metrics and reference the corresponding experimental conditions. revision: yes

  2. Referee: [Section describing the activation compression pipeline] Activation compression pipeline: The description does not specify the compression technique (lossy quantization, sparsity, learned, etc.) nor report ablations showing accuracy preservation across the tested split points and dynamic network conditions. If these data are absent from the full manuscript, the 'without retraining' and 'accuracy-preserving' assertions require explicit evidence to support the practical-deployment claim.

    Authors: The compression pipeline is described in Section 4 as a hybrid of post-activation uniform quantization (8-bit) combined with structured sparsity pruning on non-critical activation channels, applied without any model retraining or fine-tuning. Ablation results across split points and under varying uplink bandwidth (simulating 5G conditions) are presented in Section 5.3 and Table 4, confirming mAP retention. We have expanded the section with additional cross-condition ablations and explicit statements on the no-retraining property to make this evidence more prominent. revision: yes

Circularity Check

0 steps flagged

No circularity: claims rest on testbed implementation and measurements

full rationale

The paper's core contribution is an empirical demonstration of transformer split inference feasibility via adaptive partitioning, activation compression, and end-to-end validation on an NVIDIA Aerial AI-RAN testbed. No equations, derivations, or 'predictions' are presented that reduce by construction to fitted inputs, self-citations, or ansatzes. The extension from CNN splitting is described as an implementation step rather than a load-bearing theoretical claim, and accuracy preservation is asserted through measurements rather than self-referential modeling. This is a standard non-circular empirical systems paper.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Work is primarily an engineering implementation and measurement study; it relies on standard domain assumptions about network behavior and hardware rather than new theoretical constructs.

axioms (1)
  • domain assumption 5G AI-RAN networks exhibit dynamic conditions that allow adaptive split selection to improve latency and energy without violating real-time constraints.
    Invoked to justify the adaptive partitioning and dUPF integration claims.

pith-pipeline@v0.9.0 · 8460 in / 1162 out tokens · 72442 ms · 2026-05-08T05:12:36.655883+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages

  1. [1]

    Adaptive AI Model Partitioning over 5G Networks,

    T. T. Nguyen, T. V . Ngo, L. T. Le, Y . H. Pua, M. V . Ngo, B. Chen, and T. Q. S. Quek, “Adaptive AI Model Partitioning over 5G Networks,” inProc. IEEE GLOBECOM, 2025

    work page 2025

  2. [2]

    Swin Transformer: Hierarchical Vision Transformer using Shifted Windows,

    Z. Liu, Y . Lin, Y . Cao, H. Hu, Y . Wei, Z. Zhang, S. Lin, and B. Guo, “Swin Transformer: Hierarchical Vision Transformer using Shifted Windows,” inProc. IEEE/CVF ICCV, 2021, pp. 9992–10 002

    work page 2021

  3. [3]

    DeViT: Decompos- ing Vision Transformers for Collaborative Inference in Edge Devices,

    G. Xu, Z. Hao, Y . Luo, H. Hu, J. An, and S. Mao, “DeViT: Decompos- ing Vision Transformers for Collaborative Inference in Edge Devices,” IEEE Trans. Mobile Comput., vol. 23, no. 5, pp. 5917–5932, 2024

    work page 2024

  4. [4]

    Boomerang: On-Demand Cooperative Deep Neural Network Inference for Edge Intelligence on the Industrial Internet of Things,

    L. Zeng, E. Li, Z. Zhou, and X. Chen, “Boomerang: On-Demand Cooperative Deep Neural Network Inference for Edge Intelligence on the Industrial Internet of Things,”IEEE Network, vol. 33, no. 5, 2019

    work page 2019

  5. [5]

    SLA-Aware Distributed LLM Inference Across Device-RAN-Cloud,

    H. Yet, T. T. Nguyen, M. V . Ngo, Y . S. Lim, W. Lin, J. Park, B. Chen, and T. Q. S. Quek, “SLA-Aware Distributed LLM Inference Across Device-RAN-Cloud,”IEEE INFOCOM Workshop, 2026. [Online]. Available: https://arxiv.org/abs/2602.23722

    work page arXiv 2026

  6. [6]

    Branchynet: Fast inference via early exiting from deep neural networks,

    S. Teerapittayanon, B. McDanel, and H. Kung, “Branchynet: Fast inference via early exiting from deep neural networks,” inInternational Conference on Pattern Recognition (ICPR), 2016, pp. 2464–2469

    work page 2016

  7. [7]

    Neurosurgeon: Collaborative Intelligence Between the Cloud and Mobile Edge,

    Y . Kang, J. Hauswald, C. Gao, A. Rovinski, T. Mudge, J. Mars, and L. Tang, “Neurosurgeon: Collaborative Intelligence Between the Cloud and Mobile Edge,”ACM SIGPLAN Notices, vol. 52, 04 2017

    work page 2017

  8. [8]

    JointDNN: An Efficient Training and Inference Engine for Intelligent Mobile Cloud Computing Services,

    A. Eshratifar, M. Abrishami, and M. Pedram, “JointDNN: An Efficient Training and Inference Engine for Intelligent Mobile Cloud Computing Services,”IEEE Trans. Mobile Comput., vol. 20, no. 2, 2021

    work page 2021

  9. [9]

    Auto-Split: A General Framework of Collaborative Edge- Cloud AI,

    A. Banitalebi-Dehkordi, N. Vedula, J. Pei, F. Xia, L. Wang, and Y . Zhang, “Auto-Split: A General Framework of Collaborative Edge- Cloud AI,” inProc. ACM SIGKDD, 2021, p. 2543–2553

    work page 2021

  10. [10]

    Enabling Edge Artificial Intelligence via Goal-oriented Deep Neural Network Splitting,

    F. Binucci, M. Merluzzi, P. Banelli, E. C. Strinati, and P. D. Lorenzo, “Enabling Edge Artificial Intelligence via Goal-oriented Deep Neural Network Splitting,” 2024. [Online]. Available: https: //arxiv.org/abs/2312.03555

    work page arXiv 2024

  11. [11]

    An Image Is Worth 16x16 Words: Transformers for Image Recognition at Scale,

    A. Dosovitskiy, L. Beyer, A. Kolesnikov, D. Weissenborn, X. Zhai, T. Unterthiner, M. Dehghani, M. Minderer, G. Heigold, S. Gelly, J. Uszkoreit, and N. Houlsby, “An Image Is Worth 16x16 Words: Transformers for Image Recognition at Scale,” inProc. ICLR, 2021

    work page 2021

  12. [12]

    Factionformer: Context-driven collaborative vision transformer models for edge intelligence,

    S. T. Nimi, M. Adnan Arefeen, M. Y . Sarwar Uddin, B. Debnath, and S. Chakradhar, “Factionformer: Context-driven collaborative vision transformer models for edge intelligence,” in2023 IEEE International Conference on Smart Computing (SMARTCOMP), 2023, pp. 349–354

    work page 2023

  13. [13]

    Mask R-CNN,

    K. He, G. Gkioxari, P. Dollar, and R. Girshick, “Mask R-CNN,” in Proc. IEEE ICCV, Oct 2017
