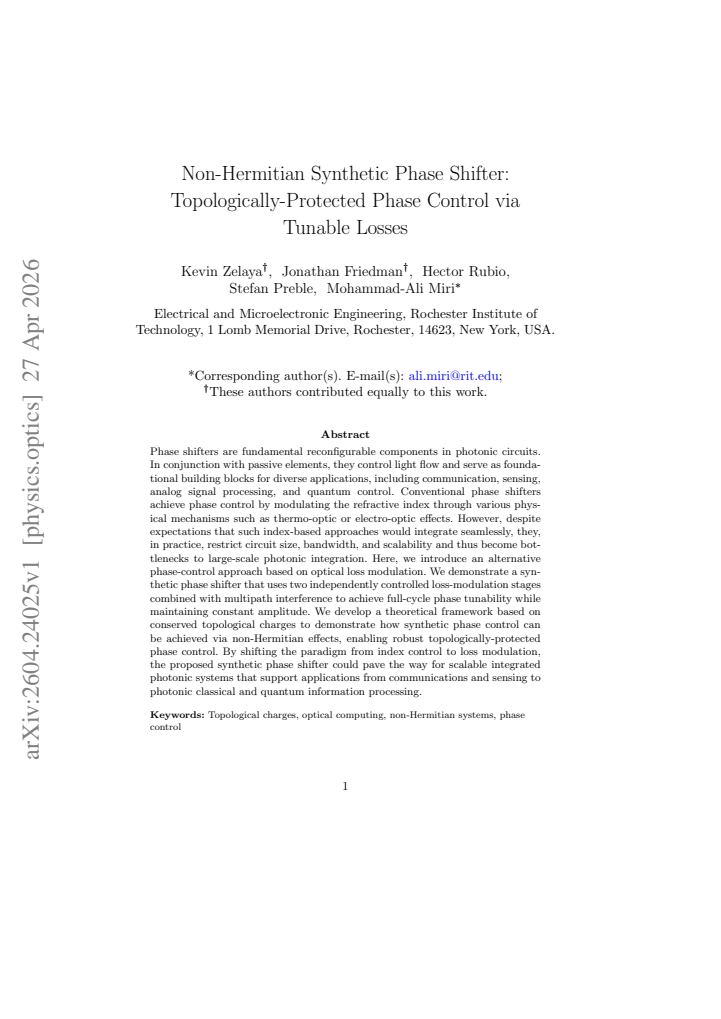

Non-Hermitian Synthetic Phase Shifter: Topologically-Protected Phase Control via Tunable Losses
Pith reviewed 2026-05-08 02:09 UTC · model grok-4.3
The pith
Two independently tuned loss stages achieve full-cycle phase control at constant amplitude via conserved topological charges.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By using two independently controlled loss-modulation stages together with multipath interference, the synthetic phase shifter achieves full-cycle phase tunability while maintaining constant amplitude. The theoretical framework based on conserved topological charges demonstrates that this phase control is robust and topologically protected through non-Hermitian effects.
What carries the argument
Two tunable loss-modulation stages combined with multipath interference, protected by the conservation of topological charges in the non-Hermitian system.
If this is right
- Enables phase tuning without the integration challenges of refractive index modulation.
- Delivers constant amplitude output across the full phase range.
- Provides topologically protected control that is robust to certain perturbations.
- Facilitates scalable photonic circuits for applications in communications, sensing, and quantum processing.
Where Pith is reading between the lines
- This loss-based method could be adapted for other reconfigurable photonic elements where index modulation is limited.
- The topological protection might enable reliable phase control in noisy or imperfect fabrication environments.
- Extending the approach to more stages could allow finer control or additional functionalities.
Load-bearing premise
That two independently tunable loss stages can be physically implemented without causing amplitude fluctuations or disrupting the conservation of topological charges.
What would settle it
Measuring the output amplitude and phase range in a fabricated device implementing the two loss-modulation stages to check if amplitude stays constant and phase covers a full cycle.
read the original abstract
Phase shifters are fundamental reconfigurable components in photonic circuits. In conjunction with passive elements, they control light flow and serve as foundational building blocks for diverse applications, including communication, sensing, analog signal processing, and quantum control. Conventional phase shifters achieve phase control by modulating the refractive index through various physical mechanisms such as thermo-optic or electro-optic effects. However, despite expectations that such index-based approaches would integrate seamlessly, they, in practice, restrict circuit size, bandwidth, and scalability and thus become bottlenecks to large-scale photonic integration. Here, we introduce an alternative phase-control approach based on optical loss modulation. We demonstrate a synthetic phase shifter that uses two independently controlled loss-modulation stages combined with multipath interference to achieve full-cycle phase tunability while maintaining constant amplitude. We develop a theoretical framework based on conserved topological charges to demonstrate how synthetic phase control can be achieved via non-Hermitian effects, enabling robust topologically-protected phase control. By shifting the paradigm from index control to loss modulation, the proposed synthetic phase shifter could pave the way for scalable integrated photonic systems that support applications from communications and sensing to photonic classical and quantum information processing.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a non-Hermitian synthetic phase shifter that employs two independently controlled loss-modulation stages together with multipath interference to realize full 2π phase tunability at strictly constant amplitude. A theoretical framework based on conserved topological charges is developed to establish topologically protected phase control via tunable losses, offering an alternative to conventional refractive-index modulation for photonic circuits.
Significance. If the central claims hold, the work could enable more scalable and robust photonic integration by replacing index-based phase control with loss modulation, with potential benefits for bandwidth, circuit density, and applications in communications, sensing, and quantum information processing.
major comments (2)
- [Theoretical Framework] The theoretical framework assumes that independent tuning of the two loss stages preserves topological charge conservation without back-action on amplitude or the real part of the effective index. No explicit bound is provided on tolerable crosstalk, residual real-index shifts, or distance to exceptional points that would keep the invariants intact under realistic non-Hermitian dynamics.
- [Device Model and Interference Analysis] The multipath interference analysis claims constant amplitude across the full phase cycle, yet the model does not include a tolerance study or error propagation for coupling between the loss stages and amplitude fluctuations; this is load-bearing for the constant-amplitude claim.
minor comments (2)
- [Figures] Figure captions should explicitly state the operating wavelength range and the assumed loss values used in the simulations.
- [Introduction] A few sentences in the introduction repeat the abstract's phrasing on scalability; tightening would improve flow.
Simulated Author's Rebuttal
We thank the referee for the constructive comments and positive assessment of the work. We address each major comment below and will revise the manuscript to incorporate the suggested analyses.
read point-by-point responses
-
Referee: [Theoretical Framework] The theoretical framework assumes that independent tuning of the two loss stages preserves topological charge conservation without back-action on amplitude or the real part of the effective index. No explicit bound is provided on tolerable crosstalk, residual real-index shifts, or distance to exceptional points that would keep the invariants intact under realistic non-Hermitian dynamics.
Authors: We agree that the current presentation of the topological framework does not include explicit quantitative bounds on perturbations such as crosstalk, residual real-index shifts, or proximity to exceptional points. In the revised manuscript we will add a dedicated robustness analysis section. This will derive analytic bounds from the non-Hermitian eigenvalue problem, quantify the maximum tolerable crosstalk and index-shift levels that preserve the topological charges, and include numerical simulations showing the distance to exceptional points under realistic device parameters. revision: yes
-
Referee: [Device Model and Interference Analysis] The multipath interference analysis claims constant amplitude across the full phase cycle, yet the model does not include a tolerance study or error propagation for coupling between the loss stages and amplitude fluctuations; this is load-bearing for the constant-amplitude claim.
Authors: The constant-amplitude property follows directly from the ideal multipath interference and the conserved topological invariants in our model. We acknowledge, however, that no explicit tolerance study or error-propagation analysis is provided. In the revision we will add a new subsection containing both an analytic error-propagation treatment and Monte-Carlo tolerance simulations that quantify amplitude fluctuations arising from finite coupling variations between the two loss stages, thereby substantiating the robustness of the constant-amplitude claim under realistic conditions. revision: yes
Circularity Check
No circularity: derivation chain not visible and claims remain independent of inputs
full rationale
The provided abstract and reader summary present a conceptual framework invoking conserved topological charges in non-Hermitian systems to support loss-modulated phase control, but no equations, derivations, fitted parameters, or self-citations are exhibited that would reduce the claimed full-cycle phase tunability or topological protection to the inputs by construction. The central result is framed as a paradigm shift from index to loss modulation, with no evidence of self-definitional loops, fitted-input predictions, or load-bearing self-citations. This is the expected honest non-finding for a high-level description lacking explicit mathematical steps.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Conserved topological charges exist and protect phase control in the non-Hermitian loss-modulated system
Reference graph
Works this paper leans on
-
[1]
Liu, S.et al.Thermo-optic phase shifters based on silicon-on-insulator platform: state-of-the-art and a review.Frontiers of Optoelectronics15, 9 (2022)
work page 2022
-
[2]
Harris, N. C.et al.Efficient, compact and low loss thermo-optic phase shifter in silicon.Optics express22, 10487–10493 (2014)
work page 2014
-
[3]
Kang, G.et al.Silicon-based optical phased array using electro-opticp-i-nphase shifters.IEEE Photonics Technology Letters31, 1685–1688 (2019). 11
work page 2019
-
[4]
Xin, M., Png, C. E., Lim, S. T., Dixit, V. & Danner, A. J. A high speed electro- optic phase shifter based on a polymer-infiltrated psn diode capacitor.Optics Express19, 14354–14369 (2011)
work page 2011
-
[5]
Dushaq, G., Serunjogi, S., Tamalampudi, S. R. & Rasras, M. Electro-optic tuning in composite silicon photonics based on ferroionic 2d materials.Light: Science & Applications13, 92 (2024)
work page 2024
-
[6]
Li, E., Yao, J., Yu, D., Xi, J. & Chicharo, J. Optical phase shifting with acousto- optic devices.Optics letters30, 189–191 (2005)
work page 2005
-
[7]
Miller, D. A. Self-configuring universal linear optical component.Photonics Research1, 1–15 (2013)
work page 2013
-
[8]
Clements, W. R., Humphreys, P. C., Metcalf, B. J., Kolthammer, W. S. & Walm- sley, I. A. Optimal design for universal multiport interferometers.Optica3, 1460–1465 (2016)
work page 2016
-
[9]
Zelaya, K., Markowitz, M. & Miri, M.-A. The goldilocks principle of learning unitaries by interlacing fixed operators with programmable phase shifters on a photonic chip.Scientific Reports14, 10950 (2024)
work page 2024
-
[10]
Zelaya, K., Honari-Latifpour, M. & Miri, M.-A. Integrated photonic pro- grammable random matrix generator with minimal active components.npj Nanophotonics2, 6 (2025)
work page 2025
- [11]
-
[12]
Friedman, J.et al.Programmable space-frequency linear transformations in photonic interlacing architectures.Scientific Reports15, 35173 (2025)
work page 2025
-
[13]
Feng, L., El-Ganainy, R. & Ge, L. Non-hermitian photonics based on parity–time symmetry.Nature Photonics11, 752–762 (2017)
work page 2017
- [14]
-
[15]
Deng, H. & Khajavikhan, M. Parity–time symmetric optical neural networks. Optica8, 1328–1333 (2021)
work page 2021
-
[16]
Markowitz, M., Zelaya, K. & Miri, M.-A. Learning arbitrary complex matrices by interlacing amplitude and phase masks with fixed unitary operations.Physical Review A110, 033501 (2024)
work page 2024
-
[17]
Dave, U. D., Bhatt, G. R., Rodrigues, J. R., Datta, I. & Lipson, M. Clearing a path for light through non-hermitian media.Nanophotonics13, 3945–3952 (2024). 12
work page 2024
- [18]
-
[19]
Bogaerts, W.et al.Silicon microring resonators.Laser & photonics reviews6, 47–73 (2012)
work page 2012
-
[20]
Borselli, M., Johnson, T. J. & Painter, O. Beyond the rayleigh scattering limit in high-q silicon microdisks: theory and experiment.Optics express13, 1515–1530 (2005)
work page 2005
-
[21]
Christodoulides, D. N., Lederer, F. & Silberberg, Y. Discretizing light behaviour in linear and nonlinear waveguide lattices.Nature424, 817–823 (2003)
work page 2003
-
[22]
Weimann, S.et al.Implementation of quantum and classical discrete fractional fourier transforms.Nature Communications7, 11027 (2016)
work page 2016
-
[23]
Feng, D. J. & Lay, T. Compact multimode interference couplers with arbitrary power splitting ratio.Optics express16, 7175–7180 (2008)
work page 2008
-
[24]
Brown, J. W. & Churchill, R. V.Complex variables and applications(McGraw- Hill, 2009)
work page 2009
-
[25]
A.Topological insulators and topological superconductors(Princeton University Press, 2013)
Bernevig, B. A.Topological insulators and topological superconductors(Princeton University Press, 2013)
work page 2013
-
[26]
Asb´ oth, J. K., Oroszl´ any, L. & P´ alyi, A.A short course on topological insulators (Springer Cham, 2016)
work page 2016
-
[27]
Blanco-Redondo, A.et al.Topological optical waveguiding in silicon and the transition between topological and trivial defect states.Physical review letters 116, 163901 (2016)
work page 2016
-
[28]
R´ ıos, C.et al.Ultra-compact nonvolatile phase shifter based on electrically reprogrammable transparent phase change materials.PhotoniX3, 26 (2022)
work page 2022
-
[29]
Huang, Y.-S., Lee, C.-Y., Takeuchi, I. & Ocampo, C. A. R. Optical phase change materials.Annual Review of Materials Research55(2025)
work page 2025
-
[30]
Hatayama, S., Makino, K. & Saito, Y. Phase-change behavior of rusbte thin film for photonic applications with amplitude-only modulation.Scientific Reports14, 8839 (2024)
work page 2024
-
[31]
Douix, M.et al.Sige-enhanced si capacitive modulator integration in a 300 mm silicon photonics platform for low power consumption.Optics Express27, 17701–17707 (2019). 13
work page 2019
-
[32]
Zhang, Y.et al.A compact and low loss y-junction for submicron silicon waveguide.Optics express21, 1310–1316 (2013)
work page 2013
-
[33]
Yamada, N., Ohno, E., Nishiuchi, K., Akahira, N. & Takao, M. Rapid-phase transitions of gete-sb2te3 pseudobinary amorphous thin films for an optical disk memory.Journal of Applied Physics69, 2849–2856 (1991)
work page 1991
-
[34]
Zelaya, K. & Miri, M.-A. Integrated photonic fractional convolution accelerator. Photonics Research12, 1828 (2024). 14
work page 2024
