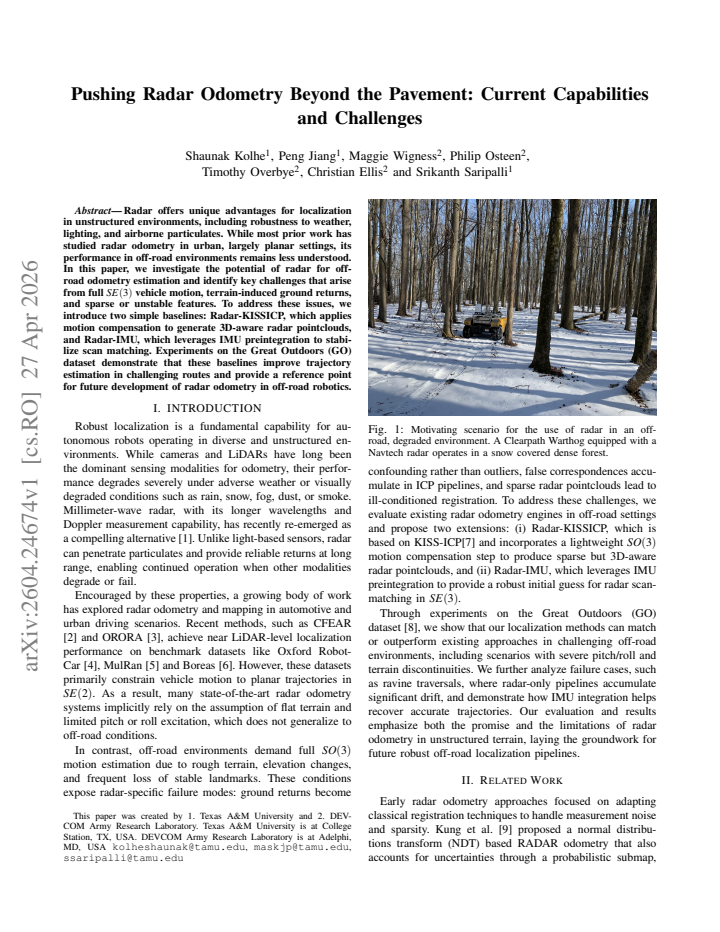

Pushing Radar Odometry Beyond the Pavement: Current Capabilities and Challenges

Shaunak Kolhe , Peng Jiang , Maggie Wigness , Philip Osteen , Timothy Overbye , Chrisitan Ellis , Srikanth Saripalli
Authors on Pith no claims yet

Pith reviewed 2026-05-08 02:52 UTC · model grok-4.3

classification 💻 cs.RO
keywords radar odometryoff-road roboticsmotion compensationIMU preintegrationSE(3) motiontrajectory estimationunstructured environments
0
0 comments X

The pith

Two radar baselines improve off-road trajectory estimates by handling full 3D motion and ground returns

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper examines radar odometry outside urban pavement, where sensors must cope with complete three-dimensional vehicle motion, terrain reflections that clutter scans, and radar features that appear or disappear unpredictably. It introduces two minimal adaptations: one that compensates for vehicle motion while building three-dimensional radar point clouds, and another that folds in inertial preintegration to keep scan matching steady. Tests on a new outdoor dataset show measurable gains in pose accuracy along difficult routes. The work supplies concrete starting points rather than claiming a finished solution.

Core claim

By applying motion compensation to radar scans and preintegrating IMU measurements, standard scan-matching pipelines can produce usable trajectory estimates in off-road settings despite non-planar motion, dense ground returns, and unstable features, as verified on the Great Outdoors dataset.

What carries the argument

Radar-KISSICP baseline that generates 3D-aware point clouds via motion compensation, paired with Radar-IMU baseline that stabilizes matching through IMU preintegration

If this is right

  • Trajectory accuracy improves on routes with large elevation changes and rough surfaces
  • Radar becomes a practical sensor choice for localization when cameras and lidars lose visibility
  • The baselines establish a reference level against which more advanced off-road radar methods can be measured

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Future systems could fuse the compensated radar clouds with other modalities to further reduce drift in extended operations
  • The same motion-compensation step may generalize to other rotating sensors that must operate on sloped or bumpy ground
  • The dataset itself supplies a testbed for studying how feature density changes with terrain type and vehicle attitude

Load-bearing premise

The two proposed baselines are enough to overcome full SE(3) motion, terrain-induced ground returns, and sparse or unstable radar features.

What would settle it

Running the baselines on the Great Outdoors dataset routes that contain pronounced pitch, roll, and ground clutter yields no reduction in trajectory error compared with uncompensated radar matching.

Figures

Figures reproduced from arXiv: 2604.24674 by Chrisitan Ellis, Maggie Wigness, Peng Jiang, Philip Osteen, Shaunak Kolhe, Srikanth Saripalli, Timothy Overbye.

Figure 1
Figure 1. Figure 1: Motivating scenario for the use of radar in an off￾road, degraded environment. A Clearpath Warthog equipped with a Navtech radar operates in a snow covered dense forest. confounding rather than outliers, false correspondences accu￾mulate in ICP pipelines, and sparse radar pointclouds lead to ill-conditioned registration. To address these challenges, we evaluate existing radar odometry engines in off-road s… view at source ↗
Figure 2
Figure 2. Figure 2: Overhead view of routes from the GO dataset [8] (left) view at source ↗

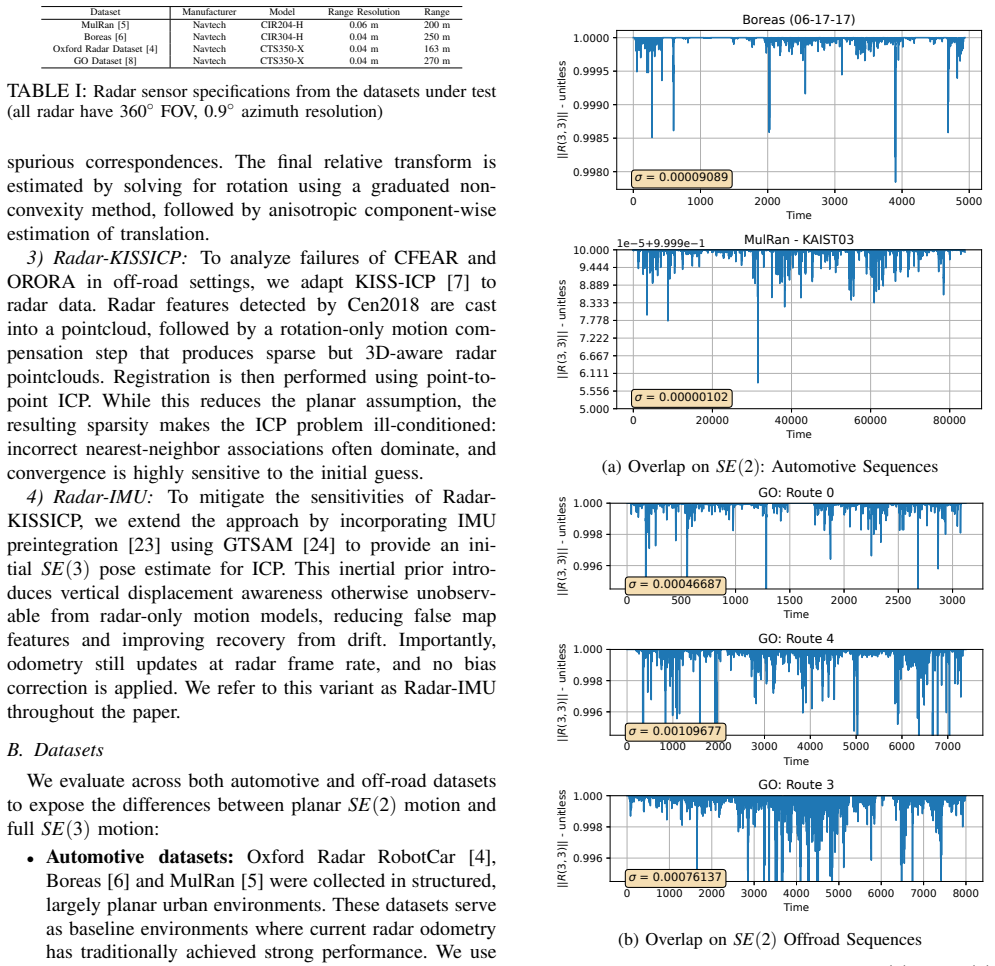

Figure 3
Figure 3. Figure 3: Overlap of relative transforms in SE(3) on SE(2). While neither automotive nor offroad sequences exhibit motion restricted to a plane, the deviation from this assumption is greater in the offroad sequences as can be seen from the standard deviation of the data from unity. Table I summarizes the radar sensor specifications across datasets. To highlight the difference in motion regimes, we compute the overla… view at source ↗
Figure 4
Figure 4. Figure 4: Estimated trajectories from current RADAR odometry view at source ↗
Figure 5
Figure 5. Figure 5: Trajectory plots with overlayed Relative Pose Error view at source ↗
Figure 7
Figure 7. Figure 7: Isolated trajectory from Route 3 of the GO dataset. view at source ↗
Figure 8
Figure 8. Figure 8: Trajectory plots from Radar-KISSICP, CFEAR, view at source ↗

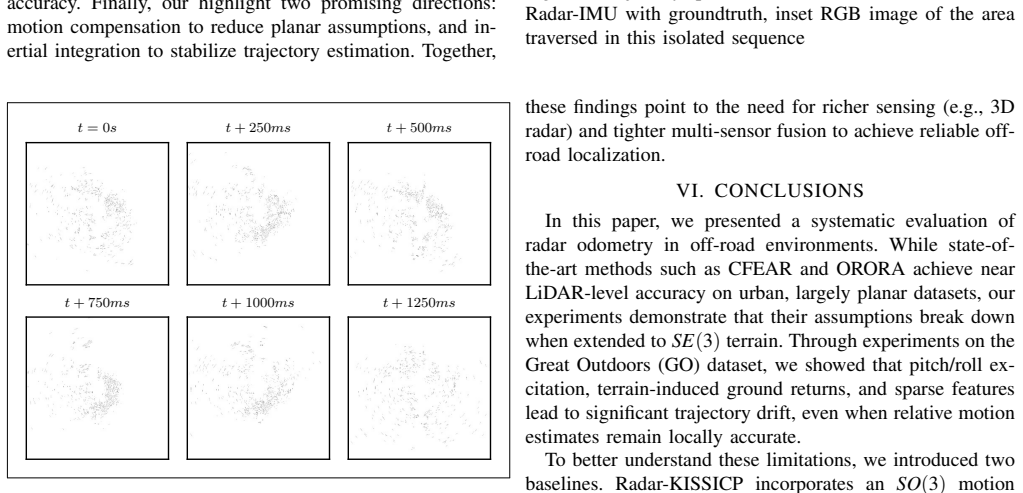

Figure 6
Figure 6. Figure 6: Heavy pitching from portion of Route 0 in the GO view at source ↗
Figure 9
Figure 9. Figure 9: Camera images and radar pointclouds from Route 3. Left: The Warthog is on level ground at the edge of the ravine view at source ↗
read the original abstract

Radar offers unique advantages for localization in unstructured environments, including robustness to weather, lighting, and airborne particulates. While most prior work has studied radar odometry in urban, largely planar settings, its performance in off-road environments remains less understood. In this paper, we investigate the potential of radar for off-road odometry estimation and identify key challenges that arise from full $SE(3)$ vehicle motion, terrain-induced ground returns, and sparse or unstable features. To address these issues, we introduce two simple baselines: Radar-KISSICP, which applies motion compensation to generate 3D-aware radar pointclouds, and Radar-IMU, which leverages IMU preintegration to stabilize scan matching. Experiments on the Great Outdoors (GO) dataset demonstrate that these baselines improve trajectory estimation in challenging routes and provide a reference point for future development of radar odometry in off-road robotics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The abstract introduces no free parameters, axioms, or invented entities; it describes empirical baselines and qualitative challenges without derivations.
