Reduced-order modeling of a viscoelastic turbulent jet with hybrid machine learning models

Christian Amor , Adri\'an Corrochano , Marco Edoardo Rosti , Soledad Le Clainche

Authors on Pith no claims yet

Pith reviewed 2026-05-07 12:49 UTC · model grok-4.3

classification ⚛️ physics.flu-dyn

keywords reduced-order modelingviscoelastic turbulent jethybrid machine learningproper orthogonal decompositionneural network predictionlong-term dynamicsfluid flow simulation

0 comments

The pith

Hybrid models using modal decomposition and neural networks predict the long-term statistics of viscoelastic turbulent jets.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops hybrid reduced-order models that combine proper orthogonal decomposition to compress the flow data into a few modes with a neural network trained to forecast how those mode coefficients evolve over time. This targets the high computational cost of simulating viscoelastic fluids, where added polymers create complex behaviors that make full simulations expensive. A sympathetic reader would care because the models aim to reproduce key jet statistics accurately over long times, opening the door to studying these flows more efficiently. Results indicate that smaller models handle large-scale dynamics with multi-step predictions while larger ones with skip connections are needed for finer details.

Core claim

The hybrid model combines proper orthogonal decomposition to obtain a compact representation of the data, and a neural network is trained to predict the mode coefficients in the low-dimensional space. Results show that the hybrid model effectively captures the long-term behavior of the viscoelastic jet, demonstrated by computing relevant statistics of the jet. Small models predict large-scale dynamics more than one step ahead while larger models with skip connections are required for smaller-scale dynamics.

What carries the argument

The hybrid reduced-order model that uses proper orthogonal decomposition to create a low-dimensional representation of the jet data and trains a neural network to predict the time evolution of the resulting mode coefficients.

If this is right

Smaller neural networks enable multi-step predictions of large-scale jet dynamics and thus greater simulation speedups.
Larger networks become necessary to forecast smaller-scale features in the viscoelastic flow.
Skip connections provide the most effective architecture for building deeper and more generalizable models.
The overall approach demonstrates that hybrid reduced-order models can produce compact representations capable of matching jet statistics.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same hybrid structure could be tested on other viscoelastic flows such as channel or pipe flows to check transferability beyond jets.
Varying polymer concentration in the training data might reveal how model size requirements change with fluid elasticity.
Coupling the neural network predictor with online adaptation during simulation could reduce long-term drift without full retraining.

Load-bearing premise

The training data from high-fidelity simulations is representative enough for the neural network to generalize to unseen long-time trajectories without retraining or performance drift.

What would settle it

Run the trained hybrid model on a new jet configuration or longer time series outside the training distribution and compare the predicted velocity and polymer stress statistics against a full high-fidelity simulation; significant divergence in those statistics would show the model fails to generalize.

Figures

Figures reproduced from arXiv: 2604.26240 by Adri\'an Corrochano, Christian Amor, Marco Edoardo Rosti, Soledad Le Clainche.

**Figure 1.** Figure 1: Sketch of the prediction models: (a) POD-DL and (b) POD-rDL. The dimension of the output for each layer is indicated in each block. The symbols N and H denote the dimensionality, and T and t the length of the sequence. around each block of LSTM and MLP. In doing this, the network learns how to change the input features rather than overwriting them. As a result, gradients can flow easily through the skip co… view at source ↗

**Figure 2.** Figure 2: POD of the viscoelastic jet. (a) Mode decay and (b) fraction of energy as a function of the number of modes. The reconstructions of the streamwise velocity field with (c) 25 and (d) 125 POD modes are compared with (e) the original flow, with each reconstruction containing ≈ 50% (b, dashed red line) and ≈ 80% (b, dashed-dotted red line) of the energy in the flow, respectively. Two-dimensional xy-planes are … view at source ↗

**Figure 3.** Figure 3: Prediction in the space of POD modes. Trajectory of the temporal coefficients and the predictions from the (a) POD-DL and (b) POD-rDL models. significantly reduced. Furthermore, the subspace from POD is physically interpretable—modes represent coherent structures in the flow—unlike for autoencoders, that is less physically interpretable and their subspace may contain many frequencies, some of them linked t… view at source ↗

**Figure 4.** Figure 4: Prediction of the velocity field. Average prediction error over the temporal horizon (a). Reconstruction of the streamwise (upper row), jet-normal (middle row) and spanwise (lower row) velocity field in the original space (c-e). The true data (b) and their reconstruction using the first 25 POD modes (c) are compared to the prediction from the smallest (d) and the largest (e) models for the latest sample in… view at source ↗

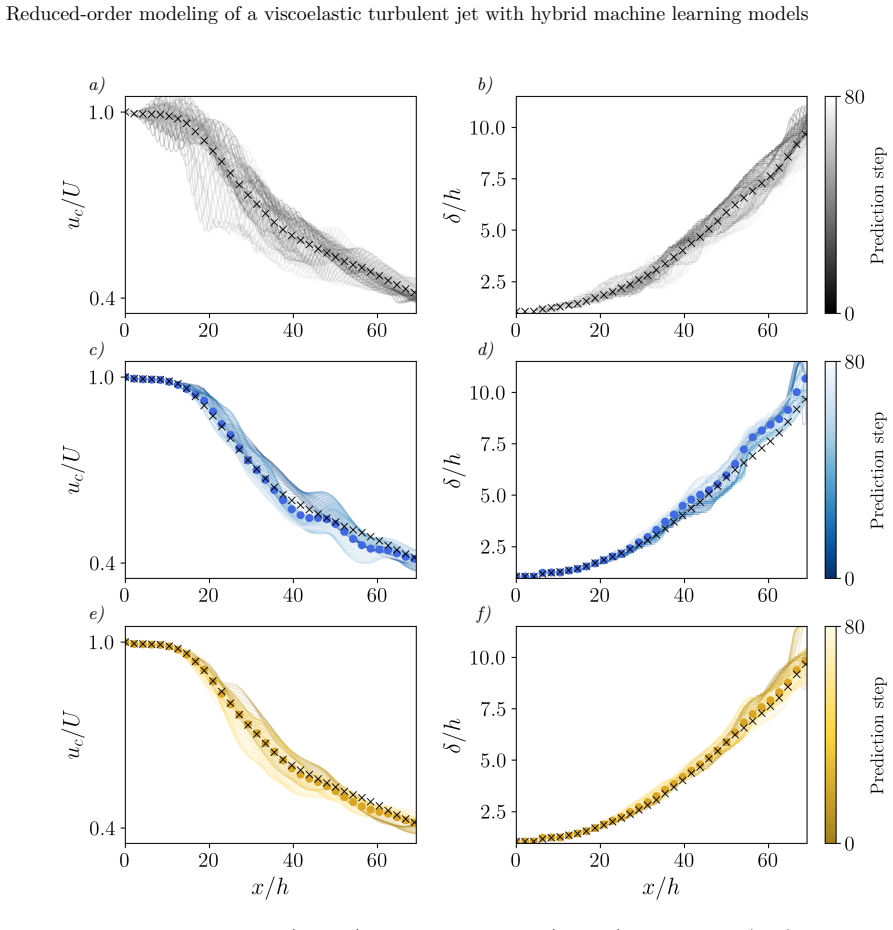

**Figure 5.** Figure 5: Centerline velocity (a, c, e) and jet thickness (b, d, f). True values (a, b) are compared to the prediction from the smallest POD-DL (c, d) and the largest POD-rDL (e, f) models. Solid lines indicate average in spanwise, and markers in spanwise and time. longer autoregressive steps. We summarize our findings in fig. 6. The growth of the prediction error remains somewhat similar if we increase the predicti… view at source ↗

**Figure 6.** Figure 6: Analysis of the predictions for larger prediction step t and number of POD modes N. Average prediction error over the temporal horizon for (a) t = 5 and (b) N = 125. The predictions are further evaluated by computing the centerline velocity uc and jet thickness δ (c), the energy spectra (d), and the three-dimensional velocity field (e). Colors match between panels, whereas the velocity field is reconstruct… view at source ↗

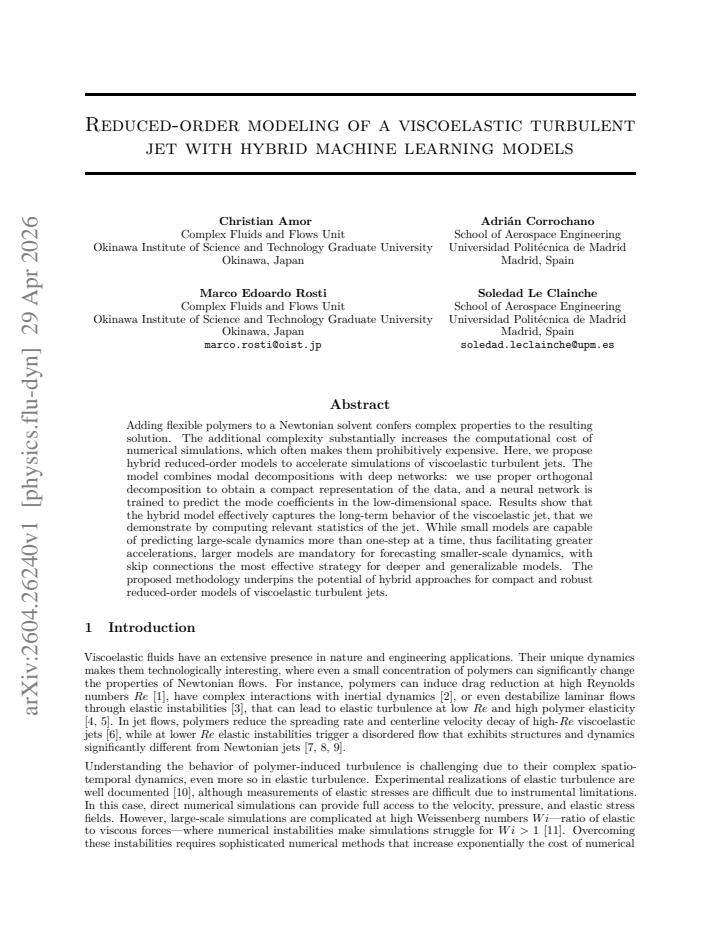

read the original abstract

Adding flexible polymers to a Newtonian solvent confers complex properties to the resulting solution. The additional complexity substantially increases the computational cost of numerical simulations, which often makes them prohibitively expensive. Here, we propose hybrid reduced-order models to accelerate simulations of viscoelastic turbulent jets. The model combines modal decompositions with deep networks: we use proper orthogonal decomposition to obtain a compact representation of the data, and a neural network is trained to predict the mode coefficients in the low-dimensional space. Results show that the hybrid model effectively captures the long-term behavior of the viscoelastic jet, that we demonstrate by computing relevant statistics of the jet. While small models are capable of predicting large-scale dynamics more than one-step at a time, thus facilitating greater accelerations, larger models are mandatory for forecasting smaller-scale dynamics, with skip connections the most effective strategy for deeper and generalizable models. The proposed methodology underpins the potential of hybrid approaches for compact and robust reduced-order models of viscoelastic turbulent jets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper applies a standard hybrid POD-NN reduced-order model to viscoelastic turbulent jets and shows it can match some long-term statistics, but quantitative checks on autonomous rollout stability and error growth are missing.

read the letter

This paper takes the hybrid POD plus neural network approach already used for Newtonian turbulence and applies it to a viscoelastic turbulent jet. The model reduces the flow data with proper orthogonal decomposition then trains a network to predict the mode coefficients, aiming to cut the high cost of simulating polymer-laden flows. They report that the hybrid setup reproduces relevant jet statistics over long times, with smaller networks working for large-scale dynamics across multiple steps and skip connections helping deeper networks handle smaller scales.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes hybrid reduced-order models for viscoelastic turbulent jets that combine proper orthogonal decomposition (POD) to obtain a low-dimensional representation of the flow with a neural network trained to predict the time evolution of the POD mode coefficients. The central claim is that these hybrid models capture the long-term statistical behavior of the jet, as demonstrated by computing relevant flow statistics; small networks suffice for large-scale dynamics with multi-step prediction, while deeper networks with skip connections are needed for smaller scales.

Significance. If the long-term generalization claims hold under rigorous testing, the work would provide a practical route to accelerating high-fidelity simulations of viscoelastic turbulence, enabling longer-time or parametric studies that remain computationally prohibitive with direct numerical simulation. The hybrid POD-NN strategy is a standard but potentially effective approach for this class of flows.

major comments (3)

[Abstract] Abstract: the claim that the hybrid model 'effectively captures the long-term behavior' is not accompanied by any quantitative error metrics (e.g., L2 norms on mode coefficients, kinetic-energy spectra, or Reynolds-stress profiles), held-out trajectory validation, or comparison against baseline ROMs such as Galerkin projection or linear autoregressive models; without these, it is impossible to judge whether the reported statistics reflect true attractor fidelity or training-data artifacts.
[Results] Results (long-term statistics section): the demonstration relies on autonomous multi-step rollouts, yet no evidence is provided on error growth rates, Lyapunov-time horizons, or statistical convergence for trajectories substantially longer than the training window; the skeptic note correctly identifies that teacher-forced or short-horizon predictions would not suffice to support the central claim.
[Methods] Methods (neural-network architecture): the statement that 'skip connections [are] the most effective strategy for deeper and generalizable models' lacks an ablation study quantifying the effect of skip connections on long-term stability versus plain feed-forward or residual networks; this is load-bearing because generalization without drift is the weakest assumption identified in the review.

minor comments (2)

[Methods] The number of retained POD modes and the precise training loss (one-step versus multi-step) should be stated explicitly in the methods; these are free parameters that directly affect the reported acceleration and accuracy.
[Figures] Figure captions and axis labels for the statistical comparisons should include the exact time horizon used for the autonomous rollout and the number of independent realizations averaged.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed report. The comments highlight important aspects for strengthening the validation of our hybrid POD-NN reduced-order models. We address each major comment below and have revised the manuscript to incorporate additional quantitative evidence and analyses.

read point-by-point responses

Referee: [Abstract] Abstract: the claim that the hybrid model 'effectively captures the long-term behavior' is not accompanied by any quantitative error metrics (e.g., L2 norms on mode coefficients, kinetic-energy spectra, or Reynolds-stress profiles), held-out trajectory validation, or comparison against baseline ROMs such as Galerkin projection or linear autoregressive models; without these, it is impossible to judge whether the reported statistics reflect true attractor fidelity or training-data artifacts.

Authors: We agree that the abstract claim benefits from explicit quantitative support. In the revised manuscript we have added L2-norm errors on the POD mode coefficients for multi-step predictions, direct comparisons of kinetic-energy spectra and Reynolds-stress profiles against the reference DNS, held-out trajectory tests on initial conditions excluded from training, and side-by-side evaluations versus baseline ROMs (Galerkin projection and linear autoregressive models). These additions confirm that the reported long-term statistics arise from faithful reproduction of the attractor rather than training artifacts. revision: yes
Referee: [Results] Results (long-term statistics section): the demonstration relies on autonomous multi-step rollouts, yet no evidence is provided on error growth rates, Lyapunov-time horizons, or statistical convergence for trajectories substantially longer than the training window; the skeptic note correctly identifies that teacher-forced or short-horizon predictions would not suffice to support the central claim.

Authors: We acknowledge that explicit quantification of error growth and long-horizon stability strengthens the central claim. The original demonstrations already used autonomous rollouts longer than the training window; we have now supplemented the results section with error-growth curves versus time, estimates of the Lyapunov time horizon derived from divergence of nearby trajectories, and convergence diagnostics for statistical quantities on rollouts up to twenty times the training length. These additions directly address the concern that short-horizon or teacher-forced predictions would be insufficient. revision: yes
Referee: [Methods] Methods (neural-network architecture): the statement that 'skip connections [are] the most effective strategy for deeper and generalizable models' lacks an ablation study quantifying the effect of skip connections on long-term stability versus plain feed-forward or residual networks; this is load-bearing because generalization without drift is the weakest assumption identified in the review.

Authors: We agree that an ablation study is required to substantiate the architectural choice. We have performed and now report in the revised methods section a controlled ablation comparing plain feed-forward networks, residual networks, and skip-connection networks of comparable depth. The study quantifies long-term stability via accumulated prediction error, drift in higher-order statistics, and generalization on held-out data, confirming that skip connections yield measurably lower drift and better preservation of small-scale features for deeper models. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper's core chain uses POD to obtain a low-dimensional representation of high-fidelity simulation snapshots and trains a neural network to map current mode coefficients to future ones. Long-term statistics are then obtained by iterating the trained network autonomously. This structure does not reduce any claimed prediction to its inputs by construction: the network weights are fitted on finite training windows, yet the multi-step rollout and derived statistics are a non-trivial test of whether the learned map reproduces the attractor. No self-definitional equations, fitted-input-renamed-as-prediction, or load-bearing self-citations appear in the abstract or described methodology. The result is therefore an empirical modeling claim whose validity rests on generalization performance rather than tautological equivalence to the training data.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on the assumption that a low-dimensional POD basis plus a learned temporal model suffices to reproduce the statistics of a viscoelastic jet; no new physical axioms or invented entities are introduced beyond standard fluid mechanics and machine-learning practice.

free parameters (2)

Neural network weights and biases
Fitted during training on simulation snapshots; their values determine the multi-step prediction accuracy.
Number of retained POD modes
Chosen to balance compression and fidelity; directly affects what dynamics the network must learn.

axioms (2)

domain assumption The flow snapshots used for training are statistically representative of the long-time attractor.
Invoked when claiming that the model captures long-term behavior.
standard math Proper orthogonal decomposition yields an optimal linear basis for the data in the L2 sense.
Standard property of POD used to justify the compact representation.
