Impulse-driven capillary detachment
Pith reviewed 2026-05-07 11:32 UTC · model grok-4.3
The pith
Mechanical work transmitted through the contact line sets the maximum extension of a droplet before it detaches under impulsive forcing.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim

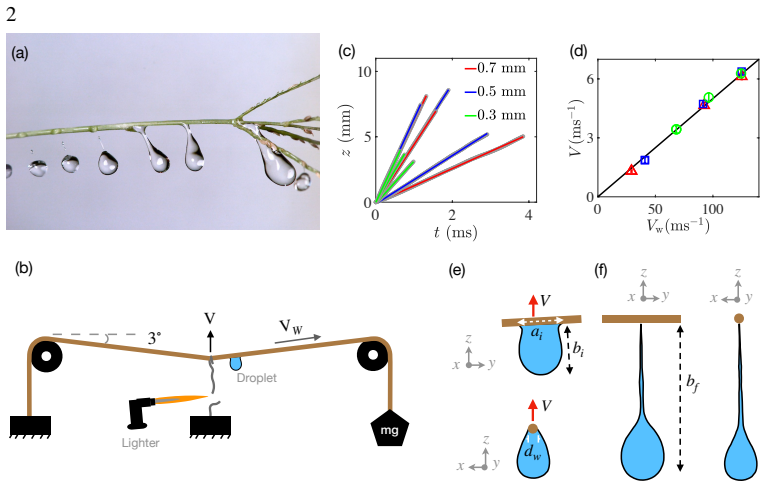

In a controlled experiment with a droplet on a taut wire that is plucked, the resulting wave delivers a brief force at the droplet base. The maximum extension prior to detachment is set by the mechanical work transmitted from the wire through capillary traction at the three-phase contact line, balanced by viscous dissipation during filament extension. This energetic balance identifies the contact line as the pathway by which mechanical impulse is converted into capillary deformation and governs impulsive droplet detachment.
What carries the argument
The energetic balance between mechanical work transmitted via capillary traction at the three-phase contact line and viscous dissipation during filament extension.
If this is right
- The contact line serves as the primary conduit for converting substrate motion into droplet deformation.
- Detachment occurs when the transmitted work equals the viscous losses up to the point of maximum extension.
- Other energy pathways such as inertia or surface tension changes play negligible roles during the brief impulse.
- Similar balances may control detachment in other impulsively forced capillary systems.
Where Pith is reading between the lines
- If the balance holds, one could predict detachment thresholds in applications like spray nozzles or biological fluid ejections by measuring contact line properties.
- Testing with varying viscosities or wire speeds could confirm the dominance of viscous dissipation over inertial effects.
- Extensions to non-Newtonian liquids might reveal how rheology alters the work-dissipation pathway.
Load-bearing premise
The assumption that mechanical work is transmitted solely through capillary traction at the contact line and is balanced primarily by viscous dissipation, ignoring other energy contributions during the short impulse period.
What would settle it
Direct measurement showing that the integrated work done by capillary traction at the contact line during the impulse does not equal the viscous dissipation needed to reach the observed maximum extension length.
Figures

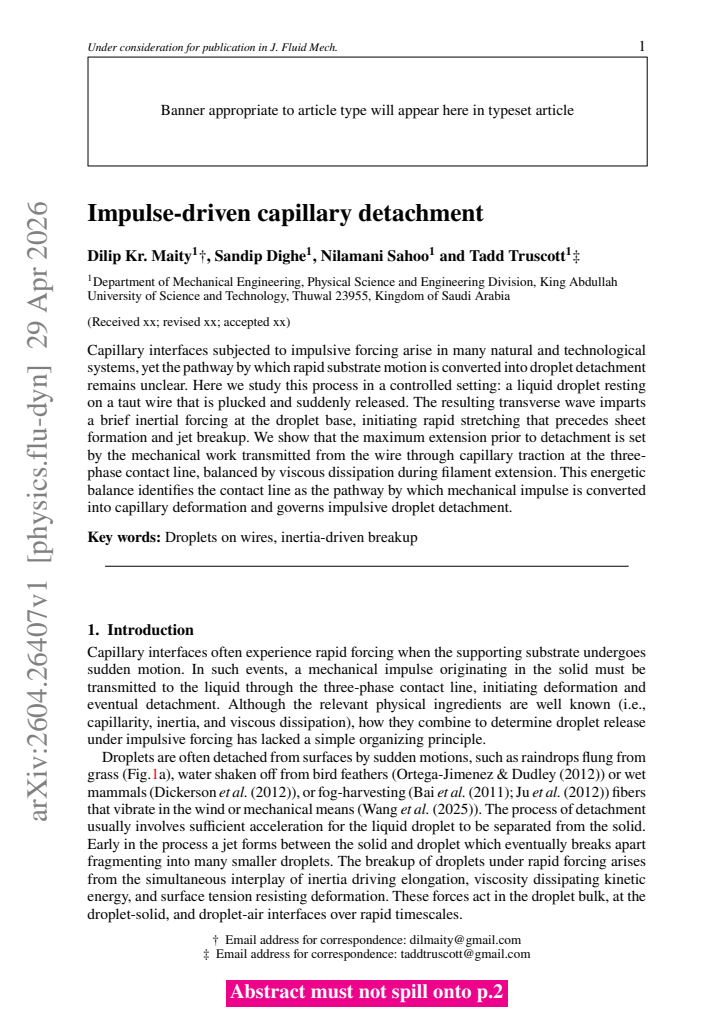

read the original abstract
Capillary interfaces subjected to impulsive forcing arise in many natural and technological systems, yet the pathway by which rapid substrate motion is converted into droplet detachment remains unclear. Here we study this process in a controlled setting: a liquid droplet resting on a taut wire that is plucked and suddenly released. The resulting transverse wave imparts a brief inertial forcing at the droplet base, initiating rapid stretching that precedes sheet formation and jet breakup. We show that the maximum extension prior to detachment is set by the mechanical work transmitted from the wire through capillary traction at the three-phase contact line, balanced by viscous dissipation during filament extension. This energetic balance identifies the contact line as the pathway by which mechanical impulse is converted into capillary deformation and governs impulsive droplet detachment.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript examines impulse-driven capillary detachment in a controlled experiment where a liquid droplet rests on a taut wire that is plucked and released, generating a transverse wave that induces rapid filament stretching, sheet formation, and jet breakup. The central claim is that the maximum extension prior to detachment is determined by an energetic balance in which mechanical work is transmitted from the wire through capillary traction at the three-phase contact line and is dissipated primarily by viscous effects in the extending filament; this balance is asserted to identify the contact line as the dominant pathway converting the mechanical impulse into capillary deformation.
Significance. If the claimed energetic balance can be rigorously justified and experimentally validated, the work would provide a mechanistic explanation for how brief inertial impulses are converted into capillary detachment, with potential implications for droplet dynamics in natural and engineered systems. The identification of the contact line as the primary transmission pathway, rather than bulk inertial or kinetic storage, would represent a useful conceptual advance if supported by quantitative evidence.
major comments (1)
- Abstract and introduction: the central claim that maximum extension is set by work transmitted at the contact line and balanced solely by viscous dissipation requires justification for neglecting inertial and kinetic energy contributions. The process is initiated by a brief inertial impulse and involves rapid stretching, yet no Reynolds-number scaling, energy-partitioning estimate, or order-of-magnitude argument is supplied to show that inertial terms remain negligible throughout the extension phase. Without this, the asserted balance does not necessarily follow and the predicted maximum extension cannot be derived from the stated pathway alone.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive review. The principal concern is the lack of explicit justification in the abstract and introduction for neglecting inertial and kinetic energy terms in the proposed energetic balance. We agree this requires strengthening and will incorporate the requested scaling analysis in the revision.
read point-by-point responses
-
Referee: Abstract and introduction: the central claim that maximum extension is set by work transmitted at the contact line and balanced solely by viscous dissipation requires justification for neglecting inertial and kinetic energy contributions. The process is initiated by a brief inertial impulse and involves rapid stretching, yet no Reynolds-number scaling, energy-partitioning estimate, or order-of-magnitude argument is supplied to show that inertial terms remain negligible throughout the extension phase. Without this, the asserted balance does not necessarily follow and the predicted maximum extension cannot be derived from the stated pathway alone.
Authors: We concur that the manuscript as submitted does not supply the requested Reynolds-number scaling, energy-partitioning estimate, or order-of-magnitude argument to justify neglecting inertial and kinetic contributions. The central claim is therefore presented without the supporting analysis needed to demonstrate that viscous dissipation dominates throughout the filament-extension phase. In the revised manuscript we will add a concise order-of-magnitude section (likely in the introduction or a new subsection) that uses the measured timescales, velocities, and fluid properties to evaluate the relevant Reynolds number and to compare the magnitudes of inertial, kinetic, and viscous terms. This addition will explicitly show why the work-dissipation balance at the contact line can be used to predict maximum extension without significant inertial corrections. revision: yes
Circularity Check
No circularity: energetic balance presented as derived result without reduction to fitted inputs or self-citations
full rationale
The provided abstract and context present the central claim as an observed or derived energetic balance between mechanical work at the contact line and viscous dissipation, without any equations, parameter fits, or self-citations that would make the 'prediction' equivalent to the input by construction. No load-bearing steps reduce to self-definition, renamed known results, or author-overlapping uniqueness theorems. The skeptic concern targets an unproven assumption about neglecting inertia, which is a correctness or completeness issue rather than circularity per the enumerated patterns. The derivation chain appears self-contained against external benchmarks.
Axiom & Free-Parameter Ledger
Reference graph
Works this paper leans on
-
[1]
InDivision of Fluid Dynamics Annual Meeting 2025
Hoggarth, Johnathan, Harris, Daniel M, Bush, John WM & Primkulov, Bauyrzhan K2025 Producing droplets on a vibrating liquid bath through ligament stretching and breakup. InDivision of Fluid Dynamics Annual Meeting 2025. APS
work page 2025
-
[2]
Keshavarz, Bavand, Houze, Eric C, Moore, John R, Koerner, Michael R & McKinley, Gareth H 2016 Ligament mediated fragmentation of viscoelastic liquids.Physical review letters117(15), 154502
work page 2016
