Time-to-space ghost imaging with classical light
Pith reviewed 2026-05-07 11:52 UTC · model grok-4.3
The pith
Time-to-space ghost imaging with classical light achieves sub-picosecond temporal resolution set only by pulse duration and coherence length, independent of photodetector speed.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The authors establish that, for a source obeying the spatio-temporal Gaussian Schell model, the point-spread function of the time-to-space ghost imaging system is determined by the pulse duration and the transverse coherence length imposed by the spatial light modulator; the temporal resolution therefore reaches the sub-picosecond range and remains independent of the photodetectors' response time. They further demonstrate that the necessary spatio-temporally correlated beams can be produced by a diffraction grating and spatial light modulator combination.
What carries the argument
The point-spread function obtained from the cross-correlation of the two spatio-temporally correlated beams under the Gaussian Schell model, which converts temporal structure in one arm into spatial structure in the image arm.
If this is right
- Temporal resolution is fixed by laser pulse duration and the transverse coherence length set by the spatial light modulator.
- Resolution can reach the sub-picosecond regime without any improvement in detector timing.

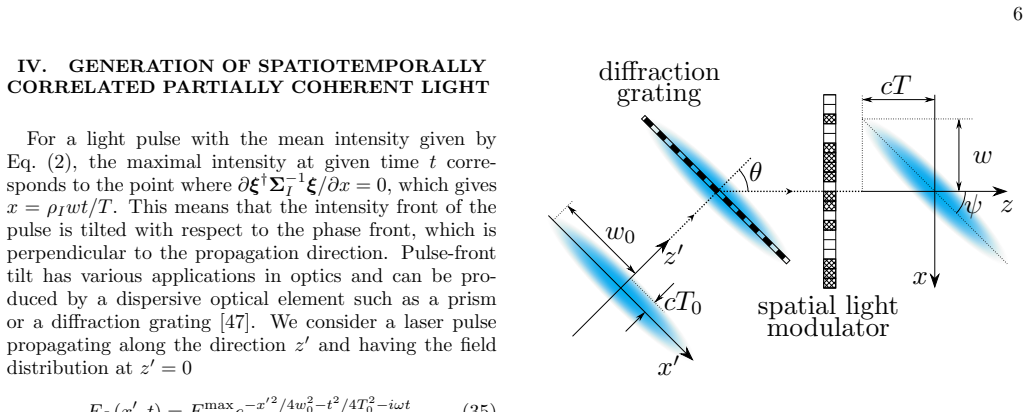

- The required partially coherent source is generated by a simple combination of diffraction grating and spatial light modulator.
- Analytical expressions for the point-spread function allow direct prediction of imaging performance from source parameters.
Where Pith is reading between the lines
- The same correlation principle could be used to image other ultrafast temporal phenomena in applications that currently require expensive fast detectors.
- The mapping of time to space via classical correlations may be combined with existing spatial ghost-imaging setups to create hybrid spatio-temporal imagers.
- If the Gaussian Schell model is relaxed, similar resolution limits might still hold for other partially coherent pulsed sources.
Load-bearing premise
The source must obey exactly the spatio-temporal Gaussian Schell model and must be produced without deviation by the proposed diffraction-grating plus spatial-light-modulator arrangement.
What would settle it
Perform the imaging experiment with successively slower photodetectors and check whether the measured temporal resolution stays constant and matches the value calculated from the known pulse duration and SLM coherence length.

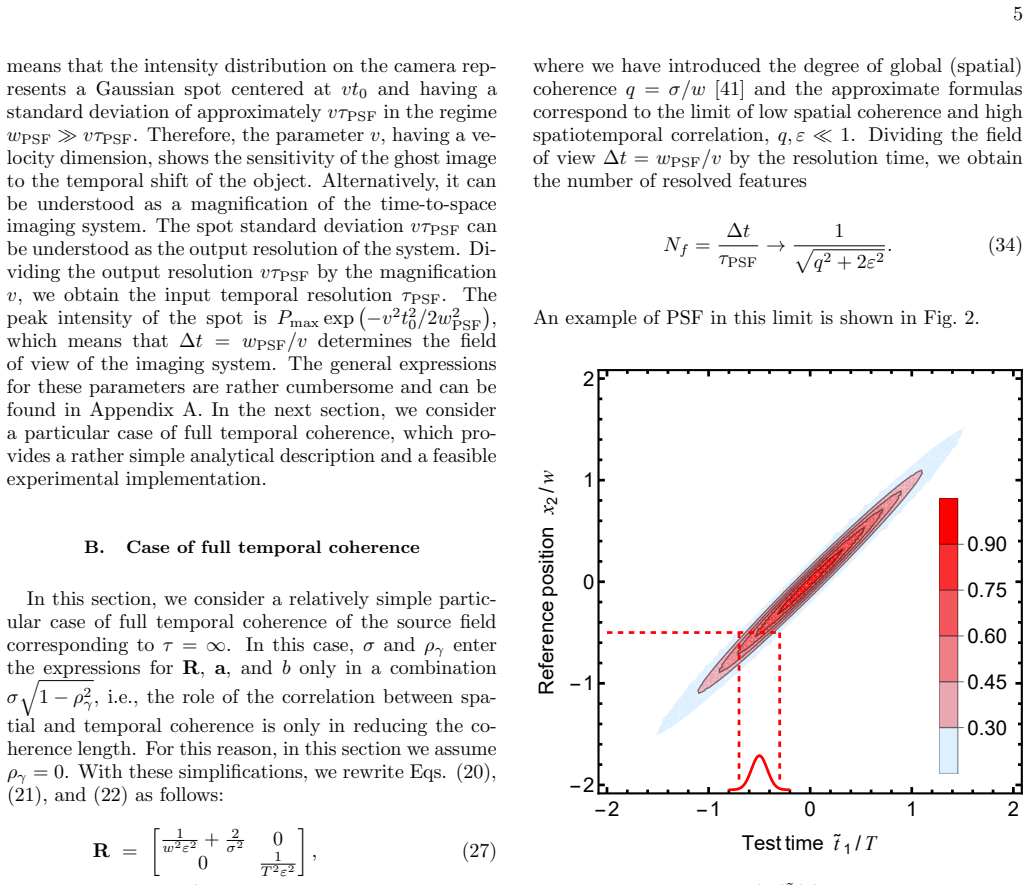

Figures

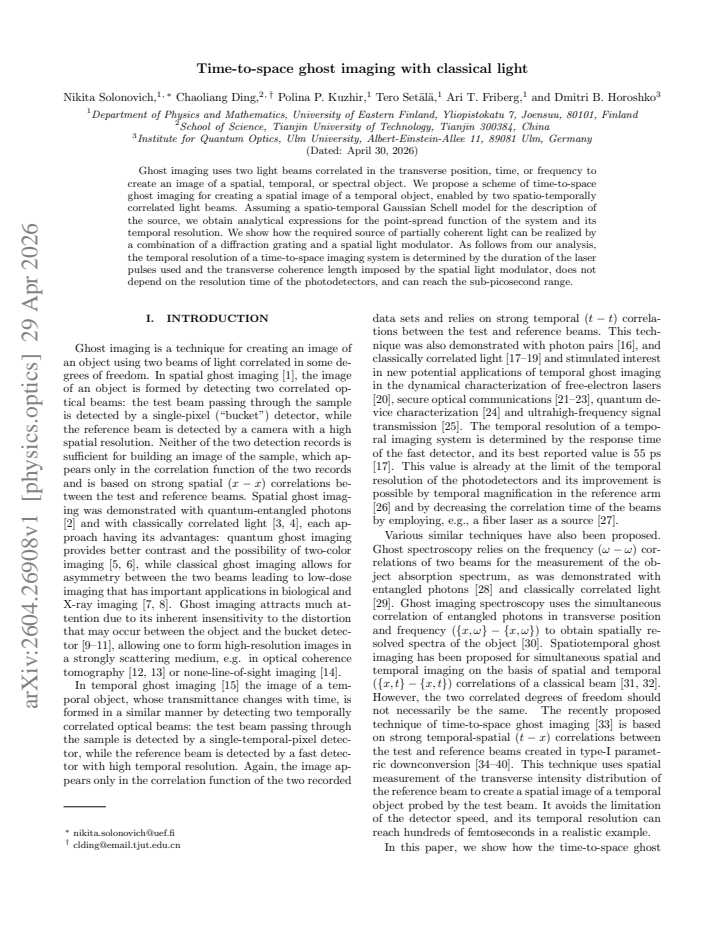

read the original abstract
Ghost imaging uses two light beams correlated in the transverse position, time, or frequency to create an image of a spatial, temporal, or spectral object. We propose a scheme of time-to-space ghost imaging for creating a spatial image of a temporal object, enabled by two spatio-temporally correlated light beams. Assuming a spatio-temporal Gaussian Schell model for the description of the source, we obtain analytical expressions for the point-spread function of the system and its temporal resolution. We show how the required source of partially coherent light can be realized by a combination of a diffraction grating and a spatial light modulator. As follows from our analysis, the temporal resolution of a time-to-space imaging system is determined by the duration of the laser pulses used and the transverse coherence length imposed by the spatial light modulator, does not depend on the resolution time of the photodetectors, and can reach the sub-picosecond range.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a time-to-space ghost imaging scheme that converts a temporal object into a spatial image using two beams correlated in space and time. Assuming a spatio-temporal Gaussian Schell model for the source, it derives analytical expressions for the point-spread function and temporal resolution. A practical realization of the required partially coherent source is suggested via a diffraction grating combined with a spatial light modulator. The central claim is that temporal resolution depends only on laser pulse duration and the SLM-imposed transverse coherence length, is independent of photodetector timing resolution, and can reach the sub-picosecond regime.
Significance. If the derivations hold and the proposed source exactly matches the assumed model, the work would offer a route to sub-picosecond temporal resolution in ghost imaging without ultrafast detectors, which could be useful for ultrafast optics and imaging applications. The claimed detector-independence and dependence on only pulse duration plus coherence length represent a potentially parameter-light result, but this requires explicit confirmation of the source statistics.
major comments (2)
- [source realization] Source realization section: The PSF and temporal-resolution derivations rest on the source obeying exactly the spatio-temporal Gaussian Schell model (Gaussian in both space and time differences). The proposed grating+SLM combination is asserted to realize this, yet no explicit computation of the output two-point correlation function or cross-spectral density is supplied to verify the match. Deviations from grating dispersion or SLM pixelation would invalidate the claimed resolution limits and detector independence.
- [PSF and resolution] PSF derivation and resolution analysis: Analytical expressions for the point-spread function are claimed, but the manuscript provides neither the explicit forms nor any numerical verification, error analysis, or comparison against the assumed source statistics. Without these, the sub-picosecond resolution claim and its independence from photodetector timing remain untested.
minor comments (1)
- [abstract] The abstract would be clearer if it included the key functional form of the PSF or at least the scaling of the temporal resolution with pulse duration and coherence length.
Simulated Author's Rebuttal
We thank the referee for the constructive and detailed comments on our manuscript. We address the two major comments point by point below, agreeing that additional explicit calculations and verifications will strengthen the presentation of the source realization and the PSF analysis.
read point-by-point responses
-
Referee: Source realization section: The PSF and temporal-resolution derivations rest on the source obeying exactly the spatio-temporal Gaussian Schell model (Gaussian in both space and time differences). The proposed grating+SLM combination is asserted to realize this, yet no explicit computation of the output two-point correlation function or cross-spectral density is supplied to verify the match. Deviations from grating dispersion or SLM pixelation would invalidate the claimed resolution limits and detector independence.
Authors: We agree that explicit verification of the source statistics is essential. In the revised manuscript we will add a dedicated calculation of the two-point correlation function and cross-spectral density produced by the diffraction grating plus SLM configuration. The calculation will show that, for narrowband pulses and SLM pixel sizes small compared with the imposed coherence length, the output field statistics reproduce the assumed spatio-temporal Gaussian Schell model to high accuracy. We will also quantify the residual effects of grating dispersion and finite SLM pixelation, demonstrating that they remain negligible for the sub-picosecond regime targeted in the paper. revision: yes
-
Referee: PSF derivation and resolution analysis: Analytical expressions for the point-spread function are claimed, but the manuscript provides neither the explicit forms nor any numerical verification, error analysis, or comparison against the assumed source statistics. Without these, the sub-picosecond resolution claim and its independence from photodetector timing remain untested.
Authors: The analytical expressions for the point-spread function and temporal resolution are obtained in Section III from the Gaussian Schell model correlation functions. To address the referee’s concern we will move the explicit PSF formula into the main text (it currently appears only in summarized form) and add numerical evaluations that compare the closed-form PSF with direct Monte-Carlo propagation of the source correlation function. These plots will include an error analysis confirming that the temporal resolution is set solely by pulse duration and transverse coherence length and is independent of detector timing jitter, thereby substantiating the sub-picosecond claim. revision: yes
Circularity Check
Derivation self-contained under explicit model assumption; no reduction to inputs by construction
full rationale
The paper states an assumption of a spatio-temporal Gaussian Schell model for the source and derives analytical PSF expressions and temporal resolution limits directly from that model. The resolution claim (pulse duration + SLM coherence length, independent of detector timing) follows from those expressions without any fitted parameters, self-referential definitions, or load-bearing self-citations that would make the output equivalent to the input. The grating+SLM realization is proposed as a physical implementation of the assumed model rather than a step that retroactively defines or forces the derived resolution; any mismatch between actual correlations and the model would be a validity issue, not circularity in the derivation chain itself.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption Spatio-temporal Gaussian Schell model accurately describes the partially coherent source
Reference graph
Works this paper leans on
-
[1]
and with classically correlated light [3, 4], each ap- proach having its advantages: quantum ghost imaging provides better contrast and the possibility of two-color imaging [5, 6], while classical ghost imaging allows for asymmetry between the two beams leading to low-dose imaging that has important applications in biological and X-ray imaging [7, 8]. Gho...
-
[2]
Time-to-space ghost imaging with classical light
and by decreasing the correlation time of the beams by employing, e.g., a fiber laser as a source [27]. Various similar techniques have also been proposed. Ghost spectroscopy relies on the frequency (ω−ω) cor- relations of two beams for the measurement of the ob- ject absorption spectrum, as was demonstrated with entangled photons [28] and classically cor...
work page internal anchor Pith review Pith/arXiv arXiv 2026
-
[3]
ghost imaging with classical light, we consider split- ting the source field, described in the preceding section, into two beams on a symmetric beam splitter creating the test and reference beams, see Fig. 1. Each of the 3 STGSMsource DR DT f2ff BS objectplane imageplane correlator M(t) Fghost(x) test arm reference arm FIG. 1. Time-to-space ghost imaging ...
-
[4]
exp{−ix2 1π/λf}(15) ×m(t ′ 1)δ(t1 −t ′ 1 −L/c), hR(ξ2,ξ ′
-
[5]
1 2w2 (1−ρ 2 I) + 1 σ2 1−ρ 2γ # (22) − ˜t2 1
exp{−ix2 2π/λf}(16) ×δ(t 2 −t ′ 2 −L/c), whereLis the length of each arm,cis the speed of light in vacuum,fis the focal length of the lenses,λ= 2πc/ωis the central wavelength, andη i is the total intensity trans- mittance of the corresponding arm, including the split ra- tio of the beam splitter and the quantum efficiency of the detector. To simplify the ...
-
[6]
and can be varied by changingf L orw[51]. How- ever, the same effect can be reached in the near field of the disk [52], in which case the coherence length is fixed to the average size of the disk inhomogeneities. Alter- natively, partial coherence can be imposed on a coherent beam by means of a spatial light modulator [53, 54], as shown in Fig. 3. Now we ...
work page 2020
-
[7]
A. V. Belinskii and D. N. Klyshko, Two-photon op- tics: diffraction, holography, and transformation of two- dimensional signals, JETP78, 259 (1994)
work page 1994
-
[8]
T. B. Pittman, Y. H. Shih, D. V. Strekalov, and A. V. Sergienko, Optical imaging by means of two-photon quantum entanglement, Phys. Rev. A52, R3429 (1995)
work page 1995
-
[9]
R. S. Bennink, S. J. Bentley, and R. W. Boyd, “two- photon” coincidence imaging with a classical source, Phys. Rev. Lett.89, 113601 (2002)
work page 2002
- [10]
-
[11]
K. W. C. Chan, M. N. O’Sullivan, and R. W. Boyd, Two- color ghost imaging, Phys. Rev. A79, 033808 (2009)
work page 2009
-
[12]
R. S. Aspden, N. R. Gemmell, P. A. Morris, D. S. Tasca, L. Mertens, M. G. Tanner, R. A. Kirkwood, A. Rug- geri, A. Tosi, R. W. Boyd, G. S. Buller, R. H. Hadfield, and M. J. Padgett, Photon-sparse microscopy: visible light imaging using infrared illumination, Optica2, 1049 (2015)
work page 2015
-
[13]
H. Yu, R. Lu, S. Han, H. Xie, G. Du, T. Xiao, and D. Zhu, Fourier-transform ghost imaging with hard X rays, Phys. Rev. Lett.117, 113901 (2016)
work page 2016
-
[14]
D. Pelliccia, A. Rack, M. Scheel, V. Cantelli, and D. M. Paganin, Experimental X-ray ghost imaging, Phys. Rev. Lett.117, 113902 (2016)
work page 2016
-
[15]
M. J. Padgett and R. W. Boyd, An introduction to ghost 9 imaging: quantum and classical, Philos. Trans. Royal Soc. A375, 20160233 (2017)
work page 2017
-
[16]
M. Gilaberte Basset, F. Setzpfandt, F. Steinlechner, E. Beckert, T. Pertsch, and M. Gr¨ afe, Perspectives for applications of quantum imaging, Las. Phot. Rev.13, 1900097 (2019)
work page 2019
-
[17]
H. Defienne, W. P. Bowen, M. Chekhova, G. B. Lemos, D. Oron, S. Ramelow, N. Treps, and D. Faccio, Advances in quantum imaging, Nature Phot.18, 1024 (2024)
work page 2024
-
[18]
C. G. Amiot, P. Ryczkowski, A. T. Friberg, J. M. Dudley, and G. Genty, Ghost optical coherence tomography, Opt. Express27, 24114 (2019)
work page 2019
- [19]
-
[20]
Y. Altmann, S. McLaughlin, M. J. Padgett, V. K. Goyal, A. O. Hero, and D. Faccio, Quantum-inspired computa- tional imaging, Science361, eaat2298 (2018)
work page 2018
- [21]
-
[22]
S. Denis, P.-A. Moreau, F. Devaux, and E. Lantz, Tempo- ral ghost imaging with twin photons, J. Opt.19, 034002 (2017)
work page 2017
-
[23]
P. Ryczkowski, M. Barbier, A. T. Friberg, J. M. Dudley, and G. Genty, Ghost imaging in the time domain, Nature Photonics10, 167 (2016)
work page 2016
-
[24]
H. Wu, P. Ryczkowski, A. T. Friberg, J. M. Dudley, and G. Genty, Temporal ghost imaging using wavelength con- version and two-color detection, Optica6, 902 (2019)
work page 2019
- [25]
- [26]
- [27]
- [28]
-
[29]
L. He, B. Hu, Z. Bo, C. Zhang, X. Zhou, S. Han, H. Liang, and H. Wu, Mid-infrared data encryption and trans- mission beyond detector bandwidth based on frequency down-conversion temporal ghost imaging, APL Phot.10 (2025)
work page 2025
- [30]
-
[31]
Y. Wang, W. Jiang, H. Chen, X. Chen, Y. Gao, P. Tian, and B. Sun, Ultra-high frequency signal transmission based on temporal ghost imaging, J. Lightwave Technol. 40, 5426 (2022)
work page 2022
-
[32]
P. Ryczkowski, M. Barbier, A. T. Friberg, J. M. Dud- ley, and G. Genty, Magnified time-domain ghost imaging, APL Photonics2, 046102 (2017)
work page 2017
-
[33]
H. Wu, B. Han, Z. Wang, G. Genty, G. Feng, and H. Liang, Temporal ghost imaging with random fiber lasers, Opt. Express28, 9957 (2020)
work page 2020
-
[34]
G. Scarcelli, A. Valencia, S. Gompers, and Y. Shih, Remote spectral measurement using entangled photons, Appl. Phys. Lett.83, 5560 (2003)
work page 2003
-
[35]
P. Janassek, S. Blumenstein, and W. Els¨ aßer, Ghost spec- troscopy with classical thermal light emitted by a super- luminescent diode, Phys. Rev. Appl.9, 021001 (2018)
work page 2018
- [36]
- [37]
-
[38]
A. Abbas and L.-G. Wang, Hanbury Brown and Twiss ef- fect in spatiotemporal domain, Optics Express28, 32077 (2020)
work page 2020
-
[39]
D. B. Horoshko, Time-to-space ghost imaging, Opt. Lett. 48, 3247 (2023)
work page 2023
- [40]
-
[41]
D. B. Horoshko, G. Patera, A. Gatti, and M. I. Kolobov, X-entangled biphotons: Schmidt number for 2D model, Eur. Phys. J. D66, 1 (2012)
work page 2012
- [42]
-
[43]
Peˇ rina, Coherence and dimensionality of intense spa- tiospectral twin beams, Phys
J. Peˇ rina, Coherence and dimensionality of intense spa- tiospectral twin beams, Phys. Rev. A92, 013833 (2015)
work page 2015
-
[44]
L. La Volpe, S. De, T. Kouadou, D. Horoshko, M. I. Kolobov, C. Fabre, V. Parigi, and N. Treps, Multimode single-pass spatio-temporal squeezing, Opt. Express28, 12385 (2020)
work page 2020
-
[45]
L. La Volpe, S. De, M. Kolobov, V. Parigi, C. Fabre, N. Treps, and D. Horoshko, Spatiotemporal entangle- ment in a noncollinear optical parametric amplifier, Phys. Rev. Appl.15, 024016 (2021)
work page 2021
-
[46]
F. S. Roux, Stimulated parametric down-conversion for spatiotemporal metrology, Phys. Rev. A104, 043514 (2021)
work page 2021
-
[47]
L. Mandel and E. Wolf,Optical Coherence and Quantum Optics(Cambridge University Press, Cambridge, 1995)
work page 1995
- [48]
-
[49]
O. Katz, Y. Bromberg, and Y. Silberberg, Compressive ghost imaging, Appl. Phys. Lett.95(2009)
work page 2009
-
[50]
V. Starovoitov, V. Chizhevsky, D. Mogilevtsev, A. Smali- akou, M. Perenzoni, L. Gasparini, D. Horoshko, and S. Kilin, Frame-filtered ghost imaging with a SPAD ar- ray used both as a multiple “bucket” detector and an imaging camera, Appl. Opt.63, 6012 (2024)
work page 2024
-
[51]
B. I. Erkmen and J. H. Shapiro, Unified theory of ghost imaging with Gaussian-state light, Phys. Rev. A77, 043809 (2008)
work page 2008
-
[52]
S. Srivastava, D. B. Horoshko, and M. I. Kolobov, Making entangled photons indistinguishable by a time lens, Phys. Rev. A107, 033705 (2023)
work page 2023
- [53]
-
[54]
O. E. Martinez, Pulse distortions in tilted pulse schemes for ultrashort pulses, Opt. Comm.59, 229 (1986)
work page 1986
-
[55]
J. W. Goodman,Introduction to Fourier Optics, 3rd ed. (Roberts and Co., Englewood, 2005). 10
work page 2005
-
[56]
P. De Santis, F. Gori, G. Guattari, and C. Palma, An example of a Collett-Wolf source, Opt. Comm.29, 256 (1979)
work page 1979
-
[57]
V. Starovoitov, V. Chizhevsky, D. Horoshko, and S. Y. Kilin, Spatio-temporal correlations of photons from a pseudo-thermal source, J. Appl. Spectr.90, 377 (2023)
work page 2023
-
[58]
F. Wang, Y. Cai, and S. He, Experimental observation of coincidence fractional Fourier transform with a partially coherent beam, Opt. Express14, 6999 (2006)
work page 2006
-
[59]
M. W. Hyde, S. Basu, D. G. Voelz, and X. Xiao, Ex- perimentally generating any desired partially coherent Schell-model source using phase-only control, J. Appl. Phys.118(2015)
work page 2015
-
[60]
Y. Cai, Y. Chen, J. Yu, X. Liu, and L. Liu, Generation of partially coherent beams, Prog. Opt.62, 157 (2017)
work page 2017
-
[61]
J. Zhao, J. Dai, B. Braverman, X.-C. Zhang, and R. W. Boyd, Compressive ultrafast pulse measurement via time- domain single-pixel imaging, Optica8, 1176 (2021)
work page 2021
- [62]
