Interaction Forces and Internal Loads in Parallel Manipulators with Actuation Redundancy

Joshua Flight , Cl\'ement Gosselin This is my paper

Pith reviewed 2026-05-07 09:31 UTC · model grok-4.3

classification 💻 cs.RO
keywords parallel manipulatorsactuation redundancyinteraction forcesinternal loadsnull-space wrench componentsjoint torque synthesisequilibrating torques
0
0 comments X

The pith

Parallel manipulators with actuation redundancy require resolved definitions of interaction forces and internal loads to produce correct joint torques.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines the adaptation of interaction forces and internal loads, standard in grasp analysis, to the null-space wrench components that arise in parallel manipulators when actuators outnumber the task degrees of freedom. It identifies oversights and definitional ambiguities in earlier work on the topic and supplies explicit procedures for constructing the two families of joint-torque vectors: those that equilibrate external wrenches and those that produce desired end-effector motions. Correct separation of these components matters because redundant actuation is common in high-stiffness or high-precision parallel robots, and incorrect torque allocation produces unintended internal stresses or control errors.

Core claim

The two common characterizations of null-space wrench components from grasp-like systems can be adapted to parallel manipulators with actuation redundancy, but the existing literature contains critical oversights and ambiguities in the definitions of interaction forces and internal loads; explicit synthesis methods are supplied for equilibrating and manipulating joint torque vectors, and a case study demonstrates that these methods correct previously reported erroneous results.

What carries the argument

Explicit synthesis procedures that separate equilibrating and manipulating joint torque vectors once interaction forces and internal loads have been unambiguously defined in the null space of the manipulator's wrench mapping.

If this is right

  • Joint torques can be partitioned into an equilibrating component that balances external wrenches and a manipulating component that produces desired motions without spurious internal effects.
  • Force-distribution calculations reported for actuation-redundant parallel manipulators in prior studies can be revised and made consistent.
  • Control laws that rely on null-space torque optimization can avoid the definitional errors identified in the literature.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same definitional clarification may prove useful when extending force analysis to other classes of kinematically redundant mechanisms.
  • Actuator placement decisions in future manipulator designs could be guided by the requirement that internal loads remain below material limits once the new synthesis rules are applied.

Load-bearing premise

The two common characterizations of null-space wrench components from grasp-like systems can be directly adapted to parallel manipulators with actuation redundancy without requiring manipulator-specific geometric or dynamic constraints.

What would settle it

Recompute the joint torques for the paper's case-study manipulator with the proposed synthesis methods and check whether the resulting vectors match or differ from the erroneous values previously published in the literature.

Figures

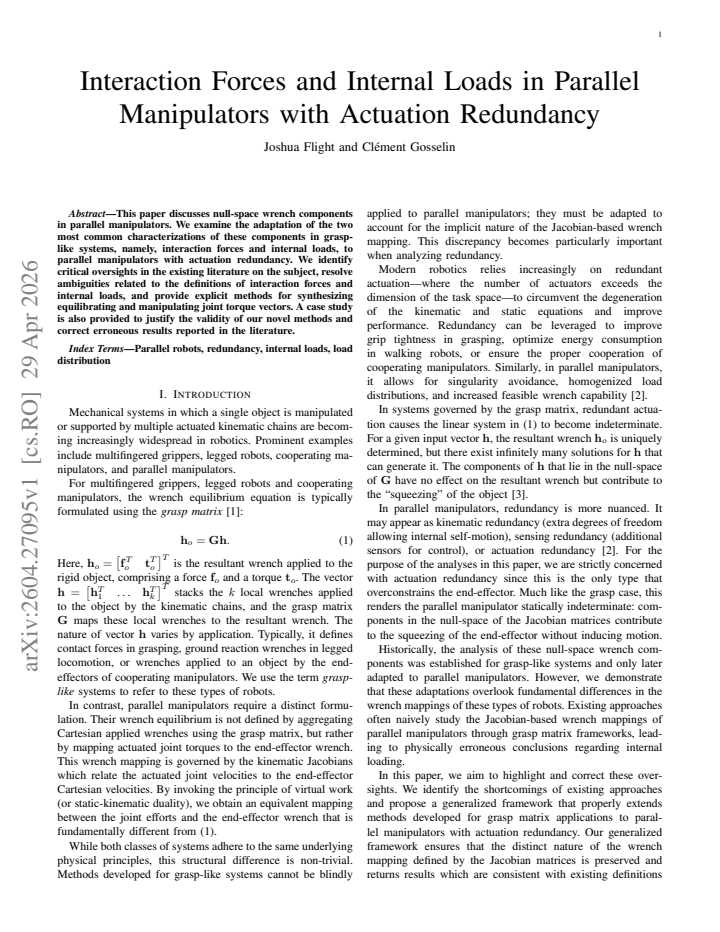

Figures reproduced from arXiv: 2604.27095 by Cl\'ement Gosselin, Joshua Flight.

Figure 1
Figure 1. Figure 1: Example of a dynamically equivalent system of view at source ↗
Figure 2
Figure 2. Figure 2: Illustration of physical the significance of constraint view at source ↗
Figure 3
Figure 3. Figure 3: Force transmitted to the end-effector by a planar R view at source ↗
Figure 5
Figure 5. Figure 5: The linear combination of the basis vectors view at source ↗
Figure 6
Figure 6. Figure 6: Example of a 4-RRR planar parallel manipulator. Forces fe,i are required to generate fo without generating interaction forces, but the legs can only generate forces in directions ˆfi . forces or internal loads), it must be able to generate forces in any direction. This translates to each leg of the manipulator having as many actuators as there are components in the force it applies to the end-effector (2 a… view at source ↗
Figure 7
Figure 7. Figure 7: 3-RRR planar parallel manipulator with actuation redundancy. Adapted from [13]. the end-effector geometry parameters l2, l3, and α. The pose of the end-effector is defined by x = view at source ↗
Figure 9
Figure 9. Figure 9: Feasible force polygons for a prescribed moment of view at source ↗
Figure 9
Figure 9. Figure 9: Solving for the joint torques using both view at source ↗
Figure 10
Figure 10. Figure 10: Force distributions f and fe which balance ho = 1.662 70.689 0T . Forces shown are scaled by a factor of 100. homogeneous causing the equilibrating force distribution and the manipulating wrench distribution to differ. For the same pose of x = view at source ↗
Figure 11

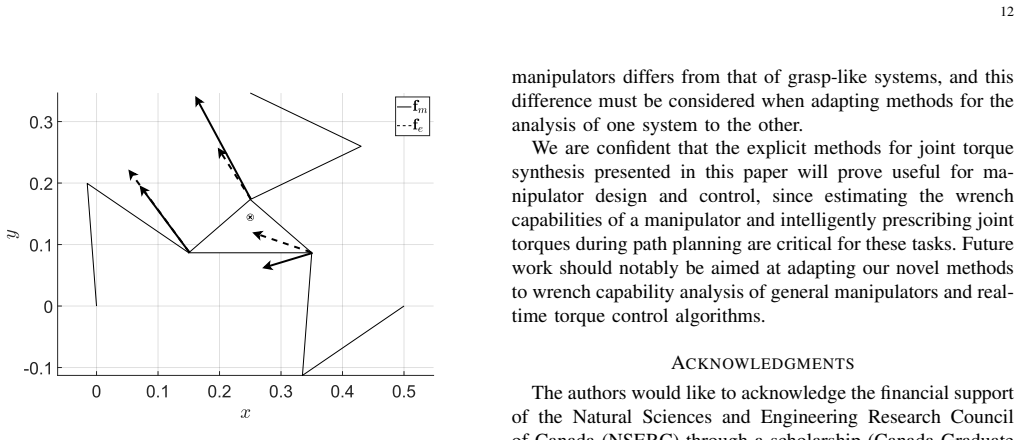

Figure 11. Figure 11: Force distributions fe and fm which balance ho = −25 25 −2 T . Forces shown are scaled by a factor of 100. required constrained acceleration x ∗ i of the LMIE of mass m∗ i which satisfies the kinematic constraints of rigid-body motion. Both force sets are shown in view at source ↗
