Iron He-triplet signatures of shocks in the hottest galaxy clusters. Z/W line ratio, line broadening, and electron-ion temperature equilibration

Eugene Churazov , Yuri Ralchenko , Ildar I. Khabibullin , John C. Raymond , Annie Heinrich , Irina Zhuravleva , Reinout J. van Weeren , Congyao Zhang

Authors on Pith no claims yet

Pith reviewed 2026-05-07 10:29 UTC · model grok-4.3

classification 🌌 astro-ph.HE

keywords galaxy clustersintracluster mediumshocksX-ray spectroscopyFe XXV tripletelectron-ion equilibrationnon-equilibrium ionization

0 comments

The pith

The Z/W line ratio in the Fe XXV triplet serves as a proxy for non-equilibrium conditions in shocked intracluster gas.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper argues that merger shocks in the hottest galaxy clusters produce two observable X-ray signatures even when viewing geometry prevents sharp surface-brightness edges. One is an elevated Z/W intensity ratio in the helium-like iron triplet; the other is extra line width contributed by ions that remain hotter than electrons. These features arise because the low-density plasma allows ionization and temperature equilibration timescales to stretch over observable distances. A reader would care because the signatures give direct access to how electrons are heated at collisionless shocks and how quickly the different particle species later reach a common temperature.

Core claim

In shocks with Mach number less than or equal to 3, the Z/W line ratio of Fe XXV can serve as a proxy for the non-equilibrium state of the shocked ICM and facilitate interpretation of the line broadening. The contribution of ions with Ti greater than Te to the line width might otherwise be mistaken for gas turbulence. These spectral signatures remain detectable with high-energy-resolution telescopes such as XRISM even for unfavorable geometry, such as lines of sight inside the Mach cone, and can be used to constrain electron heating at collisionless cluster shocks as well as the rate of subsequent temperature equilibration between particle species.

What carries the argument

The Z/W intensity ratio of the Fe XXV helium-like triplet, which responds to the delayed ionization and electron-ion temperature equilibration behind the shock front.

If this is right

The Z/W ratio distinguishes non-equilibrium ionization from turbulence when interpreting line widths in cluster spectra.
XRISM-class instruments can detect these signatures in shocks of Mach number up to 3 regardless of projection effects.
Measurements of the ratio and broadening directly limit the efficiency of electron heating at collisionless shocks.
The same data constrain the timescale for ion-electron temperature equilibration in the low-density ICM.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Similar line-ratio diagnostics could be applied to other He-like triplets of heavy elements in the same temperature range.
Combining the Z/W ratio with spatially resolved velocity fields would help separate thermal ion broadening from bulk motions.
Repeated observations of the same shock region over time could directly track the relaxation toward equilibrium.

Load-bearing premise

The low density of the intracluster medium keeps ionization and electron-ion equilibration times long enough that non-equilibrium signatures persist and remain observable even for lines of sight inside the shock cone.

What would settle it

A high-resolution spectrum of a confirmed post-shock region in a merging cluster that shows a Z/W ratio matching the equilibrium prediction at the measured electron temperature, with no excess broadening attributable to hotter ions, would falsify the proposed diagnostic.

Figures

Figures reproduced from arXiv: 2604.27212 by Annie Heinrich, Congyao Zhang, Eugene Churazov, Ildar I. Khabibullin, Irina Zhuravleva, John C. Raymond, Reinout J. van Weeren, Yuri Ralchenko.

**Figure 1.** Figure 1: Coulomb-collision-mediated temperature equilibration between electrons, protons, and He-like iron ions (Fe XXV) in the limit of adiabatic heating of electrons at the shock. The Fe XXV ions’ temperature 𝑇𝑍 approaches 𝑇p at 𝜏 ∼ 1012 cm−3 s, and then evolves together with 𝑇p. The “NEI” timescale (see view at source ↗

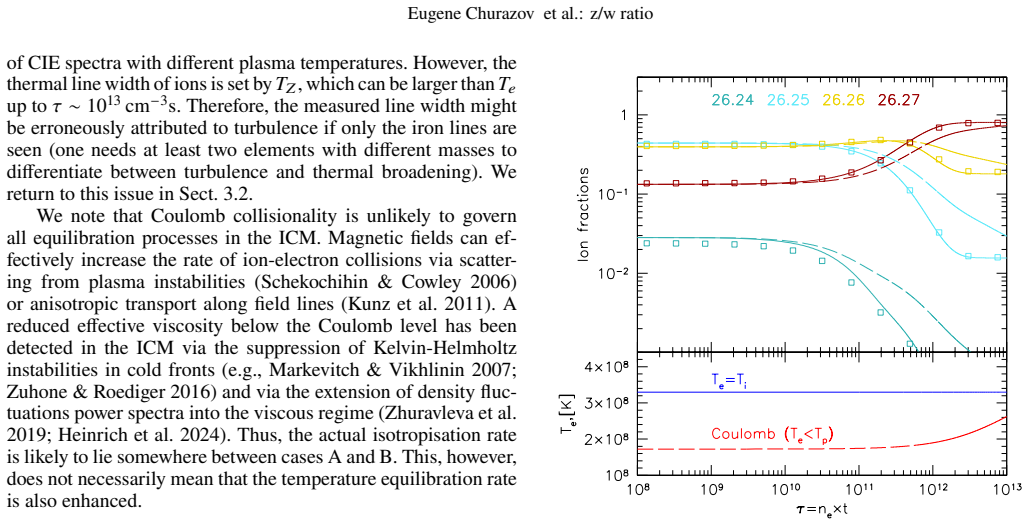

**Figure 2.** Figure 2: Ionization balance and temperature evolution in the shocked medium. The bottom panel shows the 𝑇e evolution: the blue solid line corresponds to the 𝑇𝑒 = 𝑇𝑖 = const case, the red dashed line shows the “Coulomb” temperature equilibration starting from 𝑇𝑒 set by adiabatic compression in the ℳ = 3.2 shock. In this case, 𝑇e rises slowly and does not reach 𝑇p even for 𝜏 = 1012 cm−3 s. The upper panel shows the i… view at source ↗

**Figure 3.** Figure 3: In this regime, the ionization balance corresponds to the view at source ↗

**Figure 3.** Figure 3: Z/W line intensity ratio (colors, NOMAD simulation) for the instantaneous electron temperature change from 𝑇0 to 𝑇1 in the limit of small 𝜏. Locations 𝑎 and 𝑐 correspond to the flux ratios for the initial and final states with 𝑇 = 7 keV and 𝑇 = 28 keV, respectively. The dashed diagonal line shows the locus of other equilibrium states with 𝑇1 = 𝑇0. The location 𝑏 shows the intermediate case with 𝑇0 = 7 ke… view at source ↗

**Figure 4.** Figure 4: NOMAD time-dependent (a) line intensities and (b) line intensity ratios for He- and H-like Fe (𝑇0 = 7 keV, 𝑇1 = 28 keV, 𝑇𝑒 = 𝑇p case). Solid circles present the corresponding values at 𝜏=0, i.e., 𝑇0 = 7 keV. tron temperature for 𝜏 ≲ 1013 cm−3 s, while for 𝜏 ≲ 1011 cm−3 s, even the CIE assumption is not valid view at source ↗

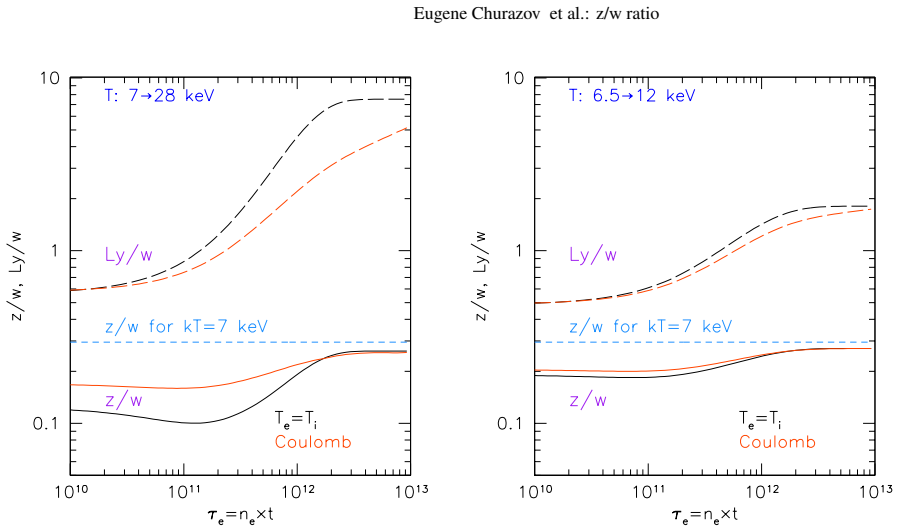

**Figure 5.** Figure 5: Left: Z/W (solid lines) and Ly/W (dashed lines) ratios for the instantaneous (black) and Coulomb-collisions-mediated (red) electron temperature evolution from 7 to 28 keV (corresponding to ℳ = 3.2 shock). The blue dashed line shows the ratio for 𝑘𝑇 = 7 keV CIE plasma. Right: The same for the initial temperature of 6.5 keV and the final temperature of 12 keV (corresponding to ℳ = 1.8 shock). While the Z/W f… view at source ↗

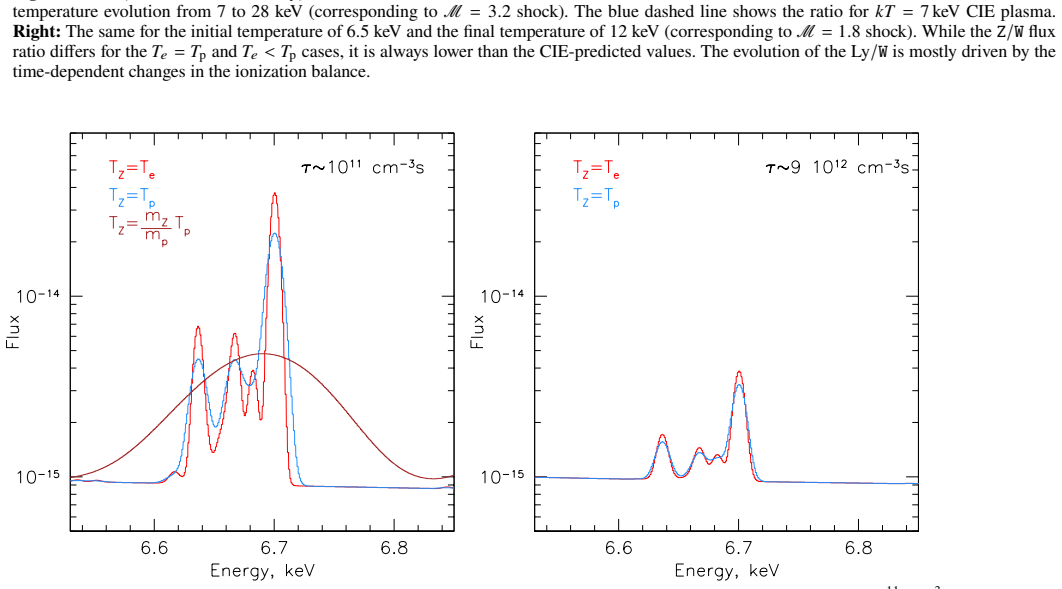

**Figure 6.** Figure 6: Triplet spectrum for different assumptions on the ion temperature and different ionization parameter 𝜏. Left: 𝜏 = 1011 cm−3 s. The red, blue, and brown curves show 𝑇𝑍 = 𝑇e, 𝑇𝑍 = 𝑇p, and 𝑇𝑍 = 𝑚𝑍 𝑚𝑝 ≈ 2𝑍 × 𝑇p in a shocked plasma with pure Coulomb energy exchange between species. Right: 𝜏 = 9 × 1012 cm−3 s. For this value of 𝜏, 𝑇𝑍 = 𝑇p, but it is still larger than 𝑇e, leading to marginally broader lines. This… view at source ↗

**Figure 7.** Figure 7: Emission measure EM𝜏 of the shocked gas with the ionization parameter 𝜏 smaller than a certain value relative to the emission measure EMcl of the unshocked gas at the same distance from the cluster center (see Eq. 7). The purple solid and dashed lines show the ratio EM𝜏 /EMcl for 𝜏 = 1011 and 1012 cm−3 s, respectively. For a shock velocity, the velocity 𝑣𝑟 of a point mass on a parabolic orbit was used. The… view at source ↗

read the original abstract

A merger of clusters naturally drives shocks with Mach number $\mathscr{M}\lesssim 3$ in the intra-cluster medium (ICM). This process creates several distinct signatures, including sharp surface brightness "edges", temperature, and gas velocity jumps. The low density of the ICM implies that the ionization balance and electron-ion equilibration times can be long enough to produce a set of additional observable signatures. Here, we focus on two "transient" spectral signatures accessible with the high-energy-resolution telescopes such as XRISM, even for unfavorable geometry, e.g., when we are looking inside the Mach cone of the shock, precluding the appearance of sharp edges in X-ray images. In this work, we focus on (i) the $\mathtt{Z/W}$ line ratio of the Fe~XXV triplet and (ii) the contribution of ions with $T_i>T_{\rm e}$ to the line width, which might be mistakenly interpreted as the gas turbulence. We demonstrate that the $\mathtt{Z/W}$ ratio can serve as a proxy for the non-equilibrium state of the shocked ICM and facilitate interpretation of the line broadening. We conclude that these spectral signatures are within reach with missions like XRISM and can be used to constrain the heating of electrons at the collisionless cluster shocks, as well as the rate of subsequent temperature equilibration between different particle species.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper shows that the Fe XXV Z/W ratio and excess ion-temperature line broadening can serve as observable proxies for non-equilibrium conditions behind low-Mach cluster shocks, even in unfavorable geometries.

read the letter

The main point is that the Z/W ratio of the Fe XXV triplet shifts measurably when electrons and ions have not yet equilibrated after a merger shock, and that hot ions also broaden the lines in a way that could be mistaken for turbulence. The authors run the atomic calculations for post-shock conditions across a range of Mach numbers and electron heating fractions, then show that the deviations remain detectable even when the line of sight sits inside the Mach cone rather than at the edge-on shock front. This is a straightforward extension of known plasma physics to the ICM, and the modeling is explicit enough to produce concrete predictions for XRISM-resolution spectra. They correctly note that the low density of the ICM makes the relevant timescales long, which is the standard justification and does not require extra assumptions here. The work is clean on the atomic side and avoids circularity by using independent atomic rates and timescales. One limitation is that the results stay at the level of forward modeling without mock data folded through instrument responses or direct checks against existing spectra, so the practical signal strength is not yet quantified. The dependence on the electron heating fraction also leaves the exact size of the effect somewhat open until that parameter is better pinned down by simulations or other observations. This is aimed at people who work on cluster shocks and high-resolution X-ray spectroscopy. A reader planning XRISM observations of merging clusters or modeling collisionless heating would get direct use from the line-ratio predictions. It deserves peer review because the calculations are grounded and the proposed signatures are testable with near-term data.

Referee Report

1 major / 3 minor

Summary. The manuscript models non-equilibrium ionization and electron-ion temperature differences in post-shock intra-cluster medium (ICM) using the Fe XXV He-like triplet. It focuses on the Z/W line ratio as a diagnostic of the non-equilibrium state and on excess thermal line broadening arising when ion temperatures exceed electron temperatures. Explicit calculations for post-shock conditions with Mach numbers ≲3 and varying equilibration timescales demonstrate measurable deviations from equilibrium values that persist even for lines of sight inside the Mach cone. The work concludes that these signatures are detectable with XRISM and can constrain electron heating fractions at collisionless shocks together with the subsequent equilibration rate.

Significance. If the modeled deviations are confirmed, the paper supplies a practical spectral diagnostic that complements surface-brightness edges and velocity jumps for studying shock microphysics in the hottest clusters. The approach relies on standard atomic databases and plasma timescales, supplies falsifiable predictions for high-resolution spectroscopy, and directly addresses observables accessible to XRISM without requiring favorable shock geometry.

major comments (1)

The central claim that the signatures 'are within reach with missions like XRISM' requires quantitative support. The modeling shows deviations, but the manuscript does not report the minimum exposure time, signal-to-noise, or spectral resolution needed to distinguish the predicted Z/W ratios or excess widths from equilibrium cases at typical cluster fluxes.

minor comments (3)

The notation for the Z and W lines of the Fe XXV triplet should be defined explicitly on first use, including the precise transitions and wavelengths adopted from the atomic database.
The range of electron heating fractions explored should be stated numerically in the text or a table rather than only through the equilibration timescale parameter.
A brief comparison to existing X-ray observations of merging clusters (e.g., Bullet or A3667) would help anchor the parameter choices even if no direct detection of the transient signatures yet exists.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their constructive review and positive recommendation for minor revision. We address the major comment below and will incorporate the requested quantitative support in the revised manuscript.

read point-by-point responses

Referee: The central claim that the signatures 'are within reach with missions like XRISM' requires quantitative support. The modeling shows deviations, but the manuscript does not report the minimum exposure time, signal-to-noise, or spectral resolution needed to distinguish the predicted Z/W ratios or excess widths from equilibrium cases at typical cluster fluxes.

Authors: We agree that quantitative estimates of exposure time, signal-to-noise, and the role of spectral resolution would strengthen the claim. In the revised manuscript we will add calculations for representative hot-cluster fluxes (e.g., Perseus-like emission measures) using XRISM response matrices and its nominal spectral resolution. These will show the minimum exposure required to separate the predicted non-equilibrium Z/W ratios and excess line widths from equilibrium values at >3 sigma, thereby providing the requested falsifiable numbers. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper computes the Z/W line ratio of the Fe XXV He-like triplet and ion line broadening from explicit post-shock plasma models using standard atomic physics and equilibration timescales. These quantities are derived from independent inputs (Mach number, density, equilibration time) rather than being fitted to or defined by the same observables the paper interprets. No equations reduce the claimed signatures to quantities constructed from the target data by definition, and no self-citation chain is load-bearing for the central result. The derivation remains self-contained against external atomic databases and standard shock physics.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard atomic physics for the Fe XXV triplet and on the assumption that post-shock ionization and temperature equilibration timescales exceed the flow time across the observed region. No new entities are postulated.

free parameters (2)

shock Mach number
Used to set post-shock conditions; values up to 3 are explored but not fitted to new data.
electron heating fraction
Parameter controlling immediate post-shock Te/Ti ratio; central to the predicted signatures.

axioms (2)

domain assumption Ionization balance and electron-ion equilibration times are long compared to the dynamical time in the low-density ICM
Invoked in the abstract to justify the existence of transient signatures.
standard math Atomic models for Fe XXV line ratios and widths are accurate under non-equilibrium conditions
Relies on established collisional-radiative calculations without new validation shown.
