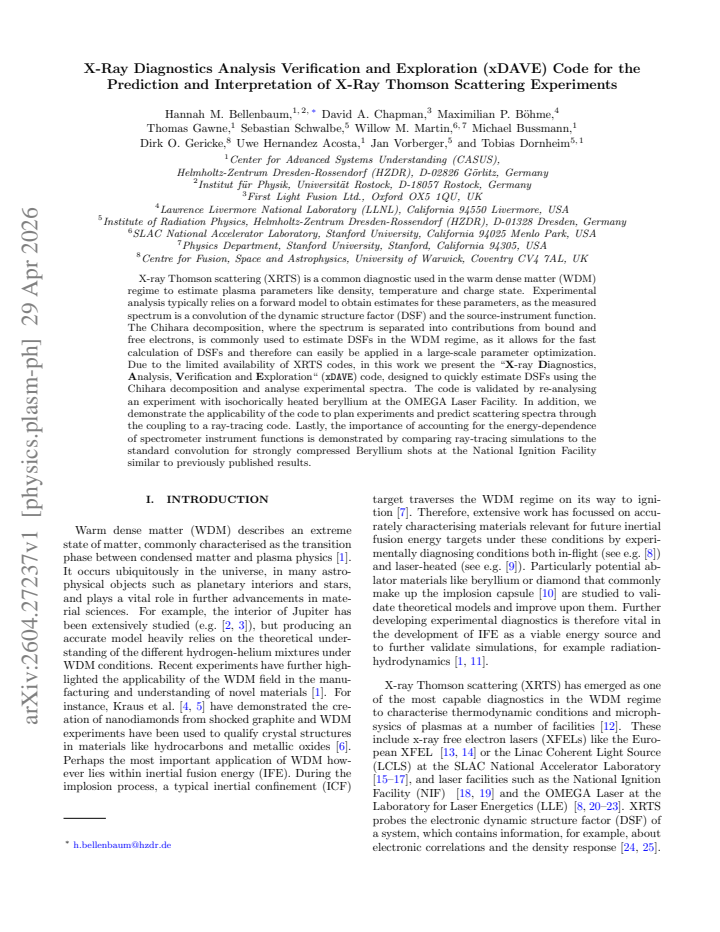

X-Ray Diagnostics Analysis Verification and Exploration (xDAVE) Code for the Prediction and Interpretation of X-Ray Thomson Scattering Experiments

Hannah M. Bellenbaum , Dave A. Chapman , Maximilian P. B\"ohme , Thomas Gawne , Sebastian Schwalbe , Willow M. Martin , Michael Bussmann , Dirk O. Gericke
show 3 more authors
Uwe Hernandez Acosta Jan Vorberger Tobias Dornheim
This is my paper

Pith reviewed 2026-05-07 10:17 UTC · model grok-4.3

classification ⚛️ physics.plasm-ph
keywords X-ray Thomson scatteringdynamic structure factorChihara decompositionwarm dense matterplasma diagnosticsberylliumOMEGA laser facility
0
0 comments X

The pith

The xDAVE code provides fast Chihara-based modeling of dynamic structure factors to interpret X-ray Thomson scattering spectra from warm dense matter.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper presents the xDAVE code to calculate dynamic structure factors rapidly using the Chihara decomposition and then fit them to measured X-ray Thomson scattering spectra. The authors validate the code by re-analyzing data from an isochorically heated beryllium experiment performed at the OMEGA Laser Facility. They further show that the code can be coupled to ray-tracing simulations to plan experiments and that including the energy dependence of spectrometer responses improves accuracy for strongly compressed samples.

Core claim

The xDAVE code is designed to estimate dynamic structure factors quickly via the Chihara decomposition and to analyze experimental X-ray Thomson scattering spectra by convolving those factors with the source-instrument function. Validation is performed by re-processing an OMEGA experiment on isochorically heated beryllium. The code is also demonstrated in combination with ray-tracing for experiment planning, and the authors show that energy-dependent instrument functions must be accounted for when modeling spectra from highly compressed beryllium at the National Ignition Facility.

What carries the argument

The Chihara decomposition, which splits the dynamic structure factor into separate contributions from bound and free electrons to enable rapid calculations suitable for large-scale parameter fitting.

If this is right

  • Experimental teams can obtain plasma density, temperature, and charge-state estimates more rapidly from XRTS data.
  • Coupling xDAVE to ray-tracing codes allows quantitative prediction of scattering signals before shots are taken.
  • Accounting for energy-dependent spectrometer responses reduces systematic error in the analysis of high-compression data.
  • The same workflow can be applied to other light elements and facilities once the underlying decomposition is accepted.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If Chihara proves insufficient for heavier elements, xDAVE could serve as a fast front-end to more advanced structure-factor calculations.
  • Real-time integration of xDAVE into facility control rooms could enable on-the-fly experiment adjustments during a campaign.
  • The code's emphasis on instrument-function energy dependence suggests similar corrections may be needed for other spectroscopy diagnostics in dense plasmas.

Load-bearing premise

The Chihara decomposition supplies a sufficiently accurate model of the dynamic structure factor under the warm dense matter conditions and for the materials tested in the validation experiments.

What would settle it

A new X-ray Thomson scattering measurement on beryllium or a similar material in which the plasma parameters recovered by xDAVE differ substantially from independent density or temperature diagnostics would show the model or code to be inadequate.

Figures

Figures reproduced from arXiv: 2604.27237 by Dave A. Chapman, Dirk O. Gericke, Hannah M. Bellenbaum, Jan Vorberger, Maximilian P. B\"ohme, Michael Bussmann, Sebastian Schwalbe, Thomas Gawne, Tobias Dornheim, Uwe Hernandez Acosta, Willow M. Martin.

Figure 1
Figure 1. Figure 1: FIG. 1. Optimized fit for a Beryllium XRTS measurements view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Model-free temperature analysis for the CH spectra view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6. XRTS spectrum for a NIF Be implosion experiment. view at source ↗
read the original abstract

X-ray Thomson scattering (XRTS) is a common diagnostic used in the warm dense matter (WDM) regime to estimate plasma parameters like density, temperature and charge state. Experimental analysis typically relies on a forward model to obtain estimates for these parameters, as the measured spectrum is a convolution of the dynamic structure factor (DSF) and the source-instrument function. The Chihara decomposition, where the spectrum is separated into contributions from bound and free electrons, is commonly used to estimate DSFs in the WDM regime, as it allows for the fast calculation of DSFs and therefore can easily be applied in a large-scale parameter optimization. Due to the limited availability of XRTS codes, in this work we present the ``\textbf{X}-ray \textbf{D}iagnostics, \textbf{A}nalysis, \textbf{V}erification and \textbf{E}xploration`` (\texttt{xDAVE}) code, designed to quickly estimate DSFs using the Chihara decomposition and analyse experimental spectra. The code is validated by re-analysing an experiment with isochorically heated beryllium at the OMEGA Laser Facility. In addition, we demonstrate the applicability of the code to plan experiments and predict scattering spectra through the coupling to a ray-tracing code. Lastly, the importance of accounting for the energy-dependence of spectrometer instrument functions is demonstrated by comparing ray-tracing simulations to the standard convolution for strongly compressed Beryllium shots at the National Ignition Facility similar to previously published results.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces the xDAVE code, which implements the Chihara decomposition for rapid calculation of dynamic structure factors (DSFs) to forward-model and interpret X-ray Thomson scattering (XRTS) spectra in warm dense matter. The code is validated by re-analyzing an isochorically heated beryllium experiment at the OMEGA Laser Facility, coupled to a ray-tracing code for predicting spectra in experiment planning, and used to demonstrate the importance of energy-dependent spectrometer instrument functions for NIF-like compressed beryllium shots.

Significance. If the implementation is correct and the Chihara model sufficiently accurate for the targeted conditions, xDAVE would provide a practical, accessible tool for the WDM community to perform parameter optimization and experimental design in XRTS diagnostics. The ray-tracing coupling and explicit treatment of instrument function energy dependence are useful practical contributions that address common analysis pitfalls. The significance is reduced, however, by the validation approach, which relies on re-analysis without independent quantitative checks against data or alternative models.

major comments (2)
  1. [§4] §4 (Validation against OMEGA Be experiment): the re-analysis is presented without quantitative metrics of agreement, such as residual norms, chi-squared values, or shifts in inferred density/temperature/ionization with uncertainties relative to prior analyses. This is load-bearing for the central validation claim, as agreement could reflect shared model assumptions rather than independent fidelity of the xDAVE implementation.
  2. [§2] §2 (Chihara decomposition implementation): the paper does not quantify or bound the expected error from known Chihara limitations (e.g., neglect of local-field corrections or non-equilibrium effects) for the reported Be densities and temperatures, which directly affects the reliability of both the OMEGA validation and the NIF-like predictions.
minor comments (2)
  1. [Introduction] The manuscript would benefit from an explicit statement of code availability (repository link, license) and a brief comparison table to other existing XRTS forward-modeling tools.
  2. [Results] Figure captions for the ray-tracing comparisons should include the specific instrument function models and energy ranges used.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful and constructive review of our manuscript. The comments have prompted us to strengthen the validation section with quantitative metrics and to expand the discussion of model limitations. We address each major comment below.

read point-by-point responses

  1. Referee: [§4] §4 (Validation against OMEGA Be experiment): the re-analysis is presented without quantitative metrics of agreement, such as residual norms, chi-squared values, or shifts in inferred density/temperature/ionization with uncertainties relative to prior analyses. This is load-bearing for the central validation claim, as agreement could reflect shared model assumptions rather than independent fidelity of the xDAVE implementation.

    Authors: We agree that quantitative metrics are necessary to demonstrate that the agreement is not solely due to shared model assumptions. In the revised manuscript we have added chi-squared values for the fits to the OMEGA beryllium spectra, together with a table comparing the inferred density, temperature and ionization state (with uncertainties) to the values reported in the original experimental analysis. These additions show that the xDAVE results lie within the previously published uncertainties while also quantifying small differences attributable to implementation details. revision: yes

  2. Referee: [§2] §2 (Chihara decomposition implementation): the paper does not quantify or bound the expected error from known Chihara limitations (e.g., neglect of local-field corrections or non-equilibrium effects) for the reported Be densities and temperatures, which directly affects the reliability of both the OMEGA validation and the NIF-like predictions.

    Authors: The referee is correct that explicit error bounds would improve the assessment of reliability. We have added a new paragraph in §2 that cites literature comparisons of the Chihara model against more advanced calculations (including local-field corrections) for beryllium at the relevant densities (∼1–5 g cm⁻³) and temperatures (∼10–50 eV). The added text states that the neglected corrections typically alter the DSF by ≲10 % in this regime and discusses the local thermodynamic equilibrium assumption, thereby bounding the impact on both the validation and the NIF-like predictions. revision: yes

Circularity Check

0 steps flagged

No significant circularity: xDAVE implements established Chihara DSF model with external validation

full rationale

The paper describes a forward-modeling code that applies the pre-existing Chihara decomposition (bound + free electron contributions) to compute dynamic structure factors for XRTS analysis. Validation consists of re-processing a published OMEGA beryllium experiment and comparing to prior results, without introducing new fitted parameters that are then renamed as predictions. No self-definitional equations, load-bearing self-citations, or ansatzes smuggled via prior author work appear in the abstract or described workflow. The derivation chain is therefore self-contained against the standard physical model rather than reducing to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the Chihara decomposition as a standard modeling choice for DSF in WDM; no new free parameters, axioms beyond domain standards, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption The Chihara decomposition accurately separates bound and free electron contributions to the dynamic structure factor in the WDM regime.
    Invoked as the basis for fast DSF calculation and spectrum analysis in the code description.
