arxiv: 2604.27285 · v1 · submitted 2026-04-30 · ⚛️ physics.optics

Stable thin-film lithium tantalate modulators operating at high temperature for uncooled operation

Ayed Al Sayem , Shiekh Zia Uddin , Ting-Chen Hu , Alaric Tate , Mark Cappuzzo , Rose Kopf , Mark Earnshaw This is my paper

Pith reviewed 2026-05-07 10:20 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords thin-film lithium tantalateelectro-optic modulatorhigh-temperature stabilityDC-bias stabilityVπ reductionuncooled operationco-packaged optics
0
0 comments X

The pith

Thin-film lithium tantalate modulators maintain stable electro-optic performance at 120°C with 10% lower drive voltage.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that thin-film lithium tantalate modulators keep their electro-optic modulation and bandwidth unchanged under high-temperature conditions. Both waveguide and resonant devices hold DC-bias stability at 120°C, and the half-wave voltage drops by 10% as temperature rises. This result indicates that the devices can run without active cooling in co-packaged optics. A reader would care because removing temperature-control hardware could simplify packaging and cut power use in optical links.

Core claim

We demonstrate stable operation of a thin-film lithium tantalate (TFLT) modulator at very high operating temperatures. We show that the electro-optic modulation and bandwidth of the TFLT modulators are not affected by high-temperature operation, and both waveguide and resonant modulators are DC-bias stable even at 120°C. At higher temperatures, we even observe 10% reduction of the Vπ of the modulator. Our results position TFLT modulators as a strong candidate for uncooled operation in co-packaged optics.

What carries the argument

Thin-film lithium tantalate (TFLT) electro-optic modulator structures whose temperature-independent response preserves modulation depth, bandwidth, and bias point.

If this is right

  • Electro-optic modulation depth and bandwidth remain constant across the tested temperature range.
  • DC-bias stability holds for both waveguide and resonant modulator designs at 120°C.
  • Required drive voltage Vπ decreases by approximately 10% at higher temperatures.
  • The platform becomes viable for uncooled co-packaged optics without temperature controllers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Eliminating thermoelectric coolers could lower total transceiver power and simplify assembly in data-center optics.
  • Similar temperature-stability checks may apply to other ferroelectric thin-film platforms for photonic integration.
  • Long-term aging tests in hermetic packages would be required to confirm the observed stability persists over years of field use.

Load-bearing premise

Short-term laboratory heating accurately captures the devices' intrinsic behavior without artifacts from the test setup or short-term transients.

What would settle it

A measured increase in Vπ or loss of DC-bias stability after prolonged operation at 120°C inside a packaged transceiver would disprove suitability for uncooled use.

Figures

Figures reproduced from arXiv: 2604.27285 by Alaric Tate, Ayed Al Sayem, Mark Cappuzzo, Mark Earnshaw, Rose Kopf, Shiekh Zia Uddin, Ting-Chen Hu.

Figure 1
Figure 1. Figure 1: FIG. 1 view at source ↗

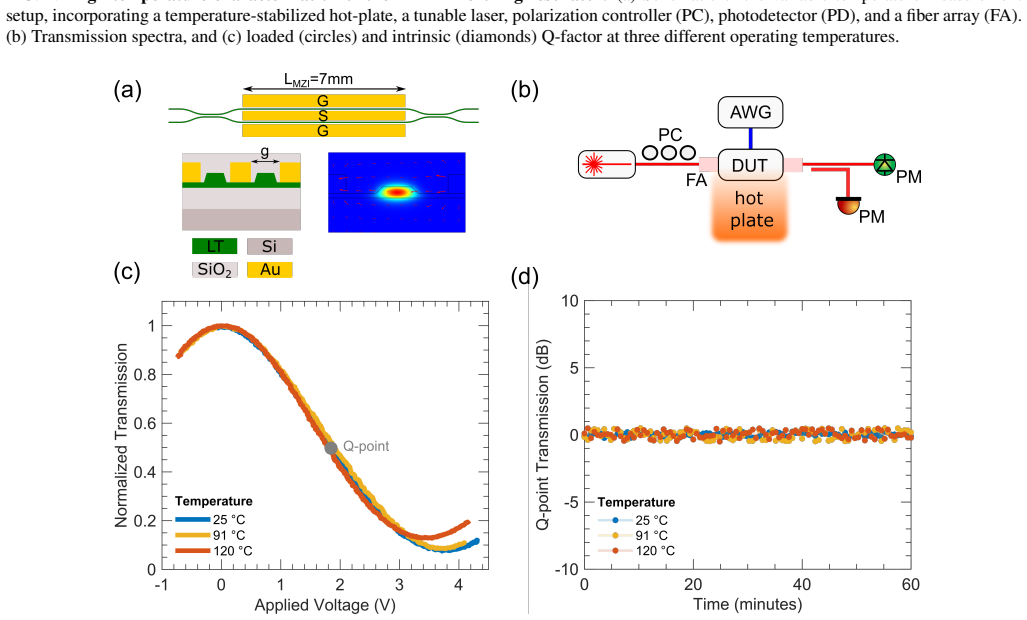

Figure 2
Figure 2. Figure 2: FIG. 2 view at source ↗

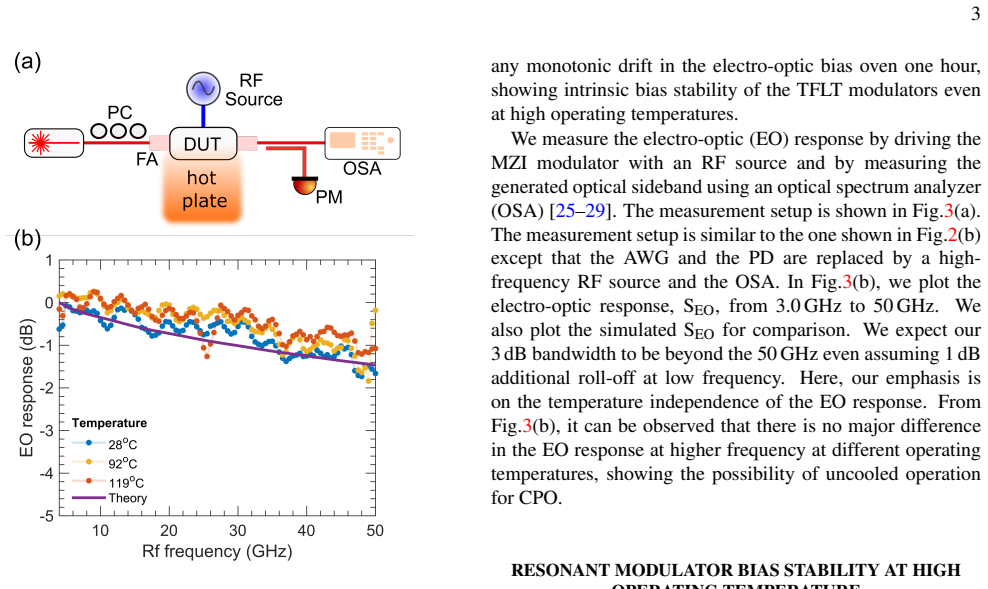

Figure 3
Figure 3. Figure 3: FIG. 3 view at source ↗

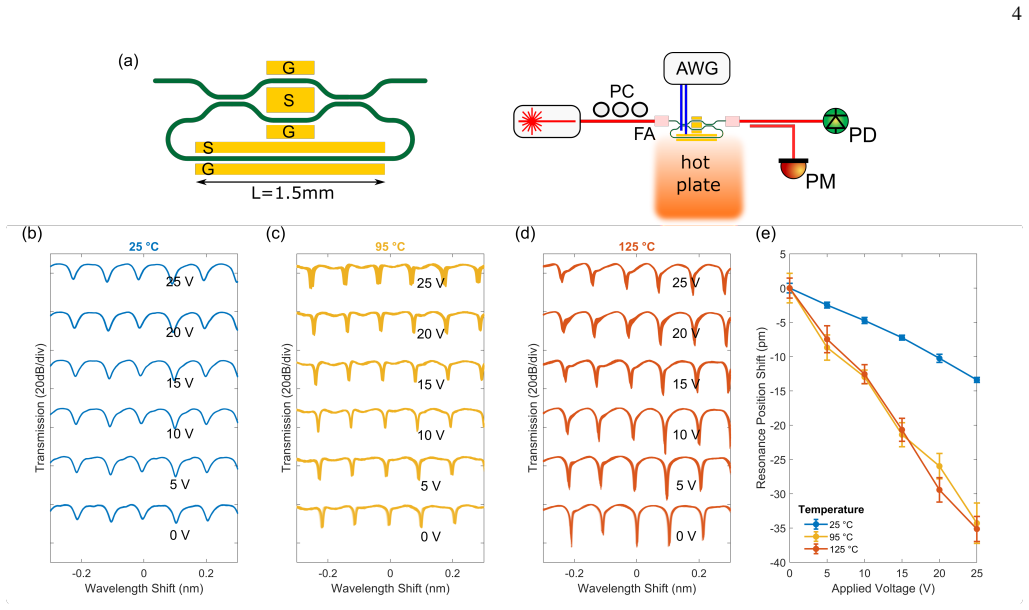

Figure 4
Figure 4. Figure 4: FIG. 4 view at source ↗
read the original abstract

We demonstrate stable operation of a thin-film lithium tantalate (TFLT) modulator at very high operating temperatures. We show that the electro-optic modulation and bandwidth of the TFLT modulators are not affected by high-temperature operation, and both waveguide and resonant modulators are DC-bias stable even at 120{\deg}C. At higher temperatures, we even observe 10% reduction of the V{\pi} of the modulator. Our results position TFLT modulators as a strong candidate for uncooled operation in co-packaged optics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript experimentally demonstrates stable operation of thin-film lithium tantalate (TFLT) electro-optic modulators at elevated temperatures, reporting that electro-optic modulation depth, bandwidth, and DC-bias stability remain unaffected up to 120°C, with an observed 10% reduction in Vπ at still higher temperatures; the results are positioned as enabling uncooled operation in co-packaged optics.

Significance. If the high-temperature stability and Vπ reduction prove intrinsic and reproducible, the work would meaningfully advance photonic device options for high-temperature or uncooled environments, potentially reducing system complexity and power draw relative to lithium niobate platforms in data-center or sensing applications.

major comments (2)
  1. [High-temperature characterization] High-temperature characterization section: the claims of temperature-independent EO response, bandwidth, and 10% Vπ reduction rest on short-term temperature sweeps whose robustness against setup artifacts (thermal-stage drift, probe contact changes, or optical alignment) is not demonstrated via control measurements, repeated device statistics, or error bars; this directly affects the load-bearing assertion of intrinsic device stability.
  2. [DC-bias stability tests] Results on DC-bias stability at 120°C: no accelerated lifetime, thermal-cycling, or packaged-device data are presented to support extrapolation beyond lab timescales, leaving the multi-year reliability claim for uncooled co-packaged optics unverified.
minor comments (2)
  1. [Abstract and figure captions] The abstract and figure captions would benefit from explicit statement of sample size, measurement uncertainty, and temperature ramp/stabilization protocol to allow readers to assess data quality.
  2. [Introduction] Comparison to prior lithium niobate or other TFLT high-temperature results is referenced only briefly; adding one or two quantitative benchmarks would clarify the advance.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for their constructive feedback on our manuscript. We address each major comment point by point below. Where the comments identify opportunities to strengthen the presentation of our experimental results and the scope of our claims, we have revised the manuscript accordingly.

read point-by-point responses

  1. Referee: High-temperature characterization section: the claims of temperature-independent EO response, bandwidth, and 10% Vπ reduction rest on short-term temperature sweeps whose robustness against setup artifacts (thermal-stage drift, probe contact changes, or optical alignment) is not demonstrated via control measurements, repeated device statistics, or error bars; this directly affects the load-bearing assertion of intrinsic device stability.

    Authors: We appreciate the referee's emphasis on demonstrating robustness against setup artifacts. Our temperature-dependent measurements were performed with fixed fiber coupling and probe contacts, and we observed consistent EO response and bandwidth across multiple heating and cooling cycles on the same devices. To address the concern directly, we have revised the manuscript to include error bars on the key plots (derived from repeated measurements at each temperature point), added a summary of statistics from multiple devices, and included control data on passive waveguide transmission versus temperature to confirm setup stability. These additions are now in the high-temperature characterization section and supplementary information. revision: yes

  2. Referee: Results on DC-bias stability at 120°C: no accelerated lifetime, thermal-cycling, or packaged-device data are presented to support extrapolation beyond lab timescales, leaving the multi-year reliability claim for uncooled co-packaged optics unverified.

    Authors: The referee is correct that our DC-bias stability data were acquired over laboratory timescales (hours at 120°C). The manuscript reports that the modulators remained DC-bias stable during these tests and does not present accelerated lifetime, thermal-cycling, or packaged-device results. We have revised the text to explicitly state the duration of the stability measurements and to clarify that the positioning for uncooled co-packaged optics is based on the observed short-term high-temperature performance rather than any extrapolation to multi-year reliability. revision: yes

standing simulated objections not resolved
  • Long-term reliability verification (accelerated lifetime testing, thermal cycling, or packaged-device data) to support multi-year operation claims.

Circularity Check

0 steps flagged

No circularity: purely experimental demonstration

full rationale

The manuscript contains no equations, models, derivations, or theoretical claims. All results (electro-optic response, bandwidth, DC-bias stability at 120 °C, and Vπ reduction) are presented as direct laboratory measurements on fabricated devices. Because there is no derivation chain or fitted parameter that could reduce to its own inputs, no circularity of any enumerated kind exists. The work is self-contained against external benchmarks (temperature-controlled measurements) and does not rely on self-citations for its central assertions.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The central claim rests on experimental observations of material behavior under temperature; no free parameters, new entities, or non-standard axioms are introduced.

pith-pipeline@v0.9.0 · 5403 in / 1105 out tokens · 83417 ms · 2026-05-07T10:20:46.862035+00:00 · methodology
