arxiv: 2604.27595 · v1 · submitted 2026-04-30 · ⚛️ physics.optics

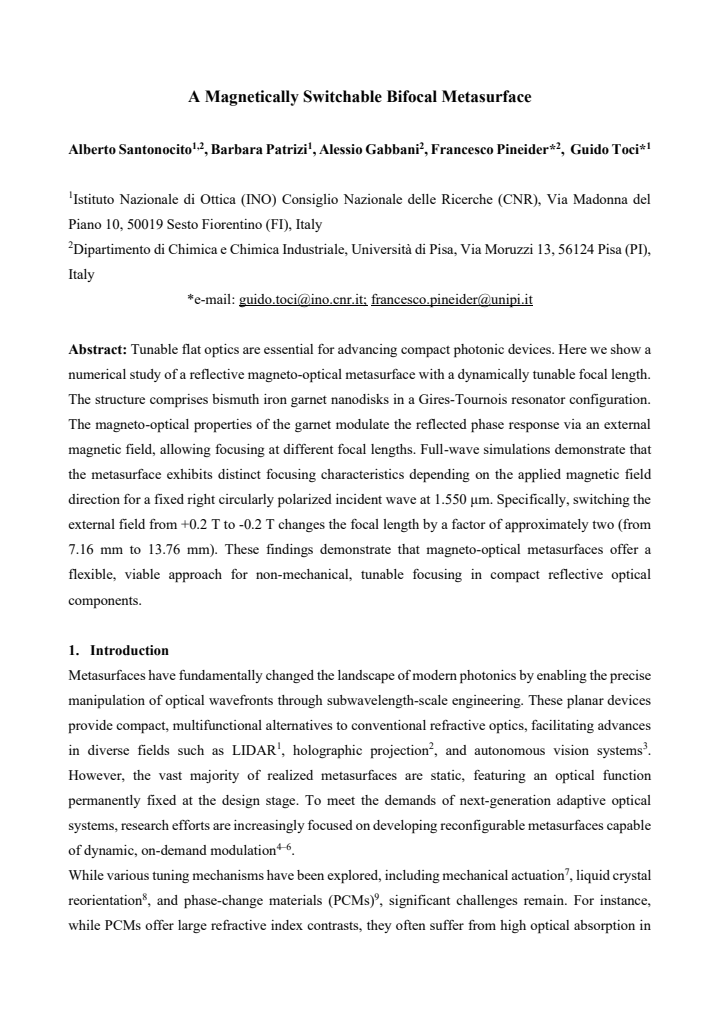

A Magnetically Switchable Bifocal Metasurface

Alberto Santonocito (1 , 2) , Barbara Patrizi (1) , Alessio Gabbani (2) , Francesco Pineider (2) , Guido Toci (1) ((1) Istituto Nazionale di Ottica (INO) Consiglio Nazionale delle Ricerche (CNR) , Sesto Fiorentino (FI) , Italy (2) Dipartimento di Chimica e Chimica Industriale
show 3 more authors
Universit\`a di Pisa Pisa (PI) Italy)
This is my paper

Pith reviewed 2026-05-07 08:47 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords magneto-optical metasurfacetunable focal lengthbismuth iron garnetGires-Tournois resonatorreflective opticsmagnetic switchingbifocal metasurfaceflat optics
0
0 comments X

The pith

Reversing a weak magnetic field switches the focal length of a reflective metasurface by a factor of two.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows through full-wave simulations that a reflective metasurface built from bismuth iron garnet nanodisks can change its focal length by reversing the direction of an applied magnetic field. The structure uses a Gires-Tournois resonator so that the magneto-optical response alters the phase of reflected light. For right-circularly polarized light at 1.55 micrometers, switching the field from +0.2 T to -0.2 T moves the focus from 7.16 mm to 13.76 mm. This offers a way to create bifocal flat optics that adjust without any mechanical motion, which could simplify compact photonic devices that need variable focusing.

Core claim

Full-wave simulations demonstrate that the metasurface exhibits distinct focusing characteristics depending on the applied magnetic field direction for a fixed right circularly polarized incident wave at 1.550 μm. Specifically, switching the external field from +0.2 T to -0.2 T changes the focal length by a factor of approximately two (from 7.16 mm to 13.76 mm). The magneto-optical properties of the garnet modulate the reflected phase response via an external magnetic field, allowing focusing at different focal lengths.

What carries the argument

Magneto-optical phase modulation of reflected light by bismuth iron garnet nanodisks in a Gires-Tournois resonator.

If this is right

  • The metasurface provides two fixed focal lengths selectable by magnetic field polarity alone.
  • Operation occurs at the 1550 nm telecommunication wavelength for right-circular polarization.
  • Only modest fields of 0.2 T are required for the focal-length switch.
  • The design supplies non-mechanical tunability for compact reflective optical components.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Fabrication imperfections or material losses in a real device could reduce the difference between the two focal lengths.
  • The same magnetic-phase-control approach might extend to other wavelengths or to transmissive rather than reflective geometries.
  • Electronic control of the external field could enable real-time dynamic adjustment in imaging or sensing systems.

Load-bearing premise

The magneto-optical constants of bismuth iron garnet are known accurately enough and the idealized lossless nanodisk geometry behaves the same in a real device as in the simulations.

What would settle it

Fabricate the nanodisk metasurface and measure the focal lengths under +0.2 T and -0.2 T for 1550 nm right-circularly polarized light to check whether they match the simulated 7.16 mm and 13.76 mm values.

Figures

Figures reproduced from arXiv: 2604.27595 by 2), Alberto Santonocito (1, Alessio Gabbani (2), Barbara Patrizi (1), Francesco Pineider (2), Guido Toci (1) ((1) Istituto Nazionale di Ottica (INO) Consiglio Nazionale delle Ricerche (CNR), Italy), Italy (2) Dipartimento di Chimica e Chimica Industriale, Pisa (PI), Sesto Fiorentino (FI), Universit\`a di Pisa.

Figure 3
Figure 3. Figure 3: shows the pillars spatial map and pillars diameters distribution of the designed metalens view at source ↗
read the original abstract

Tunable flat optics are essential for advancing compact photonic devices. Here we show a numerical study of a reflective magneto-optical metasurface with a dynamically tunable focal length. The structure comprises bismuth iron garnet nanodisks in a Gires-Tournois resonator configuration. The magneto-optical properties of the garnet modulate the reflected phase response via an external magnetic field, allowing focusing at different focal lengths. Full-wave simulations demonstrate that the metasurface exhibits distinct focusing characteristics depending on the applied magnetic field direction for a fixed right circularly polarized incident wave at 1.550 {\mu}m. Specifically, switching the external field from +0.2 T to -0.2 T changes the focal length by a factor of approximately two (from 7.16 mm to 13.76 mm). These findings demonstrate that magneto-optical metasurfaces offer a flexible, viable approach for non-mechanical, tunable focusing in compact reflective optical components.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a numerical study of a reflective magneto-optical metasurface consisting of bismuth iron garnet nanodisks arranged in a Gires-Tournois resonator geometry. Full-wave simulations are used to show that, for a fixed right-circularly polarized incident wave at 1.55 μm, reversing the direction of an external magnetic field from +0.2 T to -0.2 T switches the focal length from 7.16 mm to 13.76 mm by modulating the reflected phase profile through the off-diagonal gyrotropic terms of the material permittivity tensor.

Significance. If the simulated focal-length switching holds under realistic material parameters and fabrication tolerances, the work would demonstrate a viable route to non-mechanical, magnetically tunable flat optics. The approach leverages established magneto-optical materials in a metasurface context, which could be significant for compact reflective components; however, the result is entirely simulation-based and its practical impact depends on experimental realization and robustness to parameter uncertainty.

major comments (2)
  1. [Abstract and results] Abstract and results section: the central claim that the focal length changes by a factor of approximately two rests exclusively on the off-diagonal elements of the bismuth iron garnet permittivity tensor at 1.55 μm, yet the manuscript provides neither the explicit tensor values employed in the simulations nor any sensitivity analysis showing how 10-20% variations in the gyrotropic coefficients (consistent with typical literature dispersion and film-quality uncertainties) affect the reported focal lengths of 7.16 mm and 13.76 mm.
  2. [Methods] Methods/simulation details: no mesh-convergence study, material-data source citation, or error analysis is supplied to support the quantitative focal-length values obtained from full-wave simulations, leaving the load-bearing numerical result unverifiable from the given information.
minor comments (1)
  1. [Abstract] The abstract contains a minor LaTeX formatting artifact (1.550 {mu}m) that should be rendered consistently in the final version.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We have addressed both major points by expanding the manuscript with the requested data, analysis, and methodological details. The revisions improve reproducibility and robustness assessment without altering the core numerical findings.

read point-by-point responses

  1. Referee: [Abstract and results] Abstract and results section: the central claim that the focal length changes by a factor of approximately two rests exclusively on the off-diagonal elements of the bismuth iron garnet permittivity tensor at 1.55 μm, yet the manuscript provides neither the explicit tensor values employed in the simulations nor any sensitivity analysis showing how 10-20% variations in the gyrotropic coefficients (consistent with typical literature dispersion and film-quality uncertainties) affect the reported focal lengths of 7.16 mm and 13.76 mm.

    Authors: We agree that explicit tensor values and sensitivity analysis strengthen the presentation. In the revised manuscript we now report the full permittivity tensor of bismuth iron garnet at 1.55 μm (diagonal and off-diagonal gyrotropic components) used for the ±0.2 T cases, with the off-diagonal terms taken from standard magneto-optical dispersion data for BIG. We have also added a sensitivity study in which the gyrotropic coefficients are varied by ±10 % and ±20 %. The resulting focal lengths remain within 6–9 % of the nominal values (7.16 mm and 13.76 mm), preserving a switching ratio of approximately two. These results and the corresponding phase-profile plots are included in a new subsection of the Results section. revision: yes

  2. Referee: [Methods] Methods/simulation details: no mesh-convergence study, material-data source citation, or error analysis is supplied to support the quantitative focal-length values obtained from full-wave simulations, leaving the load-bearing numerical result unverifiable from the given information.

    Authors: We accept that additional methodological transparency is required. The revised Methods section now contains (i) a mesh-convergence study showing that focal-length values stabilize to within 1 % for element sizes ≤20 nm, (ii) explicit citation of the literature source for the bismuth iron garnet permittivity tensor, and (iii) a brief error analysis that quantifies the combined numerical and material-parameter uncertainty as ±0.15 mm on the reported focal lengths. These additions allow independent verification of the quantitative results. revision: yes

Circularity Check

0 steps flagged

No significant circularity; focal lengths are simulation outputs

full rationale

The paper reports focal lengths (7.16 mm and 13.76 mm) as direct outputs of full-wave electromagnetic simulations that take external material parameters (BIG permittivity tensor) and geometry as inputs. No equations, self-citations, or ansatzes reduce these results to fitted quantities defined from the same data. The derivation chain consists of standard Maxwell solvers applied to given tensors; it is self-contained and does not exhibit any of the enumerated circularity patterns.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard electromagnetic simulation methods and tabulated magneto-optical properties of bismuth iron garnet; no new free parameters, axioms beyond domain standards, or invented entities are introduced.

axioms (1)
  • domain assumption Magneto-optical response of bismuth iron garnet is accurately captured by its known permittivity tensor under applied magnetic field.
    The phase modulation and focal-length change depend directly on this material property being correctly modeled in the simulations.
