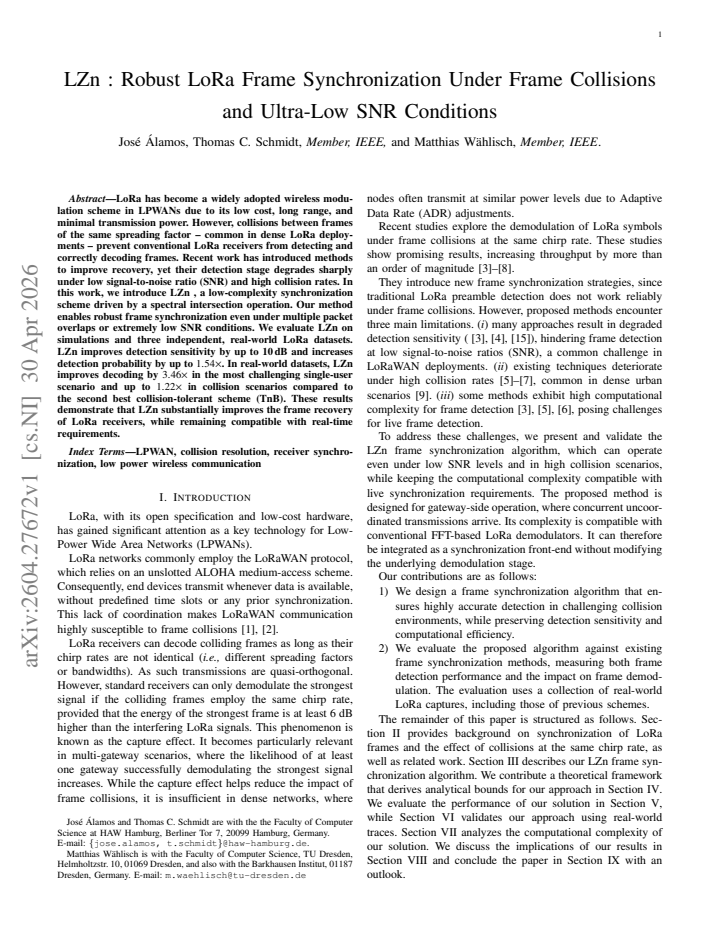

LZn : Robust LoRa Frame Synchronization Under Frame Collisions and Ultra-Low SNR Conditions

Jos\'e \'Alamos , Thomas C. Schmidt , Matthias W\"ahlisch This is my paper

Pith reviewed 2026-05-07 07:59 UTC · model grok-4.3

classification 💻 cs.NI cs.SYeess.SY
keywords LoRaframe synchronizationcollisionslow SNRspectral intersectionLPWANdetection probabilitydecoding performance
0
0 comments X

The pith

LZn uses spectral intersection to synchronize LoRa frames at up to 10 dB lower SNR even with multiple overlaps.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces LZn, a synchronization method for LoRa networks that relies on a spectral intersection operation to locate frame boundaries. Standard LoRa receivers lose frames when transmissions of the same spreading factor collide or when the signal falls far below the noise floor. LZn raises detection sensitivity by as much as 10 dB and raises detection probability by as much as 1.54 times. On three independent real-world datasets it lifts successful decoding by 3.46 times in the hardest single-user case and by 1.22 times in collision cases relative to the next-best collision-aware scheme. These gains matter because LoRa is widely used for long-range, low-power IoT links where dense deployments create frequent overlaps and weak signals limit reach.

Core claim

LZn is a low-complexity synchronization scheme whose core operation computes the spectral intersection of received signals to identify frame start positions. This operation remains effective when multiple LoRa frames overlap in time and frequency or when the signal-to-noise ratio drops to extremely low values. Simulations and tests on three independent real-world LoRa datasets confirm that the method improves detection sensitivity by up to 10 dB, raises detection probability by up to 1.54 times, and increases decoded frames by up to 3.46 times in single-user scenarios and 1.22 times in collision scenarios compared with the prior best collision-tolerant receiver while staying within real-time

What carries the argument

The spectral intersection operation, which finds the common frequency components across candidate signal segments to mark frame boundaries without requiring perfect separation of overlapping chirps.

If this is right

  • Receivers can recover more frames in dense LoRa deployments without changing the air interface.
  • Effective communication range increases because weaker signals become usable.
  • Network capacity rises as collisions no longer cause total frame loss.
  • Existing LoRa hardware can adopt the method without new silicon because complexity stays low.
  • Real-time decoding remains feasible on typical gateway processors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same intersection approach might transfer to other chirp-spread-spectrum systems such as certain radar or underwater acoustic links.
  • In very large IoT deployments the method could reduce the need for extra gateways to mitigate interference.
  • Testing under mobile transmitter scenarios would reveal whether Doppler shifts break the spectral intersection step.
  • Integration into open-source LoRa stacks would let developers measure the exact throughput lift in live networks.

Load-bearing premise

The spectral intersection reliably locates frame boundaries when multiple frames overlap and SNR is extremely low, provided the actual radio signals, noise, and preamble structure match the model used in the simulations and datasets.

What would settle it

A new collection of LoRa recordings containing overlaps at SNR levels below -20 dB in which LZn's detection rate does not exceed that of the prior best method by at least 1.2 times would disprove the claimed performance gains.

Figures

Figures reproduced from arXiv: 2604.27672 by Jos\'e \'Alamos, Matthias W\"ahlisch, Thomas C. Schmidt.

Figure 1
Figure 1. Figure 1: Block diagram of the proposed pipeline: coarse syn view at source ↗
Figure 2
Figure 2. Figure 2: Spectral intersection result (𝑍𝛿, 𝑓 [𝑘]) for a grid with 𝑁𝛿 = 2 and 𝑁𝑓 = 2 (four windows), illustrating how window alignment affects peak prominence. In this example, the peak achieves its maximum at 𝛿 = 𝑓 = 1 4 . 𝑍𝛿, 𝑓 = 𝐿−1 min 𝑖=0 view at source ↗
Figure 3
Figure 3. Figure 3: Detection probability versus SNR, for varying spectral view at source ↗
Figure 4
Figure 4. Figure 4: Detection probability versus Signal-to-Interference view at source ↗
Figure 5
Figure 5. Figure 5: Detection sensitivity (99% frame detection) for varying view at source ↗
Figure 7
Figure 7. Figure 7: Frame Detection Ratio (FDR) and Packet Reception view at source ↗
Figure 8
Figure 8. Figure 8: Frame Detection Ratio (FDR) versus collision offsets view at source ↗
Figure 9
Figure 9. Figure 9: Gateway deploy￾ment to obtain the LZn dataset. 0 25 50 75 100 WM5 WM4 0 25 50 75 100 0 25 50 75 100 2 6 10 14 0 25 50 75 100 2 6 10 14 LZn OpenLoRa TnB CIC Pyramid SF7 SF8 SF9 SF10 PDR [%] TX Power [dBm] view at source ↗
Figure 10
Figure 10. Figure 10: Packet Detection Rate (PDR) of LZn and the baseline view at source ↗
Figure 12
Figure 12. Figure 12: Throughput versus transmission rate (CIC dataset), view at source ↗
read the original abstract

LoRa has become a widely adopted wireless modulation scheme in LPWANs due to its low cost, long range, and minimal transmission power. However, collisions between frames of the same spreading factor -- common in dense LoRa deployments -- prevent conventional LoRa receivers from detecting and correctly decoding frames. Recent work has introduced methods to improve recovery, yet their detection stage degrades sharply under low signal-to-noise ratio (SNR) and high collision rates. In this work, we introduce LZn, a low-complexity synchronization scheme driven by a spectral intersection operation. Our method enables robust frame synchronization even under multiple packet overlaps or extremely low SNR conditions. We evaluate LZn on simulations and three independent, real-world LoRa datasets. LZn improves detection sensitivity by up to 10dB and increases detection probability by up to 1.54x. In real-world datasets, LZn improves decoding by 3.46x in the most challenging single-user scenario and up to 1.22x in collision scenarios compared to the second best collision-tolerant scheme (TnB). These results demonstrate that LZn substantially improves the frame recovery of LoRa receivers, while remaining compatible with real-time requirements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript introduces LZn, a low-complexity LoRa frame synchronization scheme based on a spectral intersection operation (element-wise minimum across short-time Fourier spectra from sliding windows) that exploits the fixed up-chirp preamble structure. The method is evaluated in simulations (SNR from -20 dB to 0 dB, up to three overlapping frames) and on three independent real-world datasets, claiming up to 10 dB improvement in detection sensitivity, up to 1.54x higher detection probability, and decoding-rate gains of 3.46x (single-user) and 1.22x (collision scenarios) relative to the TnB baseline. The implementation is reported as O(N log N) via FFT and suitable for real-time hardware.

Significance. If the reported gains hold under the stated conditions, LZn would meaningfully advance collision-tolerant LoRa reception in dense LPWAN deployments. The combination of a simple, parameter-light spectral operation with demonstrated real-world decoding improvements and low computational cost represents a practical contribution; the use of multiple independent datasets and explicit comparison to existing collision-tolerant schemes (TnB and others) strengthens the applicability claims beyond purely simulated results.

major comments (2)
  1. [Evaluation section] The manuscript should provide a more detailed characterization of the three real-world datasets (e.g., total frame counts, empirical collision rates, measured SNR distributions, and preamble lengths) in the evaluation section; without these, the claimed 3.46x and 1.22x decoding multipliers cannot be fully assessed for generalizability or compared against the simulation conditions.
  2. [Methods / signal model] While the spectral intersection is described as suppressing non-overlapping collision energy under the standard CSS model, the paper should include a brief sensitivity analysis or counter-example showing performance when the actual preamble structure or noise statistics deviate from the assumed up-chirp and additive white Gaussian noise model used in both simulations and datasets.
minor comments (3)
  1. [Abstract] The abstract reports peak gains ('up to 10 dB', 'up to 1.54x') without indicating the precise SNR or collision multiplicity at which these maxima occur; adding this context would improve interpretability.
  2. [Implementation / Algorithm] A short pseudocode or explicit formula for the sliding-window STFT computation and subsequent peak detection / timing refinement step would clarify the O(N log N) claim and aid reproducibility.
  3. [Figures] Figure captions and axis labels in the simulation results should explicitly state the number of colliding frames and the exact SNR values corresponding to each plotted curve.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment, the recommendation for minor revision, and the constructive comments that will strengthen the manuscript. We address each major comment point by point below, indicating the revisions we plan to make.

read point-by-point responses

  1. Referee: [Evaluation section] The manuscript should provide a more detailed characterization of the three real-world datasets (e.g., total frame counts, empirical collision rates, measured SNR distributions, and preamble lengths) in the evaluation section; without these, the claimed 3.46x and 1.22x decoding multipliers cannot be fully assessed for generalizability or compared against the simulation conditions.

    Authors: We agree that additional dataset characterization will improve transparency and allow better assessment of the reported gains. In the revised manuscript, we will expand the Evaluation section with a dedicated table or subsection detailing, for each of the three independent real-world datasets: total frame counts, empirical collision rates, measured SNR distributions (including ranges, means, and histograms where appropriate), and preamble lengths. These details will enable direct comparison to the simulation conditions (SNR from -20 dB to 0 dB, up to three overlapping frames) and support evaluation of the 3.46x (single-user) and 1.22x (collision) decoding improvements relative to TnB. revision: yes

  2. Referee: [Methods / signal model] While the spectral intersection is described as suppressing non-overlapping collision energy under the standard CSS model, the paper should include a brief sensitivity analysis or counter-example showing performance when the actual preamble structure or noise statistics deviate from the assumed up-chirp and additive white Gaussian noise model used in both simulations and datasets.

    Authors: We acknowledge the benefit of explicitly testing robustness to model deviations. The real-world datasets already incorporate practical deviations from ideal up-chirp AWGN conditions (e.g., hardware impairments, potential multipath, and non-Gaussian noise), which underpin the observed real-world gains. To address the request directly, we will add a brief sensitivity analysis in the revised Methods or Evaluation section. This will include targeted simulations introducing controlled deviations—such as small preamble chirp-rate mismatches or colored noise—and report the resulting impact on detection probability and the spectral intersection operation, along with a short discussion of implications. revision: yes

Circularity Check

0 steps flagged

No significant circularity in the derivation chain

full rationale

The LZn method is introduced as a novel low-complexity synchronization scheme whose core spectral intersection operation is explicitly defined in the methods section as the element-wise minimum (or equivalent) of short-time Fourier spectra computed over sliding windows on the fixed up-chirp LoRa preamble structure. This definition stands independently from any fitted parameters, self-referential equations, or load-bearing self-citations. All performance claims (10 dB sensitivity gain, 1.54× detection probability, real-world decoding multipliers) are obtained via direct empirical evaluation on independent simulations (SNR -20 dB to 0 dB, up to three overlaps) and three external real-world datasets, benchmarked against non-author baselines such as TnB. No step reduces by construction to its own inputs, no uniqueness theorem is imported from the authors' prior work, and no ansatz or known result is smuggled in via citation. The derivation chain is therefore self-contained.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the effectiveness of the newly introduced spectral intersection operation together with standard assumptions about LoRa chirp signals and additive white Gaussian noise; no explicit free parameters or invented physical entities are stated in the abstract.

axioms (1)
  • domain assumption LoRa frames consist of known preamble chirps whose spectral properties remain distinguishable under additive noise and partial overlaps.
    Implicit foundation for any preamble-based synchronization method in LoRa.
invented entities (1)
  • LZn spectral intersection operation no independent evidence
    purpose: To locate frame starts by intersecting spectral features even under collisions and low SNR.
    The operation is the novel algorithmic contribution introduced and evaluated in the paper.
