arxiv: 2604.27726 · v1 · submitted 2026-04-30 · ⚛️ physics.optics · q-bio.QM

Universal Nano-Bead Emitter Inks for Programmable Nanometric Fluorescent Architectures

Ilya Olevsko , Maria Shehadeh , Dmytro Ohorodniichuk , Leonid Weisman , Rotem Golan , Martin Oheim , Gerardo Byk , Adi Salomon This is my paper

Pith reviewed 2026-05-07 07:19 UTC · model grok-4.3

classification ⚛️ physics.optics q-bio.QM
keywords nano-bead emittersfluorescent nanolayershydrogel nanoparticleslaser-induced forward transfermulticolor fluorescent patternsnanometric thicknessoptical calibrationadditive fabrication
0
0 comments X

The pith

Trapping fluorophores in charged nanohydrogel particles lets one aqueous ink print uniform nanometric films for any dye.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a method to fabricate nanometric fluorescent layers using Nano-Bead Emitters, which are fluorophore-functionalized hydrogel nanoparticles. This approach separates the physical structure of the printed film from the chemical properties of the specific dye, allowing water-insoluble dyes to be used in a standard water-based formulation. When printed with laser-induced forward transfer, the resulting films maintain consistent thickness around 7 nm and sub-nanometric roughness regardless of the dye. This uniformity supports the creation of multicolor patterns suitable for optical calibration standards and integrated photonic devices. The technique also permits precise control of brightness through multiple deposition layers on a variety of substrates.

Core claim

Covalently attaching fluorophores to charged nanohydrogel particles creates Nano-Bead Emitter inks that produce films whose morphology is independent of the dye's solubility. This enables a single standardized aqueous ink to process spectrally distinct, water-insoluble dyes into highly uniform layers approximately 7 nm thick with sub-nanometric roughness via laser-induced forward transfer printing. The method provides programmable layer-by-layer intensity control without quenching and supports high-resolution multicolor patterning over macroscopic areas on diverse substrates.

What carries the argument

Nano-Bead Emitters (NBEs), hydrogel nanoparticles covalently functionalized with fluorophores, acting as a charged scaffold that immobilizes dyes and enforces consistent film deposition independent of dye type.

If this is right

  • Uniform ~7 nm fluorescent films with sub-nanometric roughness are achieved for multiple dyes using identical ink and printing conditions.
  • Multicolor patterns exhibit identical thickness and surface morphology across spectral channels, enabling quantitative optical calibration.
  • Brightness is tunable by successive deposition cycles without aggregation-induced quenching.
  • The inks deposit stably onto glass, polymers, semiconductors, and metasurfaces without dye-specific optimization.
  • Maskless, high-fidelity patterning is possible over large areas with precise spatial control.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This could standardize ink development for nanophotonic manufacturing, reducing trial-and-error for new device designs.
  • Extensions to incorporate non-fluorescent functional groups might create multifunctional printed interfaces for sensing applications.
  • Testing long-term ink stability with varied fluorophores would confirm scalability for commercial use.
  • Integration with other printing techniques could broaden applications beyond LIFT to roll-to-roll production.

Load-bearing premise

The hydrogel nanoparticles remain stable and do not aggregate when functionalized with different dyes or during printing, consistently forming uniform films on all substrates.

What would settle it

Measuring significant differences in film thickness or roughness (exceeding 1 nm) when printing the same pattern with inks loaded with chemically dissimilar dyes under fixed conditions would disprove the molecule-independent morphology claim.

Figures

Figures reproduced from arXiv: 2604.27726 by Adi Salomon, Dmytro Ohorodniichuk, Gerardo Byk, Ilya Olevsko, Leonid Weisman, Maria Shehadeh, Martin Oheim, Rotem Golan.

Figure 1
Figure 1. Figure 1: Homogeneous behavior of multicolor NBE thin films. A) Epi-fluorescence images of Claro 3D’s LIFT-printed NBE spots using different fluorophores (from left to right): NBE(ATTO 425), NBE(ATTO 488), and NBE(ATTO 490LS), respectively. Each image displays a representative spot from a larger array (100 spots printed in a single cycle), demonstrating that the layer morphology and pattern remain consistent across … view at source ↗
Figure 2

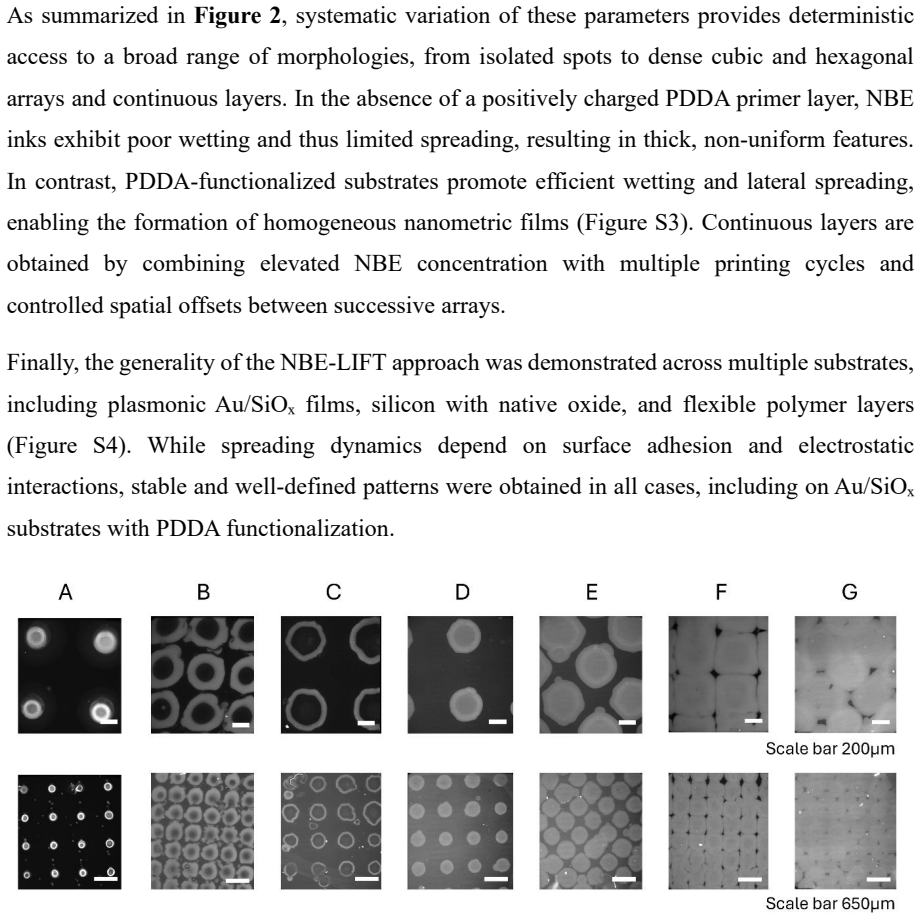

Figure 2. Figure 2: Printing parameters control NBE pattern morphology. view at source ↗
Figure 3

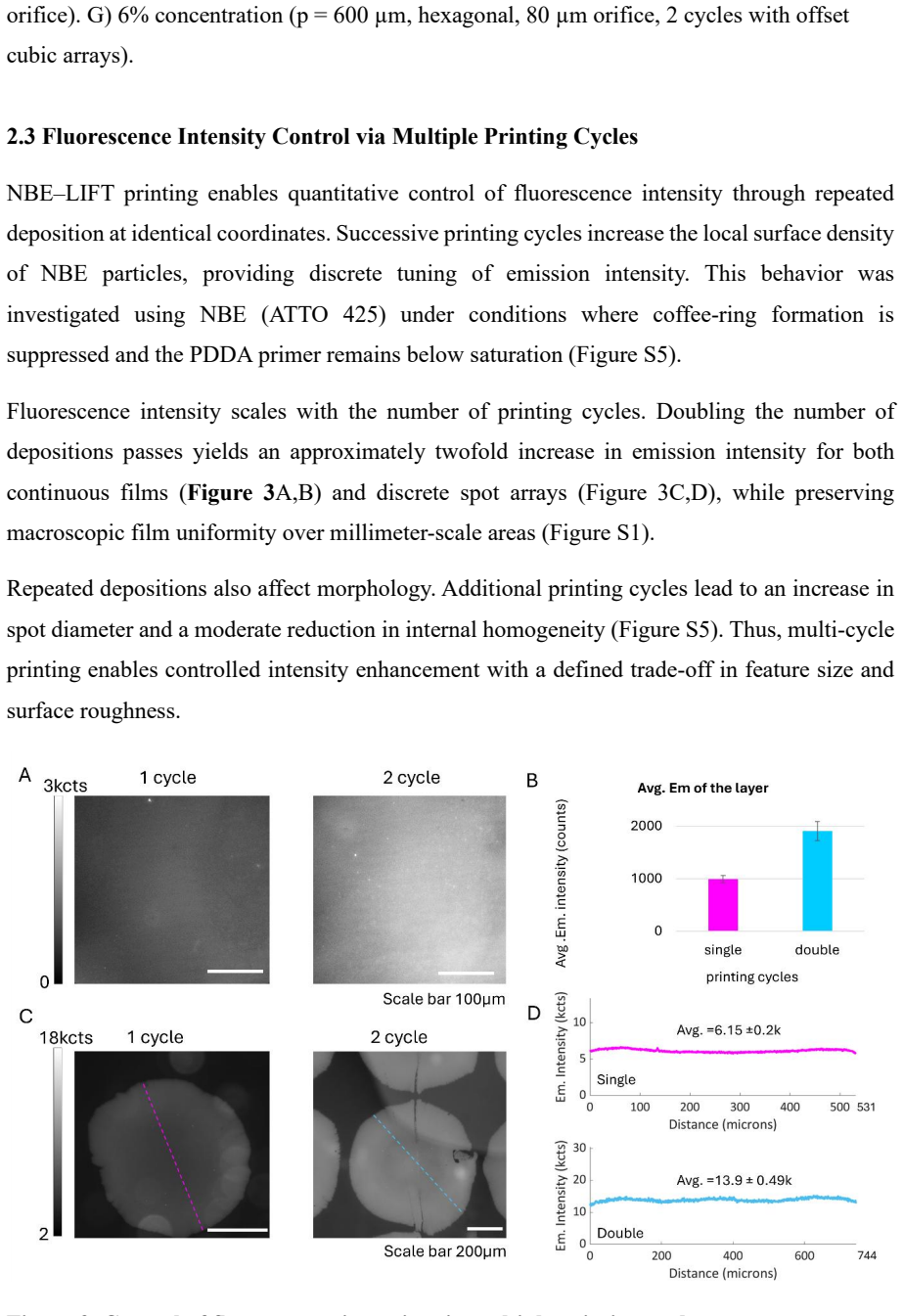

Figure 3. Figure 3: Control of fluorescence intensity via multiple printing cycles. view at source ↗
read the original abstract

Fabricating brightly fluorescent layers with nanometric thickness and digitally controlled lateral structuration remains a challenge for next-generation photonic devices, optical calibration standards, and biocompatible interfaces. Here, we introduce Nano-Bead Emitters (NBEs), hydrogel nanoparticles covalently functionalized with fluorophores, as a universal, water-processable ink platform for fabricating programmable nanometric fluorescent architectures. By immobilizing fluorophores within a charged nanohydrogel scaffold, the platform entirely decouples film morphology from dye solubility. This molecule-independent strategy enables spectrally distinct, inherently water-insoluble dyes to be processed using a single, standardized aqueous ink formulation. Combined with laser-induced forward transfer (LIFT) printing, this additive approach yields highly uniform fluorescent layers (~7 nm thickness, sub-nanometric roughness). This structural invariance produces complex multicolor patterns sharing identical thickness and surface morphology across all spectral channels, a critical requirement for quantitative optical calibration. Furthermore, LIFT printing provides programmable, layer-by-layer control over fluorescence intensity via successive deposition cycles, yielding precisely tunable brightness without aggregation-caused quenching. This maskless technique enables rapid, high-fidelity printing of both monochromatic and multicolor patterns over macroscopic areas with absolute spatial resolution. Finally, these universally compatible NBE inks stably deposit onto diverse substrates (glass, polymers, semiconductors, metasurfaces), effectively bridging scalable manufacturing with high-performance integrated photonic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript introduces Nano-Bead Emitters (NBEs) as ~10 nm charged hydrogel nanoparticles covalently functionalized with fluorophores, enabling a single aqueous ink formulation for laser-induced forward transfer (LIFT) printing of nanometric fluorescent films. The central claim is that immobilizing dyes within the nanohydrogel scaffold decouples printed film morphology (~7 nm thickness, sub-nanometric roughness) from dye solubility, yielding uniform, molecule-independent layers on glass, polymers, semiconductors, and metasurfaces. This supports programmable multicolor patterns with identical structural properties across channels, tunable brightness via layer-by-layer deposition without quenching, and maskless high-resolution patterning over macroscopic areas.

Significance. If validated with quantitative cross-dye data, the platform offers a standardized, additive route to fluorescent nanolayers that avoids dye-specific optimization and aggregation issues, which would be valuable for photonic calibration standards, integrated optics, and biocompatible interfaces. The combination of covalent immobilization with LIFT provides a practical bridge between colloidal materials and digital manufacturing, with potential for reproducible, high-fidelity multicolor structures.

major comments (2)
  1. [§3.1, Figure 2, Table 1] §3.1 (Particle Characterization), Figure 2 and Table 1: Hydrodynamic diameter and zeta-potential data are shown only for a single representative NBE formulation. To substantiate the molecule-independent claim, equivalent DLS/zeta measurements (with error bars) must be provided for each fluorophore variant before and after functionalization; any dye-dependent shift in size or surface charge would directly affect colloidal stability, LIFT threshold, and final film roughness, undermining the decoupling assertion.
  2. [§4.2, Table 2, Figure 4] §4.2 (Film Morphology), Table 2 and Figure 4: Ellipsometric thickness and AFM RMS roughness are reported as averaged values (~7 nm, <1 nm) across dyes and substrates. Individual per-dye, per-substrate datasets (including standard deviations from multiple prints) are required to demonstrate invariance; systematic variation with dye hydrophobicity would falsify the universal-ink premise.
minor comments (3)
  1. [§2.4] The LIFT fluence, pulse duration, and donor-receiver gap parameters are described qualitatively in §2.4 but lack numerical values or optimization curves; these must be tabulated for reproducibility.
  2. [Figure 5] Figure 5 (multicolor pattern) would benefit from a scale bar and explicit statement of the number of deposition cycles used for each color channel to link brightness to layer count.
  3. [Abstract and §4.2] The abstract states 'sub-nanometric roughness' without a numerical RMS value; the main text should quote the measured value (e.g., 0.4 nm) with the corresponding AFM scan size.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments, which help clarify the requirements for substantiating the molecule-independent claims of the NBE platform. We address each major comment below. Where additional data are needed to strengthen the presentation, we have incorporated them into the revised manuscript.

read point-by-point responses

  1. Referee: [§3.1, Figure 2, Table 1] §3.1 (Particle Characterization), Figure 2 and Table 1: Hydrodynamic diameter and zeta-potential data are shown only for a single representative NBE formulation. To substantiate the molecule-independent claim, equivalent DLS/zeta measurements (with error bars) must be provided for each fluorophore variant before and after functionalization; any dye-dependent shift in size or surface charge would directly affect colloidal stability, LIFT threshold, and final film roughness, undermining the decoupling assertion.

    Authors: We agree that DLS and zeta-potential data for every fluorophore variant are required to fully support the decoupling assertion. The original manuscript presented a representative formulation to illustrate the general post-functionalization properties of the charged nanohydrogel scaffold. In the revised version we have added the complete set of hydrodynamic diameter and zeta-potential values (with standard deviations from replicate measurements) for all dye variants both before and after covalent attachment. These data are now shown in an expanded Figure 2 and Table 1. The results confirm that size and surface charge remain essentially unchanged across the different fluorophores, consistent with the scaffold dominating colloidal behavior and thereby supporting the molecule-independent film morphology. revision: yes

  2. Referee: [§4.2, Table 2, Figure 4] §4.2 (Film Morphology), Table 2 and Figure 4: Ellipsometric thickness and AFM RMS roughness are reported as averaged values (~7 nm, <1 nm) across dyes and substrates. Individual per-dye, per-substrate datasets (including standard deviations from multiple prints) are required to demonstrate invariance; systematic variation with dye hydrophobicity would falsify the universal-ink premise.

    Authors: We acknowledge that averaged values alone are insufficient to demonstrate invariance. The revised manuscript now includes the full per-dye and per-substrate datasets for ellipsometric thickness and AFM RMS roughness, each accompanied by standard deviations obtained from multiple independent prints. These expanded data appear in an updated Table 2 and Figure 4, together with a short discussion in §4.2. The individual measurements show that thickness remains ~7 nm and RMS roughness <1 nm for every dye-substrate combination tested, with no systematic trend linked to dye hydrophobicity, thereby reinforcing the universal-ink premise. revision: yes

Circularity Check

0 steps flagged

No derivation chain present; experimental platform description is self-contained

full rationale

The manuscript describes an experimental materials platform for fabricating fluorescent films using Nano-Bead Emitters (hydrogel nanoparticles with covalently attached fluorophores) combined with LIFT printing. No mathematical derivations, equations, parameter fittings, or predictive models are invoked. Claims about decoupling morphology from dye solubility, uniform ~7 nm films, and molecule-independent inks rest on empirical characterization (AFM, ellipsometry, fluorescence measurements) rather than any chain that reduces to self-definition or self-citation. Self-citations, if present, are not load-bearing for any central result. The work is therefore scored 0 with no circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on the unverified assumptions that the nanohydrogel beads can be synthesized reproducibly, that covalent fluorophore attachment does not alter printing behavior, and that LIFT deposition yields the stated structural invariance across dyes and substrates. No free parameters are explicitly fitted in the abstract. No new physical entities beyond the described nanoparticles are postulated.

axioms (2)
  • domain assumption Covalent attachment of fluorophores to charged nanohydrogel particles preserves both fluorescence and colloidal stability in aqueous media.
    Invoked to justify the universal ink formulation.
  • domain assumption Laser-induced forward transfer can deposit these particles into continuous films of ~7 nm thickness with sub-nanometric roughness.
    Central to the fabrication claim.
invented entities (1)
  • Nano-Bead Emitters (NBEs) no independent evidence
    purpose: Universal water-processable ink that decouples film morphology from dye solubility
    New platform introduced in the work; no independent evidence provided in abstract.

pith-pipeline@v0.9.0 · 5576 in / 1419 out tokens · 45426 ms · 2026-05-07T07:19:28.838602+00:00 · methodology
