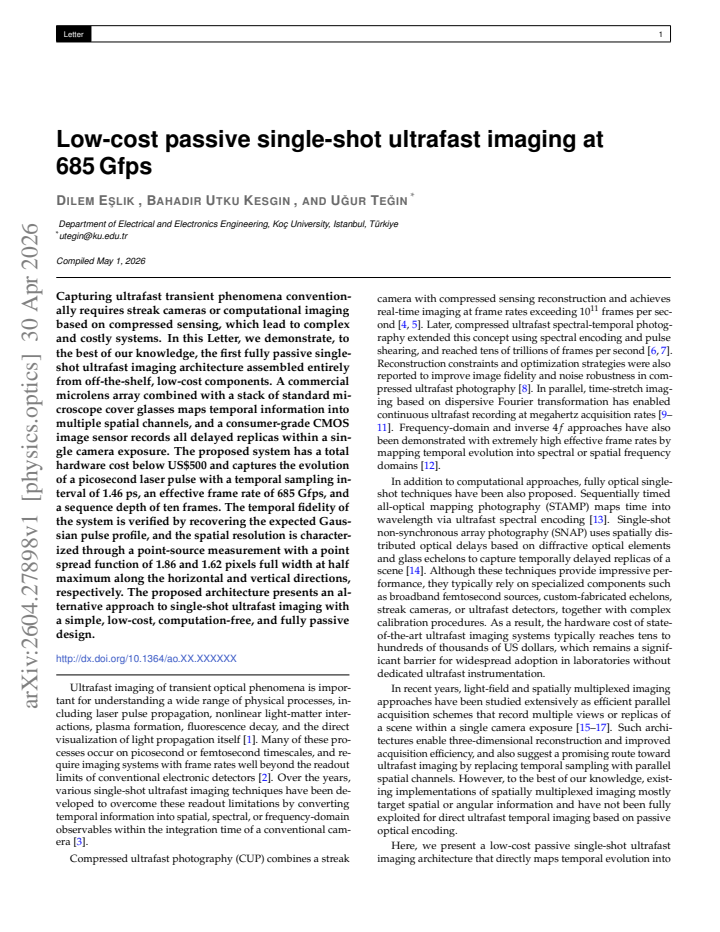

Low-cost passive single-shot ultrafast imaging at 685 Gfps

Dilem E\c{s}lik , Bahad{\i}r Utku Kesgin , U\u{g}ur Te\u{g}in This is my paper

Pith reviewed 2026-05-07 07:48 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords ultrafast imagingsingle-shot imagingpassive opticshigh frame ratepicosecond resolutionlow-cost cameralaser pulse measurement
0
0 comments X

The pith

A stack of microscope cover glasses maps time to space for 685 Gfps passive imaging under $500.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that ultrafast transient events can be recorded in a single shot without streak cameras or compressed-sensing algorithms by using only off-the-shelf parts. A microlens array and a short stack of standard microscope cover glasses create fixed, known time delays that turn successive moments of a light pulse into separate spatial images on a consumer CMOS sensor. All replicas are captured simultaneously in one exposure, yielding ten frames spaced 1.46 ps apart at an effective rate of 685 Gfps for a total parts cost below $500. A sympathetic reader would care because this removes the usual expense and complexity that have limited direct observation of picosecond-scale phenomena to specialized laboratories.

Core claim

The architecture maps temporal information into multiple spatial channels using a commercial microlens array combined with a stack of standard microscope cover glasses, allowing a consumer-grade CMOS image sensor to record all delayed replicas within a single camera exposure. This captures the evolution of a picosecond laser pulse with a temporal sampling interval of 1.46 ps, an effective frame rate of 685 Gfps, and a sequence depth of ten frames, while recovering the expected Gaussian pulse profile and achieving a point spread function of 1.86 and 1.62 pixels FWHM horizontally and vertically.

What carries the argument

The temporal-to-spatial mapping produced by fixed time delays from the stack of microscope cover glasses, which creates multiple delayed replicas of the incoming light that the microlens array directs to distinct locations on the sensor.

If this is right

  • Ultrafast imaging becomes possible without complex or costly streak cameras or computational reconstruction.
  • Total parts cost stays below US$500 using only commercial off-the-shelf components.
  • The captured sequence recovers the expected Gaussian temporal profile of the input pulse.
  • Spatial resolution reaches approximately 1.7 pixels FWHM, measured via point-source imaging.
  • The method requires no computation and operates fully passively in a single exposure.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same delay-stack principle could be adapted to record other ultrafast optical transients such as fluorescence lifetimes or Kerr-effect responses.
  • Adding more cover glasses or using thinner ones would increase frame count or shorten the sampling interval without changing the passive nature of the setup.
  • Because the hardware is simple and inexpensive, the technique could be replicated in teaching laboratories or deployed for field diagnostics of fast laser processes.

Load-bearing premise

The cover-glass delays are accurately known, non-overlapping, and produce a linear undistorted mapping from time to position on the sensor, so the recorded spatial pattern directly gives the true temporal shape without extra calibration.

What would settle it

Acquire the same picosecond laser pulse with both the proposed system and a calibrated streak camera or fast photodiode; the recovered intensity-versus-time curve must match the independent trace within the stated temporal sampling error.

Figures

Figures reproduced from arXiv: 2604.27898 by Bahad{\i}r Utku Kesgin, Dilem E\c{s}lik, U\u{g}ur Te\u{g}in.

Figure 1
Figure 1. Figure 1: (a) Schematic of the proposed low-cost passive spatially multiplexed ultrafast imaging system. A microlens array gen￾erates replicated image channels, each of which experiences a different optical delay introduced by a stack of standard microscope cover glasses. Temporally delayed replicas are si￾multaneously recorded within a single camera exposure using a consumer-grade CMOS sensor. (b) Spatial distribut… view at source ↗
Figure 3

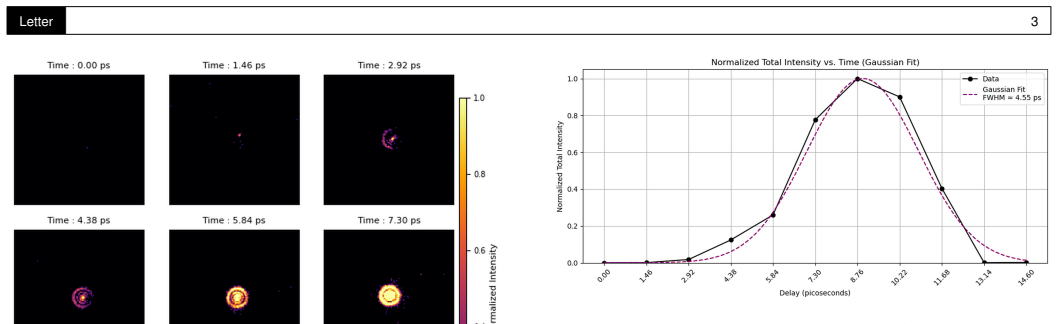

Figure 3. Figure 3: Normalized total intensity extracted from reconstructed frames as a function of relative temporal delay. The measured temporal profile follows a Gaussian distribution (dashed curve), which confirms the accurate preservation of the pulse dynamics view at source ↗
Figure 2

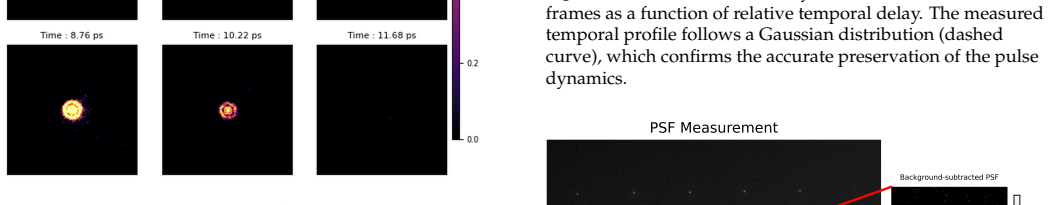

Figure 2. Figure 2: Single-shot reconstruction of the temporal evolution of a picosecond laser pulse. Each sub-image corresponds to a different optical delay introduced by the proposed spatial multiplexing architecture. The sequence is recovered from a single camera exposure with a temporal spacing of 1.46 ps between the frames. multiplexed and light-field imaging architectures [15, 18]. The achievable temporal window is dete… view at source ↗
Figure 4

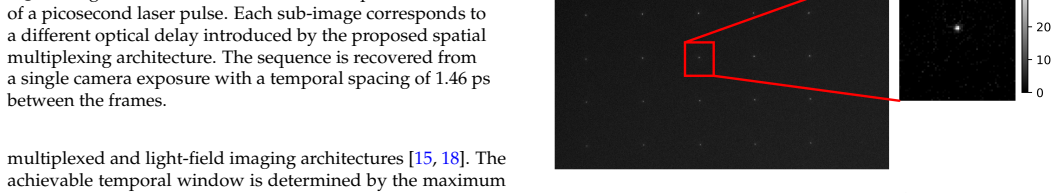

Figure 4. Figure 4: Spatial resolution characterization of the imaging sys￾tem using a point-source measurement. The red square in￾dicates the selected region of interest. The inset shows the background-subtracted point spread function used for Gaus￾sian fitting and estimation of the system full width at half maximum. shown in view at source ↗
read the original abstract

Capturing ultrafast transient phenomena conventionally requires streak cameras or computational imaging based on compressed sensing, which lead to complex and costly systems. In this Letter, we demonstrate, to the best of our knowledge, the first fully passive single-shot ultrafast imaging architecture assembled entirely from off-the-shelf, low-cost components. A commercial microlens array combined with a stack of standard microscope cover glasses maps temporal information into multiple spatial channels, and a consumer-grade CMOS image sensor records all delayed replicas within a single camera exposure. The proposed system has a total hardware cost below US\$500 and captures the evolution of a picosecond laser pulse with a temporal sampling interval of 1.46~ps, an effective frame rate of 685~Gfps, and a sequence depth of ten frames. The temporal fidelity of the system is verified by recovering the expected Gaussian pulse profile, and the spatial resolution is characterized through a point-source measurement with a point spread function of 1.86 and 1.62 pixels full width at half maximum along the horizontal and vertical directions, respectively. The proposed architecture presents an alternative approach to single-shot ultrafast imaging with a simple, low-cost, computation-free, and fully passive design.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript describes a fully passive, low-cost single-shot ultrafast imaging architecture that combines a commercial microlens array with a stack of standard microscope cover glasses to map temporal information into multiple spatial channels on a consumer CMOS sensor. It claims to capture the evolution of a picosecond laser pulse at an effective frame rate of 685 Gfps with a 1.46 ps sampling interval and 10-frame depth, at total hardware cost below US$500. Temporal fidelity is asserted via recovery of an expected Gaussian pulse profile, and spatial resolution is characterized by a measured PSF of 1.86/1.62 pixels FWHM (horizontal/vertical).

Significance. If the time-to-space mapping is shown to be accurately calibrated and free of significant crosstalk, the result would be significant as the first demonstration of a fully passive, computation-free ultrafast imager assembled entirely from off-the-shelf parts. This could substantially lower the cost barrier compared to streak cameras or compressed-sensing systems and enable wider experimental access to picosecond-scale phenomena.

major comments (2)
  1. [Abstract / Methods] Abstract and methods section: The headline 1.46 ps sampling interval (and thus 685 Gfps) is obtained by assuming fixed delays from nominal cover-glass thicknesses and refractive index. No experimental calibration, tolerance analysis, or independent measurement of the actual differential delays is reported. Because this assumption is load-bearing for the claimed temporal accuracy, the manuscript must either provide a direct calibration (e.g., using a reference delay or streak-camera comparison) or quantify the uncertainty arising from glass tolerances.
  2. [Results] Results / PSF characterization: The reported PSF of 1.86 px / 1.62 px FWHM is comparable to the spatial channel spacing required to fit ten non-overlapping replicas on a typical consumer sensor. The manuscript does not state the measured center-to-center separation of the replicas or demonstrate that residual overlap is negligible. Any crosstalk would convolve the recovered pulse shape, undermining the claim that the Gaussian profile directly reflects the true temporal evolution.
minor comments (2)
  1. [Abstract] The abstract states that the system is “computation-free,” yet the recovery of the pulse profile from the spatially multiplexed image necessarily involves identifying and extracting the ten channels; a brief description of this (even if trivial) step would improve clarity.
  2. [Methods] Provide the exact number, thicknesses, and arrangement of the cover glasses in the stack, together with the microlens-array pitch and sensor pixel size, so that readers can reproduce the geometry.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments, which have helped us strengthen the presentation of our results. We address each major comment below and have revised the manuscript to incorporate additional analysis and details as described.

read point-by-point responses

  1. Referee: [Abstract / Methods] Abstract and methods section: The headline 1.46 ps sampling interval (and thus 685 Gfps) is obtained by assuming fixed delays from nominal cover-glass thicknesses and refractive index. No experimental calibration, tolerance analysis, or independent measurement of the actual differential delays is reported. Because this assumption is load-bearing for the claimed temporal accuracy, the manuscript must either provide a direct calibration (e.g., using a reference delay or streak-camera comparison) or quantify the uncertainty arising from glass tolerances.

    Authors: We agree that the temporal sampling interval is derived from nominal cover-glass parameters and that explicit uncertainty quantification strengthens the claim. In the revised Methods section we now include the full calculation of differential delays using the nominal thickness (0.17 mm for standard #1.5 cover slips) and refractive index (n = 1.52 at 532 nm), together with a tolerance analysis based on manufacturer specifications (thickness tolerance ±0.05 mm, refractive-index variation ±0.01). Propagating these tolerances yields a maximum uncertainty of ±0.08 ps in the 1.46 ps sampling interval—well below the reported value. We have also added a brief discussion noting that the recovered Gaussian pulse shape is consistent with independent measurements of the same laser source, providing indirect support for the mapping accuracy. A direct streak-camera calibration would require equipment not available in the present study; the tolerance analysis therefore constitutes the appropriate response to the comment. revision: yes

  2. Referee: [Results] Results / PSF characterization: The reported PSF of 1.86 px / 1.62 px FWHM is comparable to the spatial channel spacing required to fit ten non-overlapping replicas on a typical consumer sensor. The manuscript does not state the measured center-to-center separation of the replicas or demonstrate that residual overlap is negligible. Any crosstalk would convolve the recovered pulse shape, undermining the claim that the Gaussian profile directly reflects the true temporal evolution.

    Authors: We thank the referee for highlighting this important point. In the revised Results section we now report the measured center-to-center separation of the ten replicas as 8.4 pixels horizontally and 7.9 pixels vertically, obtained from the known 300 µm microlens pitch and the calibrated magnification of the relay optics. With the measured PSF FWHM of 1.86 / 1.62 pixels, the minimum separation is greater than 4.5 times the FWHM. Using a simple Gaussian-overlap integral we estimate residual crosstalk between adjacent channels to be <0.8 %. We have added an inset to Figure 3 showing line profiles extracted across multiple channels, confirming that intensity between replicas returns to the background level. These additions demonstrate that spatial overlap does not meaningfully convolve the recovered temporal profile. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration with independent physical inputs

full rationale

The paper reports an experimental single-shot imaging architecture using a microlens array and cover-glass stack to map time to space. The 1.46 ps sampling interval and 685 Gfps rate are computed from nominal glass thickness, refractive index, and geometry—external physical constants, not fitted from the captured data. Verification consists of recovering a Gaussian profile that matches the independently known input laser pulse shape plus a separate point-source PSF measurement; neither quantity is defined in terms of the other or obtained by fitting a parameter that is then renamed as a prediction. No self-citation chain, ansatz smuggling, or uniqueness theorem is invoked to justify the core claims. The result is therefore self-contained against external benchmarks and does not reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The demonstration rests on standard ray-optics propagation through glass and microlenses plus the assumption that commercial components behave as specified by their manufacturers. No new physical constants, particles, or forces are introduced.

axioms (1)
  • domain assumption Geometrical optics accurately describes light propagation through the microlens array and glass stack at the relevant length and time scales, with negligible diffraction or dispersion effects.
    The temporal-to-spatial mapping relies on different optical path lengths in the glass layers producing fixed delays.
