Frame-indifferent discretization in nonlinear thermoviscoelasticity: Analysis and numerical simulations
Pith reviewed 2026-05-07 07:48 UTC · model grok-4.3
The pith
A time-discrete scheme for nonlinear thermoviscoelasticity can be built to satisfy frame indifference under rotations at every step.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The central claim is that by imposing frame indifference at the time-discrete level in the discretization of the quasi-static nonlinear thermoviscoelasticity model with Kelvin-Voigt rheology, where both elastic and viscous stress tensors obey rotational invariance, one obtains a scheme that admits solutions and converges to the continuous solution.
What carries the argument
The frame-indifferent time-discrete approximation of the Kelvin-Voigt thermoviscoelastic system, which enforces rotational invariance on the discrete stresses.
If this is right
- Existence of discrete solutions is guaranteed at each time step.
- The discrete solutions converge to a weak solution of the continuous problem as the time increment approaches zero.
- Numerical simulations validate that the scheme preserves frame indifference without spurious effects.
- The approach refines prior schemes by incorporating the invariance property directly into the discrete formulation.
Where Pith is reading between the lines
- Similar frame-indifferent discretizations could be developed for other nonlinear models in continuum mechanics to ensure physical consistency.
- In practical applications this might lead to more reliable predictions for material behavior under combined thermal and mechanical loads with large rotations.
- The method might extend to coupled problems involving additional fields like plasticity or damage.
Load-bearing premise
The continuous thermoviscoelastic model satisfies the principle of frame indifference for its elastic and viscous stresses, allowing the discrete scheme to inherit this property while remaining solvable.
What would settle it
A computation in which the discrete stress response changes under a superimposed rigid rotation of the deformation would show that frame indifference is not preserved at the discrete level.
Figures

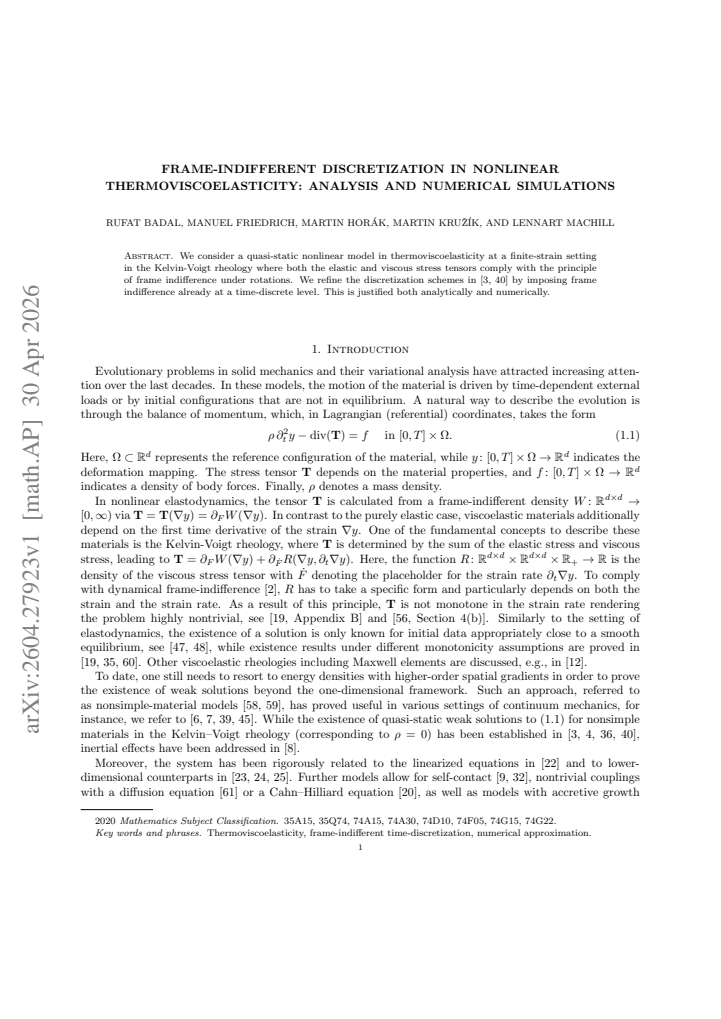

read the original abstract
We consider a quasi-static nonlinear model in thermoviscoelasticity at a finite-strain setting in the Kelvin-Voigt rheology where both the elastic and viscous stress tensors comply with the principle of frame indifference under rotations. We refine the discretization schemes in [Badal-Friedrich-Kru\v{z}\'ik '23, Mielke-Roub\'{\i}\v{c}ek '20] by imposing frame indifference already at a time-discrete level. This is justified both analytically and numerically.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper develops a time-discrete incremental minimization scheme for the quasi-static finite-strain Kelvin-Voigt thermoviscoelastic system in which both the elastic energy and viscous dissipation potential are expressed directly in terms of the right Cauchy-Green tensor C and its discrete increments. This construction enforces exact frame indifference under superposed rigid rotations at every time step. Well-posedness of each incremental problem follows from the direct method in the calculus of variations, while convergence of the discrete solutions to a weak solution of the continuous system is obtained from a discrete energy-dissipation inequality, uniform a priori bounds, compactness, and passage to the limit in the weak formulations of the momentum and heat equations. Numerical experiments on benchmark problems confirm exact invariance under rotations and compare the scheme favorably with non-objective alternatives.
Significance. If the central claims hold, the work is a meaningful contribution to structure-preserving discretizations for nonlinear continuum mechanics. Frame indifference is a fundamental physical requirement in finite-strain models; preserving it exactly at the discrete level removes a potential source of non-physical artifacts that can appear in earlier schemes. The combination of a variational existence proof, a rigorous convergence argument based on energy methods, and concrete numerical validation on rotation-invariance tests provides both theoretical justification and practical evidence. The approach refines the discretizations of Badal-Friedrich-Kružík (2023) and Mielke-Roubíček (2020) in a targeted way that could be useful for other objective models in thermoviscoelasticity and related fields.
minor comments (3)
- [§3] §3 (discrete scheme): the precise definition of the discrete difference operator appearing in the viscous dissipation potential should be written out explicitly, including the time-step scaling, to facilitate direct implementation and verification of the frame-indifference property.
- [§5] §5 (numerical experiments): the material parameters, mesh sizes, and time-step sizes employed in the benchmark computations are not listed in a single table; adding these values would improve reproducibility of the reported invariance tests.
- [§4] The passage to the limit for the nonlinear viscous stress term relies on weak convergence; a brief remark clarifying how the monotonicity or convexity assumptions on the dissipation potential are used to identify the limit would strengthen the argument.
Simulated Author's Rebuttal
We thank the referee for the positive summary and significance assessment of our work on frame-indifferent time-discretization for nonlinear thermoviscoelasticity. The recommendation for minor revision is noted. No specific major comments were provided in the report, so we have no individual points to address. We remain available to incorporate any minor editorial suggestions from the editor.
Circularity Check
Minor self-citation to prior discretization schemes; new frame-indifference constraint is independently constructed and analyzed
full rationale
The paper refines prior schemes by explicitly formulating the time-discrete incremental energy in terms of the right Cauchy-Green tensor C and its discrete difference, thereby enforcing exact frame indifference by construction at each step. Well-posedness follows from the direct method (coercivity and weak lower semicontinuity of the incremental functional), while convergence to a weak solution of the continuous system is obtained from the discrete energy-dissipation inequality, uniform a priori bounds, compactness arguments, and passage to the limit in the weak forms. The citations to [Badal-Friedrich-Kružík '23] and [Mielke-Roubíček '20] supply the baseline continuous model and earlier non-objective discretizations but do not bear the load of the new objective scheme or its proofs, which rely on standard variational and compactness techniques applied to the explicitly defined objective functional. No step reduces a claimed prediction or uniqueness result to a fitted parameter or self-referential definition.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Both elastic and viscous stress tensors comply with the principle of frame indifference under rotations.
- domain assumption The model is quasi-static and nonlinear at finite strain in Kelvin-Voigt rheology.
