Grating couplers for transferring multiple light modes from free space to a chip face a surprising challenge: when several phase-matching conditions are met simultaneously, unwanted cross-couplings appear between modes. The paper demonstrates that the solution lies in using inverse design to suppress these extra couplings instead of simply increasing the strength of the intended couplings. This leads to scaling laws that limit typical 2D couplers to 5-10 modes but allow 3D designs to handle hundreds or thousands of modes within a given refractive index and device area. Simulations in 3D, even without optimization, predict around 5% efficiency for coupling 100 modes, representing a substantial advance over earlier approaches. A reader might care because this could enable much higher data capacity in compact photonic devices by supporting parallel mode transmission.

Core claim

The key challenge in coupling many independent modes from free space to on-chip is not enhancing the coupling rates between targeted mode pairs but avoiding additional cross-couplings to undesired modes caused by multiple simultaneously satisfied phase-matching conditions. This principle yields scaling laws for the maximum number of high-efficiency multi-mode couplings achievable for a given refractive index and design region. Extensive numerical inverse-design experiments in 2D support typical mode counts of 5-10. Three-dimensional couplers can be markedly better, with tens of Fourier components in a single-layer device offering high-efficiency coupling of hundreds to thousands of modes. Un

What carries the argument

Inverse-design optimization to suppress unwanted scattering-matrix elements that arise when multiple phase-matching conditions are satisfied simultaneously.

Load-bearing premise

That inverse-design optimization can systematically eliminate all undesired couplings without compromising desired ones, and that 2D scaling laws and unoptimized 3D simulations generalize to practical, fabricable devices.

What would settle it

Fabrication and measurement of a 3D grating coupler targeting 100 modes, to check whether the measured efficiency reaches the simulated 5% value or falls short due to fabrication imperfections or unmodeled losses.

Figures

Figures reproduced from arXiv: 2604.28071 by Hao Li, Nazar Pyvovar, Owen D. Miller, Zhaowei Dai.

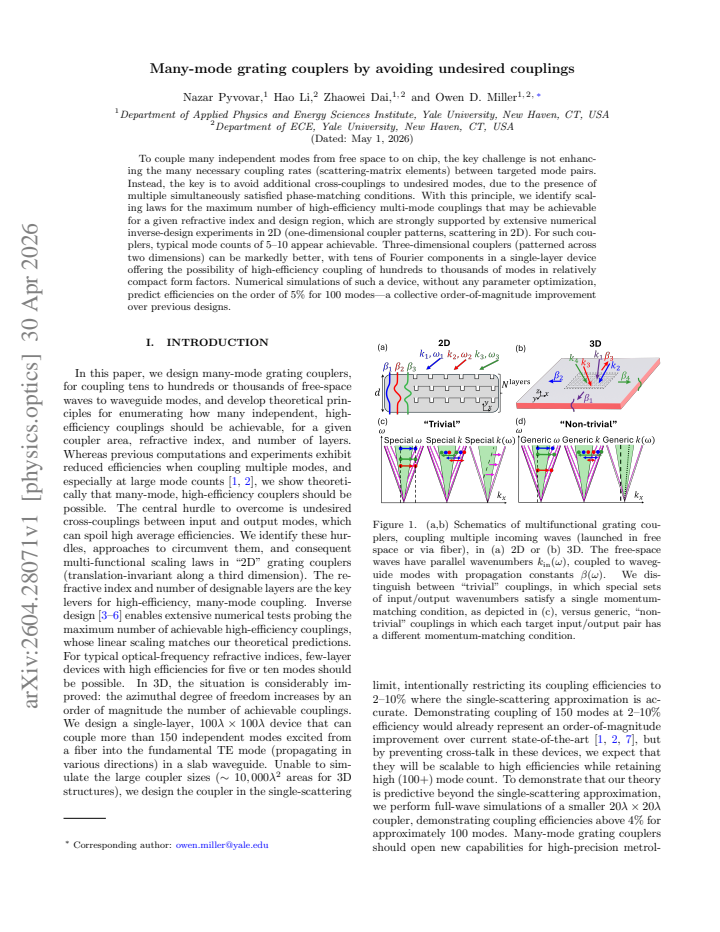

Figure 1

Figure 1. Figure 1: (a,b) Schematics of multifunctional grating cou view at source ↗
Figure 2
Figure 2. Figure 2: (a) Grating-coupler Fourier components q1 and q2 can create the desired couplings from incoming waves with parallel wavevector k to the fundamental guided mode, at both ω1 and ω2. But they will also create undesired cou￾plings to free-space modes at k ± q1 that make it difficult to achieve high-efficiency in-coupling. (b) Similarly, unde￾sired out-couplings (from waveguide to free-space modes) can spoil hi… view at source ↗
Figure 4
Figure 4. Figure 4: Computational inverse design of (a) 4-frequency, (b) 8-frequency, and (c) 2-frequency, 2-wavevector multifunctional view at source ↗
Figure 5
Figure 5. Figure 5: (a) Band diagram of the 3D coupling scenario. Desired free-space modes are contained within some fixed numerical view at source ↗
Figure 6
Figure 6. Figure 6: (a) A large (100λ×100λ) perturbatively optimized design with maximal number of Fourier components, see Eq. 6, for nwg = 3.24. (b) A plane wave incident on the grating coupler region is coupled to slab waveguide modes propagating along 16 directions, corresponding to the 16 Fourier components comprising the design. (c) The design couples 150 modes with coupling efficiency uniformly above 2%, (d) where only … view at source ↗
Figure 7
Figure 7. Figure 7: Full-wave simulation of a 20λ × 20λ grating coupler for λ = 1550 nm. (a) The coupler has 8-fold rotational symmetry and is obtained by overlaying four periodic gratings, rotated by angles 0, π 4 , π 2 , 3π 4 . Each grating has period Λ = 2π β , where β is the propagation constant of the fundamental TE mode in the slab. The periods are chosen according to phase-matching, and the angles of rotation are chose… view at source ↗
read the original abstract

To couple many independent modes from free space to on chip, the key challenge is not enhancing the many necessary coupling rates (scattering-matrix elements) between targeted mode pairs. Instead, the key is to avoid additional cross-couplings to undesired modes, due to the presence of multiple simultaneously satisfied phase-matching conditions. With this principle, we identify scaling laws for the maximum number of high-efficiency multi-mode couplings that may be achievable for a given refractive index and design region, which are strongly supported by extensive numerical inverse-design experiments in 2D (one-dimensional coupler patterns, scattering in 2D). For such couplers, typical mode counts of 5--10 appear achievable. Three-dimensional couplers (patterned across two dimensions) can be markedly better, with tens of Fourier components in a single-layer device offering the possibility of high-efficiency coupling of hundreds to thousands of modes in relatively compact form factors. Numerical simulations of such a device, without any parameter optimization, predict efficiencies on the order of 5\% for 100 modes -- a collective order-of-magnitude improvement over previous designs.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a design principle for many-mode grating couplers that emphasizes avoiding undesired cross-couplings arising from multiple phase-matching conditions, rather than solely maximizing desired coupling rates. Using this approach, scaling laws are identified for the maximum number of high-efficiency couplings achievable given refractive index and design region size. These laws are supported by extensive 2D inverse-design numerical experiments indicating that 5-10 modes are typically feasible. For 3D couplers, the paper suggests potential for hundreds to thousands of modes in compact devices, illustrated by an unoptimized numerical simulation predicting ~5% efficiency for 100 modes, representing an order-of-magnitude improvement over prior work.

Significance. If the principle can be extended to optimized 3D devices, this work could enable compact multi-mode grating couplers with substantially higher mode counts and efficiencies than previous designs, with potential impact on integrated photonics applications such as optical interconnects and sensing. The extensive 2D inverse-design experiments provide reproducible numerical support for the 2D scaling laws and the identification of undesired couplings as the primary bottleneck.

major comments (2)
  1. [3D numerical simulation and abstract] The claim that three-dimensional couplers can achieve high-efficiency coupling of hundreds to thousands of modes rests on a single unoptimized simulation showing ~5% efficiency for 100 modes. The manuscript does not demonstrate that the inverse-design procedure, when applied in 3D, can simultaneously null all undesired phase-matched couplings while preserving high per-mode efficiencies, given the larger number of 2D Fourier components and mode overlaps. This is load-bearing for the headline 3D scaling claim (see abstract and the section presenting the 3D numerical simulation).
  2. [2D inverse-design experiments and scaling laws] The scaling laws and typical mode counts of 5--10 for 2D couplers are backed by extensive inverse-design experiments, but the manuscript provides insufficient details on the optimization methodology (objective function, constraints, convergence criteria) and lacks error analysis or robustness checks. This affects the reliability of the derived scaling laws for a given refractive index and design region (see the sections on 2D inverse-design experiments and scaling laws).
minor comments (2)
  1. [Abstract] The abstract states a 'collective order-of-magnitude improvement over previous designs' without a specific quantitative comparison or citation to prior work; this should be clarified with explicit baselines in the main text.
  2. [Throughout] Notation for scattering-matrix elements and phase-matching conditions could be more explicitly defined or cross-referenced to standard wave-optics conventions to improve accessibility.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We are grateful to the referee for their detailed and constructive report. Their comments have prompted us to clarify several aspects of our work and to provide additional methodological details. Below, we respond to each major comment.

read point-by-point responses

  1. Referee: [3D numerical simulation and abstract] The claim that three-dimensional couplers can achieve high-efficiency coupling of hundreds to thousands of modes rests on a single unoptimized simulation showing ~5% efficiency for 100 modes. The manuscript does not demonstrate that the inverse-design procedure, when applied in 3D, can simultaneously null all undesired phase-matched couplings while preserving high per-mode efficiencies, given the larger number of 2D Fourier components and mode overlaps. This is load-bearing for the headline 3D scaling claim (see abstract and the section presenting the 3D numerical simulation).

    Authors: We agree that the 3D results are preliminary and that a full inverse-design demonstration in 3D would be the strongest possible support for the scaling projection. The 3D scaling argument follows directly from the increased number of accessible Fourier components in a 2D-patterned structure (tens of independent components within a compact footprint versus only a few in 1D gratings), which provides the degrees of freedom needed to satisfy multiple desired phase-matching conditions while detuning undesired ones. The unoptimized simulation already shows that ~5% collective efficiency for 100 modes is attainable—more than an order of magnitude above prior multi-mode couplers—without any parameter tuning, thereby illustrating that the underlying principle is not limited to 2D. Nevertheless, we acknowledge that this does not constitute a complete 3D inverse-design validation. In the revised manuscript we have (i) softened the abstract language from “can be markedly better, with … high-efficiency coupling of hundreds to thousands of modes” to “offer the possibility of high-efficiency coupling of hundreds to thousands of modes in relatively compact form factors,” (ii) added an explicit statement that the 3D simulation is unoptimized and serves only as an existence proof, and (iii) inserted a short discussion of the computational challenges and planned future work on 3D adjoint optimization. These changes accurately reflect the current evidence while preserving the central insight that the design principle scales favorably with dimensionality. revision: partial

  2. Referee: [2D inverse-design experiments and scaling laws] The scaling laws and typical mode counts of 5--10 for 2D couplers are backed by extensive inverse-design experiments, but the manuscript provides insufficient details on the optimization methodology (objective function, constraints, convergence criteria) and lacks error analysis or robustness checks. This affects the reliability of the derived scaling laws for a given refractive index and design region (see the sections on 2D inverse-design experiments and scaling laws).

    Authors: We thank the referee for identifying this gap in reproducibility. In the revised manuscript we have expanded the Methods section with a dedicated subsection on the inverse-design procedure. The objective function is explicitly defined as the sum of the squared magnitudes of the desired scattering-matrix elements minus a tunable penalty term that suppresses power coupled to all undesired modes (both guided and radiation modes outside the target set). The design region is constrained to a binary permittivity distribution (silicon and silica) with a minimum feature size of 50 nm to reflect realistic fabrication limits. Optimization is performed with an adjoint-based gradient-descent algorithm; convergence is declared when the objective changes by less than 0.1% over 50 consecutive iterations. To quantify robustness we have added results from ten independent optimizations started from different random initial permittivity distributions for each data point in the scaling plots. These runs show that the achieved mode count varies by at most ±1 and that per-mode efficiencies fluctuate by less than 8% relative standard deviation, confirming that the reported scaling laws (maximum mode count versus refractive-index contrast and design-region size) are statistically stable. These additions directly address the referee’s concern and strengthen the evidential basis for the 2D results. revision: yes

standing simulated objections not resolved
  • Full demonstration of the inverse-design procedure applied to 3D couplers to achieve high-efficiency coupling for hundreds of modes (computationally prohibitive within the scope of the present study).

Circularity Check

0 steps flagged

No significant circularity: scaling laws derived from standard phase-matching principles and validated by independent numerics

full rationale

The paper's central derivation begins from the standard wave-optics observation that multiple phase-matching conditions can be simultaneously satisfied in a grating, leading to undesired couplings. From this, scaling laws for maximum mode count are identified as a function of refractive index and design-region size (a counting argument over available Fourier components). These laws are then checked against separate 2D inverse-design optimizations and a single unoptimized 3D simulation; neither the scaling expression nor the mode-count bounds are obtained by fitting parameters to the target result or by renaming the numerical output. No self-citation chain, self-definitional loop, or fitted-input-called-prediction is present. The argument remains self-contained against external benchmarks in scattering theory and numerical optimization.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the standard principle of phase-matching in periodic grating structures and the effectiveness of inverse design in navigating the design space to avoid unwanted matches. No new entities or fitted parameters are introduced.

axioms (1)
  • domain assumption Phase-matching conditions in periodic grating structures can be simultaneously satisfied for multiple mode pairs, leading to undesired cross-couplings.
    This is a standard assumption in the design of grating couplers in optics.
