arxiv: 2605.00215 · v1 · submitted 2026-04-30 · 📡 eess.SP

Multi-Objective Adaptive Beamforming Using Partial Knowledge of Dynamic Dielectric Media for Non-Invasive Microwave Hyperthermia

Ahona Bhattacharyya , Tessa Haldes , Jeffrey A. Nanzer , Susan C. Hagness This is my paper

Pith reviewed 2026-05-09 20:03 UTC · model grok-4.3

classification 📡 eess.SP
keywords microwave hyperthermiaadaptive beamformingLCMP algorithmdielectric changesFDTD simulationbreast phantomsmulti-objective focusingnon-invasive heating
0
0 comments X

The pith

The LCMP algorithm maintains selective 45°C microwave heating in tissues despite unknown dielectric changes from the heating process itself.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how to design adaptive beamformers for non-invasive microwave hyperthermia that can focus energy on a tumor while avoiding healthy tissue, even as the heating alters the dielectric properties of the surrounding media. Standard approaches require frequent high-resolution dielectric maps from MRI or tomography to recalculate weights, but these are too slow for real-time use. Instead, the work tests the linear constrained minimum power algorithm, which uses only partial knowledge of the media to set weights that place a focus at the target and nulls elsewhere. Simulations at 2.5 GHz on analytical models and MRI-derived breast phantoms show that this produces the desired ~45°C selective absorption and thermal maps without needing to track every dielectric shift. A reader would care because successful partial-knowledge beamforming could make hyperthermia treatments more practical by reducing reliance on continuous imaging updates.

Core claim

The linear constrained minimum power (LCMP) algorithm enables effective near-field multi-objective beamforming for hyperthermia, achieving selective absorption that produces temperatures of approximately 45°C at a 2.5 GHz carrier frequency with little to no knowledge of dielectric media changes, while simultaneously placing nulls to avoid unwanted heating outside the treatment zone, as verified through finite-difference time-domain simulations on simple analytical models, heterogeneous cases, and anatomically realistic numerical breast phantoms derived from MRI.

What carries the argument

The linear constrained minimum power (LCMP) algorithm, which computes beamforming weights by minimizing total radiated power subject to linear constraints that enforce a focus at the target location and nulls at unwanted locations, thereby allowing adaptation with only partial knowledge of the changing dielectric media.

Load-bearing premise

The simulated dynamic dielectric changes and resulting thermal maps accurately represent real tissue behavior and that the partial-knowledge beamformer will translate to physical hardware without significant degradation.

What would settle it

A controlled physical test in which real-time heating of a tissue-mimicking phantom alters its dielectric properties while the LCMP weights are held fixed without dielectric-map updates, followed by measurement of whether the target region reaches 45°C selectively and off-target regions stay below therapeutic thresholds.

Figures

Figures reproduced from arXiv: 2605.00215 by Ahona Bhattacharyya, Jeffrey A. Nanzer, Susan C. Hagness, Tessa Haldes.

Figure 1
Figure 1. Figure 1: Conceptual diagram of the knowledge enhanced adaptive near [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Homogeneous fibroglangular tissue media setup with no dielectric [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 6
Figure 6. Figure 6: Heterogeneous media setup with Debye dielectric parameters similar [PITH_FULL_IMAGE:figures/full_fig_p005_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: MRI derived class II breast phantom with scattered fibroglandular [PITH_FULL_IMAGE:figures/full_fig_p005_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Power deposition data for (a) fat tissue and (b) fibrograndular tissue in air with focus cell location at the center for four, eight sixteen and thirty-two [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Power deposition profile along the x-axis at y = [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 10

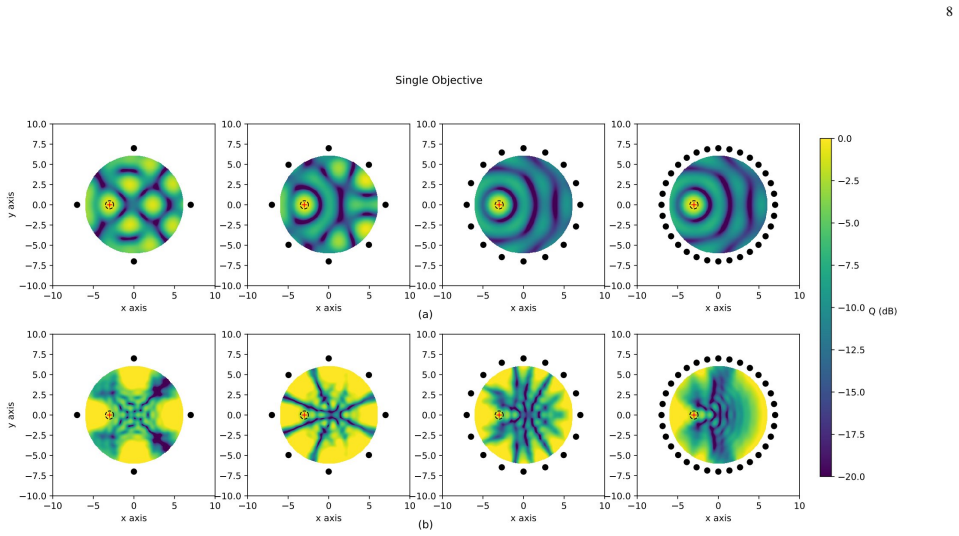

Figure 10. Figure 10: Power deposition data for (a) fat tissue and (b) fibrograndular tissue with focus cell location off-center at (x = [PITH_FULL_IMAGE:figures/full_fig_p008_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Power deposition profile along the x-axis at y = [PITH_FULL_IMAGE:figures/full_fig_p008_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: Power deposition in tissue and the 1D slice along the x-axis at y = [PITH_FULL_IMAGE:figures/full_fig_p009_12.png] view at source ↗
Figure 15
Figure 15. Figure 15: Changes in the absorbed power by the (a) total media, (b) treatment [PITH_FULL_IMAGE:figures/full_fig_p009_15.png] view at source ↗
Figure 17
Figure 17. Figure 17: Absorbed power by the (a) total media (b) treatment region and (c) [PITH_FULL_IMAGE:figures/full_fig_p010_17.png] view at source ↗
Figure 18
Figure 18. Figure 18: Absorbed power by the (a) total media, (b) treatment region and (c) [PITH_FULL_IMAGE:figures/full_fig_p010_18.png] view at source ↗
Figure 19
Figure 19. Figure 19: Power deposition with −3 dB contouring for (a) static, (b) ideal and (c) partial knowledge beamformer. The baseline for all three cases were the homogeneous state with no changes in any regions. The middle column for all three cases indicate a 30 % reduction in the treatment region Debye parameters. The surrounding region, hot zone 1, hot zone 2 and hot zone 3, experienced reductions of 12 %, 7 %, 18 % an… view at source ↗
Figure 21
Figure 21. Figure 21: Thermal map of test environment for (a) single objective and (b) [PITH_FULL_IMAGE:figures/full_fig_p012_21.png] view at source ↗
read the original abstract

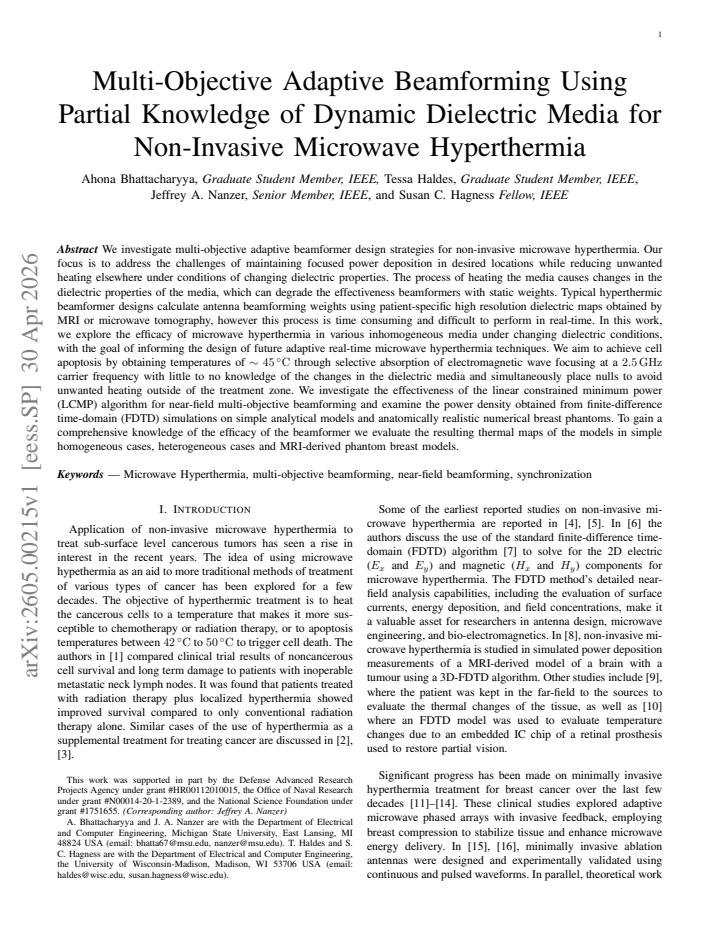

We investigate multi-objective adaptive beamformer design strategies for non-invasive microwave hyperthermia. Our focus is to address the challenges of maintaining focused power deposition in desired locations while reducing unwanted heating elsewhere under conditions of changing dielectric properties. The process of heating the media causes changes in the dielectric properties of the media, which can degrade the effectiveness beamformers with static weights. Typical hyperthermic beamformer designs calculate antenna beamforming weights using patient-specific high resolution dielectric maps obtained by MRI or microwave tomography, however this process is time consuming and difficult to perform in real-time. In this work, we explore the efficacy of microwave hyperthermia in various inhomogeneous media under changing dielectric conditions, with the goal of informing the design of future adaptive real-time microwave hyperthermia techniques. We aim to achieve cell apoptosis by obtaining temperatures of $\sim$ 45 $^\circ\text{C}$ through selective absorption of electromagnetic wave focusing at a 2.5 GHz carrier frequency with little to no knowledge of the changes in the dielectric media and simultaneously place nulls to avoid unwanted heating outside of the treatment zone. We investigate the effectiveness of the linear constrained minimum power (LCMP) algorithm for near-field multi-objective beamforming and examine the power density obtained from finite-difference time-domain (FDTD) simulations on simple analytical models and anatomically realistic numerical breast phantoms. To gain a comprehensive knowledge of the efficacy of the beamformer we evaluate the resulting thermal maps of the models in simple homogeneous cases, heterogeneous cases and MRI-derived phantom breast models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript investigates multi-objective adaptive beamforming for non-invasive microwave hyperthermia at 2.5 GHz using the linear constrained minimum power (LCMP) algorithm. It claims that LCMP enables selective absorption to achieve ~45°C in target regions while placing nulls to minimize unwanted heating, even with little to no knowledge of dynamic dielectric changes induced by heating. Efficacy is demonstrated through FDTD simulations evaluating power density and thermal maps on analytical homogeneous/heterogeneous models and MRI-derived breast phantoms.

Significance. If the simulation results hold under the stated conditions, the work could advance practical hyperthermia by showing that partial-knowledge adaptive beamformers like LCMP maintain performance despite dielectric shifts, reducing the need for repeated high-resolution MRI/tomography. The use of both simple analytical models and anatomically realistic phantoms strengthens the simulation framework, providing a reproducible basis for real-time technique development, though hardware translation and quantitative validation metrics remain open.

major comments (3)
  1. Abstract: the central claim of achieving ~45°C selective absorption is presented without quantitative error bars, standard deviations, or ranges across simulation runs, which undermines assessment of robustness to modeled dielectric changes.
  2. Abstract: no explicit comparison to static beamformers is reported, leaving unclear the incremental benefit of the partial-knowledge LCMP approach when dielectric properties vary dynamically.
  3. FDTD Simulations section: the modeling of dynamic dielectric changes (e.g., specific temperature-dependent functions for permittivity/conductivity) is not detailed, which is load-bearing for validating the 'little to no knowledge' premise.
minor comments (2)
  1. Abstract: clarify the exact partial information assumed available to the beamformer (e.g., nominal values or low-resolution estimates) to make the 'little to no knowledge' claim more precise.
  2. Consider adding a summary table of peak temperatures and null depths across phantom types for direct cross-case comparison.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for their constructive feedback, which has helped us identify areas where the manuscript can be clarified and strengthened. We address each major comment below and will incorporate revisions to improve the presentation of our results on LCMP-based adaptive beamforming for non-invasive microwave hyperthermia.

read point-by-point responses

  1. Referee: Abstract: the central claim of achieving ~45°C selective absorption is presented without quantitative error bars, standard deviations, or ranges across simulation runs, which undermines assessment of robustness to modeled dielectric changes.

    Authors: We agree that the abstract would benefit from additional quantitative context to better illustrate robustness. In the revised manuscript, we will update the abstract to report the mean temperature achieved in the target region along with the standard deviation or observed range across the homogeneous, heterogeneous, and breast phantom simulation scenarios. This will provide a clearer indication of consistency under varying dielectric conditions. revision: yes

  2. Referee: Abstract: no explicit comparison to static beamformers is reported, leaving unclear the incremental benefit of the partial-knowledge LCMP approach when dielectric properties vary dynamically.

    Authors: The manuscript conceptually contrasts the adaptive LCMP method with static beamformers that rely on fixed initial dielectric maps and can degrade under dynamic changes. To make the benefit explicit as suggested, we will revise the abstract to include a brief statement on the performance advantage and expand the results section with direct comparisons of power density and thermal outcomes between static weights and LCMP under identical dynamic dielectric conditions. revision: yes

  3. Referee: FDTD Simulations section: the modeling of dynamic dielectric changes (e.g., specific temperature-dependent functions for permittivity/conductivity) is not detailed, which is load-bearing for validating the 'little to no knowledge' premise.

    Authors: We acknowledge that explicit details on the dielectric modeling are necessary for reproducibility and to substantiate the partial-knowledge claim. The revised FDTD Simulations section will include the specific temperature-dependent functions for permittivity and conductivity, based on established literature models for the relevant tissues. This will clarify how the simulations incorporate dynamic changes while the LCMP beamformer uses only initial or minimal dielectric information. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper evaluates the LCMP beamformer via FDTD simulations on analytical models and MRI-derived breast phantoms under modeled dielectric changes at 2.5 GHz, reporting thermal outcomes directly from those runs. No load-bearing derivation, prediction, or uniqueness claim reduces to a fitted parameter, self-citation chain, or ansatz imported from the authors' prior work; the central results are simulation outputs on external phantoms using standard methods. The argument is therefore self-contained within the reported numerical experiments.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, axioms, or invented entities are stated in the abstract; the approach rests on standard electromagnetic simulation assumptions and the LCMP formulation from prior literature.
