arxiv: 2605.00317 · v1 · submitted 2026-05-01 · 📡 eess.SY · cs.SY

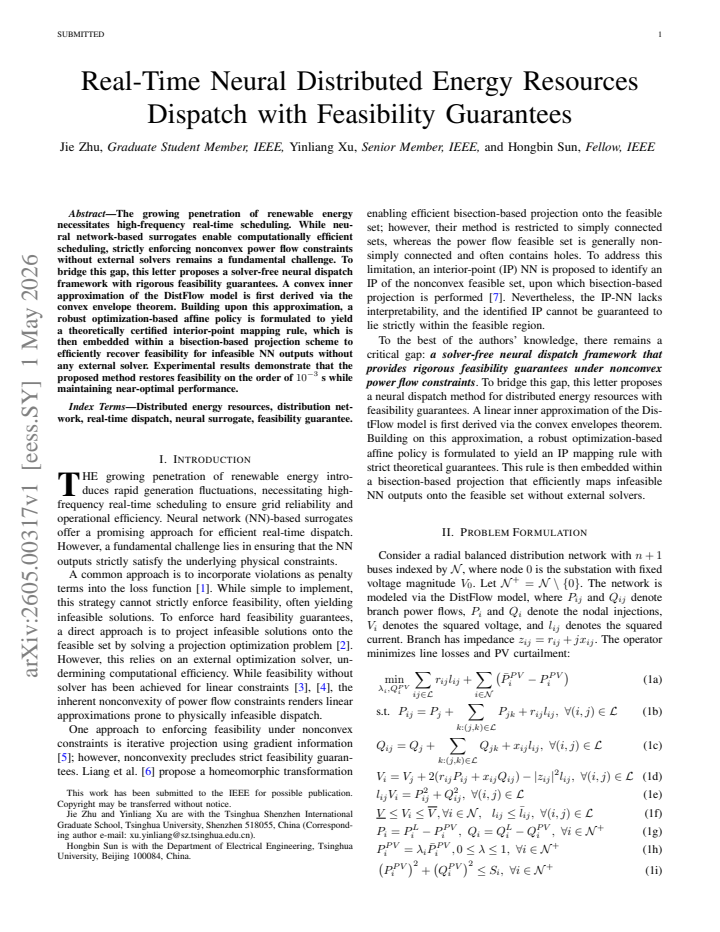

Real-Time Neural Distributed Energy Resources Dispatch with Feasibility Guarantees

Jie Zhu , Yinliang Xu , Hongbin Sun This is my paper

Pith reviewed 2026-05-09 19:35 UTC · model grok-4.3

classification 📡 eess.SY cs.SY
keywords neural dispatchfeasibility guaranteesDistFlow modelreal-time schedulingdistributed energy resourcesconvex inner approximationbisection projectionpower flow constraints
0
0 comments X

The pith

A neural dispatch framework enforces power flow feasibility in milliseconds without external solvers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows how to combine a neural network surrogate for fast real-time scheduling of distributed energy resources with a built-in mechanism that turns any potentially infeasible output into a strictly feasible dispatch decision. It first derives a convex inner approximation of the DistFlow power flow model to create a safe region guaranteed to contain feasible points. Inside that region it installs a robust affine policy derived from optimization, then uses a simple bisection search to project the neural-network output onto the feasible set. The result is a complete solver-free pipeline that runs at high frequency while respecting the physical constraints of the network. A sympathetic reader cares because renewable penetration now requires adjustments every few seconds, and traditional optimization solvers cannot keep up.

Core claim

The central claim is that a convex inner approximation of the DistFlow equations, combined with a certified affine policy and a bisection projection, produces a mapping that converts any neural-network output into a feasible, near-optimal dispatch command on the order of 10^{-3} seconds while requiring no external solver at runtime.

What carries the argument

Bisection-based projection scheme built on a convex inner approximation of the DistFlow model and a robust optimization-derived affine policy that recovers a feasible interior point.

If this is right

  • Real-time scheduling cycles can run at sub-second rates without solver latency.
  • Neural surrogates can be deployed directly in closed-loop control while still satisfying all power-flow and resource limits.
  • The same projection layer can be reused with any neural architecture trained for dispatch without retraining the feasibility module.
  • Distributed energy resources can be coordinated at the speed of renewable fluctuations while preserving network feasibility.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same convex-envelope-plus-bisection pattern may transfer to other nonconvex optimal power flow variants once their inner approximations are derived.
  • End-to-end training that includes the projection as a differentiable layer could further reduce the optimality gap.
  • On larger networks the tightness of the inner approximation would need explicit verification against AC power flow solutions.

Load-bearing premise

The convex inner approximation of the DistFlow model stays tight enough for the neural-network outputs that appear in practice, so the bisection step always finds a near-optimal feasible point.

What would settle it

A set of test cases in which the bisection projection either returns no feasible point or yields operating costs more than a few percent above the true optimum would show the method does not deliver the claimed guarantees.

Figures

Figures reproduced from arXiv: 2605.00317 by Hongbin Sun, Jie Zhu, Yinliang Xu.

Figure 1
Figure 1. Figure 1: Boxplot of projection times across 1,000 test samples. view at source ↗
read the original abstract

The growing penetration of renewable energy necessitates high-frequency real-time scheduling. While neural network-based surrogates enable computationally efficient scheduling, strictly enforcing nonconvex power flow constraints without external solvers remains a fundamental challenge. To bridge this gap, this letter proposes a solver-free neural dispatch framework with rigorous feasibility guarantees. A convex inner approximation of the DistFlow model is first derived via the convex envelope theorem. Building upon this approximation, a robust optimization-based affine policy is formulated to yield a theoretically certified interior-point mapping rule, which is then embedded within a bisection-based projection scheme to efficiently recover feasibility for infeasible NN outputs without any external solver. Experimental results demonstrate that the proposed method restores feasibility on the order of $10^{-3}$ s while maintaining near-optimal performance.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper proposes a solver-free neural dispatch framework for real-time DER scheduling. It derives a convex inner approximation of the DistFlow model via the convex envelope theorem, formulates a robust optimization-based affine policy to produce a certified interior-point mapping, and embeds this in a bisection-based projection scheme to restore feasibility for infeasible neural-network outputs without external solvers. The central claim is that this restores feasibility on the order of 10^{-3} s while maintaining near-optimal performance on the original nonconvex problem.

Significance. If the inner-approximation tightness and projection suboptimality can be bounded or empirically validated for realistic operating regimes, the approach would enable high-frequency, solver-free feasible dispatch in distribution networks with high renewable penetration, addressing a practical bottleneck in neural surrogate methods for nonconvex power-flow-constrained optimization.

major comments (3)
  1. [Convex inner approximation derivation] The feasibility guarantees are stated with respect to the convex inner approximation of the DistFlow equations, yet no quantitative error bounds, tightness metrics, or operating-point-specific gap analysis are supplied for the approximation (see the derivation following the convex envelope theorem invocation). Without such bounds, it is unclear whether the feasible set remains sufficiently close to the true nonconvex set to support the 'near-optimal' performance claim on the original problem.
  2. [Bisection-based projection scheme] The bisection projection onto the affine-policy interior is presented as recovering a feasible point efficiently, but the manuscript provides neither an explicit suboptimality bound relative to the true optimum nor experimental comparisons of projected objective values versus solver-optimal solutions of the nonconvex problem. This leaves the 'near-optimal' assertion unquantified.
  3. [Experimental results] Experimental results report feasibility restoration times on the order of 10^{-3} s, but the evaluation does not include direct head-to-head suboptimality gaps or sensitivity analysis under varying renewable penetration levels that would confirm the method does not trade feasibility for materially degraded performance.
minor comments (2)
  1. [Affine policy formulation] Clarify the precise definition and parameterization of the affine policy (e.g., how the robust optimization parameters are chosen) to improve reproducibility.
  2. [Algorithm description] Add a short discussion of the computational complexity of the bisection procedure as a function of the number of DERs.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: The feasibility guarantees are stated with respect to the convex inner approximation of the DistFlow equations, yet no quantitative error bounds, tightness metrics, or operating-point-specific gap analysis are supplied for the approximation (see the derivation following the convex envelope theorem invocation). Without such bounds, it is unclear whether the feasible set remains sufficiently close to the true nonconvex set to support the 'near-optimal' performance claim on the original problem.

    Authors: The convex envelope theorem is used to obtain a convex inner approximation of the bilinear terms in the DistFlow model, ensuring that feasibility with respect to the approximation implies feasibility for the original nonconvex equations. We acknowledge that the manuscript does not include explicit quantitative error bounds or tightness metrics. In the revised version, we will add a dedicated subsection providing both theoretical properties of the envelope-based approximation and numerical gap analysis across representative operating points. revision: yes

  2. Referee: The bisection projection onto the affine-policy interior is presented as recovering a feasible point efficiently, but the manuscript provides neither an explicit suboptimality bound relative to the true optimum nor experimental comparisons of projected objective values versus solver-optimal solutions of the nonconvex problem. This leaves the 'near-optimal' assertion unquantified.

    Authors: The bisection scheme computes the largest scaling factor that keeps the affine policy output inside the certified interior, thereby restoring feasibility without invoking an external solver. While the manuscript does not derive a closed-form suboptimality bound, we will add a discussion of the projection's effect on optimality and include new experimental comparisons of the projected objective values against solutions of the original nonconvex problem obtained via a standard solver. revision: yes

  3. Referee: Experimental results report feasibility restoration times on the order of 10^{-3} s, but the evaluation does not include direct head-to-head suboptimality gaps or sensitivity analysis under varying renewable penetration levels that would confirm the method does not trade feasibility for materially degraded performance.

    Authors: The reported experiments focus on computational speed and overall feasibility success. We agree that additional metrics would strengthen the near-optimality claim. In revision, we will augment the results section with direct suboptimality gap comparisons and sensitivity studies across a range of renewable penetration levels. revision: yes

Circularity Check

0 steps flagged

Minor self-citation on convex envelope; central feasibility mapping remains independently derived

full rationale

The derivation begins with a convex inner approximation of DistFlow via the convex envelope theorem, which is a standard result from prior literature and not redefined inside the paper. The affine policy is then obtained from a robust optimization formulation whose constraints are explicitly stated in terms of that approximation. The bisection projection is a numerical procedure applied to the resulting interior-point mapping; it does not redefine or fit any quantity that is later presented as a prediction. No step reduces a claimed guarantee to a quantity defined only by the paper's own fitted outputs or self-citations. The single self-citation load is limited to the envelope theorem and is not load-bearing for the runtime feasibility claim.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Review performed on abstract alone; full derivations, parameter values, and experimental setup are unavailable, so the ledger is necessarily incomplete.

axioms (1)
  • domain assumption Convex envelope theorem yields a valid inner approximation of the DistFlow equations
    Invoked to obtain the convex inner approximation used for the affine policy.

pith-pipeline@v0.9.0 · 5421 in / 1192 out tokens · 34180 ms · 2026-05-09T19:35:10.043334+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

20 extracted references · 20 canonical work pages · 1 internal anchor

  1. [1]

    Robust Co-Optimization of Droop and Affine Policy Parameters in Active Distribution Systems With High Penetration of Photovoltaic Generation , year=

    Sepúlveda, Juan and Angulo, Alejandro and Mancilla-David, Fernando and Street, Alexandre , journal=. Robust Co-Optimization of Droop and Affine Policy Parameters in Active Distribution Systems With High Penetration of Photovoltaic Generation , year=

    work page

  2. [2]

    Designing Reactive Power Control Rules for Smart Inverters Using Support Vector Machines , year=

    Jalali, Mana and Kekatos, Vassilis and Gatsis, Nikolaos and Deka, Deepjyoti , journal=. Designing Reactive Power Control Rules for Smart Inverters Using Support Vector Machines , year=

    work page

  3. [3]

    IEEE Systems Journal , volume=

    DeepOPF: A feasibility-optimized deep neural network approach for AC optimal power flow problems , author=. IEEE Systems Journal , volume=. 2022 , publisher=

    work page 2022

  4. [4]

    Electric Power Systems Research , volume=

    Physics-informed neural networks for ac optimal power flow , author=. Electric Power Systems Research , volume=. 2022 , publisher=

    work page 2022

  5. [5]

    Unsupervised Deep Lagrange Dual With Equation Embedding for AC Optimal Power Flow , year=

    Kim, Minsoo and Kim, Hongseok , journal=. Unsupervised Deep Lagrange Dual With Equation Embedding for AC Optimal Power Flow , year=

    work page

  6. [6]

    IEEE Transactions on Power Systems , volume=

    Unsupervised learning for solving AC optimal power flows: Design, analysis, and experiment , author=. IEEE Transactions on Power Systems , volume=. 2024 , publisher=

    work page 2024

  7. [7]

    End-to-End Feasible Optimization Proxies for Large-Scale Economic Dispatch , year=

    Chen, Wenbo and Tanneau, Mathieu and Van Hentenryck, Pascal , journal=. End-to-End Feasible Optimization Proxies for Large-Scale Economic Dispatch , year=

    work page

  8. [8]

    International Conference on Learning Representations , year=

    DC3: A learning method for optimization with hard constraints , author=. International Conference on Learning Representations , year=

    work page

  9. [9]

    Journal of Machine Learning Research , volume=

    Homeomorphic projection to ensure neural-network solution feasibility for constrained optimization , author=. Journal of Machine Learning Research , volume=

    work page

  10. [10]

    International Conference on Machine Learning , year=

    Efficient Bisection Projection to Ensure Neural-Network Solution Feasibility for Optimization over General Set , author=. International Conference on Machine Learning , year=

    work page

  11. [11]

    International Conference on Learning Representations , year=

    Pinet: Optimizing hard-constrained neural networks with orthogonal projection layers , author=. International Conference on Learning Representations , year=

    work page

  12. [12]

    FRMNet: A Feasibility Restoration Mapping Deep Neural Network for AC Optimal Power Flow , year=

    Han, Jiayu and Wang, Wei and Yang, Chao and Niu, Mengyang and Yang, Cheng and Yan, Lei and Li, Zuyi , journal=. FRMNet: A Feasibility Restoration Mapping Deep Neural Network for AC Optimal Power Flow , year=

    work page

  13. [13]

    IEEE Access , volume=

    Learning to solve optimization problems with hard linear constraints , author=. IEEE Access , volume=. 2023 , publisher=

    work page 2023

  14. [14]

    Toward Rapid, Optimal, and Feasible Power Dispatch through Generalized Neural Mapping , year=

    Li, Meiyi and Mohammadi, Javad , booktitle=. Toward Rapid, Optimal, and Feasible Power Dispatch through Generalized Neural Mapping , year=

    work page

  15. [15]

    Advances in Neural Information Processing Systems , year=

    Enforcing Hard Linear Constraints in Deep Learning Models with Decision Rules , author=. Advances in Neural Information Processing Systems , year=

    work page

  16. [16]

    Grid-Aware Aggregation and Realtime Disaggregation of Distributed Energy Resources in Radial Networks , year=

    Nazir, Nawaf and Almassalkhi, Mads , journal=. Grid-Aware Aggregation and Realtime Disaggregation of Distributed Energy Resources in Radial Networks , year=

    work page

  17. [17]

    Sustainable Energy, Grids and Networks , pages=

    Fairness-aware dynamic hosting capacity and the impacts of strategic solar PV curtailment , author=. Sustainable Energy, Grids and Networks , pages=. 2025 , publisher=

    work page 2025

  18. [18]

    IEEE Communications Letters , year=

    A Diversity-Enhanced Neural Network Approach for Wireless Transmission Power Control , author=. IEEE Communications Letters , year=

    work page

  19. [19]

    arXiv preprint arXiv:2603.05495 , year=

    Cheap Thrills: Effective Amortized Optimization Using Inexpensive Labels , author=. arXiv preprint arXiv:2603.05495 , year=

    work page internal anchor Pith review arXiv

  20. [20]

    Proceedings of the AAAI Conference on Artificial Intelligence , volume=

    T-SKM-Net: Trainable Neural Network Framework for Linear Constraint Satisfaction via Sampling Kaczmarz-Motzkin Method , author=. Proceedings of the AAAI Conference on Artificial Intelligence , volume=

    work page
