Dual terahertz frequency combs for photonic RF readout of refractive index sensing with frequency multiplication and active-dummy temperature compensation

Eiji Hase; Masayuki Higaki; Shuji Taue; Takeo Minamikawa; Takeshi Yasui; Yoshiaki Nakajima; Yu Tokizane

arxiv: 2605.01211 · v1 · submitted 2026-05-02 · ⚛️ physics.optics

Dual terahertz frequency combs for photonic RF readout of refractive index sensing with frequency multiplication and active-dummy temperature compensation

Masayuki Higaki , Yoshiaki Nakajima , Shuji Taue , Eiji Hase , Takeo Minamikawa , Yu Tokizane , Takeshi Yasui This is my paper

Pith reviewed 2026-05-09 18:53 UTC · model grok-4.3

classification ⚛️ physics.optics

keywords refractive index sensingterahertz frequency combsdual-comb spectroscopytemperature compensationfrequency multiplicationphotonic RF readoutsensitivity enhancementcommon-mode rejection

0 comments

The pith

Dual terahertz frequency combs amplify refractive index shifts while canceling temperature noise through active-dummy compensation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a refractive index sensing system that combines terahertz frequency comb multiplication with a dual-comb active-dummy setup. RI changes shift the repetition frequency, which gets scaled up in the terahertz range for stronger signals, while temperature effects cancel out as common-mode noise. This separation lets the sensor reach 5.05 times 10 to the 7 hertz per RIU sensitivity, 1.07 times 10 to the minus 4 RIU resolution, and fast readout with short gate times, addressing the usual limits where higher sensitivity brings more instability.

Core claim

RI-induced shifts in the repetition frequency are amplified in the terahertz domain, while temperature-induced fluctuations are suppressed through common-mode rejection in a dual-comb configuration, yielding a sensitivity of 5.05 times 10 to the 7 Hz/RIU, R squared of 0.9979 linearity, 1.07 times 10 to the minus 4 RIU resolution, and 5.50 times 10 to the minus 5 RIU accuracy, with the frequency shift expanded to hundreds of kilohertz.

What carries the argument

Dual terahertz frequency combs with active-dummy temperature compensation and frequency multiplication, which scales RI signals while rejecting shared temperature fluctuations as common-mode noise.

If this is right

The RI-induced frequency shift grows from tens of hertz to hundreds of kilohertz, supporting rapid readout with short gate times.
Sensitivity and stability become independently controllable rather than traded off against each other.
The system achieves high linearity with R squared of 0.9979 along with the stated resolution and accuracy values.
Orthogonal control of signal scaling and noise suppression serves as a reusable design rule for other refractive index sensors.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same multiplication-plus-rejection approach could extend to other frequency-based sensors where environmental noise limits performance.
Integration with compact photonic circuits might enable portable devices for continuous monitoring in varying temperature environments.
Testing the method with different comb spacings or alternative dummy configurations would reveal how broadly the orthogonality principle applies.

Load-bearing premise

The active-dummy dual-comb arrangement rejects all temperature fluctuations perfectly without leaving any differential effects or added noise, and the terahertz frequency multiplication stays linear and stable across the full measurement range.

What would settle it

A measurement showing residual temperature drift in the differential readout or deviation from linearity in the multiplied terahertz frequency shift when refractive index changes would disprove the central performance claims.

Figures

Figures reproduced from arXiv: 2605.01211 by Eiji Hase, Masayuki Higaki, Shuji Taue, Takeo Minamikawa, Takeshi Yasui, Yoshiaki Nakajima, Yu Tokizane.

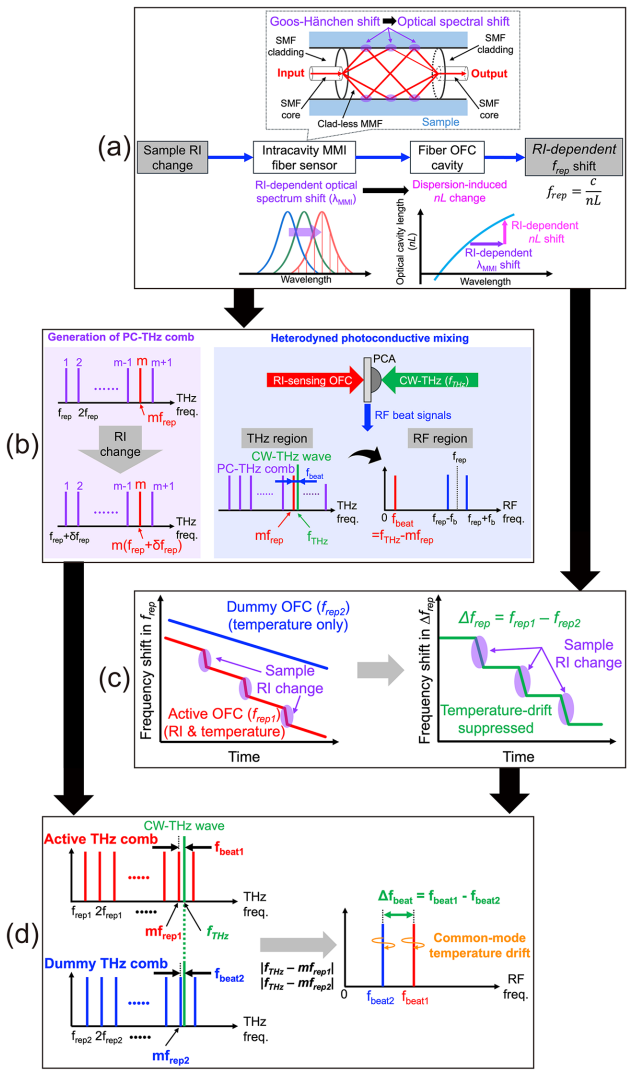

**Figure 1.** Figure 1: Operating principles of the proposed RI-sensing system. (a) RI-sensing OFC based on an intracavity MMI fiber sensor, (b) sensitivity enhancement via THz-combbased frequency multiplication, (c) active–dummy temperature compensation using a dual-OFC configuration, and (d) proposed dual-THz-comb-based approach integrating frequency multiplication with active–dummy temperature compensation view at source ↗

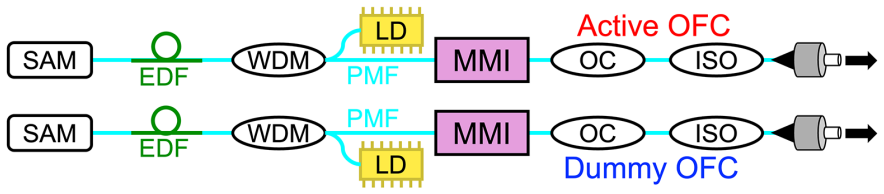

**Figure 2.** Figure 2: Configuration of the dual RI-sensing OFC sources. SAM, saturable absorber mirror; EDF, erbium-doped polarization-maintaining single-mode fiber; WDM, wavelength-division multiplexer; LD, laser diode; PMF, polarization-maintaining single-mode fiber; MMI, multimode interference fiber sensor; OC, output coupler; ISO, optical isolator view at source ↗

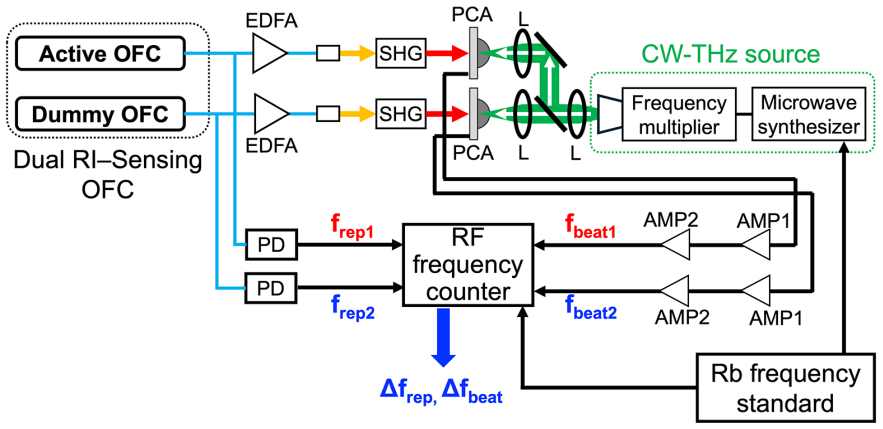

**Figure 3.** Figure 3: Experimental setup of the photoconductive THz heterodyne detection system view at source ↗

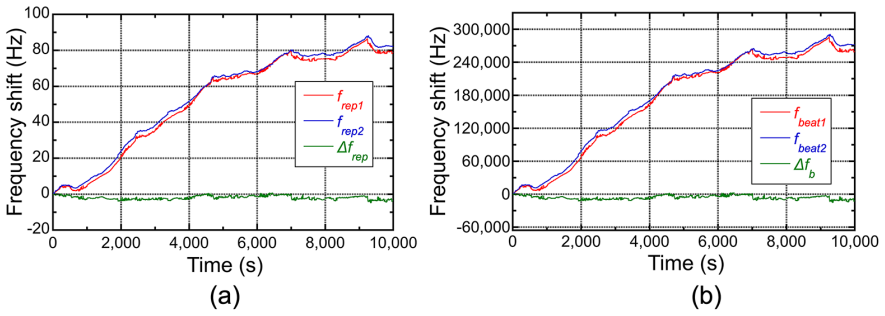

**Figure 4.** Figure 4: Experimental verification of frequency multiplication and temperature view at source ↗

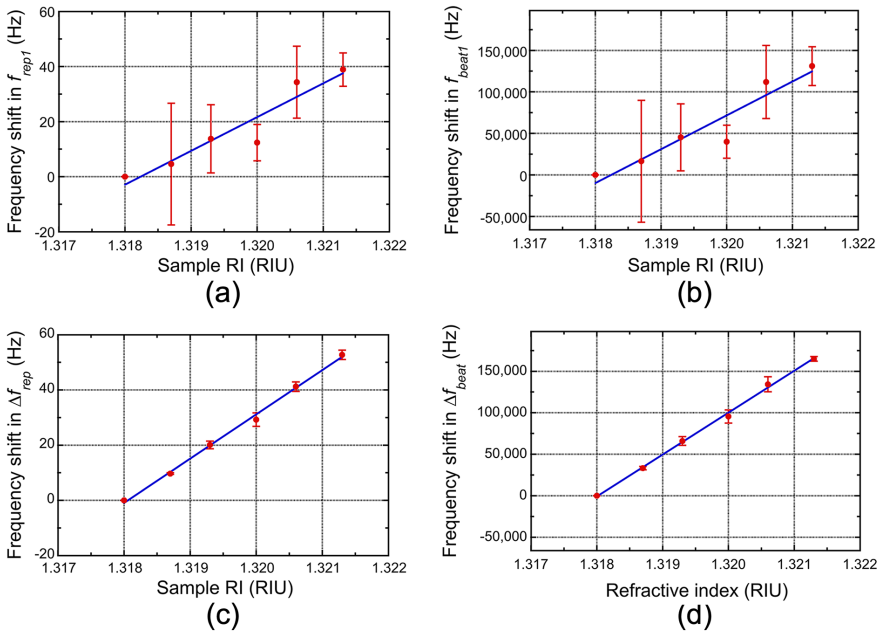

**Figure 5.** Figure 5: Comparison of RI sensing performance for different configurations. (a) RI view at source ↗

read the original abstract

We present a unified refractive index (RI) sensing platform that integrates THz-comb-based frequency multiplication with dual-comb active-dummy temperature compensation. In conventional RI-sensing optical frequency combs (OFCs), sensitivity, stability, and measurement speed are fundamentally coupled, limiting overall performance. In the proposed system, RI-induced shifts in the repetition frequency are amplified in the terahertz domain, while temperature-induced fluctuations are suppressed through common-mode rejection in a dual-comb configuration. Experimental results demonstrate a sensitivity of 5.05 * 10^7 Hz/RIU, high linearity (R^2 = 0.9979), improved resolution (1.07 * 10^-4 RIU), and high accuracy (5.50 * 10^-5 RIU). The RI-induced frequency shift is expanded from tens of hertz to hundreds of kilohertz, enabling rapid and precise readout with short gate times. This approach overcomes the conventional trade-off between sensitivity and stability. More fundamentally, it establishes orthogonal control of signal scaling and noise suppression as a design principle for high-performance RI sensing.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a concrete experimental platform that multiplies RI shifts into the kHz range via THz combs while using active-dummy subtraction for temperature stability, with solid reported linearity, though the exact rejection performance stays lightly documented.

read the letter

The main point is that this setup amplifies the RI-induced repetition-frequency shift from tens of hertz up to hundreds of kilohertz through THz-domain multiplication, then subtracts an active and dummy comb to cancel common temperature fluctuations. That combination is presented as a way to loosen the usual coupling between sensitivity and stability in optical-frequency-comb RI sensors. The experimental numbers are the clearest part: sensitivity reaches 5.05 × 10^7 Hz/RIU, linearity hits R² = 0.9979, resolution is 1.07 × 10^{-4} RIU, and accuracy is 5.50 × 10^{-5} RIU. The shorter gate times enabled by the larger shifts are a practical plus for readout speed. The work shows the integrated hardware actually runs and produces repeatable trends in their tests. The soft spot is the temperature-compensation claim. Orthogonal control only holds if the two combs see identical temperature changes and the subtraction removes them cleanly before multiplication. Any path mismatch, amplitude imbalance, or differential thermal response leaves a residual that gets scaled up along with the signal. The abstract supplies no common-mode rejection ratio, no fixed-RI temperature-sweep curves, and no separate characterization of phase noise added by the multiplication stage, so the robustness of the cancellation is hard to judge from the given data alone. Readers working on photonic sensors or THz-comb instrumentation will find the reported metrics and the dual-comb layout useful as a starting point. The paper is worth sending to referees because the experimental approach is specific and the performance numbers are quantitative, even if extra rejection data would tighten the central argument.

Referee Report

2 major / 1 minor

Summary. The manuscript presents a unified refractive index (RI) sensing platform that integrates THz-comb-based frequency multiplication to amplify RI-induced repetition-frequency shifts with a dual-comb active-dummy configuration for common-mode temperature compensation. Experimental results report a sensitivity of 5.05 × 10^7 Hz/RIU, linearity with R² = 0.9979, resolution of 1.07 × 10^{-4} RIU, and accuracy of 5.50 × 10^{-5} RIU, claiming to overcome the conventional sensitivity-stability trade-off through orthogonal control of signal scaling and noise suppression.

Significance. If the dual-comb rejection performs as described, the work supplies a concrete design principle for decoupling sensitivity enhancement (via THz multiplication) from stability (via active-dummy subtraction), which could be broadly useful for photonic RI sensors requiring both high resolution and rapid readout. The reported expansion of frequency shifts into the hundreds of kHz range and the high linearity metric constitute tangible experimental strengths that merit further scrutiny.

major comments (2)

Abstract and results: The central claim of orthogonal control rests on the assumption that temperature fluctuations appear identically in the active and dummy combs and cancel exactly after subtraction, with the residual then multiplied by the THz gain factor. No common-mode rejection ratio, no temperature-sweep data at fixed RI, and no characterization of differential phase noise introduced by the multiplication stage are supplied, leaving the weakest assumption untested and the headline performance metrics (R² = 0.9979, 5.50 × 10^{-5} RIU accuracy) without direct supporting evidence for the compensation mechanism.
Experimental section: The reported resolution (1.07 × 10^{-4} RIU) and accuracy (5.50 × 10^{-5} RIU) are stated without error bars, raw data traces, or explicit description of how gate-time choice and post-selection affect these figures, which is required to evaluate whether the data genuinely support the claimed performance given the absence of the temperature-rejection diagnostics.

minor comments (1)

Clarify the exact matching criteria between active and dummy sensors (path length, coupling efficiency, comb-line amplitudes) and provide the full methods for frequency-multiplication linearity verification over the operating range.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the detailed and insightful comments on our manuscript. We have addressed each of the major comments point by point below. Where the comments highlight areas for improvement, we have revised the manuscript accordingly and believe these changes enhance the clarity and rigor of our work.

read point-by-point responses

Referee: Abstract and results: The central claim of orthogonal control rests on the assumption that temperature fluctuations appear identically in the active and dummy combs and cancel exactly after subtraction, with the residual then multiplied by the THz gain factor. No common-mode rejection ratio, no temperature-sweep data at fixed RI, and no characterization of differential phase noise introduced by the multiplication stage are supplied, leaving the weakest assumption untested and the headline performance metrics (R² = 0.9979, 5.50 × 10^{-5} RIU accuracy) without direct supporting evidence for the compensation mechanism.

Authors: We agree that direct experimental verification of the common-mode rejection would provide stronger support for the orthogonal control claim. The current manuscript demonstrates the overall system performance through high linearity and accuracy under typical laboratory conditions that include ambient temperature drifts. To address the concern explicitly, the revised manuscript includes new temperature-sweep data acquired at fixed RI, from which a common-mode rejection ratio is calculated and reported. We have also added a short analysis of phase noise after the multiplication stage, noting that identical processing in both channels allows the differential noise to be suppressed by the subtraction; this is now quantified in the supplementary information. These additions supply the requested supporting evidence for the compensation mechanism. revision: yes
Referee: Experimental section: The reported resolution (1.07 × 10^{-4} RIU) and accuracy (5.50 × 10^{-5} RIU) are stated without error bars, raw data traces, or explicit description of how gate-time choice and post-selection affect these figures, which is required to evaluate whether the data genuinely support the claimed performance given the absence of the temperature-rejection diagnostics.

Authors: We concur that additional experimental details and raw data are necessary for full evaluation of the reported figures. In the revised manuscript we have added error bars to the sensitivity, resolution, and accuracy values, obtained from repeated measurements. Representative raw frequency traces are now provided in the supplementary information. The experimental section has been expanded to specify the gate times employed (0.1–1 s), the exact procedure used to derive resolution (standard deviation of the frequency fluctuation divided by sensitivity), and any data post-selection criteria. These changes enable readers to assess the performance metrics independently of the temperature-compensation diagnostics. revision: yes

Circularity Check

0 steps flagged

No circularity: performance metrics are direct experimental measurements

full rationale

The paper reports measured values for sensitivity (5.05e7 Hz/RIU), linearity (R^2=0.9979), resolution, and accuracy from a dual-comb THz setup. These are empirical outcomes obtained via frequency counting and RI calibration, not quantities derived from equations that reduce to the inputs by construction. No self-definitional relations, fitted parameters renamed as predictions, or load-bearing self-citations appear in the provided text. The central claim of orthogonal control is an interpretive summary of the measured trade-off improvement rather than a mathematical derivation that loops back on itself.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The work relies on standard assumptions in optical frequency comb technology and experimental validation rather than introducing new theoretical entities or parameters beyond measured results.

free parameters (1)

RI sensitivity = 5.05 * 10^7 Hz/RIU
Experimentally determined value reported as the key performance metric.

axioms (1)

domain assumption Dual-comb configuration enables common-mode rejection of temperature-induced fluctuations
Invoked to explain the suppression of temperature noise while preserving RI signal.
