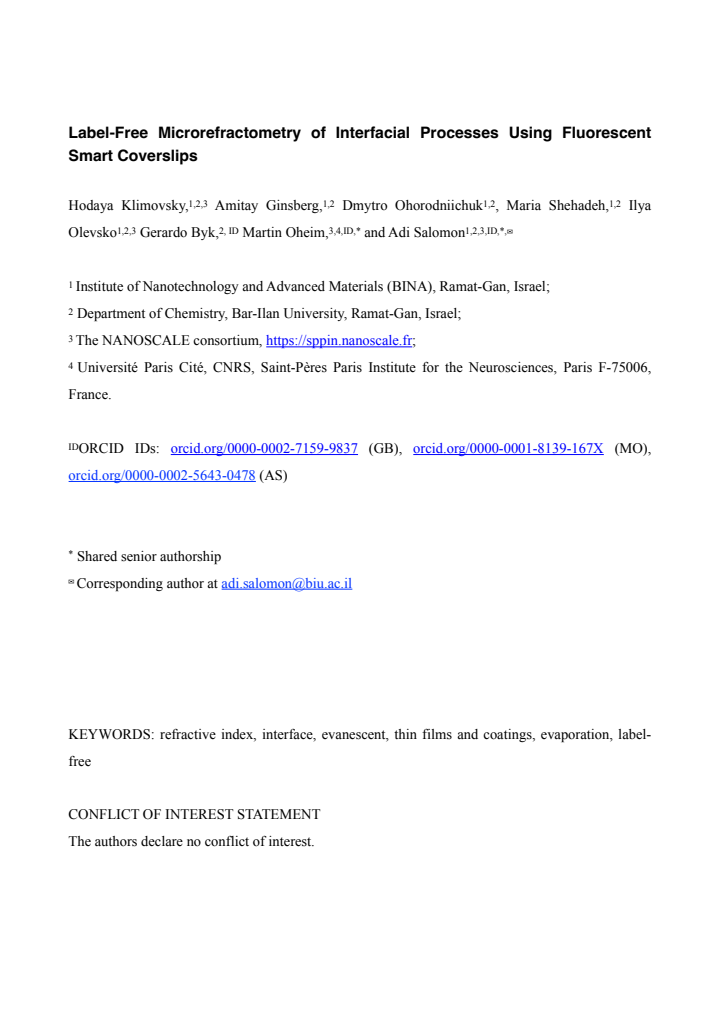

Label-Free Microrefractometry of Interfacial Processes Using Fluorescent Smart Coverslips

Adi Salomon; Amitay Ginsberg; Dmytro Ohorodniichuk; Gerardo Byk; Hodaya Klimovsky; Ilya Olevsko; Maria Shehadeh; Martin Oheim

arxiv: 2605.01472 · v1 · submitted 2026-05-02 · ⚛️ physics.optics · q-bio.QM

Label-Free Microrefractometry of Interfacial Processes Using Fluorescent Smart Coverslips

Hodaya Klimovsky , Amitay Ginsberg , Dmytro Ohorodniichuk , Maria Shehadeh , Ilya Olevsko , Gerardo Byk , Martin Oheim , Adi Salomon This is my paper

Pith reviewed 2026-05-09 17:45 UTC · model grok-4.3

classification ⚛️ physics.optics q-bio.QM

keywords supercritical angle fluorescencemicrorefractometrynanobead filmssmart coverslipsinterfacial dynamicsrefractive index sensingback focal plane imaginglabel-free

0 comments

The pith

Supercritical-angle fluorescence from nanobead-coated coverslips enables real-time microrefractometry and nanometric thin-film measurements using single back-focal-plane images.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents fluorescent smart coverslips coated with uniform nanobead films that act as sensitive probes for local refractive index changes through directional emission patterns. It shows that capturing a single back-focal-plane image allows both real-time refractive index sensing and measurements of nanometric thin-film heights without requiring multiple acquisitions at different angles or wavelengths. This approach is label-free and non-invasive, suitable for monitoring interfacial dynamics in small volumes using a standard inverted microscope. A sympathetic reader would care because it simplifies optical sensing of surface processes, potentially broadening access to high-resolution interfacial studies in biology and materials science.

Core claim

Molecular dipoles near interfaces emit highly directional radiation due to near-field interactions. Stably coated fluorescent nanobead films on coverslips exploit refractive-index-dependent emission shifts for sensitive micro-refractometry. Supercritical-angle fluorescence refractometry uses single back-focal-plane images to enable real-time RI sensing and nanometric thin-film height measurements without multi-angle or multi-wavelength acquisition.

What carries the argument

Supercritical-angle fluorescence refractometry via back-focal-plane imaging of emission from nanobead films, which senses local refractive index through near-field interactions affecting directional emission.

If this is right

Real-time monitoring of interfacial dynamics becomes possible on standard equipment.
Thin-film properties can be measured with nanometric precision in small volumes.
The method applies to nanobiophotonics, chemical sensing, and in-situ materials analysis.
Label-free and non-invasive sensing avoids the need for additional probes or complex setups.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This technique might be adaptable to other fluorescent materials for tailored sensitivity in different refractive index ranges.
Integration with live-cell imaging could enable simultaneous tracking of biological interfaces and their optical properties.
Future work could test its performance in dynamic environments like flowing solutions or under varying temperatures.

Load-bearing premise

The fluorescent nanobead films remain uniformly coated and stable, with emission shifts resulting purely from refractive-index-dependent near-field interactions rather than bead aggregation or photobleaching.

What would settle it

Observing inconsistent emission patterns in solutions with known refractive indices or degradation of the nanobead coating over the measurement period would falsify the reliability of the sensing approach.

read the original abstract

Molecular dipoles near interfaces emit highly directional radiation due to near-field interactions, making surface-bound fluorophores sensitive probes of local physicochemical changes. We introduce smart coverslips, stably coated with uniform, brightly fluorescent nanobead films, that exploit refractive-index-dependent emission shifts for sensitive micro-refractometry in small volumes. Supercritical-angle fluorescence refractometry uses single back-focal-plane images to allow us real-time RI sensing and nanometric thin-film height measurements without the need for multi-angle or multi-wavelength acquisition. Our fast, label-free, and non-invasive approach allows measurements of thin-film properties and monitoring of interfacial dynamics on a standard inverted microscope and is broadly applicable to nanobiophotonics, chemical sensing, and in-situ materials analysis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper packages known supercritical-angle fluorescence into nanobead-coated coverslips for single back-focal-plane RI and height readout, but the coating stability and isolation from artifacts remain the weakest link.

read the letter

The main takeaway is a coverslip coated with fluorescent nanobeads that turns a standard inverted microscope into a tool for real-time refractive-index sensing and nanometric thin-film height in small volumes, all from one back-focal-plane image. It avoids multi-angle or multi-wavelength setups by relying on the directional emission of surface-bound fluorophores, which shifts with the local index near the interface. That format is new enough as a ready device, even if the underlying physics of near-field coupling has been around for a while. The approach is label-free for the sample and non-invasive, which lines up with needs in nanobiophotonics or chemical sensing where you want quick interfacial monitoring without fancy hardware. The abstract highlights the speed and accessibility, and if the full methods show consistent bead deposition and basic calibration against known indices, that part holds up as practical engineering. The soft spot is the assumption that the nanobead film stays uniform and stable on the measurement timescale. Emission changes are attributed solely to refractive-index effects, yet any slow drift in coverage, local aggregation, or photobleaching would mimic an RI signal without separate controls. The abstract calls the coating “stable,” but the provided text gives no quantitative checks on uniformity over time, error bars on height extraction, or tests that rule out confounding factors. If the paper includes time-lapse data or bead-density maps, that would tighten it; otherwise the central performance claim rests on an unverified premise. This is for lab groups already running fluorescence microscopy who need a simple add-on for thin-film or interface work rather than theorists chasing foundational questions. A serious editor should send it to peer review so referees can examine the experimental controls and reproducibility data directly.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces fluorescent 'smart coverslips' consisting of stably coated uniform nanobead films that exploit refractive-index-dependent emission shifts for label-free microrefractometry. It claims that supercritical-angle fluorescence refractometry from single back-focal-plane images enables real-time RI sensing and nanometric thin-film height measurements on a standard inverted microscope without multi-angle or multi-wavelength acquisition, with broad applicability to nanobiophotonics and interfacial dynamics monitoring.

Significance. If the central performance claims hold after validation, the single-image approach could simplify real-time, label-free interfacial sensing using widely available microscopes. The method builds on established near-field emission principles but would benefit from demonstrated quantitative performance to establish its utility over existing refractometry techniques.

major comments (2)

[Abstract] Abstract: The central claims of real-time RI sensing and nanometric thin-film height measurements via single back-focal-plane images are stated without any quantitative data, error analysis, sensitivity figures, or validation against known refractive-index standards or reference methods.
[Abstract] Abstract: The premise that emission shifts arise solely from refractive-index-dependent near-field interactions requires the nanobead coating to remain spatially uniform and temporally stable; however, no experimental controls, time-series data, or tests for confounding effects such as bead aggregation, desorption, or photobleaching are provided to support this.

minor comments (2)

The term 'smart coverslips' is used without a formal definition or citation to prior related work on fluorescent coatings for sensing.
Consider including representative back-focal-plane images, extracted RI or height values, and any calibration curves to illustrate the method.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments on our manuscript. We address each major point below and outline the revisions we will make to strengthen the presentation of our quantitative results and supporting controls.

read point-by-point responses

Referee: [Abstract] Abstract: The central claims of real-time RI sensing and nanometric thin-film height measurements via single back-focal-plane images are stated without any quantitative data, error analysis, sensitivity figures, or validation against known refractive-index standards or reference methods.

Authors: We agree that the abstract would be improved by incorporating key quantitative metrics. In the revised version we will add the achieved RI sensitivity (e.g., ~10^{-4} RIU), representative error estimates from repeated measurements, and a concise statement of validation against standard sucrose solutions. The full error analysis, sensitivity figures, and direct comparisons to reference refractometry methods are already detailed in the Results and Discussion sections together with the corresponding figures; the abstract revision will simply highlight these findings for readers. revision: yes
Referee: [Abstract] Abstract: The premise that emission shifts arise solely from refractive-index-dependent near-field interactions requires the nanobead coating to remain spatially uniform and temporally stable; however, no experimental controls, time-series data, or tests for confounding effects such as bead aggregation, desorption, or photobleaching are provided to support this.

Authors: The manuscript already contains characterization of coating uniformity (AFM and fluorescence microscopy in Methods) and temporal stability (time-lapse imaging over 24 h). We will revise the abstract to explicitly note that the nanobead film remains stable under the reported imaging conditions. In addition, we will add a short paragraph in the revised main text that directly references the supplementary time-series data demonstrating absence of measurable aggregation, desorption, or photobleaching over the experimental timescales. These controls support the attribution of emission shifts to refractive-index-dependent near-field effects. revision: partial

Circularity Check

0 steps flagged

No derivation chain; experimental method relies on stated physical principles

full rationale

The manuscript presents an experimental technique for microrefractometry using fluorescent nanobead-coated coverslips and single back-focal-plane imaging. No equations, fitted parameters, or mathematical derivations are introduced that could reduce to self-defined inputs. The central claims rest on established near-field fluorescence physics (supercritical-angle emission) applied to a physical sample preparation whose uniformity is asserted as a premise rather than derived. No self-citations, ansatzes, or uniqueness theorems are invoked to close any loop. The approach is therefore self-contained against external benchmarks of fluorescence microscopy and refractometry.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the domain assumption of directional emission from surface dipoles and the practical assumption that uniform fluorescent nanobead films can be stably prepared; no free parameters or new physical entities are introduced beyond the named device.

axioms (1)

domain assumption Molecular dipoles near interfaces emit highly directional radiation due to near-field interactions
Invoked in the first sentence of the abstract as the basis for RI sensitivity.

invented entities (1)

smart coverslips no independent evidence
purpose: Stably coated fluorescent nanobead films for microrefractometry
New term and device format introduced to describe the coated coverslips.
