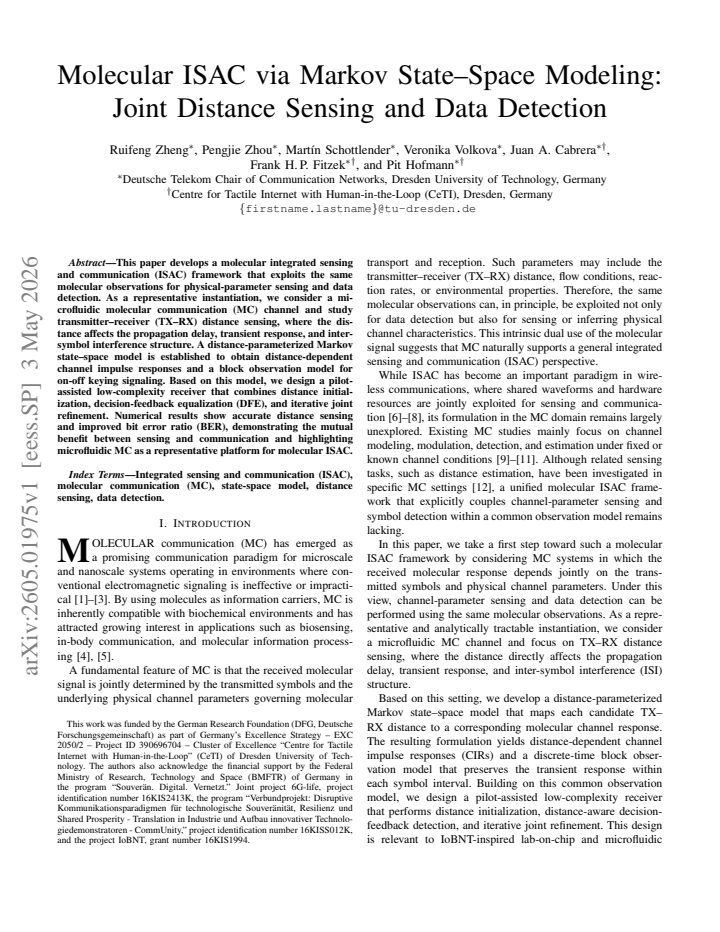

Molecular ISAC via Markov State-Space Modeling: Joint Distance Sensing and Data Detection

Ruifeng Zheng , Pengjie Zhou , Mart\'in Schottlender , Veronika Volkova , Juan A. Cabrera , Frank H. P. Fitzek , Pit Hofmann This is my paper

Pith reviewed 2026-05-08 19:34 UTC · model grok-4.3

classification 📡 eess.SP cs.ET
keywords sensingdistancemolecularcommunicationisacmodelchanneldata
0
0 comments X

The pith

A Markov state-space model parameterized by distance enables joint TX-RX distance sensing and data detection in molecular communication, yielding accurate sensing and lower bit error rates.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Molecular communication sends information by releasing molecules that spread through liquid. The arrival time and pattern of these molecules depend on the distance between sender and receiver. The paper models this spreading process as a Markov chain whose states evolve according to the distance. This model produces expected signal shapes for different distances. A receiver first uses known pilot molecules to guess the distance, then applies decision feedback to clean up interference from previous symbols and detect the data bits. It then refines the distance guess using the detected bits and repeats the process. Computer simulations indicate that estimating distance and decoding data together improves both tasks compared with handling them separately.

Core claim

Numerical results show accurate distance sensing and improved bit error ratio (BER), demonstrating the mutual benefit between sensing and communication and highlighting microfluidic MC as a representative platform for molecular ISAC.

Load-bearing premise

The microfluidic molecular communication channel can be accurately represented by a distance-parameterized Markov state-space model that captures propagation delay, transient response, and inter-symbol interference structure.

Figures

Figures reproduced from arXiv: 2605.01975 by Frank H. P. Fitzek, Juan A. Cabrera, Mart\'in Schottlender, Pengjie Zhou, Pit Hofmann, Ruifeng Zheng, Veronika Volkova.

Figure 1
Figure 1. Figure 1: Markov chain representation of the microfluidic MC channel. view at source ↗
Figure 2

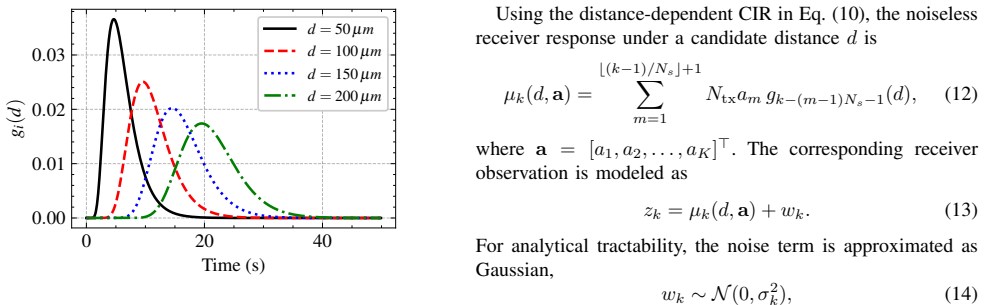

Figure 2. Figure 2: Distance-dependent Markov-step CIRs gi(d) for different TX–RX distances. where h = [0, 0, . . . , 1]⊤ selects the receiver-associated bound state. The absorbing flow-out state is not directly observed but accounts for irreversible molecular loss and ensures probability conservation. For an initially empty channel with x0 = 0, repeated substitution of Eq. (7) gives xk(d) = k X−1 i=0 Q(d) ib uk−i−1. (9) Ther… view at source ↗
Figure 3

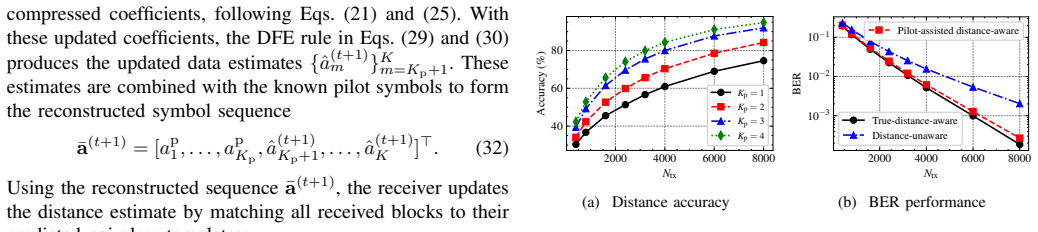

Figure 3. Figure 3: Performance of distance-aware sensing and detection without iterative view at source ↗
Figure 4

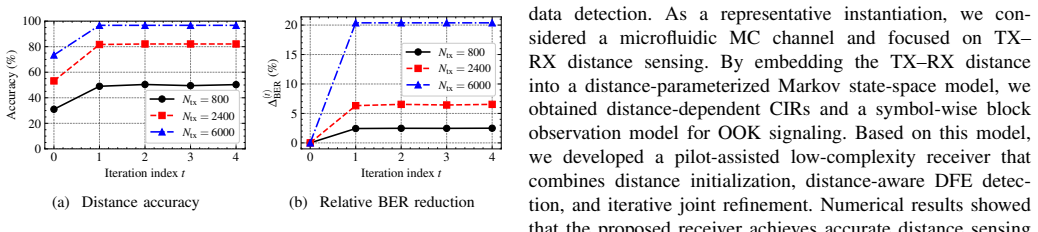

Figure 4. Figure 4: Impact of iterative joint refinement on sensing and communication view at source ↗
read the original abstract

This paper develops a molecular integrated sensing and communication (ISAC) framework that exploits the same molecular observations for physical-parameter sensing and data detection. As a representative instantiation, we consider a microfluidic molecular communication (MC) channel and study transmitter--receiver (TX--RX) distance sensing, where the distance affects the propagation delay, transient response, and inter-symbol interference structure. A distance-parameterized Markov state--space model is established to obtain distance-dependent channel impulse responses and a block observation model for on-off keying signaling. Based on this model, we design a pilot-assisted low-complexity receiver that combines distance initialization, decision-feedback equalization (DFE), and iterative joint refinement. Numerical results show accurate distance sensing and improved bit error ratio (BER), demonstrating the mutual benefit between sensing and communication and highlighting microfluidic MC as a representative platform for molecular ISAC.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper develops a molecular integrated sensing and communication (ISAC) framework for microfluidic channels. It establishes a distance-parameterized Markov state-space model to capture propagation delay, transient response, and ISI for on-off keying, then designs a pilot-assisted receiver combining distance initialization, decision-feedback equalization, and iterative joint refinement. Numerical results are presented to show accurate distance sensing and improved bit error ratio, demonstrating mutual benefits between sensing and communication.

Significance. If the Markov abstraction accurately represents the underlying channel, the work offers a concrete joint-design approach that exploits the same molecular observations for both parameter estimation and data detection, which could be valuable for resource-constrained molecular systems. The explicit construction of a block observation model and the low-complexity iterative receiver constitute a clear technical contribution within the modeling framework.

major comments (2)
  1. [Numerical results] The numerical results section reports accurate distance sensing and BER improvement, but these metrics are obtained by simulating the same distance-parameterized Markov state-space model used to derive the receiver. No comparison is provided against the advection-diffusion PDE or stochastic particle simulations, so the claimed mutual benefit remains internal to the abstraction and does not test whether omitted effects (e.g., wall interactions or turbulence) alter the distance estimates or BER gains.
  2. [Model establishment and receiver design] The central claim that the Markov model enables joint sensing and detection rests on the assumption that distance affects only the listed channel features in a way fully captured by the state-space representation. Without an error analysis or sensitivity study quantifying the approximation error relative to the physical channel, the performance gains cannot be confidently attributed to real ISAC operation rather than model artifacts.
minor comments (3)
  1. Specify the exact simulation parameters (Peclet number, flow velocity, molecule count, etc.) used to generate the numerical results so that the experiments can be reproduced.
  2. Add error bars or multiple-run statistics to the distance-estimation and BER plots to indicate variability.
  3. Clarify whether the iterative refinement converges for all tested distances or only within a limited range.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that molecular propagation follows a Markov process whose statistics are fully determined by distance; no free parameters or invented entities are explicitly introduced in the abstract, though distance itself functions as the key estimated parameter.

axioms (1)
  • domain assumption Molecular propagation delay, transient response, and ISI in the microfluidic channel are captured by a distance-parameterized Markov state-space model.
    This assumption is invoked when establishing the channel impulse responses and block observation model for OOK signaling.

pith-pipeline@v0.9.0 · 5469 in / 1191 out tokens · 57826 ms · 2026-05-08T19:34:42.640260+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

15 extracted references · 15 canonical work pages

  1. [1]

    A comprehensive survey of recent advancements in molecular communication,

    N. Farsadet al., “A comprehensive survey of recent advancements in molecular communication,”IEEE Commun. Surveys Tuts., vol. 18, no. 3, pp. 1887–1919, Feb. 2016

    work page 1919

  2. [2]

    Wireless communication in nanonetworks: Current status, prospect and challenges,

    Y . Lu, R. Ni, and Q. Zhu, “Wireless communication in nanonetworks: Current status, prospect and challenges,”IEEE Trans. on Molecular, Biolog. and Multi-Scale Commun., vol. 6, no. 2, pp. 71–80, Jun. 2020

    work page 2020

  3. [3]

    Internet of Everything (IoE) - From molecules to the universe,

    O. B. Akanet al., “Internet of Everything (IoE) - From molecules to the universe,”IEEE Commun. Mag., vol. 61, no. 10, pp. 122–128, May 2023

    work page 2023

  4. [4]

    Dna-based nanonetwork for abnormality detection and localization in the human body,

    J. T. G ´omezet al., “Dna-based nanonetwork for abnormality detection and localization in the human body,”IEEE Trans. Nanotechnol., vol. 23, pp. 794–808, 2024

    work page 2024

  5. [5]

    DNA-based molecular communication: A Markov approach to channel modeling and detection,

    R. Zhenget al., “DNA-based molecular communication: A Markov approach to channel modeling and detection,” inProc. IEEE Globecom, Dec. 2025, pp. 1196–1201

    work page 2025

  6. [6]

    Joint radar and communication design: Applications, state- of-the-art, and the road ahead,

    F. Liuet al., “Joint radar and communication design: Applications, state- of-the-art, and the road ahead,”IEEE Trans. Commun., vol. 68, no. 6, pp. 3834–3862, Feb. 2020

    work page 2020

  7. [7]

    An overview of signal processing techniques for joint communication and radar sensing,

    J. A. Zhanget al., “An overview of signal processing techniques for joint communication and radar sensing,”IEEE J. Sel. Topics Signal Process., vol. 15, no. 6, pp. 1295–1315, Sep. 2021

    work page 2021

  8. [8]

    Integrated sensing and communications: Recent advances and ten open challenges,

    S. Luet al., “Integrated sensing and communications: Recent advances and ten open challenges,”IEEE Internet Things J., vol. 11, no. 11, pp. 19 094–19 120, Feb. 2024

    work page 2024

  9. [9]

    Three-dimensional channel characteristics for molecular communications with an absorbing receiver,

    H. B. Yilmazet al., “Three-dimensional channel characteristics for molecular communications with an absorbing receiver,”IEEE Commun. Lett., vol. 18, no. 6, pp. 929–932, Apr. 2014

    work page 2014

  10. [10]

    ANIS: Anti-Noise ISI-suppression filter for molecular communication via diffusion,

    R. Zhenget al., “ANIS: Anti-Noise ISI-suppression filter for molecular communication via diffusion,”IEEE Trans. Mol. Biol. Multi-Scale Commun., vol. 11, no. 4, pp. 572–587, Jun. 2025

    work page 2025

  11. [11]

    Molecular communication with Langmuir adsorption kinetics: Channel characteristics and temporal memory,

    R. Zhenget al., “Molecular communication with Langmuir adsorption kinetics: Channel characteristics and temporal memory,”IEEE Commun. Lett., vol. 30, pp. 787–791, Jan. 2026

    work page 2026

  12. [12]

    Distance estimation schemes for diffusion based molecular communication systems,

    X. Wang, M. D. Higgins, and M. S. Leeson, “Distance estimation schemes for diffusion based molecular communication systems,”IEEE Commun. Lett., vol. 19, no. 3, pp. 399–402, Jan. 2015

    work page 2015

  13. [13]

    System modeling of microfluidic molecular commu- nication: A markov approach,

    R. Zhenget al., “System modeling of microfluidic molecular commu- nication: A markov approach,” inProc. ICC, May 2026, accepted for presentation

    work page 2026

  14. [14]

    Biological shot-noise and quantum-limited signal-to- noise ratio in affinity-based biosensors,

    A. Hassibiet al., “Biological shot-noise and quantum-limited signal-to- noise ratio in affinity-based biosensors,”J. Appl. Phys., vol. 97, no. 8, Apr. 2005

    work page 2005

  15. [15]

    Markov state–space modeling and channel characteri- zation for DNA-based molecular communication,

    R. Zhenget al., “Markov state–space modeling and channel characteri- zation for DNA-based molecular communication,”arXiv preprint, Mar. 2026, art. no. 2603.23394

    work page arXiv 2026
