Drop-on-demand printed negative dielectric anisotropy liquid crystal droplets for adaptive complex beam manipulation and assessment

Jinge Guo , Xuke Qiu , Runchen Zhang , Qihao Han , Liangyu Deng , Yishun Lu , Zimo Zhao , Mengmeng Li
show 7 more authors
Waqas Kama Junseok Ma Yongge Ma Steve J Elston Alfonso A. Castrej\'on-Pita Stephen M Morris Chao He
This is my paper

Pith reviewed 2026-05-07 14:26 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords liquid crystal dropletsinkjet printingnegative dielectric anisotropybeam manipulationvectorial optical field sensingpolarization texturesadaptive opticssoft-matter photonics
0
0 comments X

The pith

Inkjet-printed negative dielectric anisotropy liquid crystal droplets unify adaptive complex beam generation and full vectorial optical field sensing in one platform.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper establishes that drop-on-demand printed nematic liquid crystal droplets with negative dielectric anisotropy can handle both the creation of tunable complex light beams and the measurement of their full vector properties. Voltage applied to the droplets reorients their internal molecular directors to produce adjustable birefringence and polarization patterns, including skyrmionic-like textures. The same array then uses wavelength-dependent light transmission and division-of-wavefront methods to retrieve spectral and polarization data while serving as microlenses to map wavefront phase. A sympathetic reader would care because conventional tools for these tasks are typically bulky, separate, and non-adaptive, whereas the printed droplet approach offers a compact soft-matter alternative that switches functions through simple electrical control.

Core claim

The central claim is that inkjet-printed negative dielectric anisotropy nematic liquid crystal droplets form a single scalable architecture in which voltage-driven director reconfiguration generates tunable birefringence and wavelength-dependent polarization textures for complex beam production, while the droplet array simultaneously performs spectral and polarization retrieval through intensity patterns and division-of-wavefront polarimetry and acts as a microlens array for Shack-Hartmann wavefront sensing to reconstruct phase.

What carries the argument

Voltage-driven director reconfiguration inside the printed negative dielectric anisotropy liquid crystal droplets, which creates tunable birefringence for beam shaping and wavelength-dependent intensity patterns for sensing.

Load-bearing premise

The inkjet-printed droplets reliably maintain uniform negative dielectric anisotropy, defect-free director alignment, and consistent voltage response across the array without post-printing variations or degradation.

What would settle it

Observation of non-uniform voltage response or defects in the printed droplet array that prevent reliable production of specific polarization textures or accurate phase reconstruction would show the unified platform does not work as described.

read the original abstract

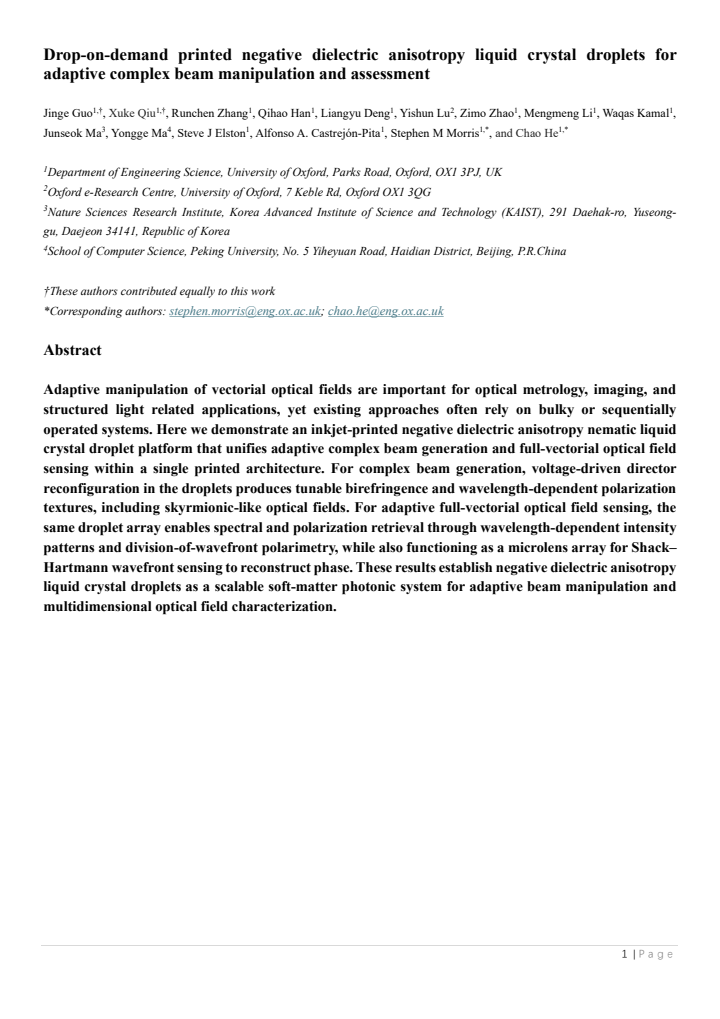

Adaptive manipulation of vectorial optical fields are important for optical metrology, imaging, and structured light related applications, yet existing approaches often rely on bulky or sequentially operated systems. Here we demonstrate an inkjet-printed negative dielectric anisotropy nematic liquid crystal droplet platform that unifies adaptive complex beam generation and full vectorial optical field sensing within a single printed architecture. For complex beam generation, voltage-driven director reconfiguration in the droplets produces tunable birefringence and wavelength-dependent polarization textures, including skyrmionic like optical fields. For adaptive full vectorial optical field sensing, the same droplet array enables spectral and polarization retrieval through wavelength-dependent intensity patterns and division-of-wavefront polarimetry, while also functioning as a microlens array for Shack Hartmann wavefront sensing to reconstruct phase. These results establish negative dielectric anisotropy liquid crystal droplets as a scalable soft-matter photonic system for adaptive beam manipulation and multidimensional optical field characterization.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The manuscript demonstrates an inkjet-printed array of negative dielectric anisotropy nematic liquid crystal droplets as a unified soft-matter platform for adaptive complex beam generation (via voltage-driven director reconfiguration yielding tunable birefringence and skyrmion-like polarization textures) and full-vectorial optical field sensing (via wavelength-dependent intensity patterns, division-of-wavefront polarimetry, and Shack-Hartmann microlens-array wavefront reconstruction).

Significance. If the experimental results hold, the work establishes a scalable, single-architecture approach to integrated adaptive photonics that could reduce reliance on bulky or sequential systems in optical metrology, imaging, and structured-light applications. The provision of fabrication details, representative voltage-response curves, and example field reconstructions is a positive feature supporting reproducibility under the tested conditions.

major comments (1)
  1. [§3] §3 (Experimental results on beam generation): The claim of 'skyrmionic like optical fields' rests on qualitative polarization textures; explicit computation of topological invariants (e.g., skyrmion number or Pontryagin density) is needed to substantiate the topological character rather than visual similarity alone.
minor comments (3)
  1. [Figures] Figure captions and legends should explicitly state the applied voltages and droplet diameters for each panel to allow direct comparison with the voltage-response curves.
  2. [§4.2] The division-of-wavefront polarimetry equations in §4.2 would benefit from a brief derivation or reference to the underlying Stokes-parameter retrieval to clarify the wavelength-dependent intensity mapping.
  3. [Abstract] Minor typographical inconsistencies appear in the abstract ('are important' should be 'is important'; 'skyrmionic like' should be hyphenated consistently with the main text).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive assessment of our work and the recommendation for minor revision. The unified soft-matter platform for adaptive beam generation and vectorial sensing is indeed the core contribution, and we appreciate the constructive feedback on strengthening the topological characterization.

read point-by-point responses

  1. Referee: [§3] §3 (Experimental results on beam generation): The claim of 'skyrmionic like optical fields' rests on qualitative polarization textures; explicit computation of topological invariants (e.g., skyrmion number or Pontryagin density) is needed to substantiate the topological character rather than visual similarity alone.

    Authors: We thank the referee for highlighting this point. The phrase 'skyrmionic like' was chosen to indicate visual and structural resemblance to skyrmion textures reported in nematic liquid crystal systems under similar director reconfigurations, without claiming a strict topological equivalence. We agree that explicit computation of invariants would provide stronger substantiation. In the revised manuscript we will add calculations of the skyrmion number (via the standard 2D integral of the normalized polarization or director field) for the representative voltage-dependent textures in §3, together with a brief description of the method and the resulting values. This will be presented alongside the existing polarization maps to quantify the topological character. revision: yes

Circularity Check

0 steps flagged

No significant circularity; purely experimental demonstration

full rationale

The manuscript is an experimental report on fabrication, voltage tuning, and optical characterization of printed LC droplets. It supplies fabrication protocols, measured voltage-response curves, director-field images, and example beam reconstructions without any derivation chain, fitted parameters renamed as predictions, or load-bearing self-citations. All claims rest on direct physical observations of director reconfiguration and intensity patterns rather than equations that reduce to their own inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms beyond standard liquid crystal physics, or invented entities; the work relies on established properties of nematic LCs with negative anisotropy and inkjet printing techniques without introducing new postulates.
