Optimizing In Vivo Oral Lesion Classification from Electrical Impedance Spectroscopy Using Data-driven Approaches
Pith reviewed 2026-05-08 07:26 UTC · model grok-4.3
The pith
Machine learning reduces electrical impedance data by 99% for accurate oral lesion classification.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
By ranking frequencies and reducing current injection and voltage measurement patterns, the input dimensionality for classifying oral pathology from in vivo EIS data can be cut by up to 99 percent while improving diagnostic accuracy over baseline full-dataset models, with logistic regression achieving 80 percent accuracy and an AUC of 0.90 for binary healthy-versus-cancer tasks and AUCs above 0.82 for multi-class scenarios.
What carries the argument

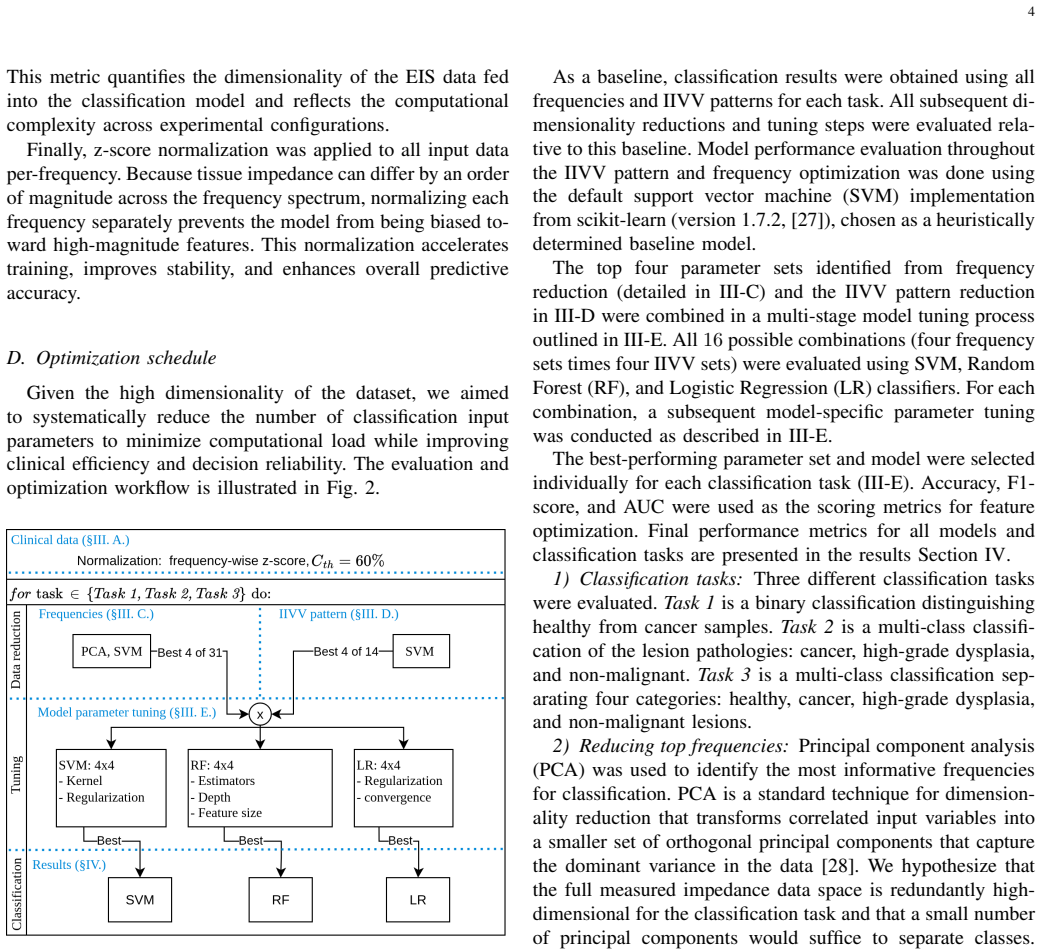

The central mechanism is independent frequency ranking combined with PCA dimensionality reduction and testing of reduced IIVV pattern geometries, validated via leave-one-patient-group-out cross-validation on data from 104 patients.
If this is right
- All top-performing models relied on the significantly reduced IIVV set as input.
- The approach yields computationally efficient classifiers suitable for real-time clinical application on handheld devices.
- Multi-class discrimination maintains AUCs above 0.82 even after the large reduction in input size.
- The pipeline methodology is readily generalizable to other EIS devices and applications.
Where Pith is reading between the lines
- This reduction could enable deployment on low-power portable devices for point-of-care screening in underserved regions.
- Similar data-driven optimization might improve impedance-based diagnostics for other tissue types or diseases.
- Extending the method to incorporate additional patient metadata could further boost performance without increasing data volume.
Load-bearing premise
That the leave-one-patient-group-out cross-validation on measurements from 104 patients produces models that generalize reliably to new patients and that the selected reduced patterns retain all information needed for accurate clinical decisions.
What would settle it
Observing substantially lower classification accuracy or AUC when applying the reduced-pattern models to an independent set of new patients compared to the full-data baselines would indicate the reduction discards essential information or overfits to the study cohort.
Figures
read the original abstract
Oral cancer is a significant global health burden, and early detection remains a critical clinical need. Electrical impedance spectroscopy (EIS) offers a promising non-invasive approach for real-time tissue characterization, but classification frameworks that jointly leverage multiple impedance features for in vivo oral lesion discrimination remain underdeveloped. This paper presents a machine-learning (ML) pipeline to optimize classification of in vivo oral pathology from EIS data collected using a handheld, bedside device. Impedance measurements were acquired from 104 patients undergoing oral cancer resection or biopsy. Three classification tasks were evaluated: (1) healthy vs. cancer, (2) multi-class lesion-type discrimination (cancer, high-grade dysplasia, non-malignant), and (3) multi-class discrimination between the three lesion pathologies and healthy tissue. For each task, signal frequencies were independently ranked and reduced using PCA, and different current injection/voltage measurement (IIVV) pattern geometries were tested. Classification performance was assessed through leave-one-patient-group-out cross-validation to ensure robustness on unseen patients. Input data dimensionality was reduced by up to 99% across all tasks while improving diagnostic accuracy over baseline models trained on the full dataset. A logistic regression model achieved the highest binary classification accuracy of 80% with an AUC of 0.90, while multi-class scenarios maintained AUCs above 0.82. All top-performing models utilized the significantly reduced IIVV set as input. The proposed pipeline advances EIS-based cancer detection by providing a robust, computationally efficient, and clinically practical framework for early diagnosis of oral cancer lesions, with a methodology readily generalizable to other EIS devices and applications.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript presents a data-driven machine-learning pipeline for classifying in vivo oral lesions from electrical impedance spectroscopy (EIS) measurements collected with a handheld device on 104 patients. For three tasks (healthy vs. cancer; multi-class lesion types; and lesion types plus healthy), frequencies are ranked and reduced via PCA, multiple current-injection/voltage-measurement (IIVV) pattern geometries are tested, and performance is evaluated with leave-one-patient-group-out cross-validation. The central claims are that input dimensionality can be reduced by up to 99 % while improving accuracy over full-dataset baselines, that logistic regression reaches 80 % accuracy and AUC 0.90 on the binary task, and that multi-class AUCs remain above 0.82, with all top models using the reduced IIVV sets.
Significance. If the performance gains are free of selection bias, the work would offer a practical, low-dimensional, non-invasive framework for real-time oral-cancer detection that is computationally efficient and potentially generalizable to other EIS devices. The patient-group CV design is a positive step toward assessing generalization to unseen patients.
major comments (2)
- [Abstract / Methods (CV procedure)] Abstract and cross-validation description: the manuscript states that frequencies were independently ranked, PCA was applied, and IIVV geometries were tested, with performance assessed via leave-one-patient-group-out CV. It does not indicate whether ranking, PCA-component selection, or IIVV-geometry choice were performed inside each training fold (nested CV) or on the full dataset before CV. If the latter occurred, the 99 % dimensionality reduction and the reported accuracy improvements over baseline are optimistically biased, directly undermining the claim that the reduced patterns preserve all clinically relevant information without selection bias. This is load-bearing for the central empirical results.
- [Results] Results section: no quantitative baseline accuracies or AUCs for the full-dataset models are reported, no confidence intervals or error bars accompany the 80 % / 0.90 and >0.82 figures, and no details are given on the frequency-ranking criterion or the exact number of PCA components retained. These omissions prevent assessment of the magnitude and statistical reliability of the claimed improvements.
minor comments (2)
- [Abstract] The abstract notes class imbalance as a potential concern but provides no description of how it was handled (e.g., class weights, oversampling, or stratified folds).
- Missing references to prior EIS oral-lesion studies or standard ML baselines (e.g., random forest, SVM) would help situate the logistic-regression result.
Simulated Author's Rebuttal
We thank the referee for their insightful and constructive comments, which have prompted us to clarify important methodological aspects of our study. We provide detailed responses to each major comment below, along with our plans for revision.
read point-by-point responses
-
Referee: [Abstract / Methods (CV procedure)] Abstract and cross-validation description: the manuscript states that frequencies were independently ranked, PCA was applied, and IIVV geometries were tested, with performance assessed via leave-one-patient-group-out CV. It does not indicate whether ranking, PCA-component selection, or IIVV-geometry choice were performed inside each training fold (nested CV) or on the full dataset before CV. If the latter occurred, the 99 % dimensionality reduction and the reported accuracy improvements over baseline are optimistically biased, directly undermining the claim that the reduced patterns preserve all clinically relevant information without selection bias. This is load-bearing for the central empirical results.
Authors: We acknowledge the referee's concern regarding potential selection bias. The frequency ranking, PCA, and IIVV selection were performed on the full dataset to determine the reduced configurations that would be used in practice. While this is a common approach in exploratory studies, we agree it can inflate performance estimates. Therefore, we will revise the manuscript to employ nested cross-validation: an inner loop for feature selection and PCA within each outer leave-one-patient-group-out fold. This will provide a more reliable assessment of the 99% reduction's effectiveness. The abstract and methods will be updated to describe this procedure, and we will re-evaluate the performance metrics accordingly. We believe this addresses the load-bearing issue for our central claims. revision: yes
-
Referee: [Results] Results section: no quantitative baseline accuracies or AUCs for the full-dataset models are reported, no confidence intervals or error bars accompany the 80 % / 0.90 and >0.82 figures, and no details are given on the frequency-ranking criterion or the exact number of PCA components retained. These omissions prevent assessment of the magnitude and statistical reliability of the claimed improvements.
Authors: We agree that these details are essential for transparency and evaluation. In the revised version, we will report the baseline accuracies and AUCs for models using the complete set of frequencies and IIVV patterns. We will add 95% confidence intervals (via bootstrapping over patient groups) to all performance figures. We will also detail the frequency-ranking method (e.g., using ANOVA F-statistics for class separability) and the criterion for retaining PCA components (e.g., cumulative variance threshold of 95%). These additions will enable readers to gauge the improvements' magnitude and reliability. revision: yes
Circularity Check
No circularity: purely empirical ML pipeline with held-out CV
full rationale
The paper reports an entirely data-driven classification study on EIS measurements from 104 patients. It ranks frequencies, applies PCA, tests IIVV geometries, and evaluates via leave-one-patient-group-out cross-validation, with performance compared to full-dataset baselines. No mathematical derivation chain, no self-referential predictions, no fitted parameters renamed as independent results, and no load-bearing self-citations exist. All reported accuracies and AUCs are direct empirical outcomes on unseen patient groups, satisfying the self-contained benchmark criterion.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption Leave-one-patient-group-out cross-validation produces unbiased estimates of generalization performance on unseen patients
- domain assumption Principal component analysis on ranked frequencies preserves the clinically discriminative information in the impedance spectra
Reference graph
Works this paper leans on
-
[1]
R. L. Siegel, T. B. Kratzer, A. N. Giaquinto, H. Sung, and A. Jemal, “Cancer statistics, 2025,”CA: A Cancer Journal for Clinicians, vol. 75, no. 1, pp. 10–45, 2025. eprint: https://acsjournals.onlinelibrary.wiley.com/doi/pdf/10.3322/caac.21871
-
[2]
Cancer of the oral cavity and pharynx - cancer stat facts
N. C. Institute, “Cancer of the oral cavity and pharynx - cancer stat facts.”
-
[3]
The pathology of oral cancer,
P. M. Speight and P. M. Farthing, “The pathology of oral cancer,”British Dental Journal, vol. 225, no. 9, pp. 841–847, 2018. Num Pages: 7 Place: London, United States Publisher: Nature Publishing Group
2018
-
[4]
Why oral histopathology suffers inter-observer variability on grading oral epithelial dysplasia: an attempt to understand the sources of variation,
O. Kujan, A. Khattab, R. J. Oliver, S. A. Roberts, N. Thakker, and P. Sloan, “Why oral histopathology suffers inter-observer variability on grading oral epithelial dysplasia: an attempt to understand the sources of variation,”Oral Oncol, vol. 43, no. 3, pp. 224–231, 2007
2007
-
[5]
Interobserver agreement in dysplasia grading: toward an enhanced gold standard for clinical pathology trials,
P. M. Speight, T. J. Abram, P. N. Floriano, R. James, J. Vick, M. H. Thornhill, C. Murdoch, C. Freeman, A. M. Hegarty, K. D’Apice, A. R. Kerr, J. Phelan, P. Corby, I. Khouly, N. Vigneswaran, J. Bouquot, N. M. Demian, Y . E. Weinstock, S. W. Redding, S. Rowan, C.-K. Yeh, H. S. McGuff, F. R. Miller, and J. T. McDevitt, “Interobserver agreement in dysplasia ...
2015
-
[6]
Experiences, perceptions, and decision-making capacity towards oral biopsy among dental students and dentists,
J. Cassol Spanemberg, R. Vel ´azquez Cay ´on, J. Romanini, M. A. Trevizani Martins, P. L ´opez-Jornet, and V . C. Carrard, “Experiences, perceptions, and decision-making capacity towards oral biopsy among dental students and dentists,”Sci Rep, vol. 13, no. 1, p. 22937, 2023. Publisher: Nature Publishing Group
2023
-
[7]
L. Tiwari, O. Kujan, and C. S. Farah, “Optical fluorescence imag- ing in oral cancer and potentially malignant disorders: A systematic review,”Oral Diseases, vol. 26, no. 3, pp. 491–510, 2020. eprint: https://onlinelibrary.wiley.com/doi/pdf/10.1111/odi.13071
-
[8]
Understanding the biological basis of autofluores- cence imaging for oral cancer detection: high-resolution fluorescence microscopy in viable tissue,
I. Pavlova, M. Williams, A. El-Naggar, R. Richards-Kortum, and A. Gillenwater, “Understanding the biological basis of autofluores- cence imaging for oral cancer detection: high-resolution fluorescence microscopy in viable tissue,”Clin Cancer Res, vol. 14, no. 8, pp. 2396– 2404, 2008
2008
-
[9]
Intraop- erative use of wide-field optical coherence tomography to evaluate tissue microstructure in the oral cavity and oropharynx,
A. K. Badhey, J. S. Schwarz, B. M. Laitman, B. M. Veremis, W. H. Westra, M. Yao, M. S. Teng, E. M. Genden, and B. A. Miles, “Intraop- erative use of wide-field optical coherence tomography to evaluate tissue microstructure in the oral cavity and oropharynx,”JAMA Otolaryngol Head Neck Surg, vol. 149, no. 1, pp. 71–78, 2023
2023
-
[10]
Technology review: The use of electrical impedance scanning in the detection of breast cancer,
T. A. Hope and S. E. Iles, “Technology review: The use of electrical impedance scanning in the detection of breast cancer,”Breast Cancer Research, vol. 6, no. 2, p. 69, 2003
2003
-
[11]
Electrical impedance spectroscopy of the human prostate,
R. J. Halter, A. Hartov, J. A. Heaney, K. D. Paulsen, and A. R. Schned, “Electrical impedance spectroscopy of the human prostate,” IEEE Transactions on Biomedical Engineering, vol. 54, no. 7, pp. 1321– 1327, 2007. Conference Name: IEEE Transactions on Biomedical Engineering
2007
-
[12]
Use of electrical impedance spectroscopy to detect malig- nant and potentially malignant oral lesions,
C. Murdoch, B. H. Brown, V . Hearnden, P. M. Speight, K. D’Apice, A. M. Hegarty, J. A. Tidy, T. J. Healey, P. E. Highfield, and M. H. Thornhill, “Use of electrical impedance spectroscopy to detect malig- nant and potentially malignant oral lesions,”International journal of nanomedicine, pp. 4521–4532, 2014
2014
-
[13]
In vivo classification of oral lesions using electrical impedance spectroscopy,
S. A. Lloyd, T. E. Lee, E. K. Murphy, A. F. Doussan, J. P. Th ¨ones, D. A. Kerr, J. A. Paydarfar, and R. J. Halter, “In vivo classification of oral lesions using electrical impedance spectroscopy,”IEEE Transactions on Biomedical Engineering, pp. 1–10, 2025
2025
-
[14]
The use of bioimpedance in the detection/screening of tongue cancer,
T.-P. Sun, C. T.-S. Ching, C.-S. Cheng, S.-H. Huang, Y .-J. Chen, C.-S. Hsiao, C.-H. Chang, S.-Y . Huang, H.-L. Shieh, W.-H. Liu, C.-M. Liu, and C.-Y . Chen, “The use of bioimpedance in the detection/screening of tongue cancer,”Cancer Epidemiol, vol. 34, no. 2, pp. 207–211, 2010
2010
-
[15]
A preliminary study of the use of bioimpedance in the screening of squamous tongue cancer,
C. T.-S. Ching, T.-P. Sun, S.-H. Huang, C.-S. Hsiao, C.-H. Chang, S.-Y . Huang, Y .-J. Chen, C.-S. Cheng, H.-L. Shieh, and C.-Y . Chen, “A preliminary study of the use of bioimpedance in the screening of squamous tongue cancer,”Int J Nanomedicine, vol. 5, pp. 213–220, 2010
2010
-
[16]
Tissue level based deep learning framework for early detection of dysplasia in oral squamous epithelium,
R. K. Gupta, M. Kaur, and J. Manhas, “Tissue level based deep learning framework for early detection of dysplasia in oral squamous epithelium,” Journal of Multimedia Information System, vol. 6, no. 2, pp. 81–86, 2019
2019
-
[17]
Computer-assisted medical image classification for early diagnosis of oral cancer employing deep learning algorithm,
P. R. Jeyaraj and E. R. Samuel Nadar, “Computer-assisted medical image classification for early diagnosis of oral cancer employing deep learning algorithm,”Journal of cancer research and clinical oncology, vol. 145, pp. 829–837, 2019
2019
-
[18]
Automatic classification of cancerous tissue in laserendomicroscopy images of the oral cavity using deep learning,
M. Aubreville, C. Knipfer, N. Oetter, C. Jaremenko, E. Rodner, J. Den- zler, C. Bohr, H. Neumann, F. Stelzle, and A. Maier, “Automatic classification of cancerous tissue in laserendomicroscopy images of the oral cavity using deep learning,”Scientific reports, vol. 7, no. 1, p. 11979, 2017
2017
-
[19]
An early diagnosis of oral cancer based on three-dimensional convolutional neural networks,
S. Xu, C. Liu, Y . Zong, S. Chen, Y . Lu, L. Yang, E. Y . K. Ng, Y . Wang, Y . Wang, Y . Liu, W. Hu, and C. Zhang, “An early diagnosis of oral cancer based on three-dimensional convolutional neural networks,”IEEE Access, vol. 7, pp. 158603–158611, 2019
2019
-
[20]
Deep learning-based electrical impedance spectroscopy analysis for malignant and potentially malignant oral disorder detection,
Z. Lin, Z.-Q. Lang, L. Guo, D. C. Walker, M. Matella, M. Wang, and C. Murdoch, “Deep learning-based electrical impedance spectroscopy analysis for malignant and potentially malignant oral disorder detection,” Sci Rep, vol. 15, no. 1, p. 19458, 2025. Publisher: Nature Publishing Group
2025
-
[21]
Electrical impedance-based tissue classification for bladder tumor differentiation,
C. Veil, F. Krauß, B. Amend, F. Fend, and O. Sawodny, “Electrical impedance-based tissue classification for bladder tumor differentiation,” Sci Rep, vol. 15, no. 1, p. 825, 2025. Publisher: Nature Publishing Group
2025
-
[22]
IIVV Evaluation
J. P. Th ¨ones, “IIVV Evaluation.” https://github.com/EITLabworks/IIVV- Evaluation, 2026
2026
-
[23]
A clinically feasible electrode array for 3d intraoperative electrical impedance tomography-based surgical margin assessment in robot-assisted radical prostatectomy,
S. E. Kossmann, E. K. Murphy, A. F. Doussan, S. Lloyd, and R. J. Halter, “A clinically feasible electrode array for 3d intraoperative electrical impedance tomography-based surgical margin assessment in robot-assisted radical prostatectomy,”IEEE Transactions on Biomedical Engineering, vol. 71, no. 11, pp. 3134–3145, 2024
2024
-
[24]
Comparison of complex open domain electrical impedance tomography methods,
A. F. Doussan, E. K. Murphy, S. A. Lloyd, and R. J. Halter, “Comparison of complex open domain electrical impedance tomography methods,” IEEE Transactions on Biomedical Engineering, pp. 1–12, 2025. 13
2025
-
[25]
Binary-and three-tiered oral epithelial dysplasia grading system and malignant transformation,
R. Ellonen, J. Kelppe, J. Hagstr ¨om, A. Suominen, J. Willberg, J. Rautava, and H. K. Laine, “Binary-and three-tiered oral epithelial dysplasia grading system and malignant transformation,”Oral Diseases, 2025
2025
-
[26]
Oral epithelial dysplasia: Do we have a management solution? a systematic review,
N. Mannapperuma, C. Y . Chieng, and V . Ilankovan, “Oral epithelial dysplasia: Do we have a management solution? a systematic review,” Advances in Oral and Maxillofacial Surgery, vol. 18, p. 100533, 2025
2025
-
[27]
Scikit-learn: Machine learning in Python,
F. Pedregosa, G. Varoquaux, A. Gramfort, V . Michel, B. Thirion, O. Grisel, M. Blondel, P. Prettenhofer, R. Weiss, V . Dubourg, J. Vander- plas, A. Passos, D. Cournapeau, M. Brucher, M. Perrot, and E. Duch- esnay, “Scikit-learn: Machine learning in Python,”Journal of Machine Learning Research, vol. 12, pp. 2825–2830, 2011
2011
-
[28]
Principal component analysis,
M. Greenacre, P. J. Groenen, T. Hastie, A. I. d’Enza, A. Markos, and E. Tuzhilina, “Principal component analysis,”Nature Reviews Methods Primers, vol. 2, no. 1, p. 100, 2022
2022
-
[29]
Support-vector networks,
C. Cortes and V . Vapnik, “Support-vector networks,”Machine learning, vol. 20, no. 3, pp. 273–297, 1995
1995
-
[30]
Support vector machines,
M. Hearst, S. Dumais, E. Osuna, J. Platt, and B. Scholkopf, “Support vector machines,”IEEE Intelligent Systems and their Applications, vol. 13, no. 4, pp. 18–28, 1998
1998
-
[31]
Random forests,
L. Breiman, “Random forests,”Machine Learning, vol. 45, pp. 5–32, Oct 2001
2001
-
[32]
D. W. Hosmer, S. Lemeshow, and R. X. Sturdivant,Applied logistic regression. Wiley New York, 2000
2000
-
[33]
The meaning and use of the area under a receiver operating characteristic (roc) curve.,
J. A. Hanley and B. J. McNeil, “The meaning and use of the area under a receiver operating characteristic (roc) curve.,”Radiology, vol. 143, no. 1, pp. 29–36, 1982
1982
-
[34]
Machine learning applications in cancer prognosis and prediction,
K. Kourou, T. P. Exarchos, K. P. Exarchos, M. V . Karamouzis, and D. I. Fotiadis, “Machine learning applications in cancer prognosis and prediction,”Computational and structural biotechnology journal, vol. 13, pp. 8–17, 2015
2015
-
[35]
Low-frequency dielectric properties of the oral mucosa,
I. Lackovic and Z. Stare, “Low-frequency dielectric properties of the oral mucosa,” in13th International Conference on Electrical Bioimpedance and the 8th Conference on Electrical Impedance Tomography(H. Schar- fetter and R. Merwa, eds.), vol. 17, pp. 154–157, Springer Berlin Heidelberg, 2007. Series Title: IFMBE Proceedings
2007
