arxiv: 2605.06062 · v1 · submitted 2026-05-07 · 💻 cs.RO · cs.SY· eess.SY

Monitoring autonomous persistent surveillance missions using invariance

Vladislav Nenchev , Prodromos Sotiriadis This is my paper

Pith reviewed 2026-05-08 09:12 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords runtime monitoringinvariant setspersistent surveillancehybrid systemsautonomous robotscompositional verificationblack-box systems
0
0 comments X

The pith

A compositional monitor using decentralized invariant sets verifies black-box autonomous surveillance missions under independence assumptions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops runtime monitoring for persistent surveillance by autonomous robots when the internal autonomy stack is inaccessible. It models the robot and environment as a state-dependent hybrid system with linear parameter-varying dynamics whose uncertainty states decrease on observation and increase otherwise, then computes an offline invariant to check mission progress online. For large environments the monolithic invariant is intractable, so the method decomposes the space into regions, computes low-dimensional invariants separately, and monitors their online conjunction. Under common independence assumptions this compositional check is sound and complete with respect to the full-system invariant, enabling practical use on real hardware.

Core claim

The paper establishes that, under common independence assumptions, the conjunction of low-dimensional invariant sets computed separately for each uncertainty region yields a monitor that is sound and complete with respect to the invariant of the full state-dependent hybrid system.

What carries the argument

The compositional monitor formed by decentralized offline computation of low-dimensional invariant sets per uncertainty region, verified by checking their conjunction at runtime.

If this is right

  • The monitor scales to large surveillance areas where computing the monolithic invariant becomes intractable.
  • Runtime verification remains possible even when the robot's autonomy stack is a black box.
  • The method was demonstrated on a physical robot performing persistent monitoring in a labyrinth.
  • Soundness and completeness hold only when the stated independence assumptions are satisfied.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Compositional invariant techniques could extend to monitoring other hybrid-system properties beyond surveillance.
  • If independence is violated the monitor may still serve as a conservative but incomplete check.
  • Incorporating stochastic uncertainty models could broaden the method while preserving the compositional structure.

Load-bearing premise

The uncertainty evolutions in different regions satisfy the independence assumptions that make the conjunction of local invariants equivalent to the global invariant.

What would settle it

A trajectory or experiment in which two uncertainty regions exhibit dependent dynamics and the compositional monitor accepts the trajectory while the full-system invariant is violated.

Figures

Figures reproduced from arXiv: 2605.06062 by Prodromos Sotiriadis, Vladislav Nenchev.

Figure 1
Figure 1. Figure 1: Example: A robot persistently surveying two parts view at source ↗

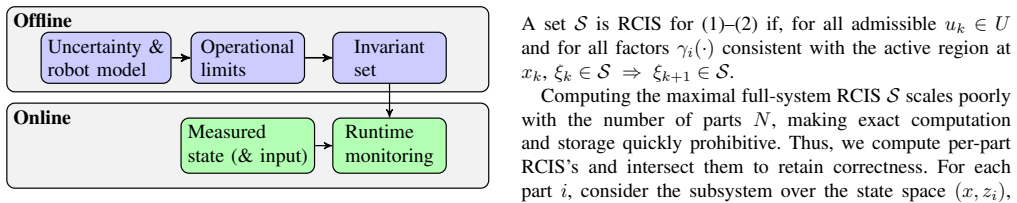

Figure 2
Figure 2. Figure 2: Overview of the monitoring approach: In the view at source ↗

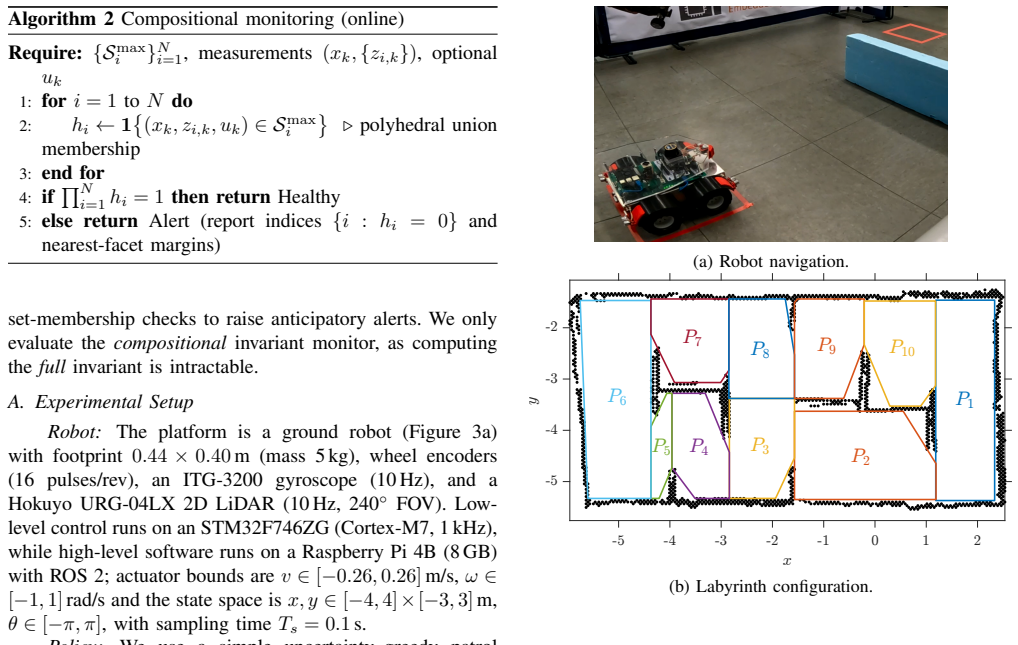

Figure 3
Figure 3. Figure 3: Labyrinth for persistent surveillance by a four view at source ↗
Figure 4
Figure 4. Figure 4: Labyrinth for persistent surveillance by a four view at source ↗

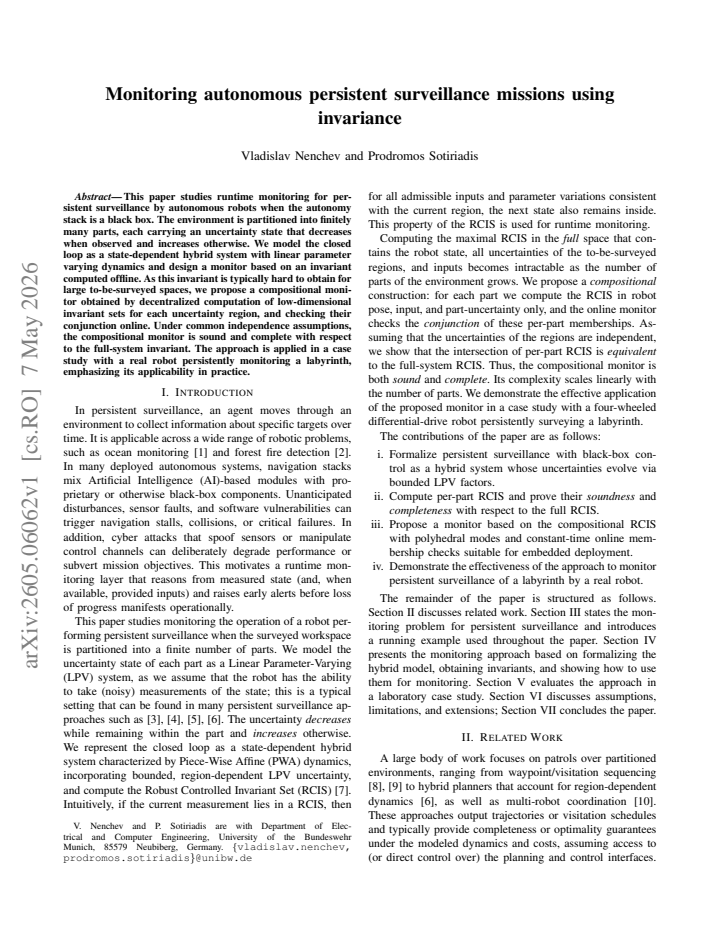

read the original abstract

This paper studies runtime monitoring for persistent surveillance by autonomous robots when the autonomy stack is a black box. The environment is partitioned into finitely many parts, each carrying an uncertainty state that decreases when observed and increases otherwise. We model the closed loop as a state-dependent hybrid system with linear parameter varying dynamics and design a monitor based on an invariant computed offline. As this invariant is typically hard to obtain for large to-be-surveyed spaces, we propose a compositional monitor obtained by decentralized computation of low-dimensional invariant sets for each uncertainty region, and checking their conjunction online. Under common independence assumptions, the compositional monitor is sound and complete with respect to the full-system invariant. The approach is applied in a case study with a real robot persistently monitoring a labyrinth, emphasizing its applicability in practice.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The paper proposes a runtime monitor for persistent surveillance missions performed by autonomous robots with black-box autonomy stacks. The environment is partitioned into regions, each with an uncertainty state that decreases upon observation and increases otherwise. The closed-loop system is modeled as a state-dependent hybrid linear parameter-varying (LPV) system. An offline invariant is used for monitoring, but to address scalability, the authors propose a compositional monitor that computes low-dimensional invariants per region in a decentralized manner and checks their online conjunction. Under common independence assumptions, this compositional monitor is claimed to be sound and complete with respect to the full-system invariant. The method is illustrated via a real-robot case study in a labyrinth.

Significance. If the soundness and completeness claims hold, the compositional approach would provide a scalable way to obtain formal runtime guarantees for surveillance tasks without computing high-dimensional invariants for the entire state space. The real-robot demonstration is a positive element that supports practical relevance. The work addresses a relevant problem in robotics where black-box components make full verification difficult.

major comments (1)
  1. [Abstract and compositional monitor section] The central claim (abstract) that the compositional monitor is sound and complete under independence assumptions rests on the conjunction of per-region invariants equaling the full-system invariant of the hybrid LPV model. However, the robot state selects the observed region and thereby couples the uncertainty flows through both the discrete mode and the continuous trajectory; it is not clear from the provided description whether the independence assumptions address only statistical independence of increments or also the mode-dependent switching. This coupling could render the conjunction strictly weaker than the joint invariant, undermining completeness. A concrete derivation or counter-example analysis is needed in the section on the compositional monitor.
minor comments (3)
  1. [Abstract] The abstract states that the monitor is sound and complete but provides no derivation details, error bounds, or information on how the invariants were computed; these should be added to allow verification of the claims.
  2. [Case study section] The case study mentions a real robot in a labyrinth but lacks quantitative data on monitoring performance, false-positive rates, or how the invariants were obtained offline; additional tables or figures with these metrics would strengthen the evaluation.
  3. [Modeling section] Notation for the hybrid LPV model and the independence assumptions should be introduced more explicitly early on to improve readability for readers unfamiliar with the specific modeling choices.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The major comment raises an important point about the handling of coupling in the compositional monitor. We address it below and will revise the manuscript to include the requested derivation.

read point-by-point responses

  1. Referee: [Abstract and compositional monitor section] The central claim (abstract) that the compositional monitor is sound and complete under independence assumptions rests on the conjunction of per-region invariants equaling the full-system invariant of the hybrid LPV model. However, the robot state selects the observed region and thereby couples the uncertainty flows through both the discrete mode and the continuous trajectory; it is not clear from the provided description whether the independence assumptions address only statistical independence of increments or also the mode-dependent switching. This coupling could render the conjunction strictly weaker than the joint invariant, undermining completeness. A concrete derivation or counter-example analysis is needed in the section on the compositional monitor.

    Authors: The independence assumptions in the paper are intended to cover both the statistical independence of uncertainty increments across regions and the effective decoupling of mode-dependent switching for invariant purposes. Each per-region invariant is computed offline for the LPV dynamics active when that region is observed (i.e., the corresponding discrete mode), using the worst-case continuous trajectory consistent with the hybrid model. Because the online monitor evaluates the conjunction only for the currently observed region while the robot is in that mode, and the invariants are over-approximations that remain valid under the independence of increment processes, the conjunction is equivalent to the joint invariant. We acknowledge that the current manuscript description does not make this equivalence explicit enough. We will add a concrete derivation in the compositional monitor section, including the step-by-step argument that the conjunction preserves soundness and completeness under the stated assumptions, together with a brief discussion of why mode coupling does not violate the result. revision: yes

Circularity Check

0 steps flagged

No significant circularity; claim conditional on explicit assumptions

full rationale

The derivation models the system as a state-dependent hybrid LPV system, computes an offline invariant, and proposes a compositional monitor via per-region low-dimensional invariants. Soundness and completeness are asserted only under stated independence assumptions, without any equation reducing to a fitted parameter, self-definition, or self-citation chain. The conjunction check is presented as a direct consequence of the model and assumptions rather than a renaming or smuggling of prior results. This is a standard conditional verification result with no load-bearing circular steps.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The approach rests on modeling the closed loop as a state-dependent hybrid system with linear parameter varying dynamics and on independence assumptions that enable soundness and completeness of the compositional monitor.

axioms (2)
  • domain assumption The closed-loop system can be modeled as a state-dependent hybrid system with linear parameter varying dynamics.
    Stated in the abstract as the modeling choice for the surveillance task.
  • domain assumption Common independence assumptions hold between uncertainty regions.
    Required for the compositional monitor to be sound and complete.

pith-pipeline@v0.9.0 · 5427 in / 1270 out tokens · 69392 ms · 2026-05-08T09:12:39.363812+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

21 extracted references · 21 canonical work pages

  1. [1]

    Persistent ocean monitoring with underwater gliders: Adapting sampling resolution,

    R. N. Smith, M. Schwager, S. L. Smith, B. H. Jones, D. Rus, and G. S. Sukhatme, “Persistent ocean monitoring with underwater gliders: Adapting sampling resolution,”Journal of Field Robotics, vol. 28, no. 5, pp. 714–741, 2011

    work page 2011

  2. [2]

    Cooperative forest fire surveillance using a team of small unmanned air vehicles,

    D. W. Casbeer, D. B. Kingston, R. W. Beard, and T. W. McLain, “Cooperative forest fire surveillance using a team of small unmanned air vehicles,”Int. J. Syst. Sci., vol. 37, no. 6, pp. 351–360, 2006

    work page 2006

  3. [3]

    Planning periodic persistent monitoring trajectories for sensing robots in Gaussian Random Fields,

    X. Lan and M. Schwager, “Planning periodic persistent monitoring trajectories for sensing robots in Gaussian Random Fields,” inIEEE Int. Conf. Robot. Autom. (ICRA), 2013, pp. 2415–2420

    work page 2013

  4. [4]

    Deep Reinforced Learning Tree for Spatiotemporal Monitoring With Mobile Robotic Wireless Sensor Networks,

    J. Chen, T. Shu, T. Li, and C. W. de Silva, “Deep Reinforced Learning Tree for Spatiotemporal Monitoring With Mobile Robotic Wireless Sensor Networks,”IEEE Trans. Syst., Man, Cybern., Syst., vol. 50, no. 11, pp. 4197–4211, 2020

    work page 2020

  5. [5]

    On periodic optimal solutions of persistent sensor planning for continuous-time linear systems,

    J.-S. Ha and H.-L. Choi, “On periodic optimal solutions of persistent sensor planning for continuous-time linear systems,”Automatica, vol. 99, pp. 138–148, 2019

    work page 2019

  6. [6]

    Persistent Monitoring Trajectory Optimization in Partitioned Environments,

    J. Hall, C. G. Cassandras, and S. B. Andersson, “Persistent Monitoring Trajectory Optimization in Partitioned Environments,” inAmerican Control Conf. (ACC), 2025, pp. 3813–3818

    work page 2025

  7. [7]

    Set invariance in control,

    F. Blanchini, “Set invariance in control,”Automatica, vol. 35, no. 11, pp. 1747–1767, 1999

    work page 1999

  8. [8]

    Persistent Monitoring of Events With Stochastic Arrivals at Multiple Stations,

    J. Yu, S. Karaman, and D. Rus, “Persistent Monitoring of Events With Stochastic Arrivals at Multiple Stations,”IEEE Transactions on Robotics, vol. 31, no. 3, pp. 521–535, 2015

    work page 2015

  9. [9]

    Information-guided persistent monitoring under temporal logic constraints,

    A. Jones, M. Schwager, and C. Belta, “Information-guided persistent monitoring under temporal logic constraints,” in2015 American Con- trol Conference (ACC), 2015, pp. 1911–1916, iSSN: 2378-5861

    work page 2015

  10. [10]

    Optimal Event-Driven Multiagent Persistent Monitoring of a Finite Set of Data Sources,

    N. Zhou, X. Yu, S. B. Andersson, and C. G. Cassandras, “Optimal Event-Driven Multiagent Persistent Monitoring of a Finite Set of Data Sources,”IEEE Trans. Autom. Control, vol. 63, no. 12, pp. 4204–4217, 2018

    work page 2018

  11. [11]

    Persistent monitoring of changing environments using a robot with limited range sensing,

    S. L. Smith, M. Schwager, and D. Rus, “Persistent monitoring of changing environments using a robot with limited range sensing,” in IEEE Int. Conf. Robot. Autom. (ICRA), 2011, pp. 5448–5455

    work page 2011

  12. [12]

    Receding Horizon Robot Control in Uncertain Environments with Temporal Logic Constraints,

    V . Nenchev and C. Belta, “Receding Horizon Robot Control in Uncertain Environments with Temporal Logic Constraints,” in15th European Control Conf. (ECC), 2016, pp. 2614–2619

    work page 2016

  13. [13]

    Event-driven optimal control for a robotic exploration, pick-up and delivery problem,

    V . Nenchev, C. G. Cassandras, and J. Raisch, “Event-driven optimal control for a robotic exploration, pick-up and delivery problem,” Nonlinear Analysis: Hybrid Systems, vol. 30, pp. 266–284, 2018

    work page 2018

  14. [14]

    A brief account of runtime verifica- tion,

    M. Leucker and C. Schallhart, “A brief account of runtime verifica- tion,”The Journal of Logic and Algebraic Programming, vol. 78, no. 5, pp. 293–303, 2009

    work page 2009

  15. [15]

    Monitoring Temporal Properties of Continuous Signals,

    O. Maler and D. Nickovic, “Monitoring Temporal Properties of Continuous Signals,” inFormal Techniques, Modelling and Analysis of Timed and Fault-Tolerant Systems, Y . Lakhnech and S. Yovine, Eds. Berlin, Heidelberg: Springer, 2004, pp. 152–166

    work page 2004

  16. [16]

    Robustness of temporal logic spec- ifications for continuous-time signals,

    G. E. Fainekos and G. J. Pappas, “Robustness of temporal logic spec- ifications for continuous-time signals,”Theoretical Computer Science, vol. 410, no. 42, pp. 4262–4291, 2009

    work page 2009

  17. [17]

    Monitoring Progress and Failure in Autonomous Robot Navigation: A Case Study,

    V . Nenchev and P. Sotiriadis, “Monitoring Progress and Failure in Autonomous Robot Navigation: A Case Study,” inRuntime Verifica- tion, B. K ¨onighofer and H. Torfah, Eds. Cham: Springer Nature Switzerland, 2026, pp. 317–335

    work page 2026

  18. [18]

    A time-dependent Hamilton- Jacobi formulation of reachable sets for continuous dynamic games,

    I. Mitchell, A. Bayen, and C. Tomlin, “A time-dependent Hamilton- Jacobi formulation of reachable sets for continuous dynamic games,” IEEE Trans. Autom. Control, vol. 50, no. 7, pp. 947–957, 2005

    work page 2005

  19. [19]

    Control Barrier Function Based Quadratic Programs for Safety Critical Systems,

    A. D. Ames, X. Xu, J. W. Grizzle, and P. Tabuada, “Control Barrier Function Based Quadratic Programs for Safety Critical Systems,” IEEE Trans. Autom. Control, vol. 62, no. 8, pp. 3861–3876, 2017

    work page 2017

  20. [20]

    Model predictive control: Recent developments and future promise,

    D. Q. Mayne, “Model predictive control: Recent developments and future promise,”Automatica, vol. 50, no. 12, pp. 2967–2986, 2014

    work page 2014

  21. [21]

    An Overview of LPV Systems,

    J. S. Shamma, “An Overview of LPV Systems,” inControl of Linear Parameter Varying Systems with Applications, J. Mohammadpour and C. W. Scherer, Eds. Boston, MA: Springer US, 2012, pp. 3–26

    work page 2012
