Concentration effects and Gamma-limit for the elastica functional for open and closed curves
Pith reviewed 2026-05-12 02:51 UTC · model grok-4.3
The pith
The elastica energy for immersed open and closed curves concentrates in the limit to a sum of integer multiples of 2π, one for each curvature concentration point.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
In the space of pointed curves the Γ-limit of the elastica functionals is determined exclusively by the concentration points of the curvature measure and equals the sum of contributions each equal to an integer multiple of 2π. This holds for immersed open curves with fixed endpoints and boundary conditions on the tangents, and for immersed closed curves of prescribed length.
What carries the argument
The Γ-limit functional on pointed curves, where the energy is extracted from the number of atoms in the curvature concentration measure, each atom weighted by an integer times 2π; this is derived by relating the rescaled elastica energy to Modica-Mortola type functionals.
If this is right
- The limiting energy ignores the detailed geometry of the curve between concentration points.
- Minimal configurations in the limit will have the smallest possible number of concentration points allowed by the topology or boundary conditions.
- The energy for closed curves must be an integer multiple of 2π.
- The boundary tangent conditions for open curves do not contribute additional energy costs beyond the concentrations.
Where Pith is reading between the lines
- Similar concentration effects might appear in other curve energies, such as those with different bending exponents, leading to analogous discrete limits.
- The Modica-Mortola analogy opens the door to studying time-dependent evolution problems where concentrations form dynamically.
Load-bearing premise
The premise that bounded-energy sequences of curves necessarily concentrate their curvature into atomic measures at a finite number of points on a limiting curve.
What would settle it
Constructing a family of curves with one curvature concentration whose limiting energy is not an integer multiple of 2π would falsify the characterization of the Γ-limit.
Figures
read the original abstract

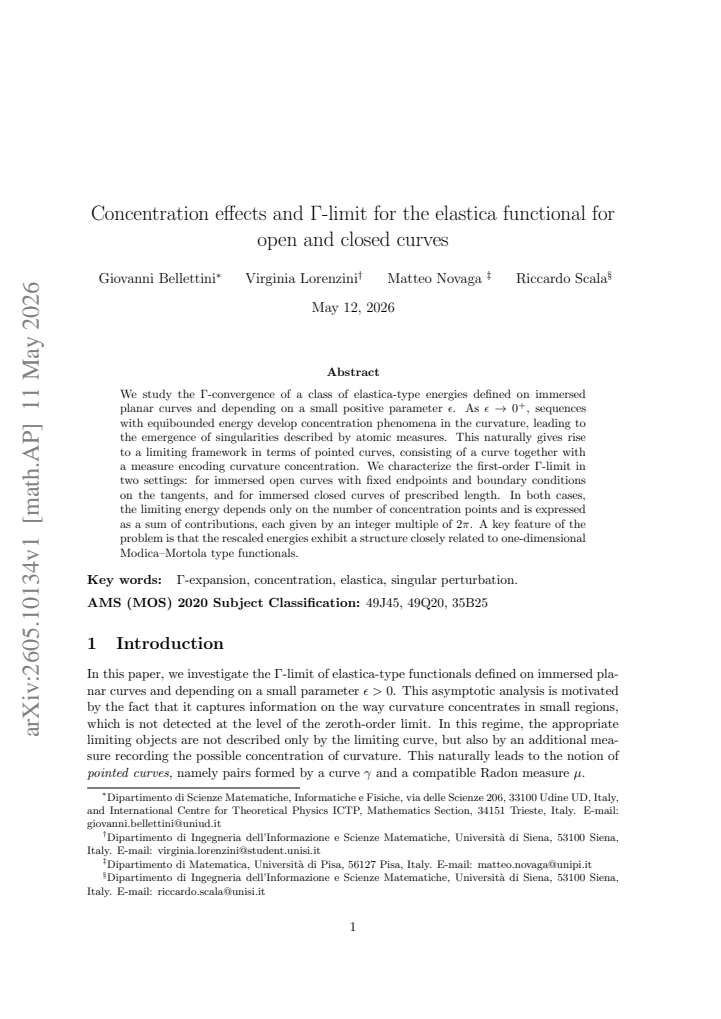

We study the $\Gamma$-convergence of a class of elastica-type energies defined on immersed planar curves and depending on a small positive parameter $\epsilon$. As $\epsilon\to 0^+$, sequences with equibounded energy develop concentration phenomena in the curvature, leading to the emergence of singularities described by atomic measures. This naturally gives rise to a limiting framework in terms of pointed curves, consisting of a curve together with a measure encoding curvature concentration. We characterize the first-order $\Gamma$-limit in two settings: for immersed open curves with fixed endpoints and boundary conditions on the tangents, and for immersed closed curves of prescribed length. In both cases, the limiting energy depends only on the number of concentration points and is expressed as a sum of contributions, each given by an integer multiple of $2\pi$. A key feature of the problem is that the rescaled energies exhibit a structure closely related to one-dimensional Modica--Mortola type functionals.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper analyzes the Γ-convergence of a family of elastica-type energies on immersed planar curves depending on a small parameter ε > 0. Equibounded-energy sequences exhibit curvature concentration, which is encoded via atomic measures on pointed curves. The first-order Γ-limit is characterized in two settings: open immersed curves with fixed endpoints and prescribed tangent boundary conditions, and closed immersed curves of fixed length. In both cases the limiting energy depends only on the number of concentration points and takes the form of an integer multiple of 2π per point. The proof proceeds by reducing the rescaled energies to one-dimensional Modica–Mortola functionals after suitable localization.
Significance. The explicit, geometry-independent form of the Γ-limit, obtained by matching lower-bound inequalities with explicit upper-bound constructions, constitutes a clean contribution to the calculus of variations for curve energies. The reduction to Modica–Mortola functionals after rescaling supplies a transparent compactness argument and explains the quantization of the limit energy in multiples of 2π. These features are technically solid and of interest to researchers working on concentration phenomena and Γ-convergence for geometric functionals.
minor comments (3)
- [§2.2] §2.2, Definition 2.3: the topology on the space of pointed curves is introduced via a metric that combines Hausdorff distance on the supports with weak* convergence of the measures; a brief remark on why this topology is metrizable and complete would help readers unfamiliar with the setting.
- [Theorem 3.1] Theorem 3.1 (open-curve case): the statement that the limit energy is independent of the locations of the concentration points is correct, but the proof sketch in the text does not explicitly record that the boundary tangent conditions are preserved in the limit; adding one sentence confirming this would remove any ambiguity.
- [Figure 1] Figure 1: the caption refers to “typical concentration profiles” but the figure itself is not labeled with the value of ε or the number of points; adding these labels would make the illustration self-contained.
Simulated Author's Rebuttal
We thank the referee for the positive and accurate summary of our work on the Γ-convergence of the rescaled elastica functional. We are pleased that the referee recognizes the clean form of the limit energy, the quantization in multiples of 2π, and the transparent reduction to one-dimensional Modica–Mortola functionals. The recommendation for minor revision is noted; since no specific major comments were provided, we interpret this as a request for minor editorial or typographical adjustments.
Circularity Check
No significant circularity; derivation self-contained via standard analysis
full rationale
The paper derives the first-order Γ-limit by first proving compactness of equibounded sequences, reducing the rescaled energies to one-dimensional Modica-Mortola functionals to obtain atomic curvature measures on pointed curves, then establishing the lower bound inequality and matching it with explicit upper-bound constructions. The resulting limiting energy (sum of integer multiples of 2π depending only on the number of concentration points) emerges directly from this variational analysis and the structure of the rescaled functionals, without any self-definitional steps, fitted inputs renamed as predictions, or load-bearing self-citations. The derivation is independent of the target result and relies on external, standard techniques.
Axiom & Free-Parameter Ledger
axioms (2)
- standard math Standard properties of Gamma-convergence for functionals defined on spaces of immersed curves
- domain assumption Existence of atomic measures describing curvature concentration for sequences with bounded energy
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
G_ε(γ) = ε^{1/2} ∫ κ² ds + ε^{-1/2} (ℓ(γ) - |p-q|); rescaled energies exhibit structure closely related to one-dimensional Modica-Mortola type functionals... W(θ)=1-cos θ
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
lim inf G_ε ≥ σ G(γ,μ) with σ=∫_0^{2π} 2/√(1-cos ϕ) dϕ =8√2; Φ(θ)=∫ 2/√(1-cos ϕ) dϕ; atomic measure μ=2π ∑ c_j δ_{s_j}
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
