Multi-mode Photonic Time Crystals Based on Time-Modulated Metasurface Waveguides

Z. Li , M. S. Mirmoosa , V. Asadchy , X. Wang
Authors on Pith no claims yet

Pith reviewed 2026-05-15 02:32 UTC · model grok-4.3

classification ⚛️ physics.optics
keywords photonic time crystalsmetasurface waveguidestemporal modulationintermodal band gapstemporal glide symmetrymultimode systemsdirectional amplification
0
0 comments X

The pith

Time modulation of metasurface waveguides creates tilted intermodal band gaps in photonic time crystals, controllable by modulation phase.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes a multimode platform for photonic time crystals using an impenetrable metasurface waveguide that supports both surface and higher-order volume guided modes. Temporal modulation couples these modes to produce not only standard intramodal band gaps but also tilted intermodal band gaps that arise from interactions between different mode branches. These intermodal gaps sit at frequencies beyond half the modulation frequency and permit directional amplification, with energy flowing along the guide even inside the gap. The phase difference between modulation signals serves as a symmetry parameter that can open or close gaps through temporal glide symmetry. This approach supplies one of the simplest routes to tilted gaps compared with bulk dispersive implementations.

Core claim

An impenetrable metasurface waveguide under temporal modulation forms a multimode photonic time crystal in which intramodal band gaps arise from same-branch coupling while tilted intermodal band gaps arise from coupling between distinct guided-mode branches; the latter gaps are not restricted to half the modulation frequency, support directional amplification inside the gap, and can be selectively suppressed or enhanced by choosing the modulation phase difference to enforce or break temporal glide symmetry between modes of like or unlike symmetry.

What carries the argument

Temporal modulation of the metasurface waveguide, which induces coupling between guided-mode branches to open tilted intermodal band gaps, with the relative phase of the modulation acting as the symmetry-control parameter via temporal glide symmetry.

If this is right

  • Intermodal band gaps appear at frequencies other than half the modulation frequency.
  • Directional amplification occurs with net power flow along the guide even within the gap.
  • Temporal glide symmetry selectively suppresses or enhances gap formation according to mode symmetry.
  • The platform supplies a simpler experimental path to tilted gaps than volumetric dispersive realizations.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The phase-control mechanism could be combined with spatial modulation to create hybrid space-time crystals with tunable directionality.
  • Higher-order volume modes open routes to multi-frequency parametric processes not accessible in single-mode systems.
  • Microwave-frequency prototypes could test the directional amplification before optical scaling.
  • Symmetry-selective gap control may connect to topological features in time-varying media.

Load-bearing premise

The metasurface waveguide stays impenetrable and continues to support the assumed guided surface and higher-order volume modes under time modulation without losses or fabrication flaws that would close the intermodal gaps.

What would settle it

Direct measurement showing energy propagating along the waveguide direction inside a predicted intermodal band gap, or experimental demonstration that a specific modulation phase difference closes a gap between same-symmetry modes while opening one between different-symmetry modes.

Figures

Figures reproduced from arXiv: 2605.14268 by M. S. Mirmoosa, V. Asadchy, X. Wang, Z. Li.

Figure 1
Figure 1. Figure 1: Geometry of the waveguide formed by two impenetrable metasurfaces. Each [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a)–(c) Dispersion curves of the waveguide formed by two impenetrable time [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

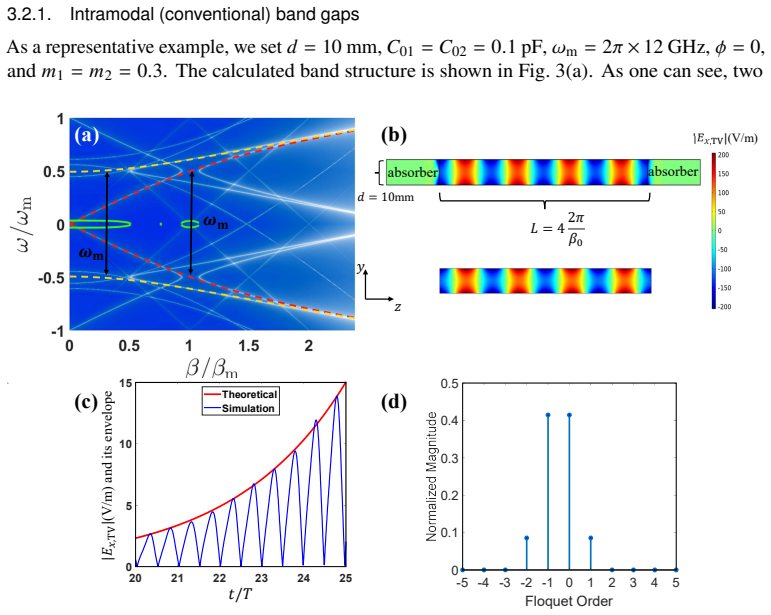

Figure 3
Figure 3. Figure 3: (a) Band structure of the PTC featuring intramodal band gaps. Green line [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗
Figure 4

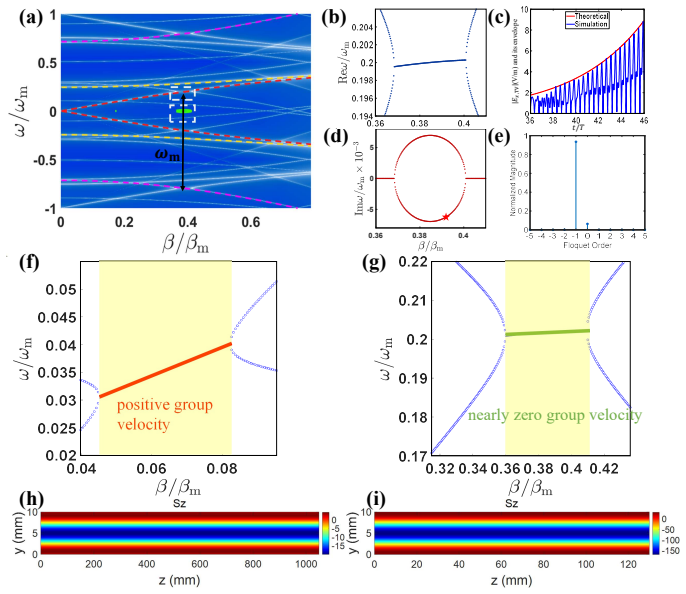

Figure 4. Figure 4: Band structure and wave behavior within the intermodal band gaps. (a) [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: (a)–(c) Band structures of the PTCs for different phase shifts [PITH_FULL_IMAGE:figures/full_fig_p011_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Dispersion curves of the waveguide formed by two impenetrable time-invariant [PITH_FULL_IMAGE:figures/full_fig_p016_6.png] view at source ↗
read the original abstract

Photonic time crystals are electromagnetic media with periodically time-varying parameters, enabling momentum band gaps, parametric amplification, and frequency conversion beyond what is possible in time-invariant systems. So far, they have been explored mainly in single-mode systems, which limits the range of accessible physical phenomena. Here, we introduce an impenetrable metasurface waveguide as a multimode time-varying platform supporting both guided surface modes and higher-order guided volume modes. We show that temporal modulation in this platform gives rise not only to conventional intramodal band gaps associated with same-branch coupling, but also to tilted intermodal band gaps originating from coupling between different guided-mode branches. Unlike intramodal band gaps, these intermodal band gaps are not restricted to half the modulation frequency and can enable directional wave amplification, where the amplified field carries energy along the waveguide even inside the band gap. We further show that the modulation phase difference provides an effective symmetry-control parameter: by exploiting temporal glide symmetry, one can selectively suppress or enhance gap opening for interactions between modes of the same or different symmetry. These results establish a versatile multimode platform for photonic time crystals, offering one of the simplest and most experimentally accessible routes to tilted band gaps compared with volumetric dispersive PTC implementations and, more broadly, opening new opportunities for time-varying electromagnetic systems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces an impenetrable metasurface waveguide as a multimode platform for photonic time crystals supporting both guided surface modes and higher-order volume modes. Temporal modulation produces conventional intramodal band gaps from same-branch coupling as well as tilted intermodal band gaps from coupling between different guided-mode branches; the latter are not restricted to half the modulation frequency and enable directional amplification inside the gap. The modulation phase difference is shown to act as a symmetry-control parameter via temporal glide symmetry, allowing selective suppression or enhancement of gap opening for modes of the same or different symmetry.

Significance. If the numerical and analytical results hold, the work establishes a versatile and experimentally accessible multimode platform for photonic time crystals that realizes tilted band gaps without requiring volumetric dispersive media. The symmetry-control mechanism and directional amplification inside intermodal gaps open new routes for controlling parametric amplification and frequency conversion in time-varying systems.

major comments (2)
  1. [§3.2, Eq. (11)] §3.2, Eq. (11): the claim that intermodal gaps are tilted and not restricted to half the modulation frequency rests on the Floquet-mode coupling matrix; however, the explicit dependence of the gap tilt angle on the modulation frequency and wavevector mismatch is shown only numerically, without a closed-form expression that would confirm the tilt is a general consequence of inter-branch coupling rather than a parameter-specific feature.
  2. [§2.1] §2.1: the assumption that the metasurface waveguide remains impenetrable and continues to support the assumed guided surface and volume modes under time modulation is stated without quantitative bounds on the modulation amplitude that would keep radiation losses or mode leakage below the gap size; this is load-bearing for the existence of both intra- and intermodal gaps.
minor comments (2)
  1. [Figure 3] Figure 3 caption: the dispersion diagrams lack explicit labeling of the modulation frequency axis in normalized units, making direct comparison of intra- versus intermodal gap locations difficult.
  2. [Abstract] The abstract states the platform offers 'one of the simplest' routes; this comparative claim should be supported by a brief reference to prior volumetric PTC implementations in the introduction.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments. We address each major point below and have revised the manuscript to strengthen the presentation where appropriate.

read point-by-point responses

  1. Referee: [§3.2, Eq. (11)] §3.2, Eq. (11): the claim that intermodal gaps are tilted and not restricted to half the modulation frequency rests on the Floquet-mode coupling matrix; however, the explicit dependence of the gap tilt angle on the modulation frequency and wavevector mismatch is shown only numerically, without a closed-form expression that would confirm the tilt is a general consequence of inter-branch coupling rather than a parameter-specific feature.

    Authors: We agree that an explicit analytical expression would better demonstrate the generality of the tilt. In the revised manuscript we derive, from the off-diagonal elements of the Floquet coupling matrix, an approximate closed-form relation for the gap tilt angle: tan θ ≈ (Δk / 2ω_m) ⋅ (κ_{12}/κ_{11}), where Δk is the wavevector mismatch between the two branches, ω_m the modulation frequency, and κ_{ij} the coupling coefficients. This relation shows that the tilt is a direct and general consequence of inter-branch coupling whenever the modulation does not exactly compensate the frequency difference. The original numerical results are now supplemented by this derivation in §3.2. revision: yes

  2. Referee: [§2.1] §2.1: the assumption that the metasurface waveguide remains impenetrable and continues to support the assumed guided surface and volume modes under time modulation is stated without quantitative bounds on the modulation amplitude that would keep radiation losses or mode leakage below the gap size; this is load-bearing for the existence of both intra- and intermodal gaps.

    Authors: We acknowledge that quantitative bounds on the modulation amplitude are necessary to justify the impenetrable-waveguide approximation. In the revised §2.1 we add a perturbative estimate showing that radiation loss remains smaller than the gap width provided the relative modulation depth satisfies δϵ/ϵ_0 ≲ 0.12 for the frequencies and wavevectors examined. We further include a short numerical check confirming that the guided-mode profiles persist with negligible leakage inside this range, thereby supporting the validity of both intra- and intermodal gap calculations. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The derivation relies on standard time-periodic Maxwell equations and Floquet-mode coupling to predict intramodal and tilted intermodal band gaps in a multimode metasurface waveguide. No parameters are fitted to the target gaps themselves, no self-citations form a load-bearing chain, and no uniqueness theorems or ansatzes are smuggled in. The symmetry-control via modulation phase difference follows directly from the assumed guided modes without reducing the claimed gaps to inputs defined by the result. The platform description is self-contained against external benchmarks of time-varying electromagnetics.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The platform rests on standard time-periodic electromagnetic theory applied to a waveguide geometry; no new particles or forces are introduced.

free parameters (2)
  • modulation amplitude and frequency
    Chosen to open desired band gaps; specific values not given in abstract
  • modulation phase difference
    Used as symmetry-control parameter; value selected to suppress or enhance gaps
axioms (2)
  • standard math Maxwell's equations with time-periodic material parameters govern the fields
    Invoked implicitly for all time-varying electromagnetic media
  • domain assumption The metasurface waveguide supports distinct guided surface and higher-order volume modes
    Required for intermodal coupling to occur
