Destabilization of temperature-gradient-driven plasma turbulence by equilibrium $\vec{E}\times \vec{B}$ flow shear

T0 review · 3 major / 4 minor · reviewed 2026-08-02 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Imposed E×B flow shear can destroy the zonal flows that regulate plasma turbulence, setting off a sharp rise in heat transport.

desk verdict Imposed E×B shear can break the Dimits state and sharply increase ITG transport; the simulation evidence is solid, though the geometric threshold theory leans on constants fitted from the same runs. read the letter →

arxiv 2607.11784 v2 pith:MWYHLJQD submitted 2026-07-13 physics.plasm-ph

Haomin Sun , Plamen G. Ivanov , Justin Ball , Stephan Brunner , Bhavin S. Patel This is my paper · ORCID
classification physics.plasm-ph
keywords ion-temperature-gradientturbulencezonalflowsE×BflowshearDimitsregimegyrokineticsimulationsturbulenttransportsphericaltokamaksflow-sheardestabilization
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper establishes that in the low-transport state known as the Dimits regime, an externally imposed E×B flow shear does not simply suppress turbulence: once the imposed shear approaches the strength of the self-generated zonal flows, it can destroy them, causing the turbulent heat flux to rise sharply. The mechanism is geometric: the Dimits state needs alternating bands of flow shear with widths in a fixed range, and an imposed shear cannot be accommodated once it exceeds a threshold set by the ratio of the minimum and maximum allowed band widths. A reduced fluid model reproduces the same behavior, showing the effect is not an artifact of kinetic or toroidal details. Simulations of spherical tokamak discharges find the experimentally inferred rotation shear sitting at or just below the threshold, suggesting that toroidal rotation in such devices is limited primarily by heat injection rather than by momentum injection alone. This overturns the textbook expectation that equilibrium flow shear monotonically improves confinement.

What carries the argument

The load-bearing object is a simple inequality, the compatibility condition ω⊥/ωc ≤ λ ≡ (ℓmax−ℓmin)/(ℓmax+ℓmin), where ω⊥ is the imposed E×B shear, ωc the critical shear of the Dimits state, and ℓmin and ℓmax the minimum and maximum radial widths that a zonal-shear band can have while still suppressing turbulence. The argument counts how many alternating shear regions of total shear ±ωc can fit across a domain of width L; when the imposed shear is too large, no integer number of bands satisfies both width bounds, so the self-organized pattern breaks down. This geometric argument carries the paper's explanation for why transport increases in the interval λ < ω⊥/ωc < 1. A second key ingredient

What would settle it

Run a flux-tube gyrokinetic or fluid simulation below the Dimits threshold and scan the imposed E×B shear finely across 0 < ω⊥/ωc < 1; if the time-averaged heat flux never rises above its zero-shear value before being quenched, the claimed destabilization window does not exist. Equivalently, a controlled tokamak rotation-shear scan with fixed profiles that shows no local heat-flux peak would contradict the mechanism.

Watch

Extended reading notes

Core claim

The central claim is that imposed equilibrium E×B flow shear can destabilize the Dimits state of ion-temperature-gradient turbulence. In this low-transport state, self-organized zonal flows—large-scale bands of perpendicular flow—regulate the turbulence. The paper shows that the turbulent eddies respond only to the total perpendicular shear, the sum of imposed and zonal shear. Weak imposed shear is absorbed by a reorganization of the zonal-flow pattern, but when the imposed shear becomes comparable to the intrinsic zonal shear, the alternating zonal-shear regions can no longer satisfy the required width bounds, the zonal flows break down, and heat transport rises sharply before being quenche

Load-bearing premise

The geometric argument assumes that the Dimits state always requires alternating shear bands whose widths stay between a fixed minimum and a fixed maximum that do not depend on the imposed shear; the paper notes the mechanism setting the maximum width is not yet established.

Editorial extensions

If this is right

  • In the Dimits regime, equilibrium flow shear is not a monotonic confinement knob: there is a window of imposed shear in which heat transport rises sharply before larger shear quenches the turbulence.
  • The mechanism is independent of kinetic effects and toroidal geometry, since a minimal two-dimensional fluid model reproduces it; analogous combinations of self-organized and imposed shear in other turbulent systems may show the same breakdown.
  • In spherical tokamaks, steady-state rotation shear can be pinned below the destabilization threshold, so toroidal rotation is set by the balance of heat and momentum injection rather than by momentum diffusivity alone.
  • Machines operating in this regime face a heat-flux hill: to reach the strongly suppressed high-shear state, enough heat must be injected to sustain the profiles through the enhanced transport.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • If the compatibility condition is generic, existing databases of flow-shear scans in other tokamaks could be re-examined for a heat-flux peak below the quench threshold; a local maximum in transport versus rotation shear would be a direct experimental signature.
  • The same geometric incompatibility might appear in planetary atmospheres or oceans, where externally forced mean zonal winds interact with self-organized zonal jets; idealized beta-plane simulations with imposed large-scale shear could test whether the zonal jet pattern breaks down analogously.
  • The empirical finding that the Dimits shift grows at low safety factor and tight aspect ratio implies the destabilization window widens in such geometries, which may make the effect more prominent in future compact tokamaks or spherical devices.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 4 minor

Summary. The manuscript reports a non-monotonic dependence of ion heat transport on imposed equilibrium E×B flow shear in local gyrokinetic ITG simulations: weak shear leaves the Dimits state roughly intact, intermediate shear destroys the self-generated zonal flows and produces a sharp transport increase, and strong shear quenches turbulence. The authors interpret this as a geometric incompatibility: if the Dimits state requires alternating zonal-shear layers of widths between ℓmin and ℓmax, an imposed shear ω⊥ is compatible only for ω⊥/ωc ≤ λ=(ℓmax−ℓmin)/(ℓmax+ℓmin), leaving a destabilizing interval λ<ω⊥/ωc<1. A reduced 2D fluid model reproduces the phenomenology. Gyrokinetic simulations of MAST-U discharges find the inferred rotation shear at or below the onset of the transport increase, suggesting rotation can be limited by heat injection.

Significance. If the mechanism holds, it overturns the standard expectation that equilibrium flow shear monotonically suppresses ITG transport and identifies a concrete constraint on spherical-tokamak operation, with possible broader implications for shear-driven zonal/mean-flow interactions. The paper's strengths are its systematic numerical evidence: the GENE scans cover multiple gradients and explicitly remove PVG to rule out the obvious alternative mechanism; the fluid model shows the effect is not tied to kinetic or toroidal details; the MAST-U analysis covers six discharges and includes kinetic electrons, electromagnetic fluctuations, and collisions; and a global GENE run is cited as a partial check. The main weakness is that the central geometric criterion, Eq. (4), is not yet a predictive theory because ℓmin and ℓmax are estimated from the same simulations and the scale ℓmax is admittedly not understood.

major comments (3)
  1. [Section III, Eqs. (2)–(4)] The compatibility condition is derived from assumptions (i)–(iv), but its predictive content depends on ℓmin and ℓmax being fixed, finite, and independent of ω⊥ and of the simulation domain. The manuscript states that 'the mechanism setting ℓmax remains to be established' and offers a speculative finite-mean-free-path argument; the quoted estimates are made from the ω⊥=0 saturated Dimits state in the Supplemental Material. Thus λ is calibrated on the same simulations Eq. (4) is supposed to explain. If ℓmax changes with ω⊥ — e.g., because the avalanche/ferdinon mean free path depends on total shear — or if it grows with the radial box size in the flux-tube geometry, the predicted interval is not a robust prediction. Please provide direct measurements of ℓ±(ω⊥) and ℓmax(Lx), an independent estimate of ℓmax, and a comparison of Eq. (4) with the measured onset in Fig. 1 without free adjustme
  2. [Section III, assumption (i) and Fig. 4] The derivation idealizes the total shear profile as piecewise constant equal to ±ωc and counts N discrete shear regions. The actual profiles in Fig. 2(e–h) are smooth and asymmetric, with no clear square-wave structure. It is not demonstrated that the inequalities ℓ+≤ℓmax and ℓ−≥ℓmin apply to the actual profiles or that N is well-defined. Please show that the square-wave idealization is conservative, for example by checking Eq. (3) against the measured widths in the GK and fluid runs, or derive the criterion for continuous profiles.
  3. [Section II and footnote [75]] The simulations establishing the effect (Fig. 1 and the fluid model) are local, gradient-driven, and radially periodic; the global gyrokinetic check mentioned in footnote [75] is not documented. Because the geometric argument invokes a finite ℓmax and the local flux-tube domain imposes radial periodicity on zonal flows, the possibility that ℓmax is influenced by the periodic box (or that profile relaxation changes the zonal response) needs to be addressed with quantitative evidence. Please report the global-run setup and result, or provide a dedicated finite-domain convergence study of the onset shear.
minor comments (4)
  1. [Figure 5 caption] The panel labeling is inconsistent: (a,c) are time traces while (b),(d) are flux-versus-shear plots, but the caption reads 'Time traces ... (a,c), and (b) ion heat flux and (d) ion toroidal angular momentum flux ...'. Please clarify, e.g., 'Panels (a) and (c): time traces; panels (b) and (d): fluxes versus flow shear.'
  2. [Section III, Eq. (4)] The symbol λ is introduced but not given a name; later it is referred to as a threshold. Consider defining it explicitly as the 'compatibility threshold' to avoid confusion with the plasma micro-scales.
  3. [Supplemental Material [50]] The estimates of ℓmin and ℓmax, the box-size-independence check, and the derivation of the mean-flow-shear terms in the fluid model are all relegated to the Supplement. Since the finite-ℓmax assumption underpins the central theoretical claim, the box-size-independence result should appear in the main text or at least be described with a quantitative summary.
  4. [Figure 2 caption] The remark that y-axes are '(same for the pairs of simulations with equal radial box size)' is unclear. Please specify the radial box size in each panel or state explicitly where the normalization changes.

Circularity Check

0 steps flagged · score 2.0 of 10

No significant circularity: Eq. (4) is a constraint-satisfaction argument with empirically estimated widths, not a self-derived prediction; admitted gaps limit predictive force but do not make the derivation circular.

full rationale

The paper's central result—the non-monotonic heat-flux response to imposed E×B shear—is a direct output of GENE gyrokinetic simulations and of the reduced fluid model, not a consequence of Eq. (4). Equation (4) is obtained from the explicit inequalities in Eq. (3) using assumptions (i)–(iv); none of these assumptions contain Eq. (4), so the algebra is not self-definitional. The quantities ℓmin and ℓmax are empirical inputs: the paper states "In both GK and reduced-fluid simulations, we also observe a maximum zonal-flow radial scale that is independent of the radial box size ... implying a finite ℓmax [50]" and separately says "the mechanism setting ℓmax remains to be established." This is an acknowledged missing first-principles derivation, not a circular step: the finite-ℓmax observation is a constraint on the zero-shear Dimits state that could in principle fail, and it is used to rationalize, rather than to generate, the observed breakdown interval. If the Supplemental estimates of ℓmin and ℓmax are taken from the same zero-shear saturated state, the resulting numerical threshold comparison is a consistency check rather than an independent prediction, but the main mechanism claim does not reduce to that comparison. Self-citations to [60] and [49] provide the reduced model and regime context, but the GK results and MAST-U comparisons stand on the simulations performed here; no load-bearing uniqueness theorem or ansatz is imported from the authors' prior work. Overall the derivation chain is self-contained; the identified weaknesses (unproven ℓmax bound, local flux-tube idealization) are correctness/predictive-power limitations, not circularity.

Assumptions & free parameters 3 free parameters · 5 assumptions · 2 invented entities

The paper's central claim rests on the geometric incompatibility argument (Section III), whose two scale parameters ℓmin and ℓmax are estimated from the same simulated saturated state, and on the assumption that local flux-tube gyrokinetics captures the mechanism. The geometrical argument is not fully a first-principles derivation because ℓmax is an unexplained fit. The paper is honest about this gap.

free parameters (3)
  • ℓmin, minimum zonal-shear-region width = estimated from saturated Dimits state (Supplemental Material)
    A key input to the geometric compatibility condition (4); not measured independently of the simulations it is used to explain.
  • ℓmax, maximum zonal-shear-region width = estimated from saturated Dimits state
    The paper states 'the mechanism setting ℓmax remains to be established'; it is effectively a fit parameter of the model.
  • (R0/LTi)0 and a in Dimits-shift fit = (R0/LTi)0 = 46, a = 0.56
    Empirical fit to the Dimits-transition boundary in Figure 7(b); the paper states there is no satisfactory theory for this dependence. Not used directly in the geometry argument.
assumptions (5)
  • domain assumption Dimits-state zonal shear regions must organize into alternating positive/negative regions of total shear whose magnitudes are approximately ±ωc.
    Core idealization of Section III, used to derive equation (2).
  • domain assumption The Dimits state requires zonal-shear regions of width between ℓmin and ℓmax.
    Assumptions (ii) and (iii) in Section III; ℓmax is explicitly stated to lack an established mechanism.
  • domain assumption Local flux-tube, gradient-driven gyrokinetics represents the relevant experimental regime, with the equilibrium shear imposed as a constant parameter.
    The paper's main scans are local; global checks are mentioned only once [75]. The interaction of zonal flows with a radially varying equilibrium shear profile is not treated.
  • domain assumption The two-dimensional cold-ion fluid model captures the Dimits-regime mechanism of the gyrokinetic system.
    The identified physical mechanism is claimed to be geometry-independent based on this model, and the model's derivation is summarized by reference to [60].
  • domain assumption PVG terms can be artificially removed while leaving the underlying turbulence dynamics representative.
    Used to disentangle PVG effects from the new E×B mechanism; assumes no hidden coupling.
invented entities (2)
  • Ferdinons
    purpose: Propagating structures inside shear regions, invoked as the physical mechanism that may set ℓmax.
    The paper cites prior work for this term, but admits the mechanism setting ℓmax remains to be established.
  • Dimits-incompatible rotation (the ω⊥/ωc < 1 interval) independent evidence
    purpose: A newly characterized interval of imposed shear where the Dimits state is geometrically incompatible and zonal flows break down.
    The interval is a falsifiable prediction: the transport increase should occur at ω⊥/ωc between λ and 1, testable by future experiments or simulations.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Destabilization of temperature-gradient-driven plasma turbulence by equilibrium $\vec{E}\times \vec{B}$ flow shear." pith.science (2026). https://pith.science/paper/MWYHLJQD

@misc{pith2026260711784,
  author       = {Pith},
  title        = {Pith review of: Destabilization of temperature-gradient-driven plasma turbulence by equilibrium $\vecE\times \vecB$ flow shear},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/MWYHLJQD}},
  note         = {Machine review of arXiv:2607.11784}
}
abstract

A novel physical mechanism whereby sheared equilibrium flow enables temperature-gradient-driven turbulence is identified. Gyrokinetic simulations of ion-scale plasma turbulence show that imposed equilibrium $\vec{E}\times \vec{B}$ flow shear can destroy the self-generated zonal flows that regulate the turbulence. This results in transport that increases sharply with flow shear. A reduced fluid model demonstrates that this is due to the spatial incompatibility of imposed and zonal shear layers. Simulations of spherical tokamak discharges place the inferred rotation shear at, or just below, the threshold of the sharp transport increase, implying that the toroidal rotation can be determined primarily by heat, rather than momentum, injection.

Figures

Figures reproduced from arXiv: 2607.11784 by the authors.

Figure 1

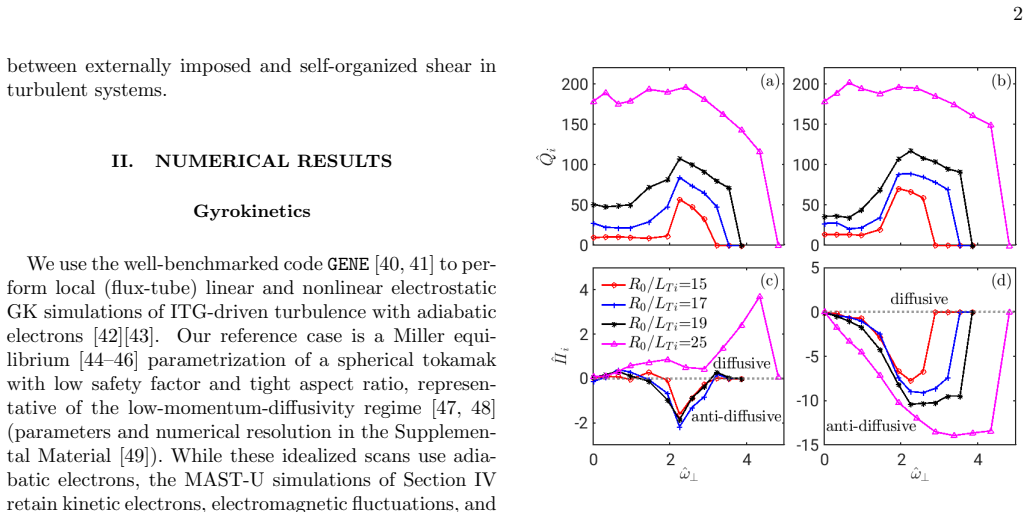

Figure 1. shows the radial fluxes of ion heat and toroidal angular momentum as a function of the imposed E⃗ × B⃗ shear for several values of the ion temperature gradient. Below the Dimits threshold [10] (R0/LT i = 15 (red), 17 (blue), and 19 (black) curves in [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. FIG. 2. Time-averaged radial profiles of the total (zonal + [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. FIG. 4. Illustration of the radial structure of the total advec [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figures from the paper (10 more)
Figure 3
Figure 3. Figure 3: FIG. 3. Same as Figure 2 but for the fluid model. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png]
Figure 4
Figure 4. Figure 4: FIG. 4. Illustration of the radial structure of the total [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: FIG. 5. Time traces of key experimental quantities of MAST [PITH_FULL_IMAGE:figures/full_fig_p005_5.png]
Figure 6
Figure 6. Figure 6: FIG. 6. Dependence of the average zonal-flow shear [PITH_FULL_IMAGE:figures/full_fig_p009_6.png]
Figure 6
Figure 6. Figure 6: FIG. 6. Dependence of the average zonal-flow shear ˆω [PITH_FULL_IMAGE:figures/full_fig_p010_6.png]
Figure 7
Figure 7. Figure 7: FIG. 7. (a) Nonlinear heat flux [PITH_FULL_IMAGE:figures/full_fig_p010_7.png]
Figure 7
Figure 7. Figure 7: FIG. 7. (a) Nonlinear heat flux [PITH_FULL_IMAGE:figures/full_fig_p011_7.png]
Figure 9
Figure 9. Figure 9: shows the time-averaged ion heat flux Qi and ion toroidal angular momentum flux Πi as functions of the imposed flow shear. All five shots exhibit the same behavior as shot 51653 in [PITH_FULL_IMAGE:figures/full_fig_p010_9.png]
Figure 8
Figure 8. Figure 8: FIG. 8. Maximum linear growth rate (left axis) and nonlinear [PITH_FULL_IMAGE:figures/full_fig_p011_8.png]
Figure 8
Figure 8. Figure 8: FIG. 8. Maximum linear growth rate (left axis) and nonlinear [PITH_FULL_IMAGE:figures/full_fig_p010_8.png]
