Omni SCADA Intrusion Detection Using Deep Learning Algorithms

T0 review · 3 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read An ensemble of a feedforward network and an LSTM can detect every attack type in a simulated SCADA network, including temporally correlated flooding and man-in-the-middle attacks, and the paper reports a macro-averaged F1 of 99.68 percent.

desk verdict A clear write-up of a reasonable ensemble idea undone by an evaluation split that leaks temporal context; the headline F1s are not credible as reported. read the letter →

arxiv 1908.01974 v1 pith:S2VCYRUE submitted 2019-08-06 eess.SY cs.SY

Jun Gao , Luyun Gan , Fabiola Buschendorf , Liao Zhang , Hua Liu , Peixue Li , Xiaodai Dong , Tao Lu This is my paper · ORCID
classification eess.SYcs.SY
keywords SCADAintrusiondetectiondeeplearningIDSfeedforwardneuralnetworklongshort-termmemoryFNN-LSTMensembletemporalcorrelationattacksModbus/TCPsecurityfloodingDoS
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper claims that a single intrusion detection system can catch every attack type in a simulated Modbus/TCP SCADA network, whether the attack is visible in a single packet or only in the timing pattern across packets. A feedforward neural network alone reaches $F_1$ = 99.92 percent on the seven temporally uncorrelated attacks but collapses to $F_1$ = 58 percent on flooding and man-in-the-middle attacks, while an LSTM alone reaches $F_1$ = 99.56 percent on correlated attacks but only 99.3 percent on the uncorrelated set. The authors combine the two into an FNN-LSTM ensemble whose outputs are merged by a small multilayer perceptron, and report macro-averaged $F_1$ = 99.68 percent across all attack classes. The result matters for industrial networks because it suggests a deep-learning pipeline can cover both classes of attacks without hand-crafted temporal features.

What carries the argument

The load-bearing object is the FNN-LSTM ensemble, a three-part classifier trained on the combined dataset. A feedforward neural network with one hidden ReLU layer reads the 19 scaled per-packet features and is good at recognizing attacks that leave a mark inside a single packet. A two-layer LSTM with ten cells per layer reads windows of ten consecutive packets, so it can represent the rhythm of flooding and man-in-the-middle traffic; the paper sets the window length at $t = 10$. A multilayer perceptron takes the two models' predicted labels as input and learns to vote between them. The ensemble's job is to route each packet to whichever expert handles its attack family, which is what lets the system claim omni detection.

What would settle it

Run the same FNN-LSTM ensemble on a split that holds out entire attack sessions by time, such as training on the first part of the capture and testing on later hours or withholding some flooding bursts entirely, and compare macro-averaged $F_1$; a material drop below 99.68 percent would show the omni-detection claim overstates generalization to unseen traffic.

Watch

Extended reading notes

Core claim

The central claim is that an ensemble of a feedforward network and a long short-term memory network can serve as an 'omni' intrusion detector for SCADA traffic: it detects temporally uncorrelated attacks (single-packet abnormalities such as pump-speed or tank-level changes) and temporally correlated attacks (two flooding denial-of-service variants and an ARP-spoofing man-in-the-middle attack) at the same time. On the combined dataset the authors report macro-averaged precision 99.76±0.05 percent, recall 99.57±0.03 percent, and $F_1$ 99.68±0.04 percent for the ensemble, versus 87.4±0.6 percent for FNN alone and 99.27±0.05 percent for LSTM alone. The paper attributes the gain to the ensemble architecture: the FNN classifies each packet from its 19 extracted features, the LSTM reads windows of ten consecutive packets to capture inter-packet patterns, and a trained multilayer perceptron combines their predicted labels. The authors further claim this outperforms either model alone on every individual attack class in their online testbed.

Load-bearing premise

The load-bearing premise is that individual packets can be treated as independent samples, so a random 70/30 split of packets gives a fair test; if attack traffic is repetitive, the test set leaks the same sequences the LSTM was trained on and the reported $F_1$ values do not measure generalization to unseen attack sessions.

Editorial extensions

If this is right

  • On the online testbed, the ensemble reports higher macro-averaged $F_1$ than either base model: 99.68 percent versus 99.27 percent for LSTM and 87.4 percent for FNN.
  • The failure mode of FNN is concentrated in the correlated classes (MITM, CRC, SCAN), and the failure mode of LSTM in the uncorrelated classes, so the two models' errors are complementary enough for the ensemble to recover most of both.
  • The system detects all ten attack classes in a single multiclass classifier, so it can label the attack type rather than only flagging an anomaly.
  • The results are obtained with standard building blocks (ReLU FNN, two-layer LSTM, Adam optimizer, early stopping), so no hand-crafted temporal features are needed to catch flooding or MITM.
  • If the ensemble result holds, SCADA operators could replace separate signature rules for flooding, MITM, and single-packet attacks with one retrainable detector.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The reported figures are best read as upper bounds, because the 70/30 split is by random packets rather than by time or attack session; an LSTM window containing test packets can overlap training windows holding the same flood traffic.
  • A session-disjoint test, which the paper does not run, would reveal whether the LSTM has learned the general rhythm of flooding or memorized the specific attack script used to generate the dataset.
  • For live deployment, the static training set would need to be extended or retrained as normal Modbus traffic drifts; the paper does not address concept drift.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

3 major / 6 minor

Summary. This paper presents a deep-learning intrusion detection system for SCADA networks based on Modbus/TCP. The authors build a simulated testbed, extract 19 packet features, and compare a feedforward neural network (FNN), an LSTM, and an FNN-LSTM ensemble. They report that the FNN detects temporally uncorrelated attacks with F1 around 99.9% but fails on correlated attacks (F1 58%), while the LSTM detects correlated attacks with F1 99.56% and uncorrelated attacks with F1 99.3%; the ensemble achieves a macro-averaged F1 of 99.68% on a combined online test. The central claim is that the ensemble detects all attack types regardless of temporal correlation.

Significance. The contribution is an engineering comparison of three model families on a realistic simulated SCADA testbed with ten attack types. If the evaluation were valid, the result would be practically useful: it would show that a simple feature set and a straightforward ensemble can outperform either model alone. The paper does not provide code or a public dataset, so the experiments are not independently reproducible; the main value is conditional on the correctness of the reported evaluation.

major comments (3)
  1. [§IV-A and §III-B] The random packet-level split used throughout Section IV-A creates temporal leakage for the LSTM and the ensemble. The LSTM is defined in Section III-B with t=10 consecutive packets, and the data are split by randomly assigning 70% of individual packets to training and 30% to testing. Under this protocol, any test window of ten consecutive packets contains, on expectation, about seven packets whose immediate temporal neighbors are in the training set. For temporally correlated attacks such as SCAN flooding, CRC flooding, and MITM, which appear as long bursts of near-identical traffic, test windows are therefore nearly indistinguishable from training windows. Consequently, the high F1 values in Tables III and V (e.g., 99.56±0.01% and 99.68±0.04%) do not measure the ability to detect unseen attack sessions, which is the stated 'omni' claim. The feature scaling in Eq. (1), which uses whole-dataset mean and standard deviation, adds a further leakage channel. The evaluation should be redone with a split by time or by attack session, with scaling statistics computed only on the training portion.
  2. [Abstract and Table I] The abstract reports the FNN's F1 on temporally uncorrelated attacks as 99.967±0.005%, but Table I gives 99.92±0.03% for the same quantity. This discrepancy is not explained by rounding and appears in the first statement of the paper's headline results. The authors should correct the inconsistency and audit the other reported figures for similar errors.
  3. [§IV-D] The online evaluation does not establish generalization to new attacks. Section IV-D states only that predicted labels are evenly divided into 10 portions to compute mean and standard deviation; it does not state that the online traffic is temporally disjoint from the training data, nor that it was generated from a different attack script. Because the online script uses the same testbed and generation pipeline as the training data, the reported macro F1 of 99.68±0.04% is a within-pipeline measurement, not a test on unseen or adversarially varied attacks. The 'regardless of temporal relevance' conclusion therefore rests on an evaluation protocol that does not support it.
minor comments (6)
  1. [§III-C] The ensemble schematic is referred to as 'Fig. 8', but Fig. 8 is the performance bar chart; the schematic appears to be Fig. 5.
  2. [§IV-C] The learning-curve discussion refers to 'Fig. 8', but the correct figure is Fig. 7.
  3. [Table III] The F1 entry '58±2' should be '58±2%' to match the other entries in the table.
  4. [§IV-A] The phrase '10-fold training/testing procedure' is ambiguous because a 70/30 split and 10-fold cross-validation are different protocols; the number of repetitions and the fold structure should be specified precisely.
  5. [References] References [43] and [44] are duplicate citations of the same Adam optimizer paper; one should be removed.
  6. [Conclusion] The conclusion contains the typo 'regardless of the their temporal relevance'; the preceding sentence also uses 'performance' where 'performs' is intended.

Circularity Check

0 steps flagged · score 0.0 of 10

No circular derivation: the reported F1 values are empirical measurements, not outputs forced by definitions or by self-citation.

full rationale

The paper reports an empirical evaluation of three neural-network classifiers on a simulated SCADA testbed. There is no mathematical derivation chain in which a predicted quantity reduces by construction to an input quantity: the F1 values are measured after training on 70% of randomly chosen samples and testing on the remaining 30%, as stated in Section IV-A. The only self-citation to prior work by co-author L. Zhang [17] supplies the testbed and attack descriptions, but the paper does not invoke any theorem from that work to force its conclusions; the testbed is an experimental apparatus rather than a result being predicted. The abstract/Table I discrepancy for FNN uncorrelated F1 (99.967±0.005% versus 99.92±0.03%) is an internal numerical inconsistency, and the random packet-level split is a legitimate generalization concern for temporally correlated attacks, but neither makes the empirical evaluation circular. No specific reduction of a claimed result to its own inputs can be quoted from the paper, so the appropriate finding is no significant circularity.

Assumptions & free parameters 4 free parameters · 3 assumptions · 0 invented entities

The model depends on four hand-set hyperparameters (sequence length, hidden layer count, batch size, early stopping patience) and on three domain assumptions about the testbed, labeling, and statistical independence of samples. No new physical or conceptual entities are introduced.

free parameters (4)
  • LSTM sequence length t = 10
    Chosen by hand; the number of consecutive packets fed to the LSTM. No sensitivity analysis is reported.
  • Number of FNN hidden layers = 1
    Selected by comparing F1 with 0, 1, and 2 hidden layers on the same data; 1 is chosen because the improvement from 1 to 2 layers is minimal.
  • Batch size = 1000
    Set for mini-batch training; no sensitivity analysis is reported.
  • Early stopping patience = 35 epochs at relative loss change 1e-6 (FNN); unclear for LSTM
    Chosen to avoid overfitting; the LSTM description is vague, stating only 'maximum epochs reach 3'.
assumptions (3)
  • domain assumption The simulated SCADA testbed produces traffic representative of real SCADA networks.
    Used throughout; the central claim generalizes from this testbed to real deployments.
  • domain assumption Attack packets are correctly labeled by the generation scripts.
    The scripts randomly choose malicious or normal instructions, and the Defense Wall labels packets accordingly; no ground-truth validation is described.
  • domain assumption Samples are independent and identically distributed for train/test splitting.
    They use a random 70/30 split, which assumes no temporal correlation between train and test packets; this is violated by the LSTM's 10-packet sequences.

how reviews work

0 comments
Cite this review

Pith. "Pith review of Omni SCADA Intrusion Detection Using Deep Learning Algorithms." pith.science (2026). https://pith.science/paper/S2VCYRUE

@misc{pith2026190801974,
  author       = {Pith},
  title        = {Pith review of: Omni SCADA Intrusion Detection Using Deep Learning Algorithms},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/S2VCYRUE}},
  note         = {Machine review of arXiv:1908.01974}
}
abstract

We investigate deep learning based omni intrusion detection system (IDS) for supervisory control and data acquisition (SCADA) networks that are capable of detecting both temporally uncorrelated and correlated attacks. Regarding the IDSs developed in this paper, a feedforward neural network (FNN) can detect temporally uncorrelated attacks at an {F$_{1}$} of {99.967${\pm}$0.005\%} but correlated attacks as low as {58${\pm}$2\%}. In contrast, long-short term memory (LSTM) detects correlated attacks at {99.56${\pm}$0.01\%} while uncorrelated attacks at {99.3${\pm}$0.1\%}. Combining LSTM and FNN through an ensemble approach further improves the IDS performance with {F$_{1}$} of {99.68${\pm}$0.04\%} regardless the temporal correlations among the data packets.

Figures

Figures reproduced from arXiv: 1908.01974 by the authors.

Figure 1
Figure 1. Testbed architecture [17] The data needed to feed the neural network is generated by an attack machine using a virtual host named Kali. Kali is a Debian-derived Linux host used for penetration testing and features many attack and defense tools. Additional to the message exchange between the Modbus master (Nova) and its slaves we can launch normal traffic mixed with various attacks from Kali. A command line tool, Mod… view at source ↗
Figure 2
Figure 2. Data packet types distribution in Dataset I, II and [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

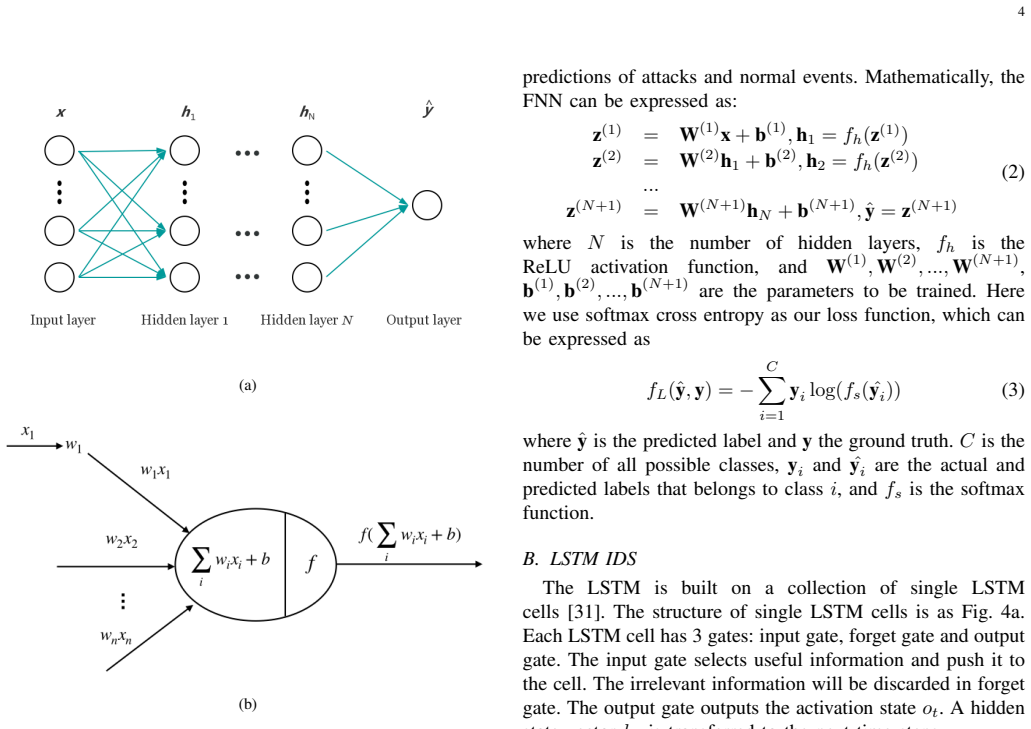

Figure 3. (a)The schematics of the FNN IDS (b) Details of each [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figures from the paper (5 more)
Figure 8
Figure 8. Figure 8: In this model, the data packet features are fed into [PITH_FULL_IMAGE:figures/full_fig_p004_8.png]
Figure 4

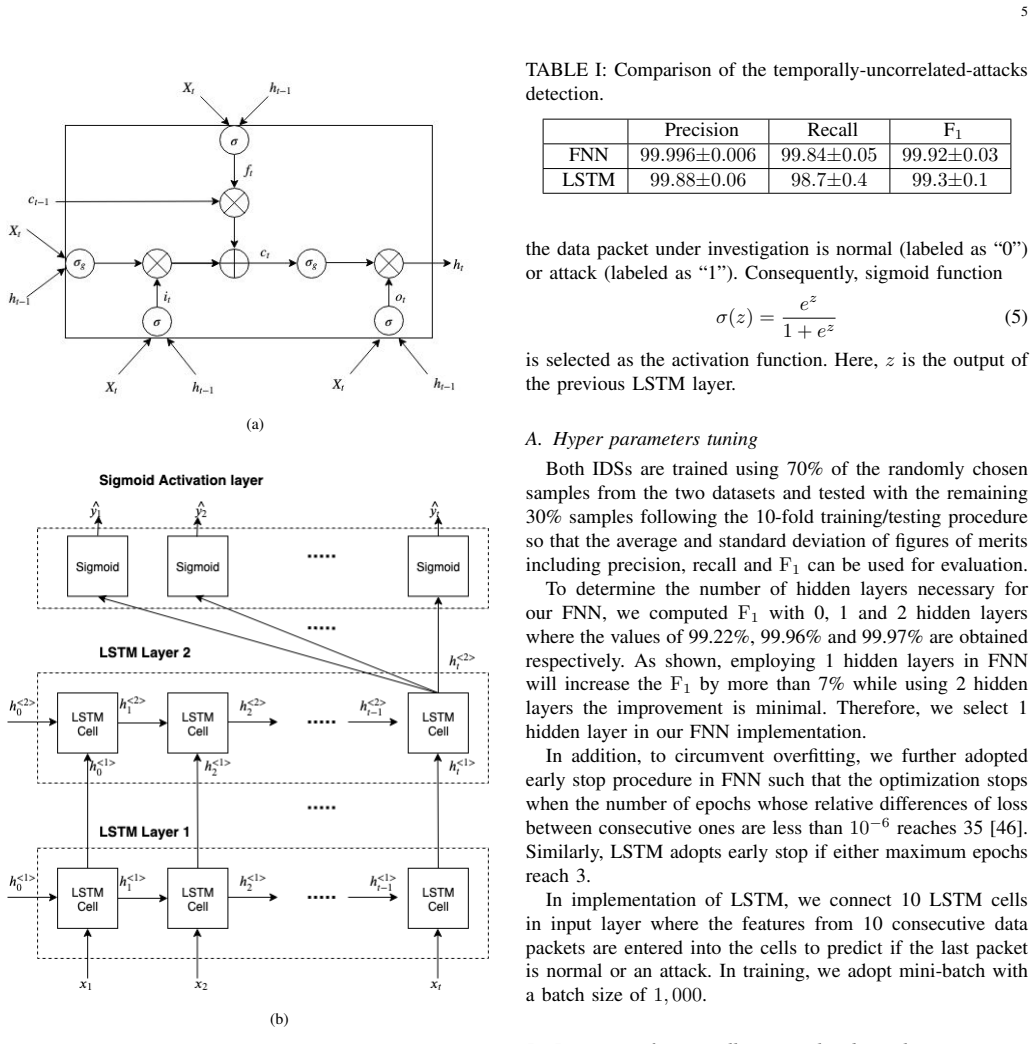

Figure 4. Figure 4: The structure of (a) single LSTM cell, (b) LSTM [PITH_FULL_IMAGE:figures/full_fig_p005_4.png]
Figure 5
Figure 5. Figure 5: Ensemble Model. IV. EXPERIMENT AND RESULT To demonstrate their capability for detecting attacks with- /without temporal correlation, we first implement FNN and LSTM IDSs to establish references for comparison. At this stage, the IDSs only conduct binary classification …
Figure 6
Figure 6. Figure 6: Learning Curves of FNN and LSTM using temporally [PITH_FULL_IMAGE:figures/full_fig_p006_6.png]
Figure 8
Figure 8. Figure 8: (a) Precision, (b) Recall and (c) F1 of individual attacks in omni-attacks detection. Dataset I and II are combined and used to train FNN and LSTM independently. The outputs of both are combined to form the input features of a multilayer perceptron for training. After …
