Enumerating $k$-arc-connected orientations

T0 review · 0 major / 6 minor · reviewed 2026-08-14 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read Every k-arc-connected orientation of a graph can be listed exactly once by a quadratic-time backtracking algorithm.

desk verdict A solid enumeration paper: simple algorithms for k-arc-connected orientations with O(knm^2) delay and O(m^2) amortized time; the central proof holds up, with only minor presentational fixes needed. read the letter →

arxiv 1908.02050 v5 pith:CKBNGTWE submitted 2019-08-06 math.CO cs.DM

Sarah Blind , Kolja Knauer , Petru Valicov This is my paper · ORCID
classification math.COcs.DM MSC 05C2005C4005C85
keywords k-arc-connectedorientationsorientationenumerationalpha-orientationsoutdegreesequencesbacktracksearchflippablepathsamortizedtimecyclereversals
verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

This paper asks whether every k-arc-connected orientation of an undirected graph can be enumerated without repetition, and answers affirmatively with two backtracking algorithms. The first is easy to state but relies on submodular-flow feasibility checks. The second, simpler algorithm splits the task into two independent enumeration problems: listing all orientations with a prescribed outdegree sequence (the $\alpha$-orientations), and listing all outdegree sequences attained by k-connected orientations. For the combined Algorithm 4 the paper proves a delay of $O(k n m^2)$ between outputs and, for $k\ge 2$, an amortized time of $O(m^2)$, improving over the submodular-flow approach's analysis. A reader should care because this turns enumeration of a parameterized connectivity class into a structured search whose building blocks are reusable for tilings, matchings, and other combinatorial families modeled by $\alpha$-orientations.

What carries the argument

The central object is the flippable pair $(u,v)$: in a $k$-connected orientation, $u$ and $v$ form a flippable pair when the maximum number of arc-disjoint directed paths from $u$ to $v$ is more than $k$, so reversing any directed $u$-to-$v$ path lowers the arc connectivity of no pair below $k$. Lemma 10 asserts that for any target $k$-connected outdegree sequence, a vertex with outdegree below its target can always be increased one unit by flipping such a path from some vertex whose outdegree is above target. The other ingredient is the cycle-reversal characterization of $\alpha$-orientations: two orientations have the same outdegree sequence exactly when they differ by reversing arc-disjoint directed cycles, which makes the inner enumeration a directed-path test inside a backtrack tree. The cycle-space dimension lower bound supplies enough same-sequence orientations for the amortized time argument.

What would settle it

Search for two $k$-connected orientations $D$ and $D'$ of a multigraph and a vertex $v$ with $\delta^+_D(v)<\delta^+_{D'}(v)$ such that no vertex $u$ with $\delta^+_D(u)>\delta^+_{D'}(u)$ has $\lambda_D(u,v)>k$; Lemma 8 shows such a $(u,v)$ is exactly the flippable pair Lemma 10 needs. Finding one would make Lemma 10 false and Algorithm 3 miss the outdegree sequence of $D'$. Alternatively, brute-force enumerate all $k$-connected orientations of a small $2k$-edge-connected graph and compare Algorithm 4's output list against them to detect a missing orientation.

Watch

Extended reading notes

Core claim

The central claim is Theorem 15: Algorithm 4 enumerates all $k$-arc-connected orientations of a graph $G$ exactly once, with time delay $O(k n m^2)$, and with amortized time $O(m^2)$ whenever $k\ge 2$. The algorithm reaches every orientation by moving along two kinds of reversals. Reversing a directed cycle changes the orientation but keeps the outdegree sequence fixed, so all orientations of one sequence can be listed by cycle flips. Reversing a directed path between a vertex with surplus outdegree and a vertex with deficit raises the deficit vertex's outdegree by one while preserving $k$-connectivity, provided the pair is flippable; Lemma 10 guarantees such a pair always exists when the target sequence is attainable. The amortized improvement comes from Lemma 14, which shows each $k$-connected outdegree sequence supports at least $(k-1)n + 2$ orientations, so the sequence-level work is averaged over many orientation-level outputs.

Load-bearing premise

The load-bearing premise is Lemma 10: from any $k$-connected orientation, a vertex whose outdegree must be raised can always be raised by one unit by reversing a directed path from some vertex with surplus outdegree, without ever dropping below $k$-connectivity; if this failed for some multigraph, the search tree could skip entire outdegree sequences.

Editorial extensions

If this is right

  • Algorithm 4 lists every $k$-arc-connected orientation with no repetitions, with $O(k n m^2)$ delay; for $k\ge 2$ the amortized time per orientation is $O(m^2)$, a direct improvement over the submodular-flow-based Algorithm 1's $O(m(k^3 n^3 + k n^2 m))$ delay.
  • The $\alpha$-orientation subroutine enumerates all orientations with a fixed outdegree sequence in $O(m^2)$ delay, so any object class encoded as $\alpha$-orientations, such as domino tilings or perfect matchings of plane bipartite graphs, inherits this listing bound whenever it can be reduced to the same problem.
  • The outdegree-sequence routine enumerates every $k$-connected outdegree sequence in $O(k n m^2)$ delay and can be reused as the outer loop whenever the target family is closed under directed-cycle reversals once a sequence is fixed.
  • The search-tree partition by fixed arcs and fixed vertices makes each output appear exactly once, so no post-filtering or deduplication is needed.
  • For $k\ge 2$, the amortized bound shows that the sequence-level enumeration cost is negligible on average, because each outdegree sequence has many orientations attached to it.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

  • The paper's cycle-flip and path-flip split is a general enumeration template: any connectivity-style property that is invariant under directed-cycle reversals and preserved by flippable path reversals could be enumerated with the same two-level backtrack structure, not just $k$-arc-connectivity.
  • The amortized bound depends on having many orientations per outdegree sequence; for $k=1$ the lower bound is only $2$, which is why the $O(m^2)$ amortized statement starts at $k\ge 2$. Improving the lower bound or treating $k=1$ separately would be a natural test of how far the averaging argument stretches.
  • A practical extension would replace the repeated BFS flippability checks with incremental all-pairs connectivity data, potentially reducing the per-node cost below $O(km)$ and improving the delay term for large $k$.
Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Referee Report

0 major / 6 minor

Summary. The paper addresses the enumeration of k-arc-connected orientations of a loopless multigraph, listing each orientation exactly once. It first gives a straightforward backtrack algorithm (Algorithm 1) based on a submodular-flow feasibility test with delay O(m(k^3n^3+kn^2m)). The main contribution is Algorithm 4, which splits the problem into (i) enumerating all outdegree sequences attained by k-connected orientations via flippable directed-path reversals (Section 5, Algorithm 3) and (ii) enumerating all orientations with a prescribed outdegree sequence by reversing directed cycles (Section 4, Algorithm 2). Theorem 15 claims Algorithm 4 has O(knm^2) time delay and O(m^2) amortized time for k≥2. The central technical ingredient is Lemma 10, which asserts that whenever a current k-connected orientation has lower outdegree at v than a target k-connected orientation, some flippable pair (u,v) exists, allowing v's outdegree to be increased by one.

Significance. The paper's main claims appear correct and are proved in a largely self-contained way once standard tools (Menger's theorem, submodularity of directed cut functions, and directed cycle-space generation) are admitted. Lemma 10 is load-bearing and survives close inspection: the uncrossing of tight sets and the counting over the disjoint maximal tight sets and their complement are valid, so the inductive correctness of Algorithm 3 is not endangered by the existential choice of u. Lemma 14's cycle-space lower bound supports the claimed k-independent amortized bound. The α-orientation enumeration in Section 4 is a clean result of independent interest. The paper is transparent about the cost of finding an initial k-connected orientation and about limitations for vertex-connectivity variants. I see no circularity: the complexity bounds are derived from external benchmarks, and self-citations are only background.

minor comments (6)
  1. [Section 5, before Observation 1] The sentence 'reverse a directed path P_uv from u to v and thus increase δ_D^+(u) by one, decrease δ_D^+(v) by one' has the endpoints swapped; the correct effect, as Observation 1 and Algorithm 3 use, is that u's outdegree decreases and v's outdegree increases.
  2. [Lemma 5, proof and complexity paragraph] The direction of the path is reversed in two places: the proof should say that the absence of a directed path from v to u (not from u to v) in D\F prevents an α-orientation fixing F and reversing a=(u,v), and the BFS should be from v to u, matching the path P in the algorithm.
  3. [Abstract and Theorem 15] The abstract states 'amortized time O(m^2)' without the qualification that this holds for k≥2; Theorem 15 explicitly requires k≥2, so the abstract should carry the same caveat.
  4. [Algorithm 4] Algorithm 4 uses the helper functions Reverse− and Reverse+ but does not redefine them; as printed, the versions from Algorithm 3 call EnODS and would output outdegree sequences instead of orientations. The authors should state explicitly that these helpers are to be replaced by versions calling EnODS′.
  5. [Preliminaries] The paper should specify that k is a positive integer; for k=0 several of the complexity and degree arguments, such as 'in a k-connected orientation we have kn≤m' and the k≥2 amortized bound, would need separate treatment or become degenerate.
  6. [Introduction and general editing] There are several typographical errors, for example 'th same outdegrees' and 'revering a directed triangle'; these should be corrected before final publication.

Circularity Check

0 steps flagged · score 0.0 of 10

No circularity found: the derivation chain is self-contained; the central claims do not reduce to their inputs.

full rationale

The paper's central chain is: Lemma 4 (cycle reversals characterize equal outdegree sequences), Lemma 7 (k-connectivity is invariant within O_alpha), Lemma 8 (path reversal lowers the endpoint pair's lambda by exactly one), Lemma 9 (flippability is testable by k+1 BFS), Lemma 10 (existence of a flippable pair when one outdegree is too low), Lemma 12 (EnODS enumerates k-connected outdegree sequences), Theorem 6 (EnOPODS enumerates alpha-orientations), and Theorem 15 (combining the two). Each step is proved in the text from Menger's theorem, submodularity of directed cut functions, the standard cycle-space dimension bound, and the handshaking identity. Lemma 10, the load-bearing existence lemma, is proved directly: intersecting tight sets are shown to be disjoint via submodularity of the directed cut function, and the counting over the maximal tight sets plus Y = V \ union X yields a strict inequality that contradicts the equality c = c. No step defines its target in terms of itself, no fitted parameter is renamed as a prediction, and no central premise rests on the authors' own prior work. Self-citations are not load-bearing: [4] is background discussion of submodular-flow implementations, and [29] is a standard textbook result for the cycle-space dimension with stated assumptions, independent of the present algorithms. The runtime claims are complexity analyses of explicit backtracking algorithms, not empirical predictions. Hence there is no circular step.

Assumptions & free parameters 0 free parameters · 6 assumptions · 0 invented entities

The paper introduces no free parameters or invented entities. Its claims rest on standard structural results (Menger, Nash-Williams, Frank's transformation theorem, cycle space dimension) and on cited polynomial-time subroutines for finding initial orientations. All are external to the paper and independently established.

assumptions (6)
  • domain assumption Nash-Williams theorem: G admits a k-connected orientation iff G is 2k-edge connected
    States the existence condition for k-connected orientations in the Introduction; used as background for the problem.
  • domain assumption Frank's transformation theorem [19]: any two k-connected orientations can be transformed into each other by reversals of directed paths and directed cycles
    Conceptual basis for splitting enumeration into α-orientations and outdegree sequences in Sections 4-6.
  • standard math Local Menger theorem for digraphs (Theorem 1 in the paper)
    Used in Lemmas 8, 9, and 10 to relate cut sizes to arc-disjoint paths.
  • standard math Submodularity of directed cut functions
    Used in Lemma 10's proof to show maximal tight sets are disjoint.
  • standard math Cycle space of a weakly connected digraph has dimension m-n+1 and is generated by directed cycles in strongly connected digraphs
    Used in Lemma 14 to lower-bound the number of α-orientations per outdegree sequence.
  • domain assumption Existence of polynomial-time algorithms for finding a k-connected orientation and an initial α-orientation (submodular flow / max flow)
    Used as preprocessing subroutines in Algorithms 2, 3, 4; complexity cited from [28], [15], [36].

how reviews work

0 comments
Cite this review

Pith. "Pith review of Enumerating $k$-arc-connected orientations." pith.science (2026). https://pith.science/paper/CKBNGTWE

@misc{pith2026190802050,
  author       = {Pith},
  title        = {Pith review of: Enumerating $k$-arc-connected orientations},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/CKBNGTWE}},
  note         = {Machine review of arXiv:1908.02050}
}
abstract

We study the problem of enumerating the $k$-arc-connected orientations of a graph $G$, i.e., generating each exactly once. A first algorithm using submodular flow optimization is easy to state, but intricate to implement. In a second approach we present a simple algorithm with $O(knm^2)$ time delay and amortized time $O(m^2)$, which improves over the analysis of the submodular flow algorithm. As ingredients, we obtain enumeration algorithms for the $\alpha$-orientations of a graph $G$ in $O(m^2)$ time delay and for the outdegree sequences attained by $k$-arc-connected orientations of $G$ in $O(knm^2)$ time delay.

Figures

Figures reproduced from arXiv: 1908.02050 by the authors.

Figure 1

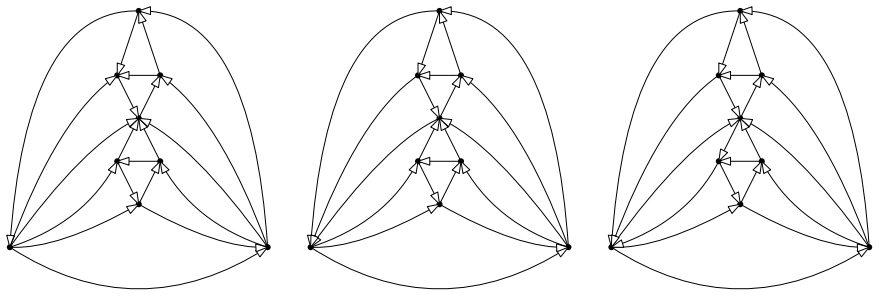

Figure 1. Three strongly connected orientations. Only those in the middle and on the right side are [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
